Whelen - Strip-Lite Plus Series
Engineered for mounting versatility and with patent-pending Water Block Technology, the sleek Strip-Lite® Plus Series is available in Compartment, Warning, Sequencing, or Tank Light models.
Product Description
Dimensions
Strip-Lite® Plus DIM
Dimensions: 0.82" (21mm) H, 1.68" (43mm) W, 11.11" (282mm) L
Weight: 0.30 lbs
Strip-Lite® Plus XL DIM
Dimensions: 0.85" (22mm) H, 2.34" (59mm) W, 11.14" (283mm) L
Weight: 0.575 lbs
Specifications

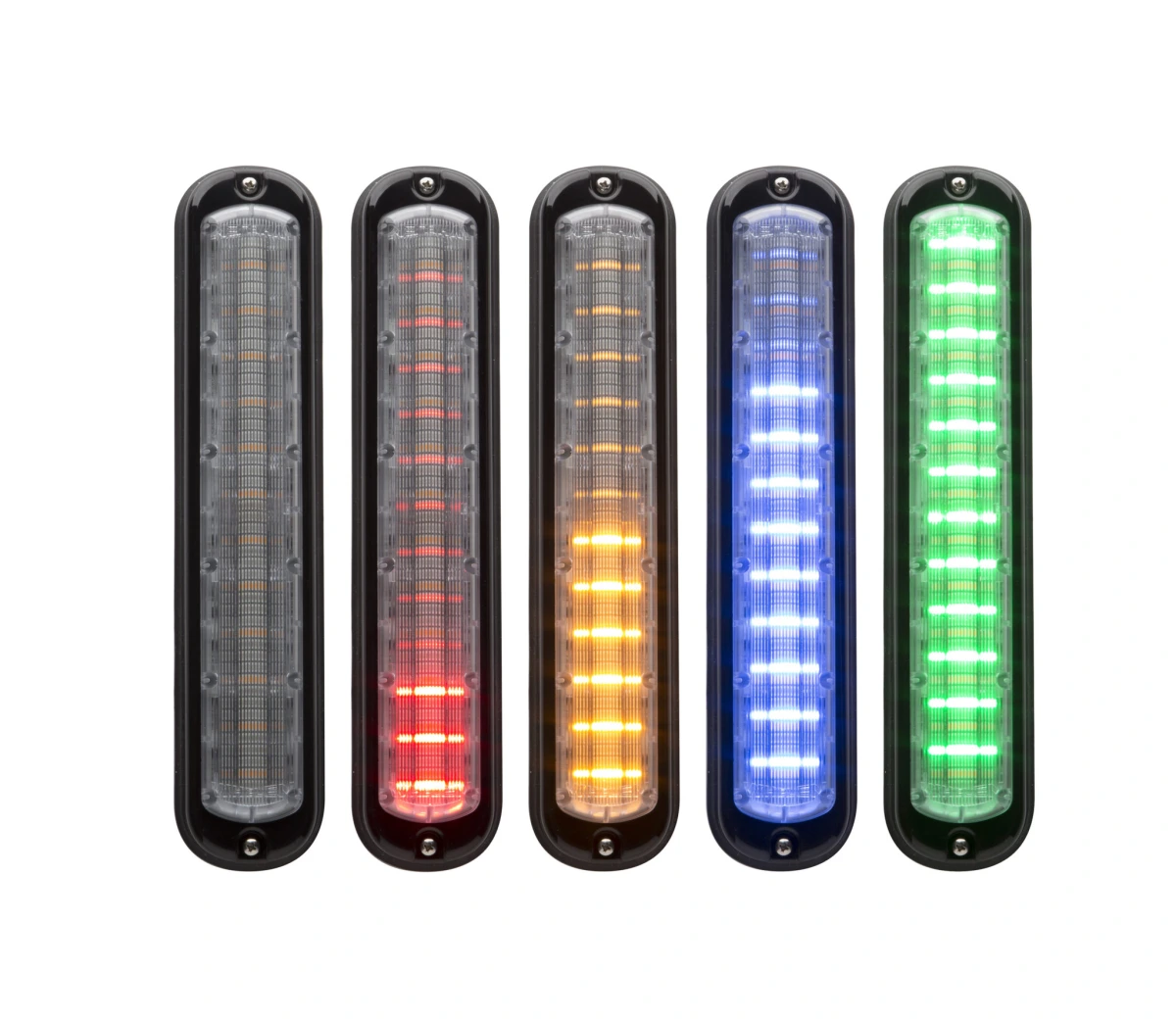

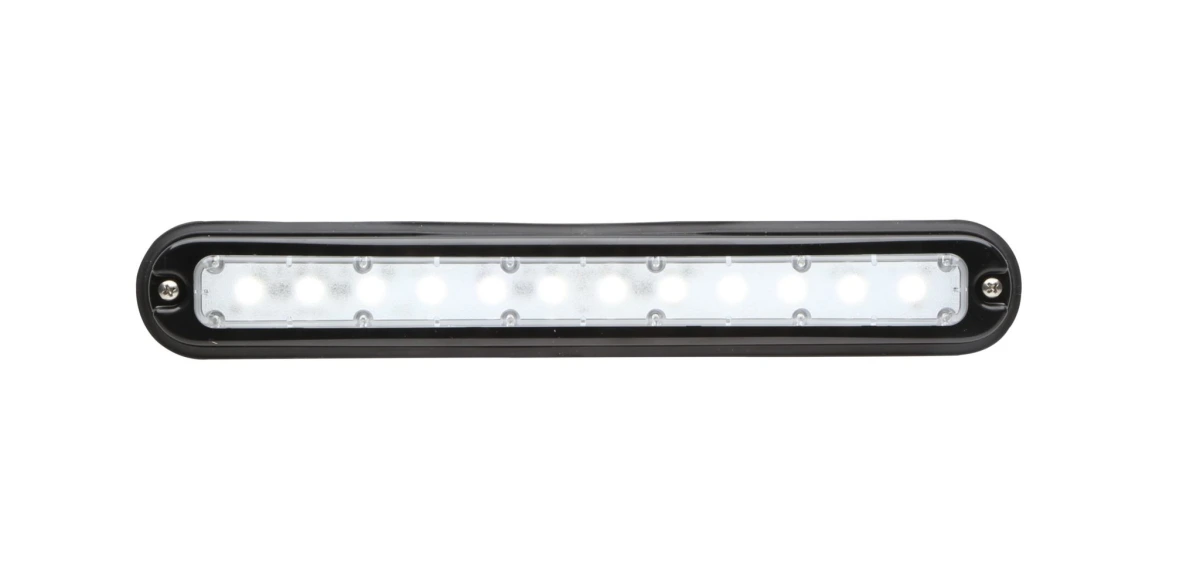

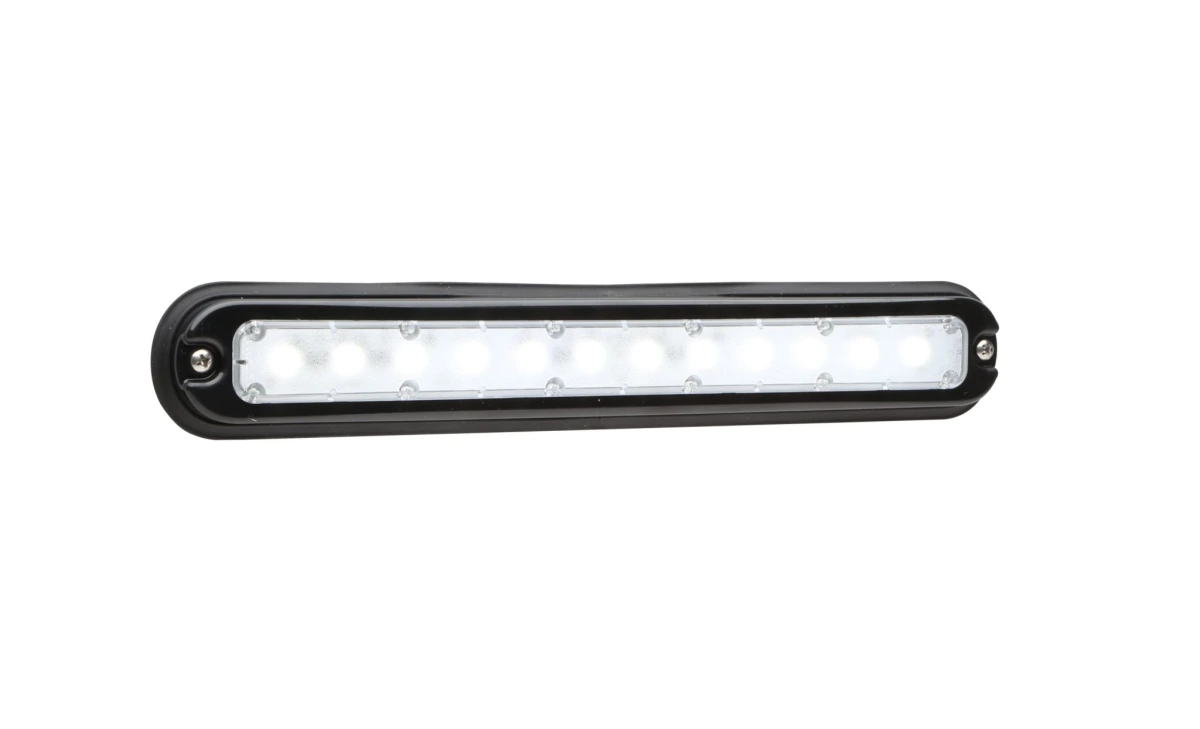

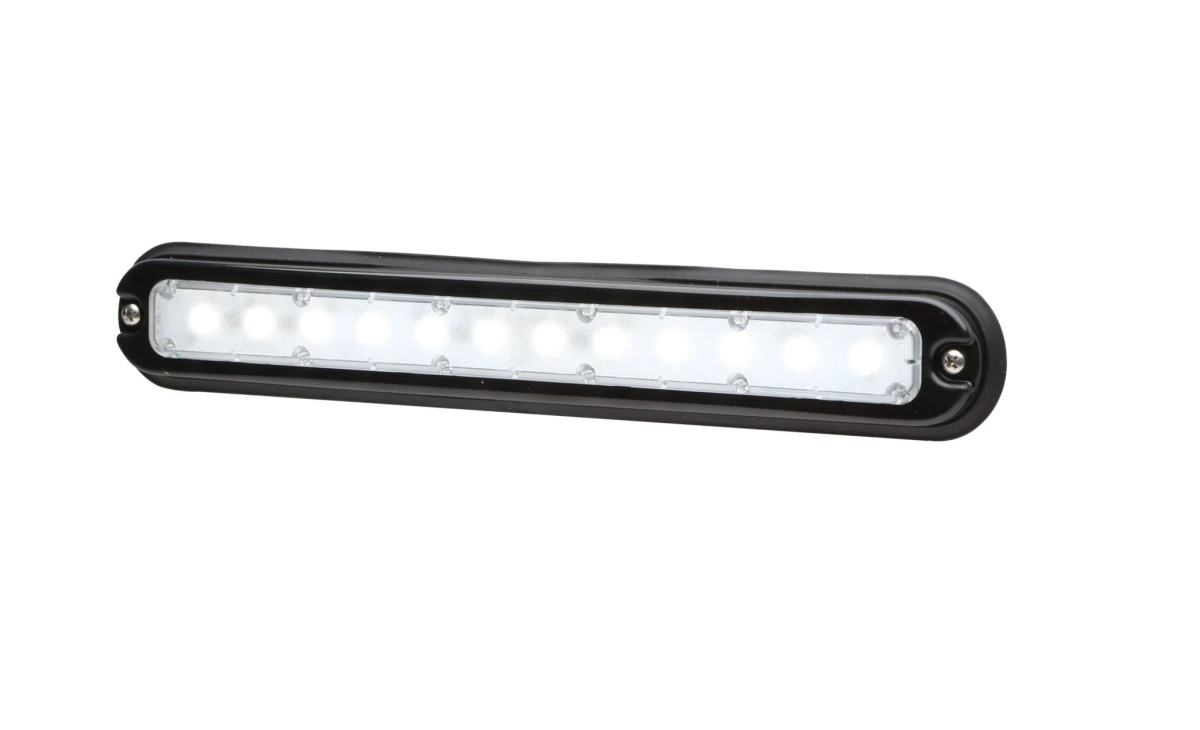

Compartment Light:
| Voltage | 12 or 24 VDC |
| Amps | High intensity models: 0.80 amps (average) at 12VDC "“ 1,000 lumens
0.40 amps (average at 24VDC "“ 1,000 lumens Low intensity models: 0.40 amps (average at 12VDC, 500 lumens |
| Flash Patterns | SOLO: 25 Scan-Lock® flash patterns
DUO: 69 Scan-Lock flash patterns |
| Certifications | IP67 |
| Warranty | Five year warranty |

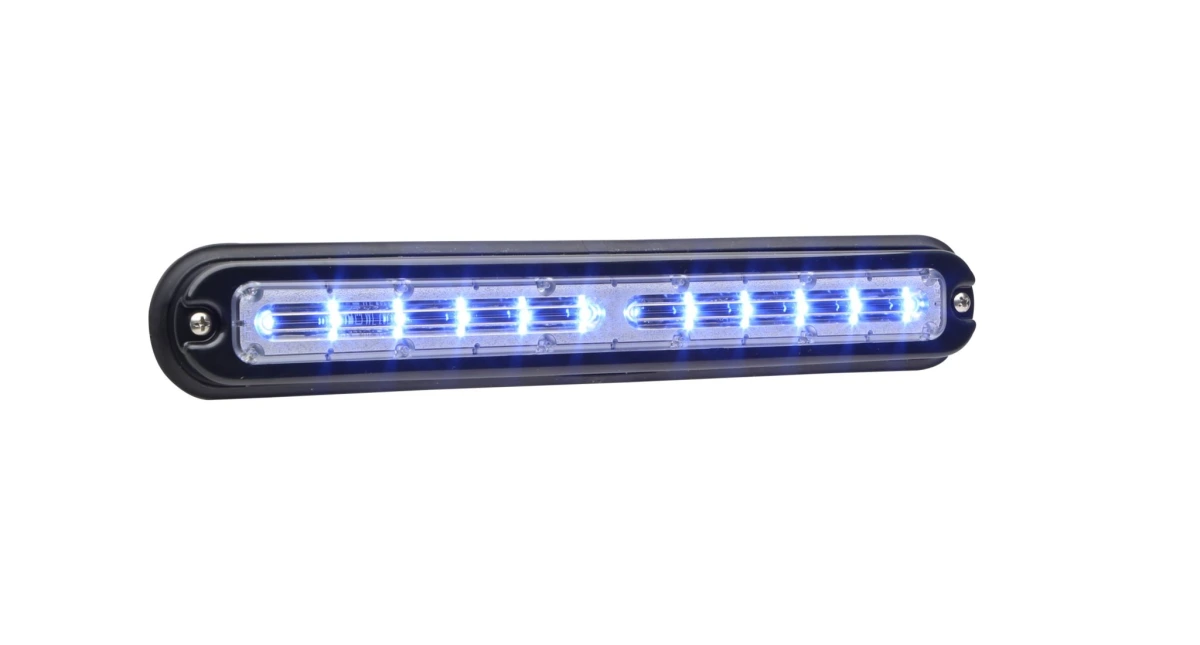

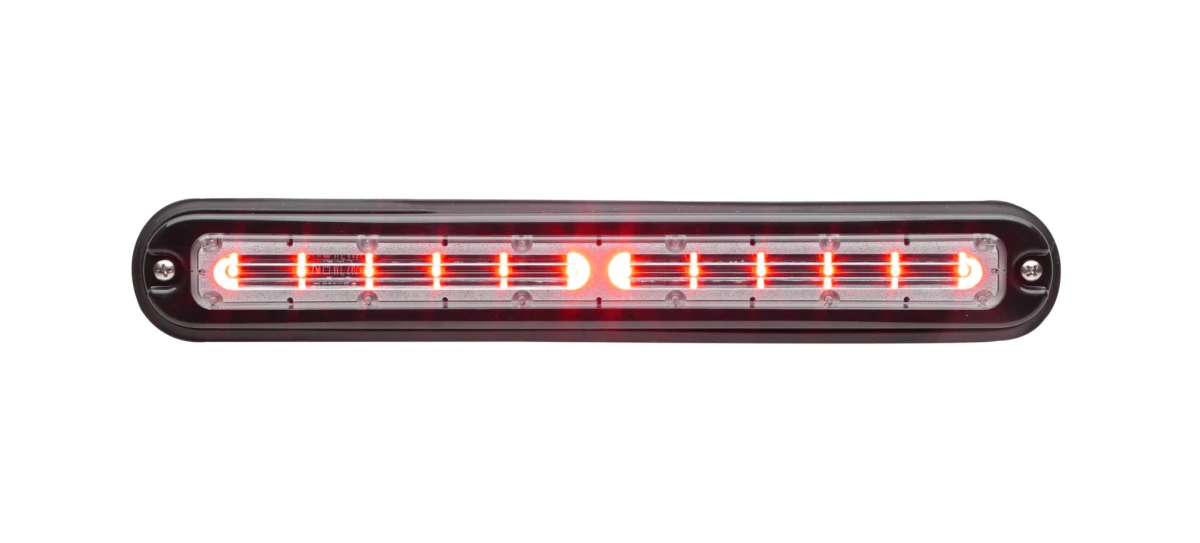

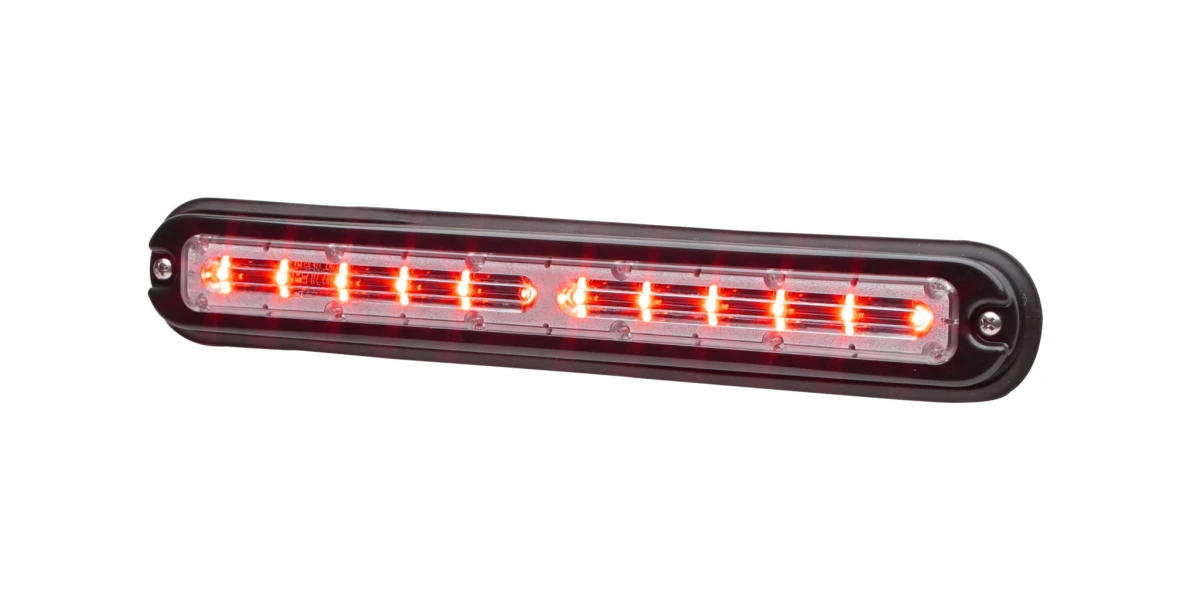

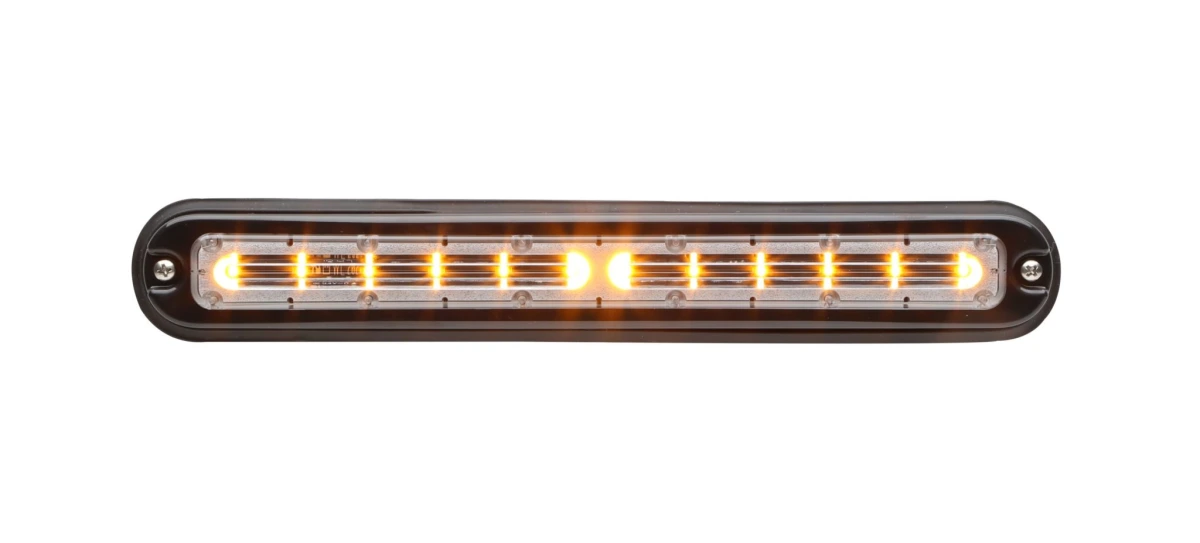

Warning Light:
| Voltage | 12 VDC |
| Amps | SOLO: 0.33 amps (average), 0.80 amps (peak)
DUO: 0.33 amps/color (average, 0.80 amps/color (peak) |
| Flash Patterns | SOLO: 25 Scan-Lock® flash patterns, including steady-burn
DUO: 69 Scan-Lock flash patterns, including steady-burn |
| Certifications | SAE Class 1 Certified
IP67 |
| Warranty | Five year warranty |
Sequencing Light:
| Voltage | 12 VDC |
| Amps | 0.80 amps (average), 1.9 amps (peak) |
| Flash Patterns | 6 Scan-Lock® sequencing patterns and 11 Scan-Lock flashing patterns |
| Certifications | IP67 |
| Warranty | Five year warranty |

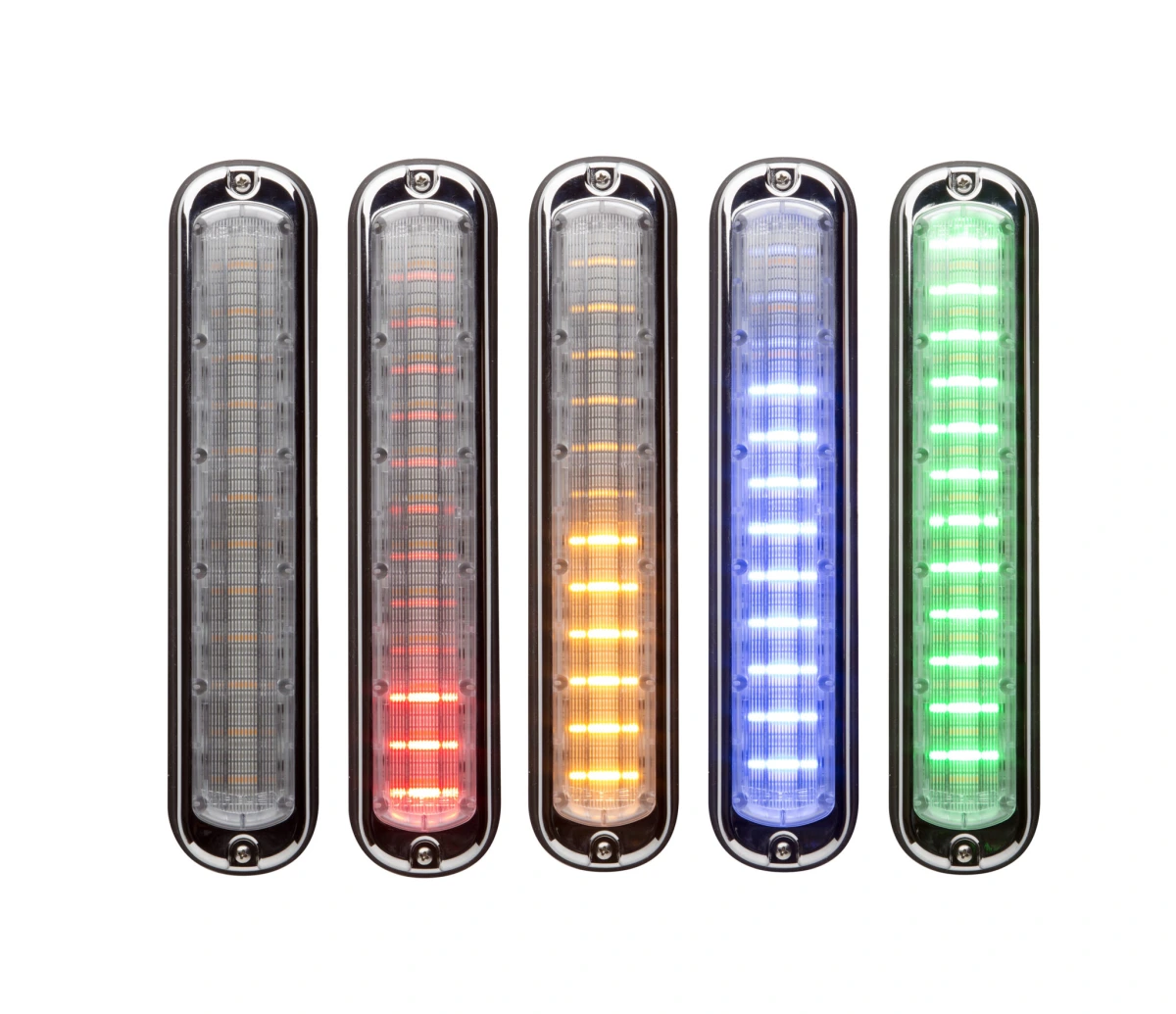

Tank Light:
| Voltage | 12 VDC |
| Amps | 0.80 amps (peak) |
| Certifications | IP67 |
| Warranty | Five year warranty |
Product Configuration
Configure This Product
Choose from the available product options below. Pricing and the configuration summary update automatically.
