Whelen

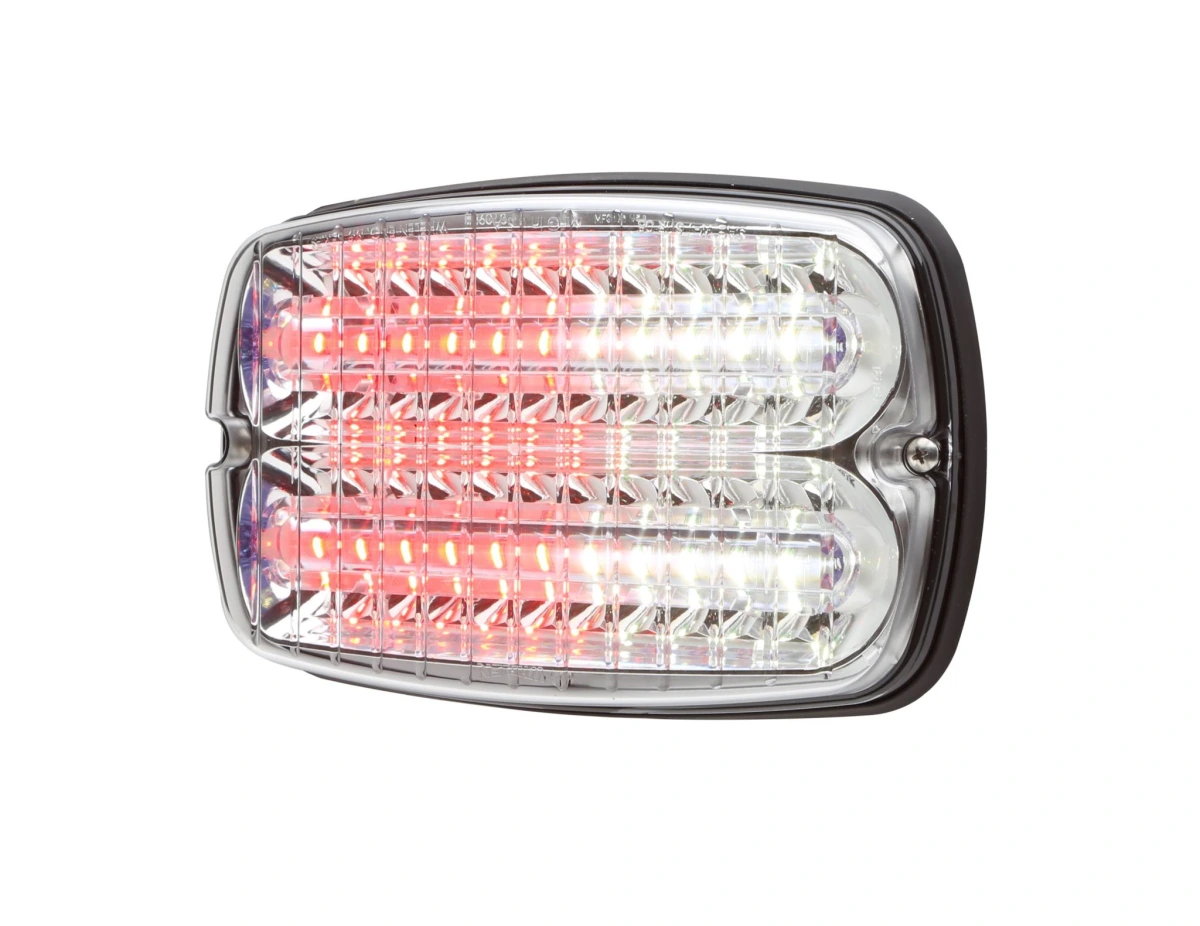

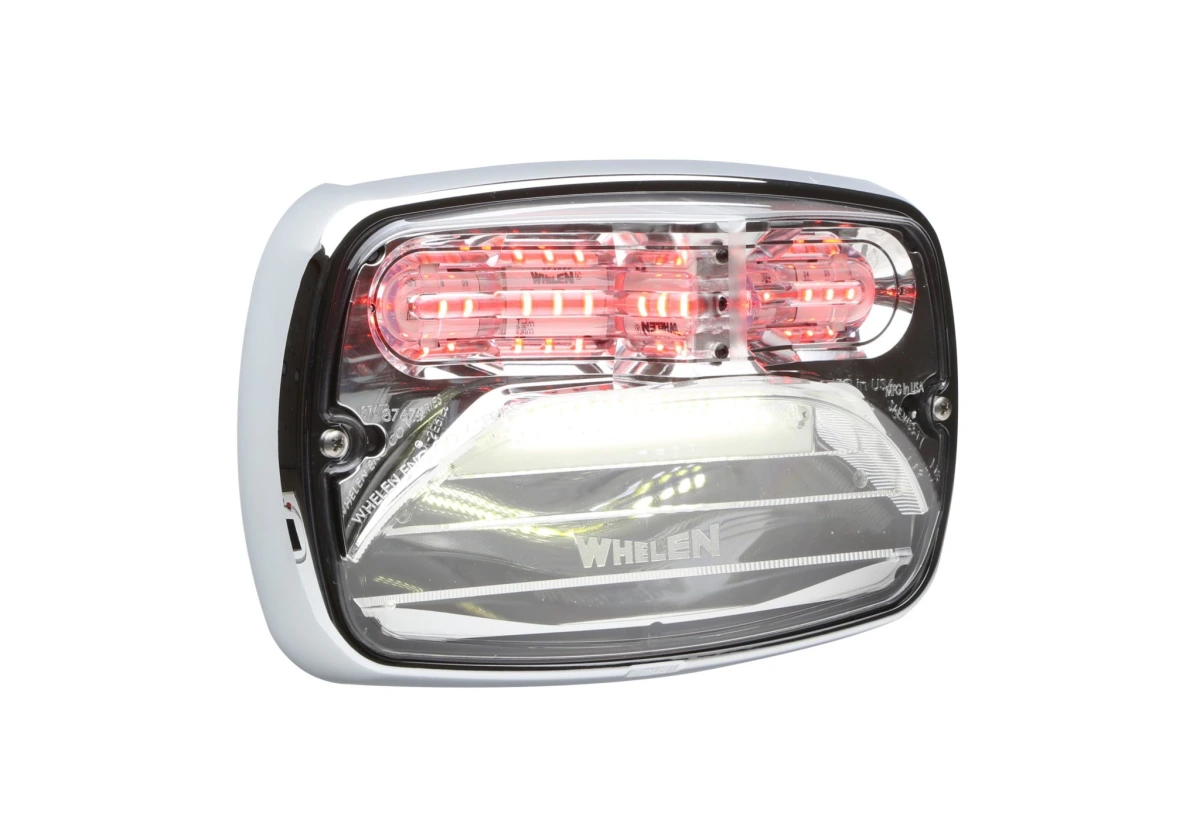

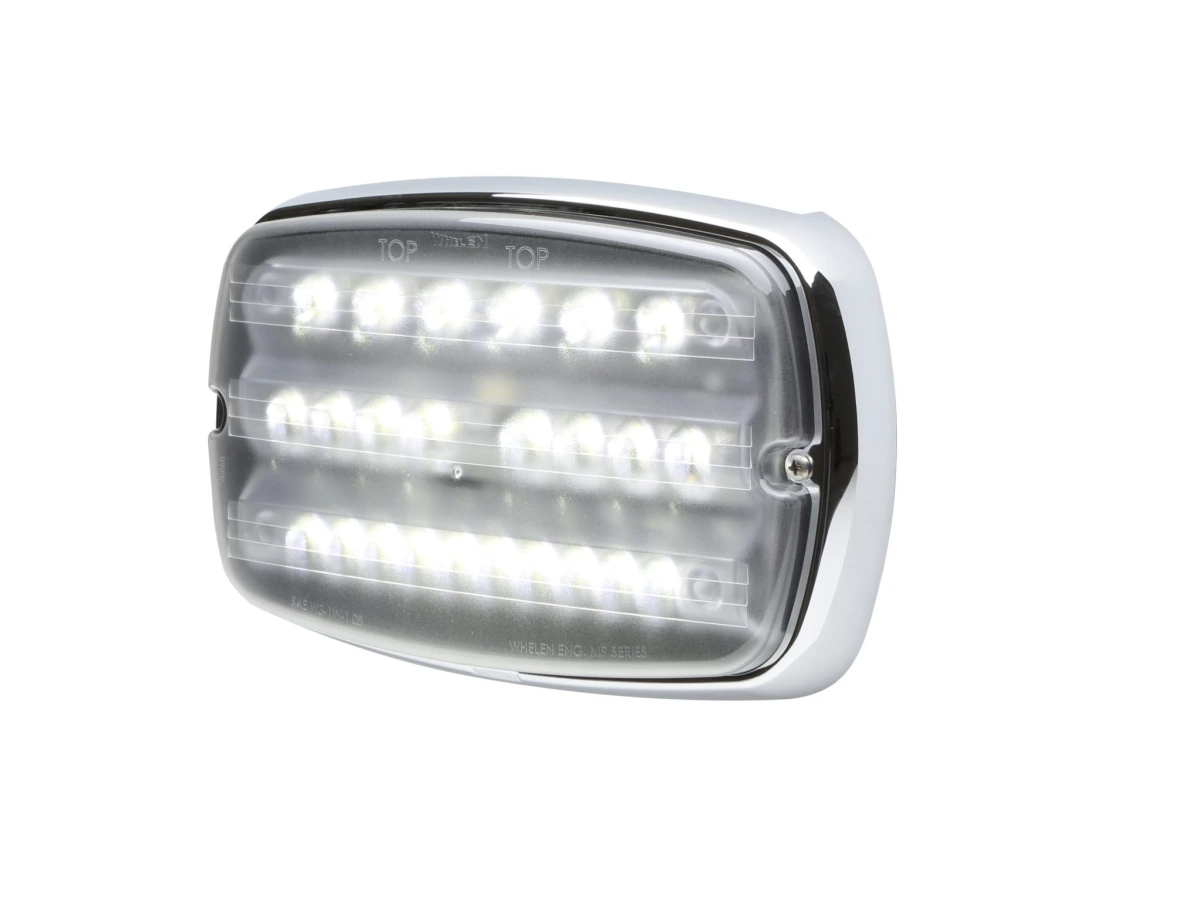

Whelen M9

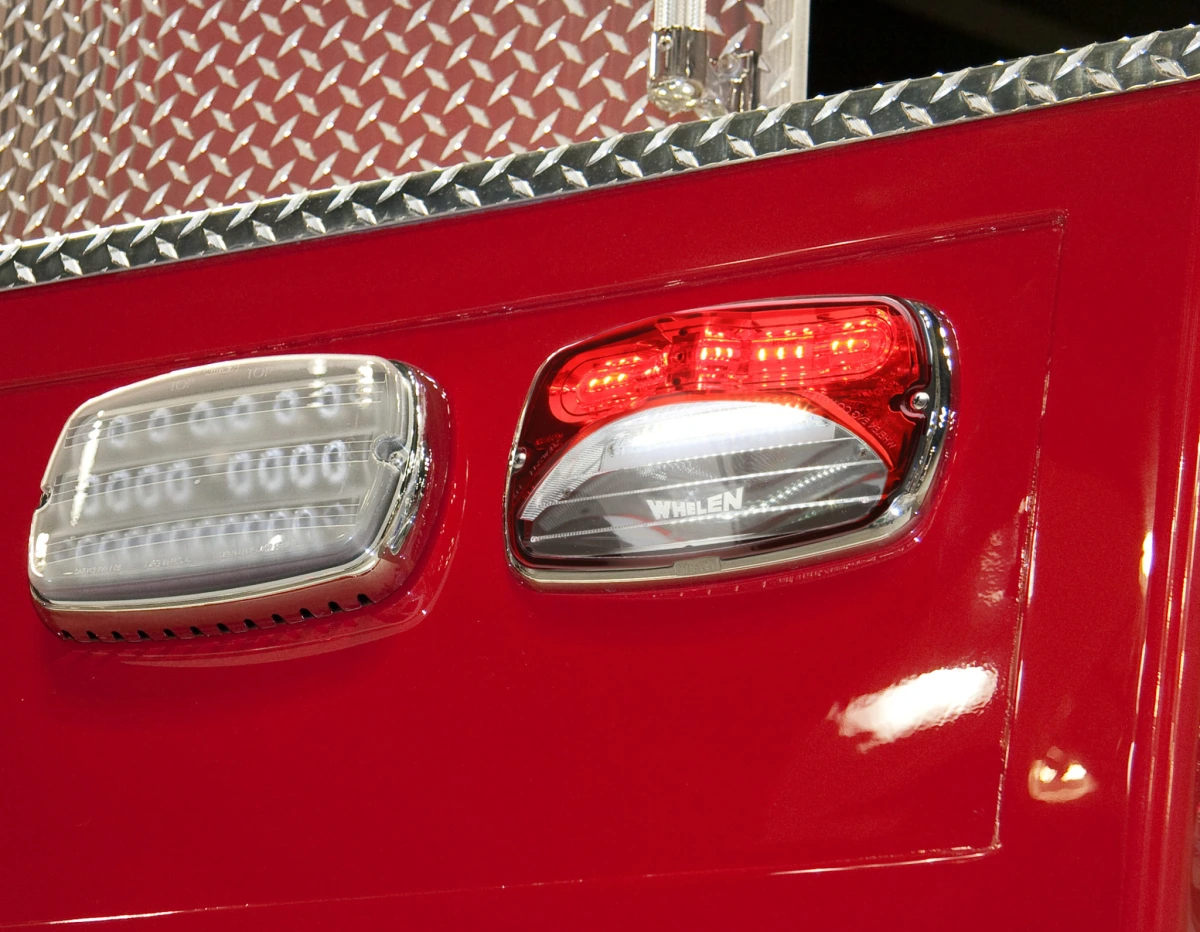

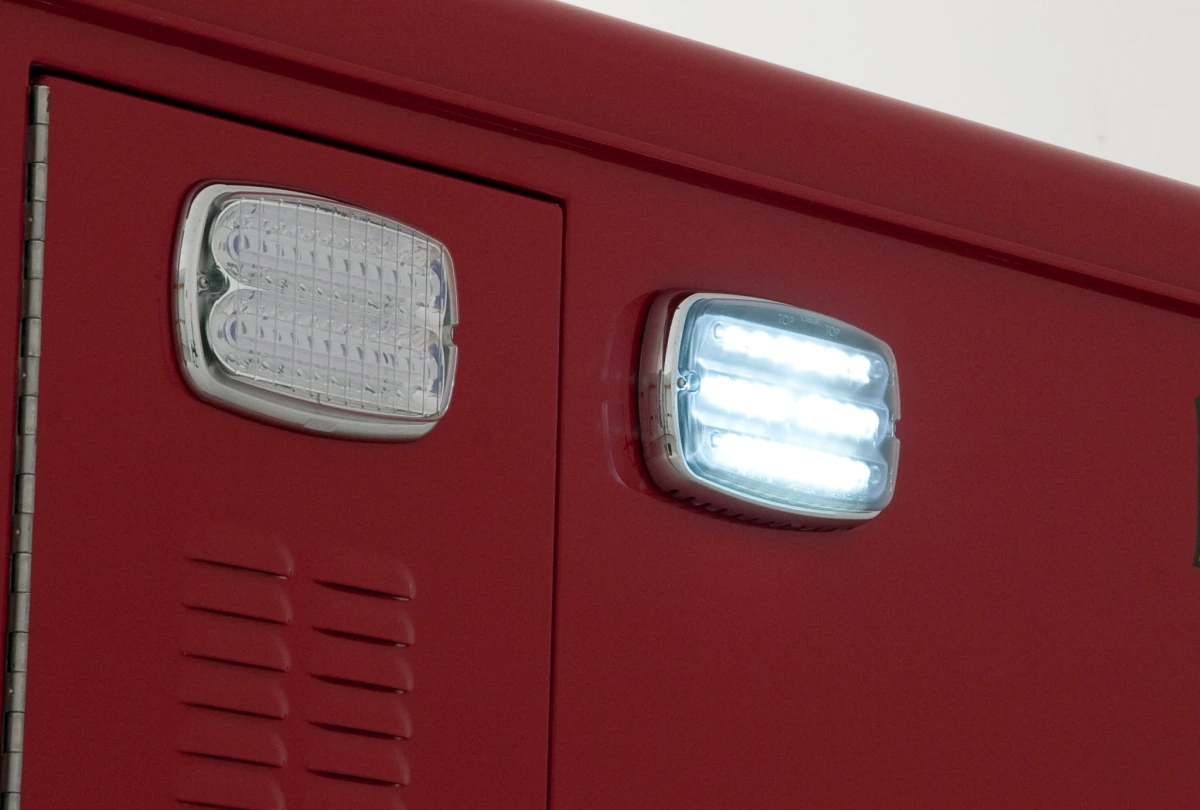

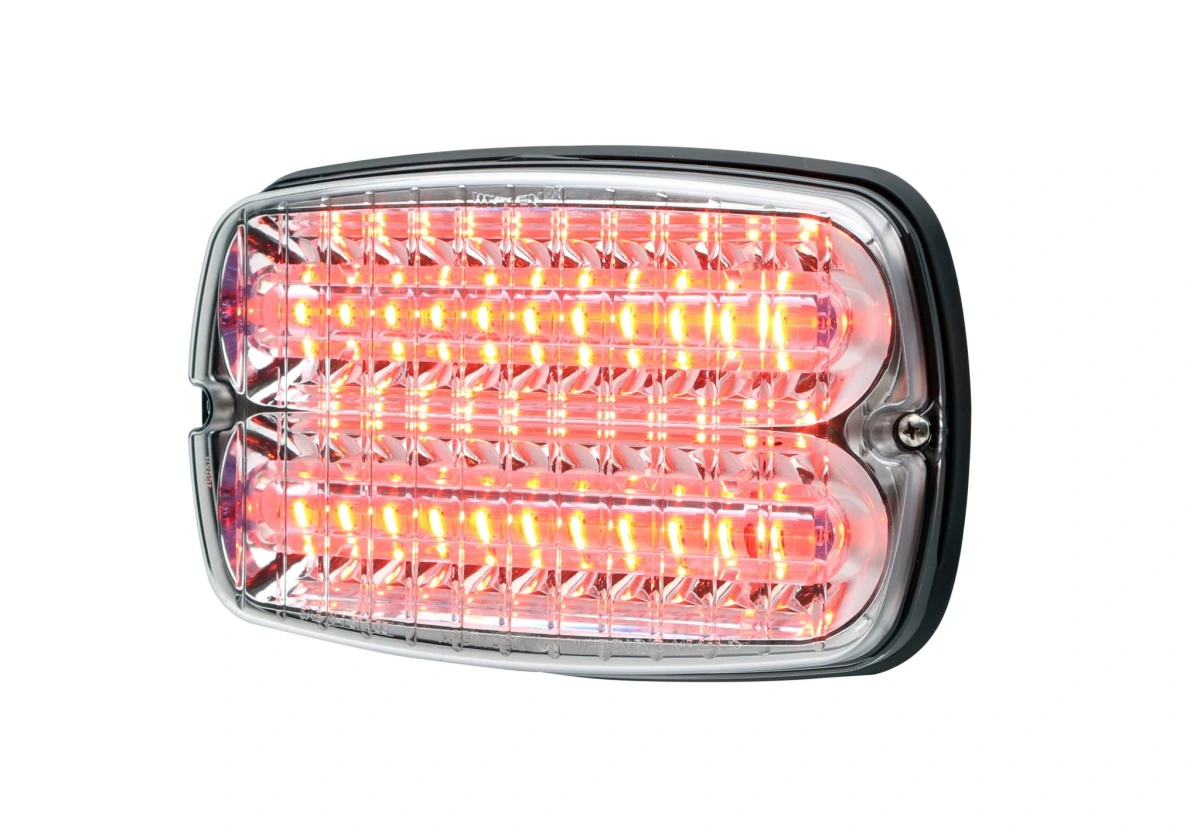

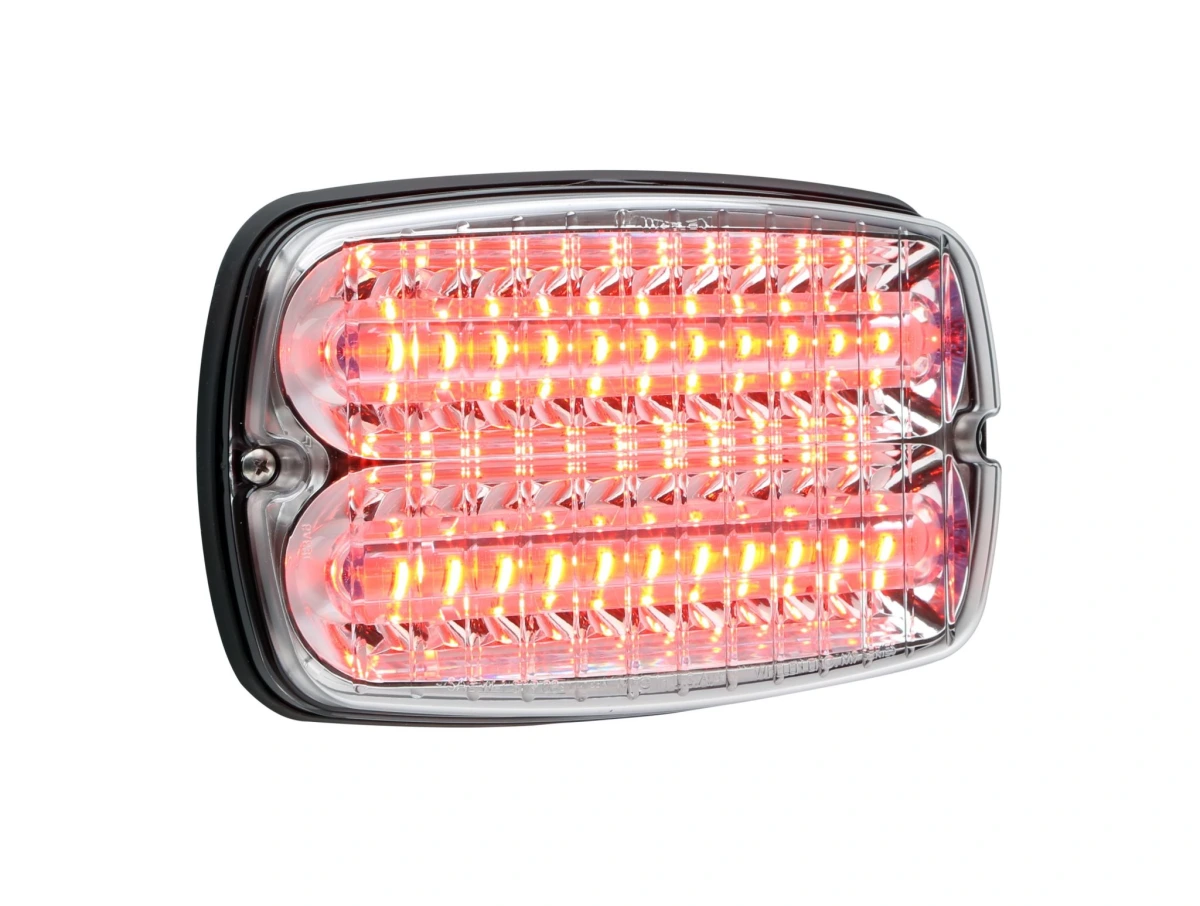

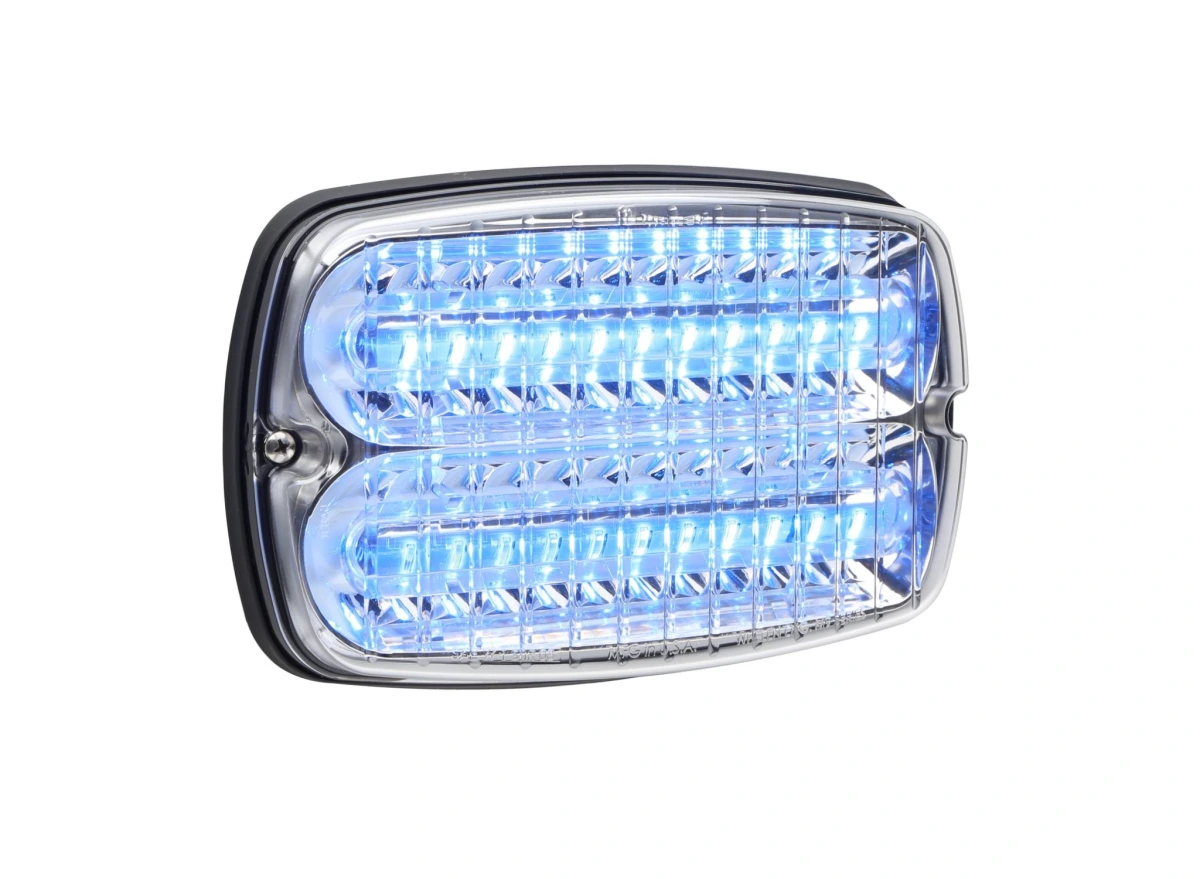

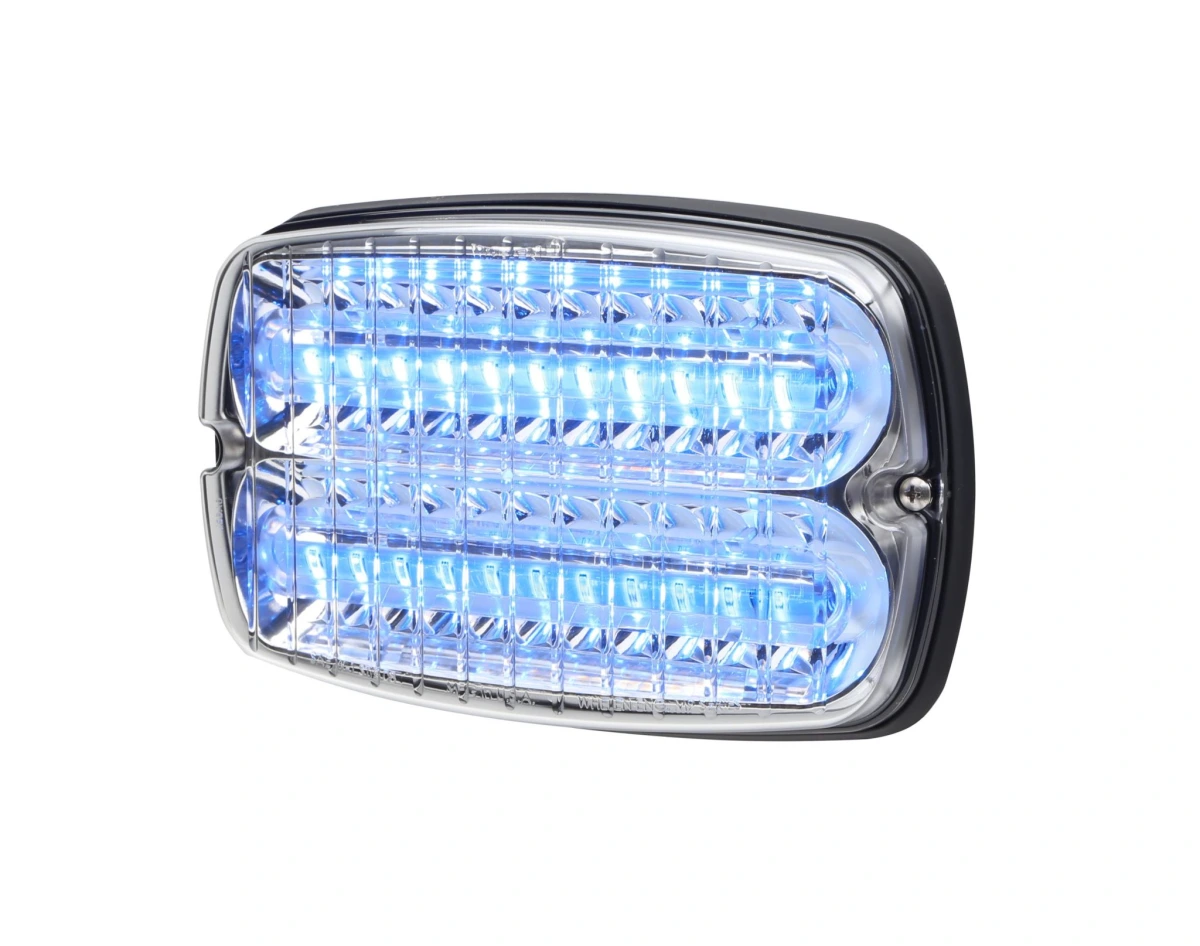

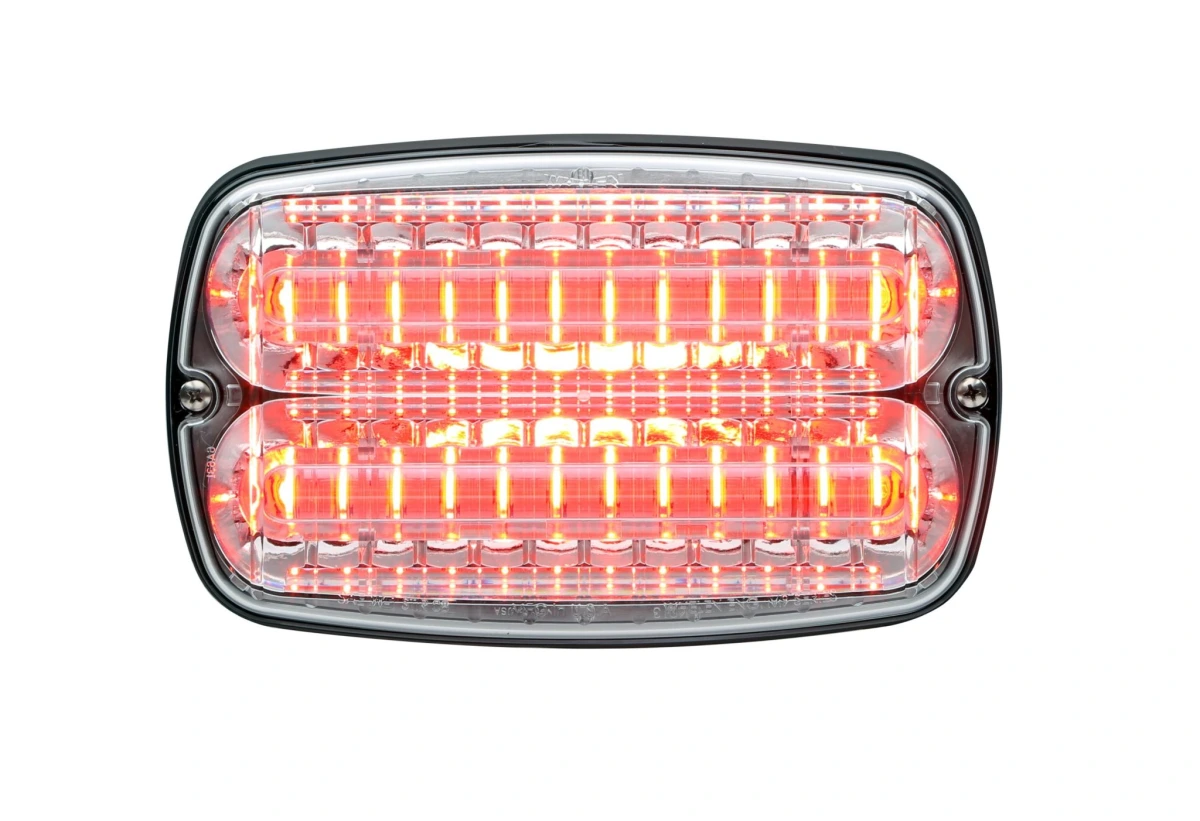

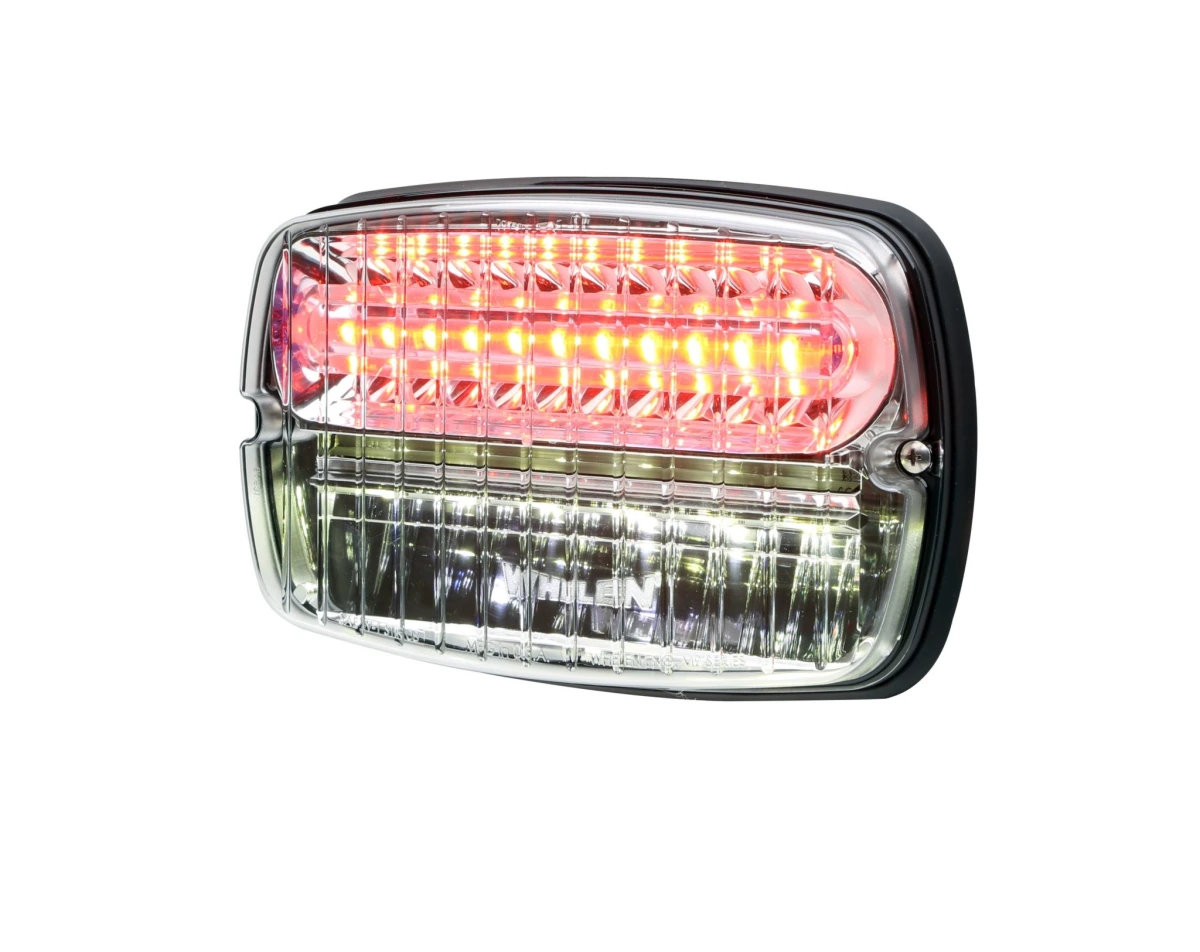

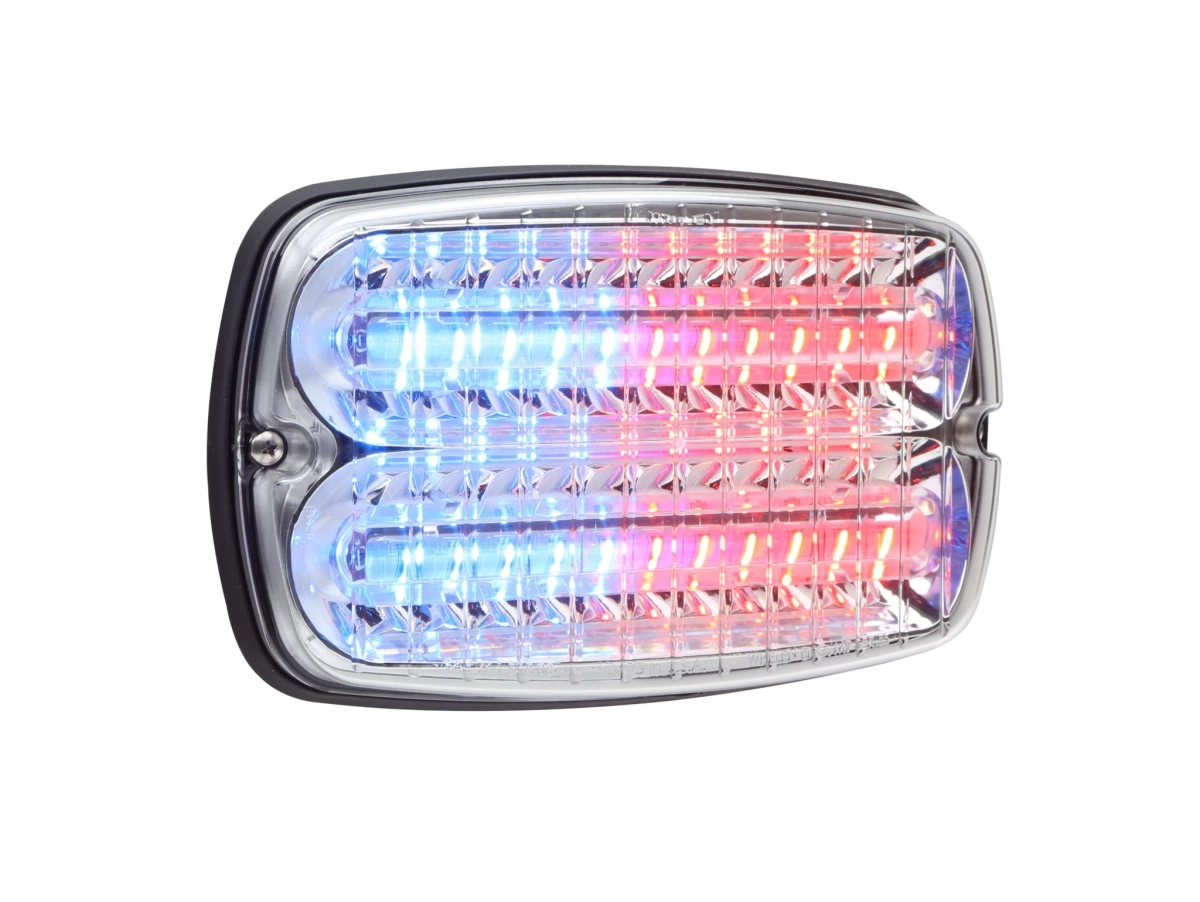

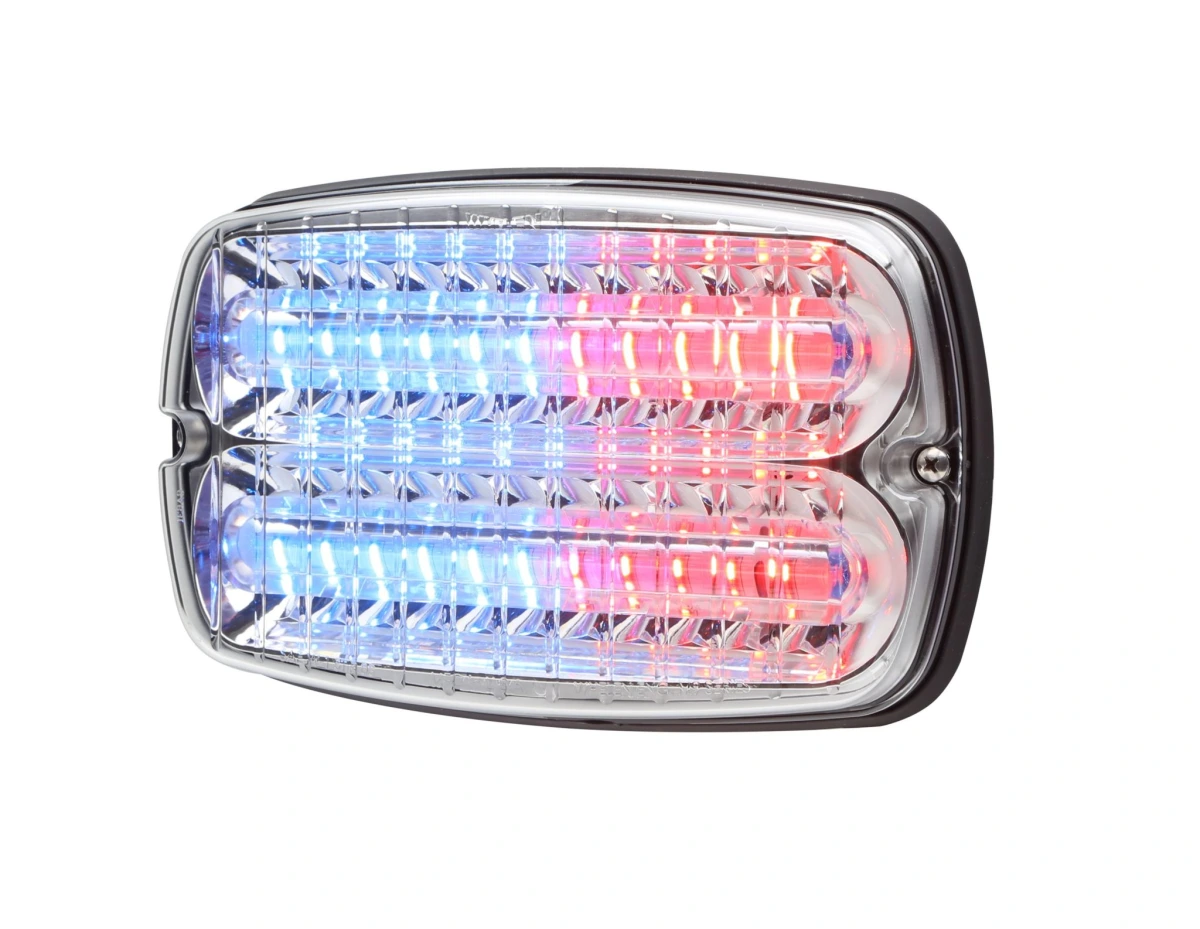

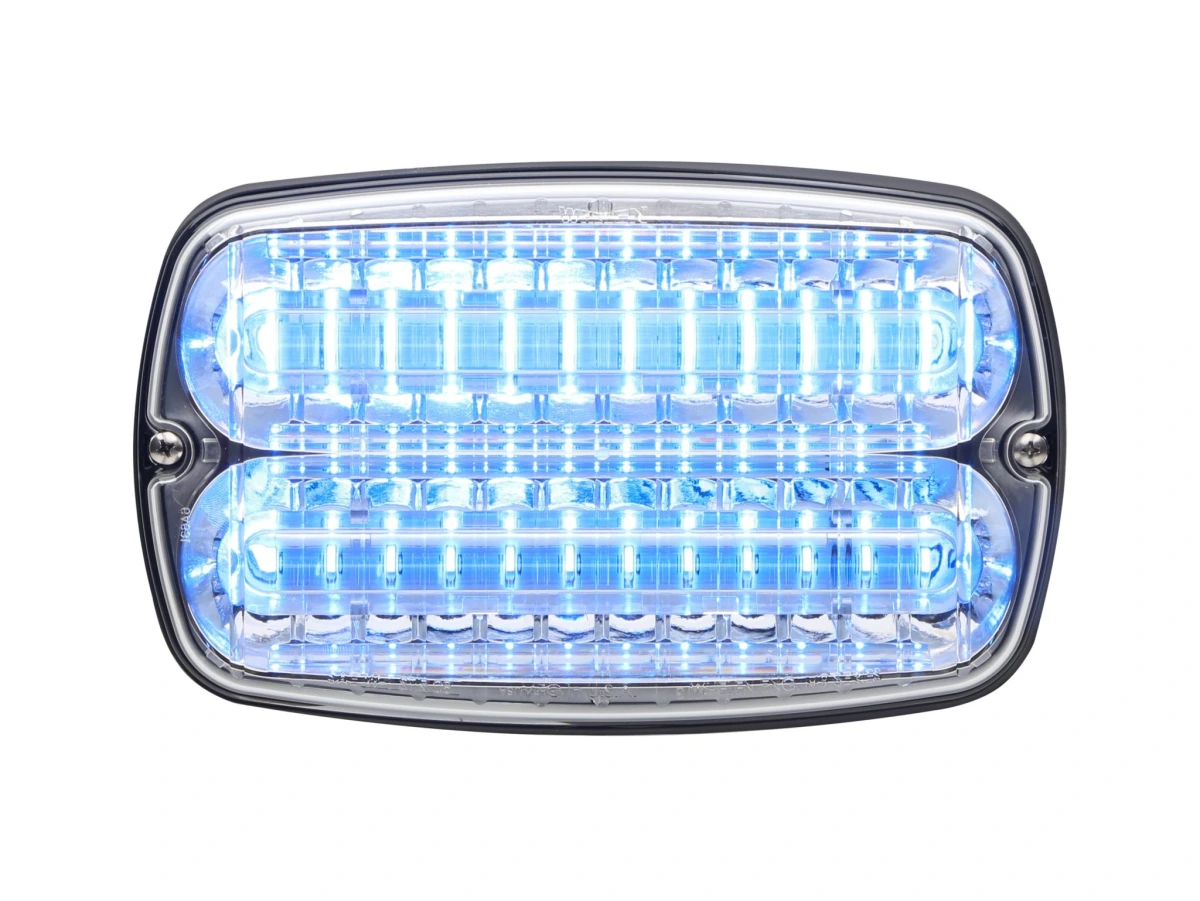

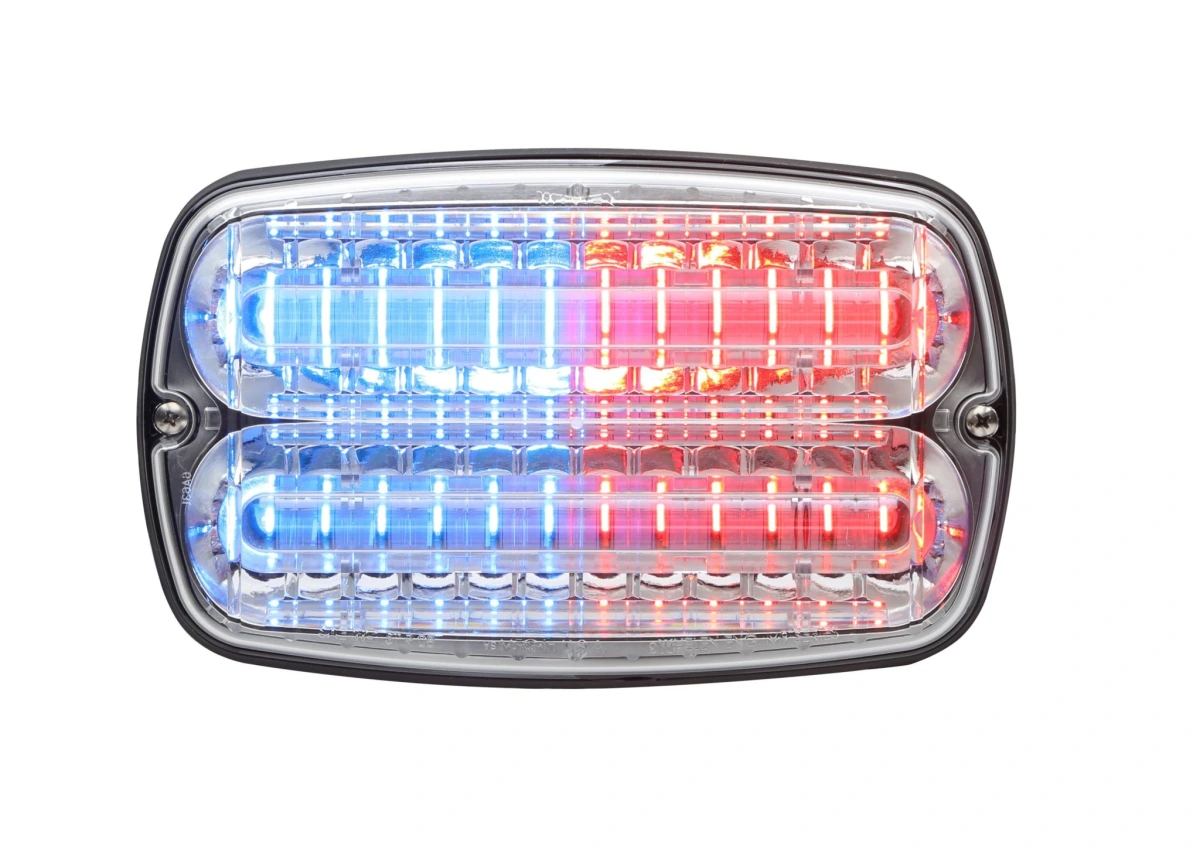

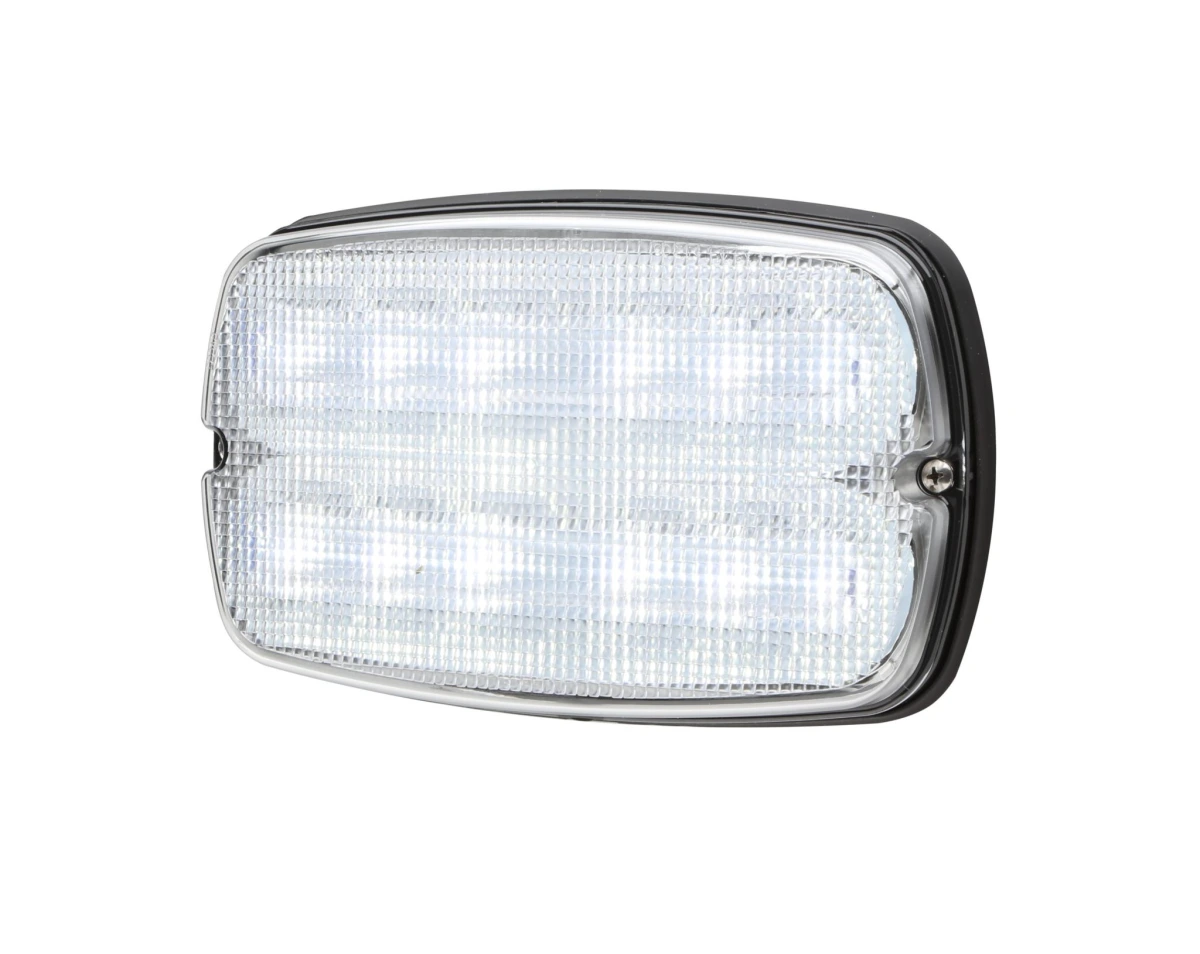

The largest of the M Series®, the M9 is a versatile lighthead for many applications.

Product Description

  • Brake/tail/turn, turn, and back-up lights meet applicable SAE requirements

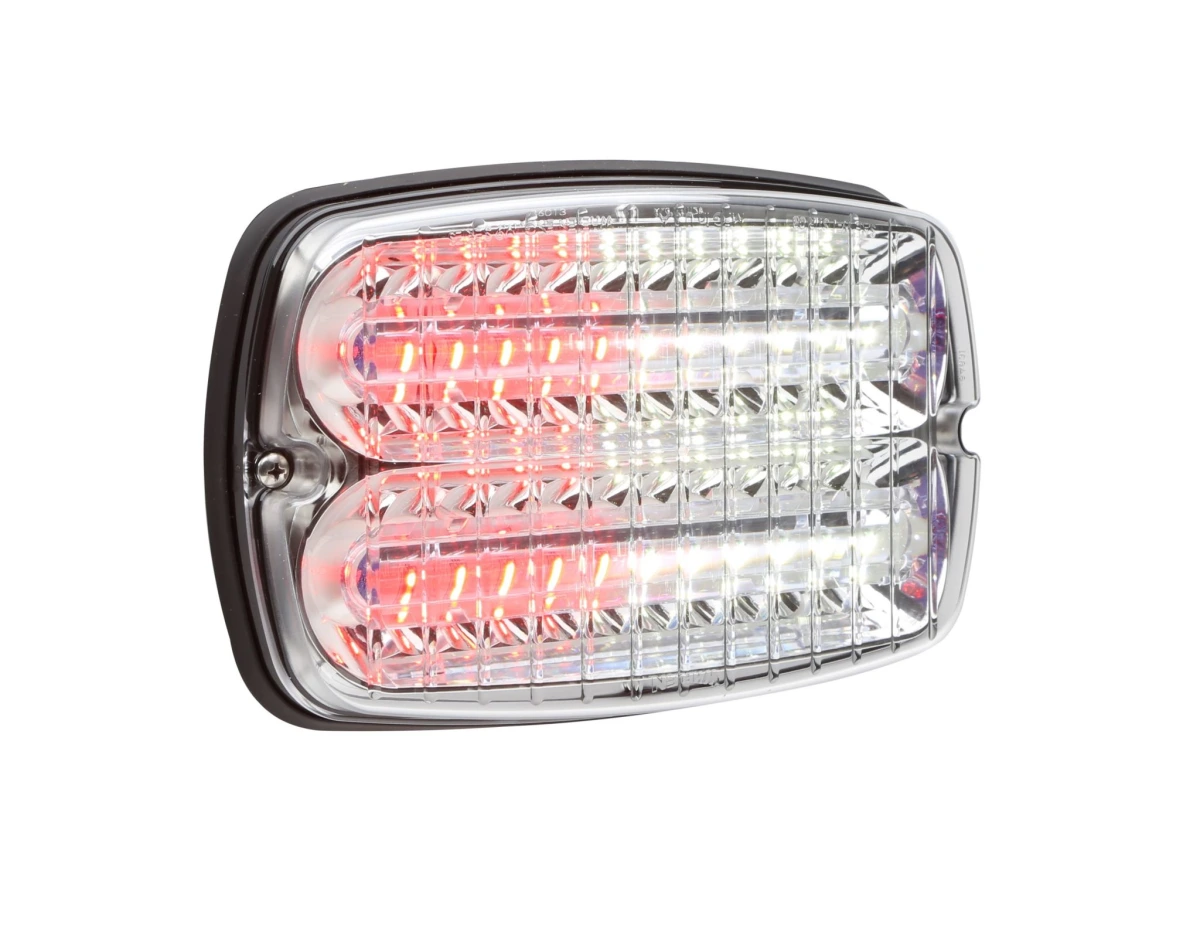

  • DUO models include DVI® light patterns and our patented E Block® technology
  • Hard-coated lenses
  • Surface mounts via two screws for easy installation
  • A variety of mounting brackets and optional Chrome or Black flanges are available
  • Can be mounted vertically or horizontally

Dimensions

M9 Series

M9 Standard: 6.5" (165mm) H x 10.4"³ (263mm) W x 1.4"³ (35mm) D

M9 V-Series: 6.5" (165mm) H x 10.4"³ (263mm) W x 2.7"³ (69mm) D

Specifications

Amps Simultaneous: 3.0 (peak), 1.2 (average)

Alternating: 1.2 (peak), .6 (average)

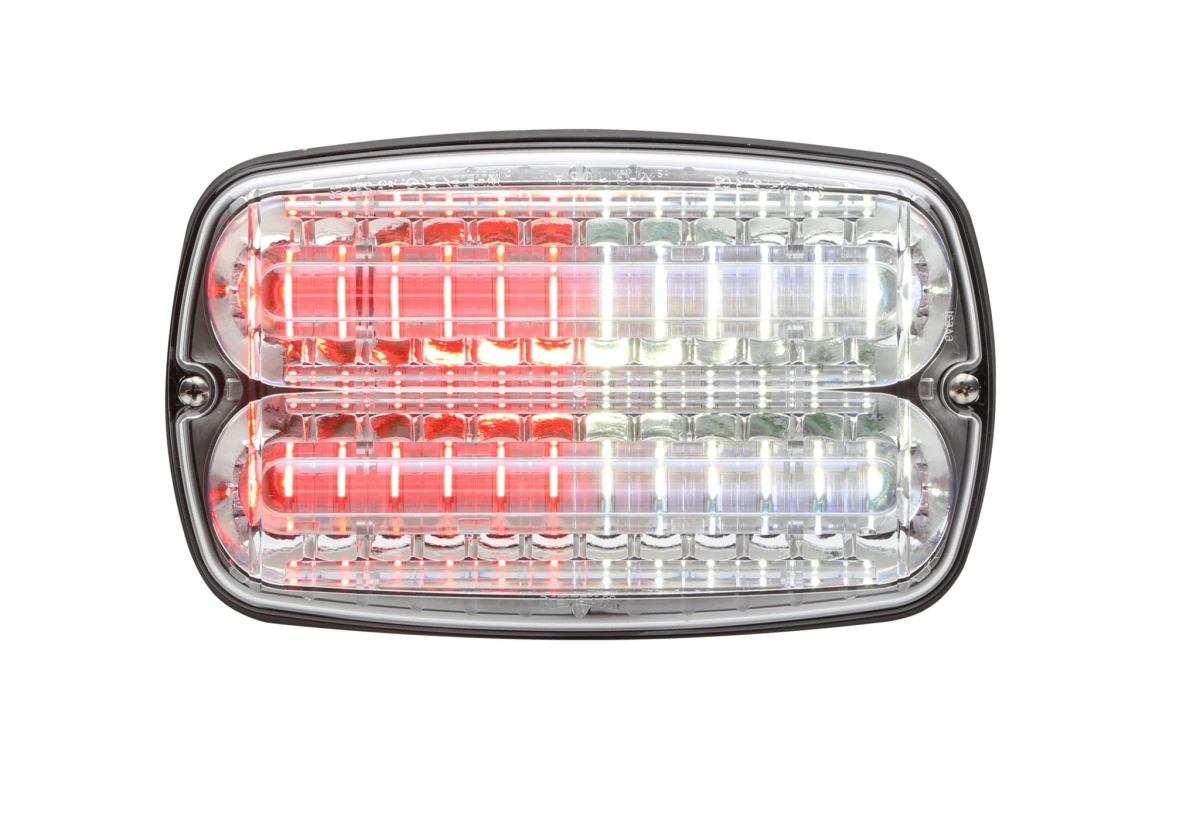

DUO® Series

DUO Warning: 2.4 per color

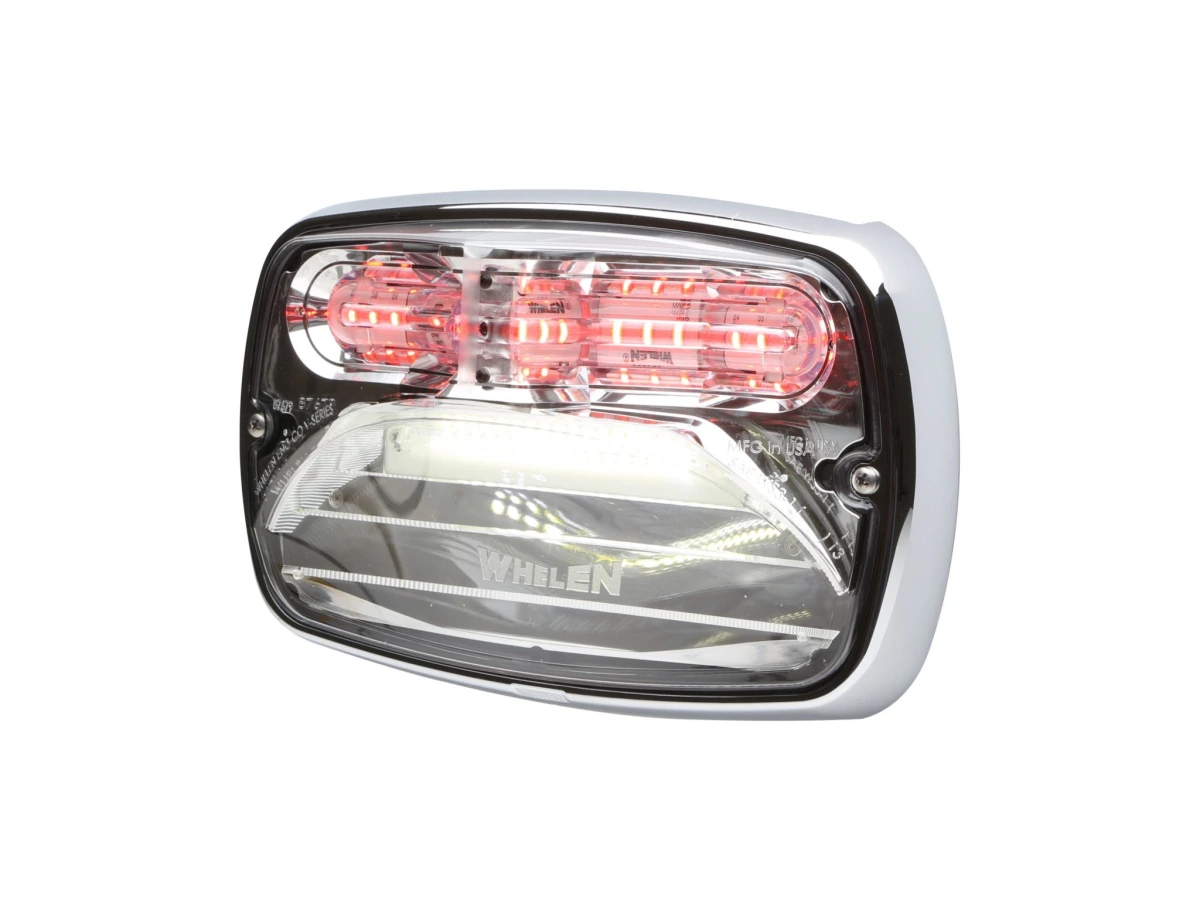

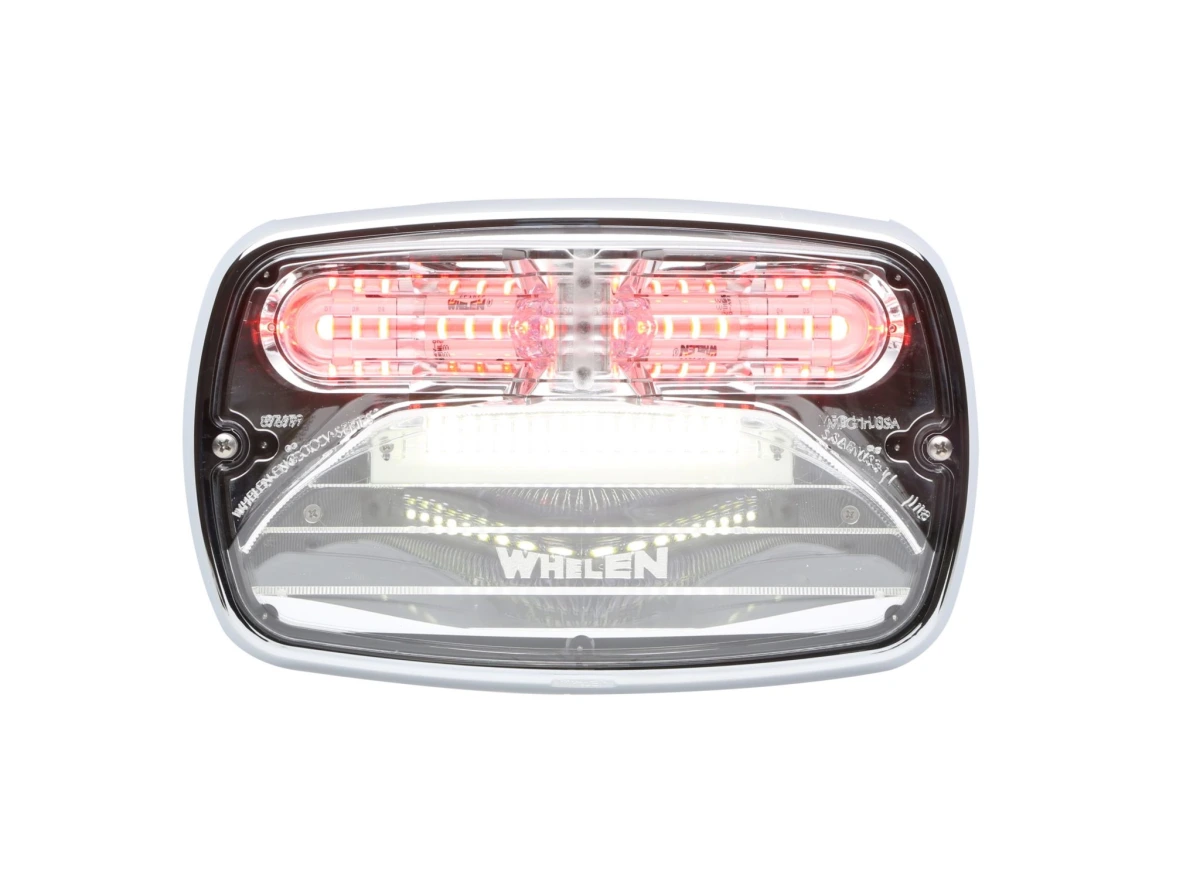

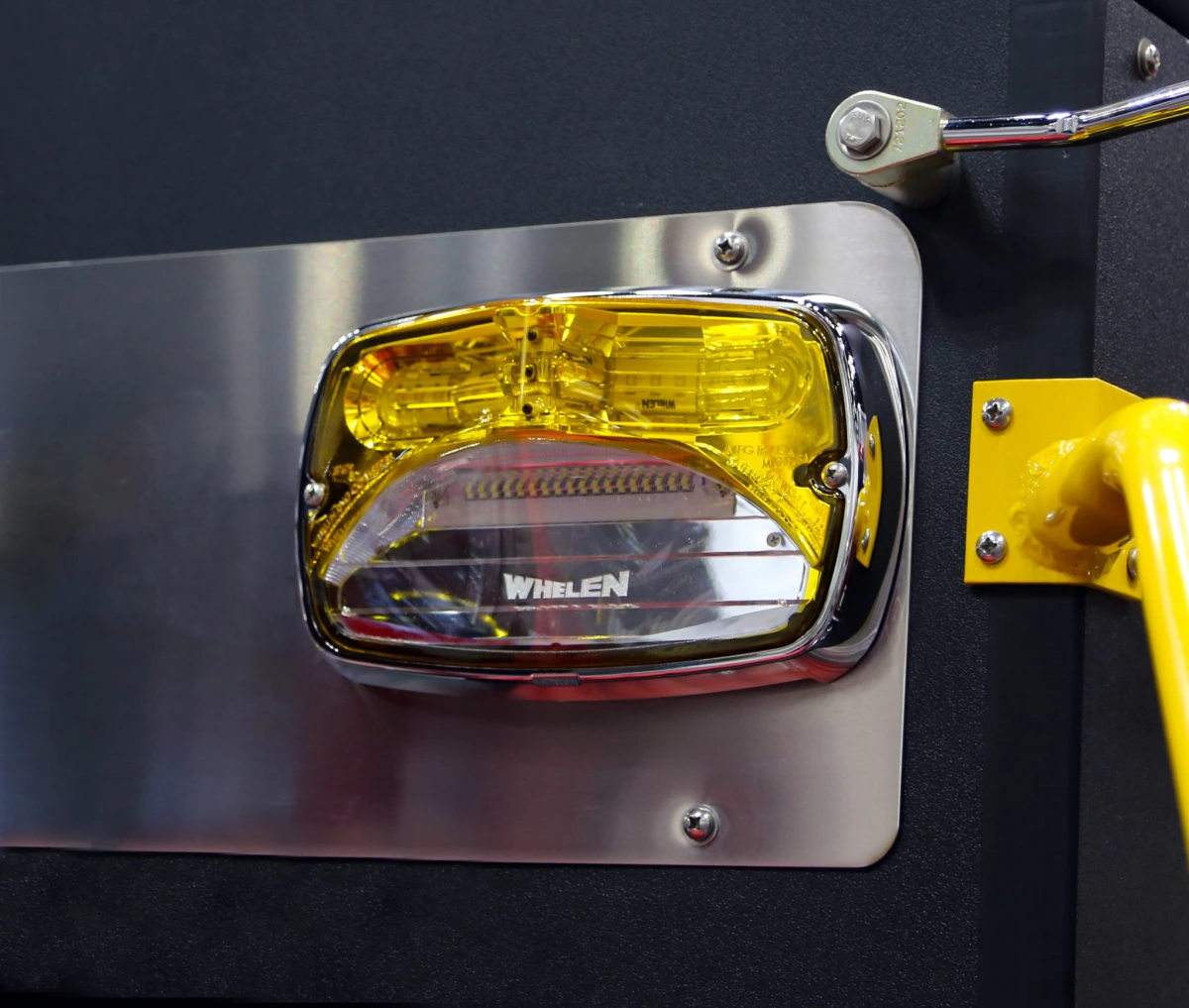

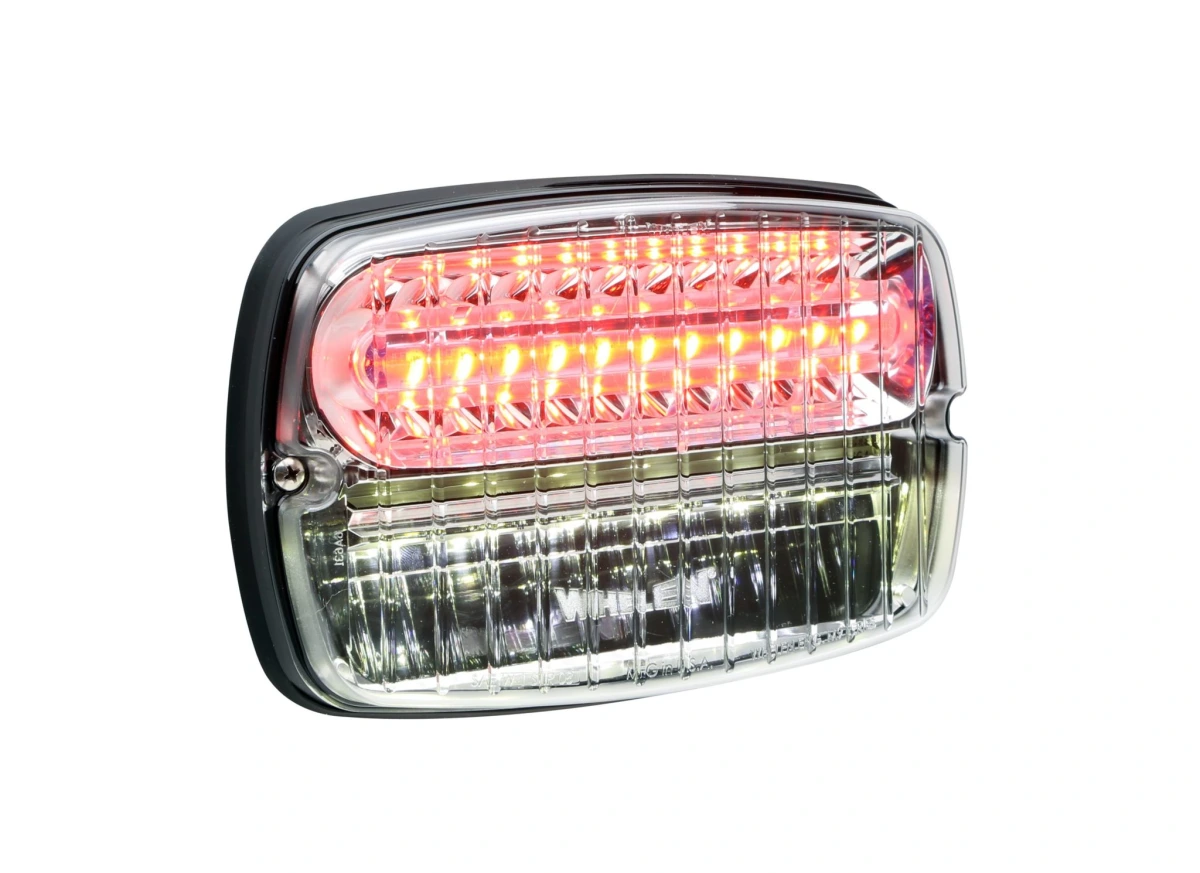

Combo Warning/Scenelight

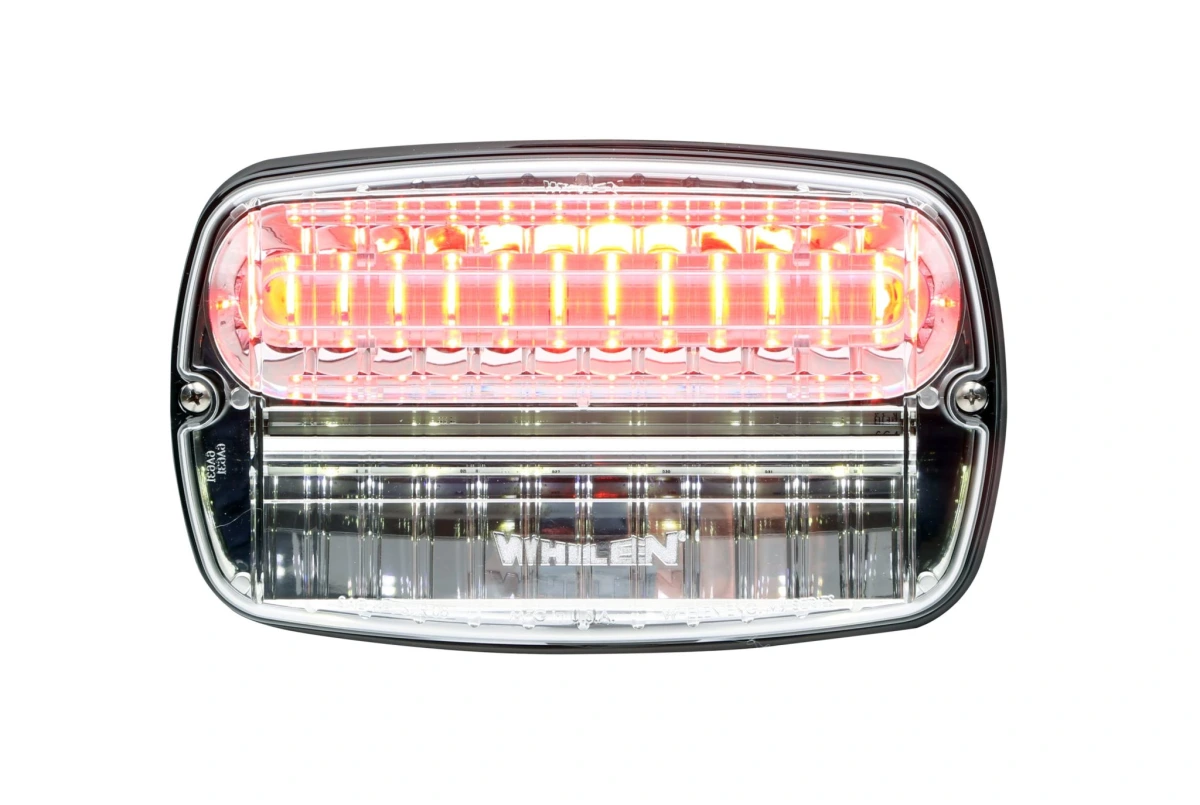

Combination Warning/Scenelight: 1.58 (Warning average), 1.53 (Scenelight average)

DUO Combination Warning/Scenelight: 1.58 (Warning average per color), 1.53 (Scenelight average)

Utility Models

Scenelight, including flange: 6.0 (average)

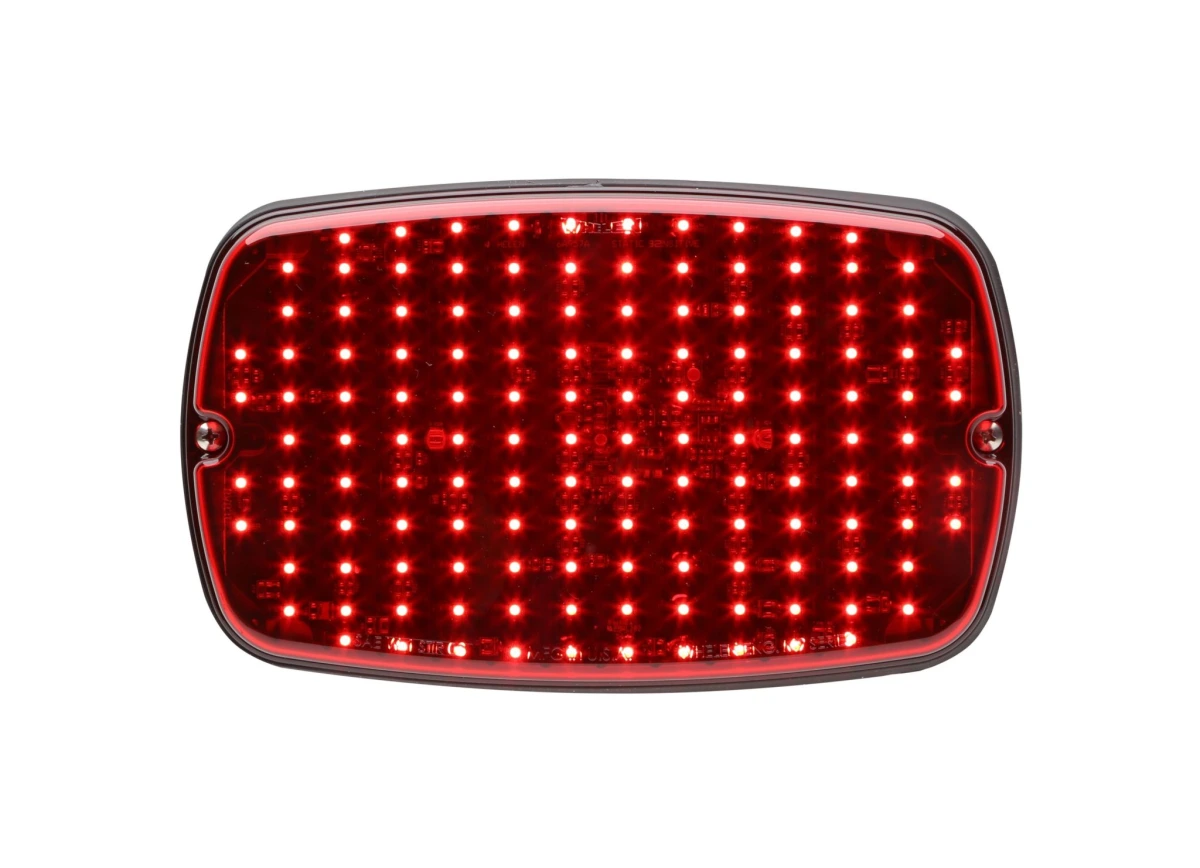

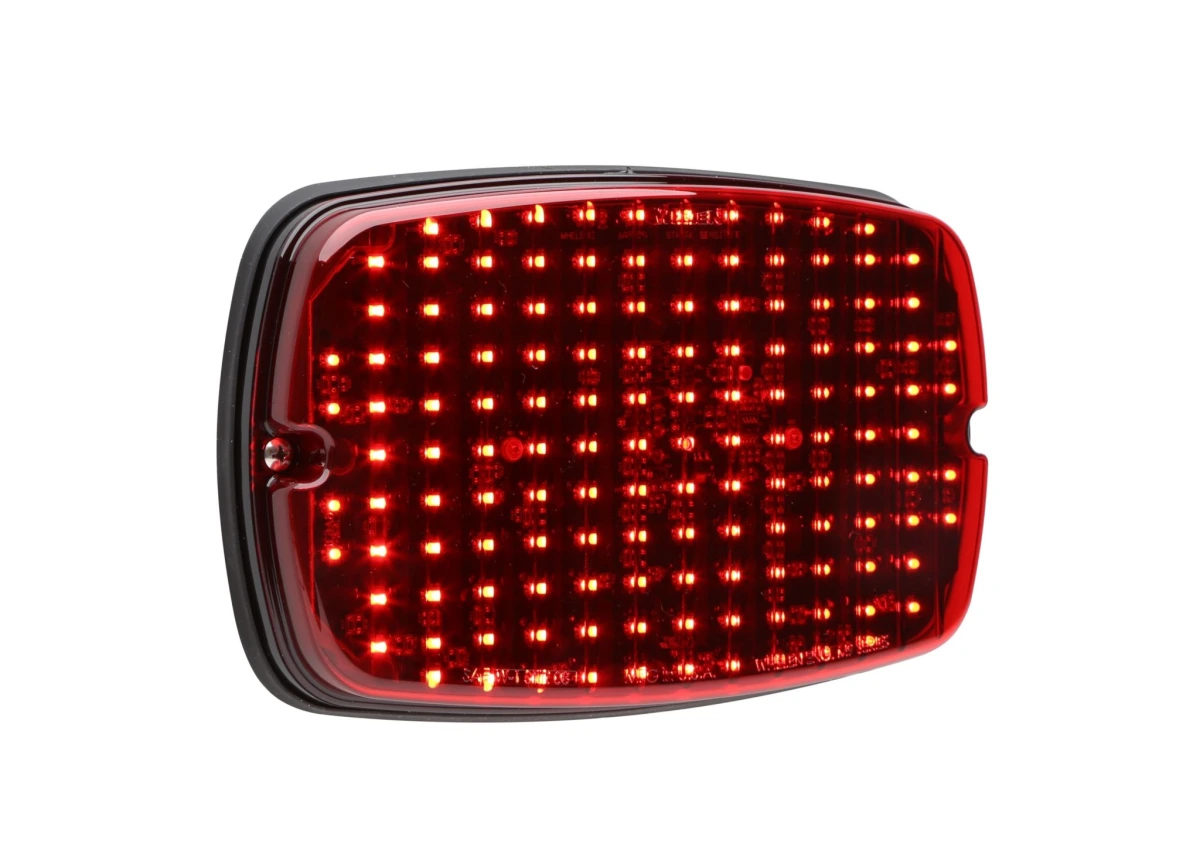

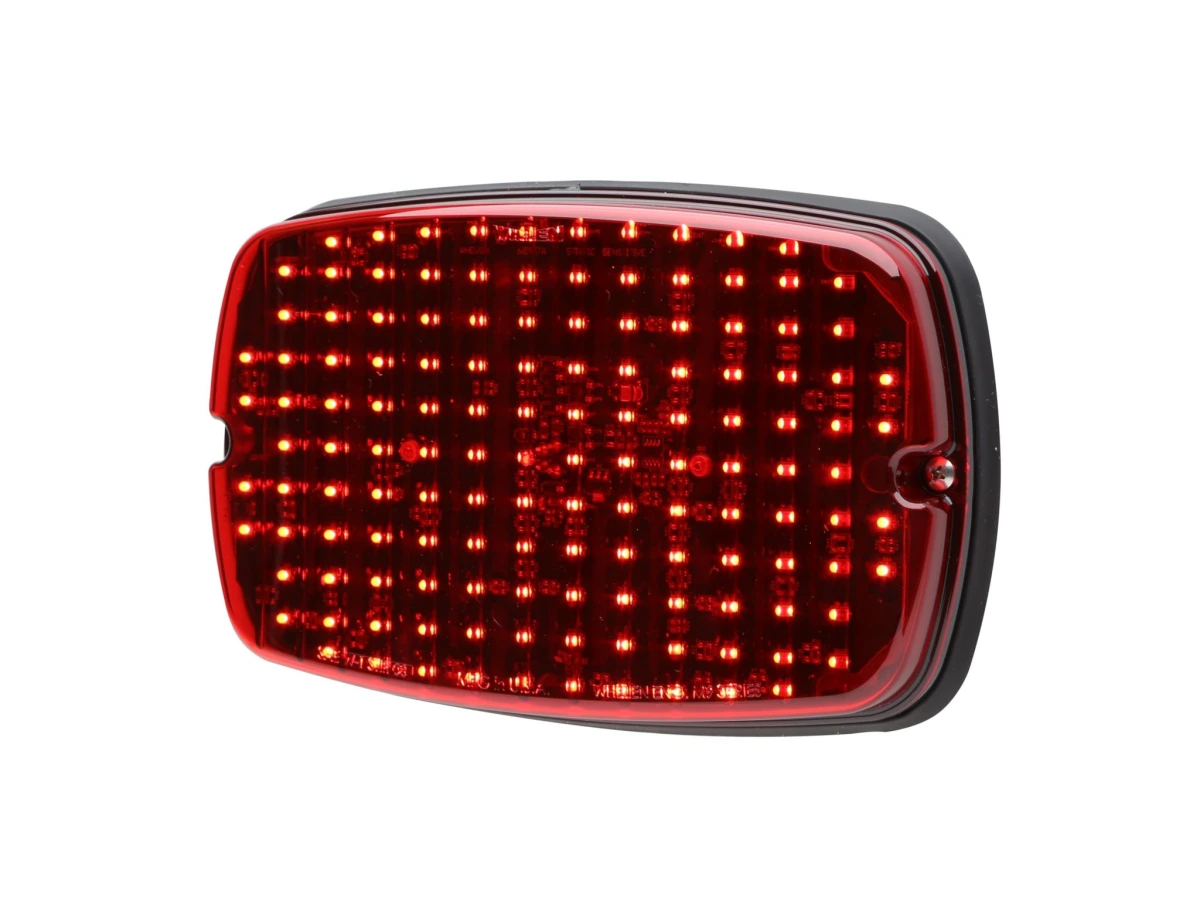

B/T/T: .75 (Brake/Turn average), .55 (Tail average)

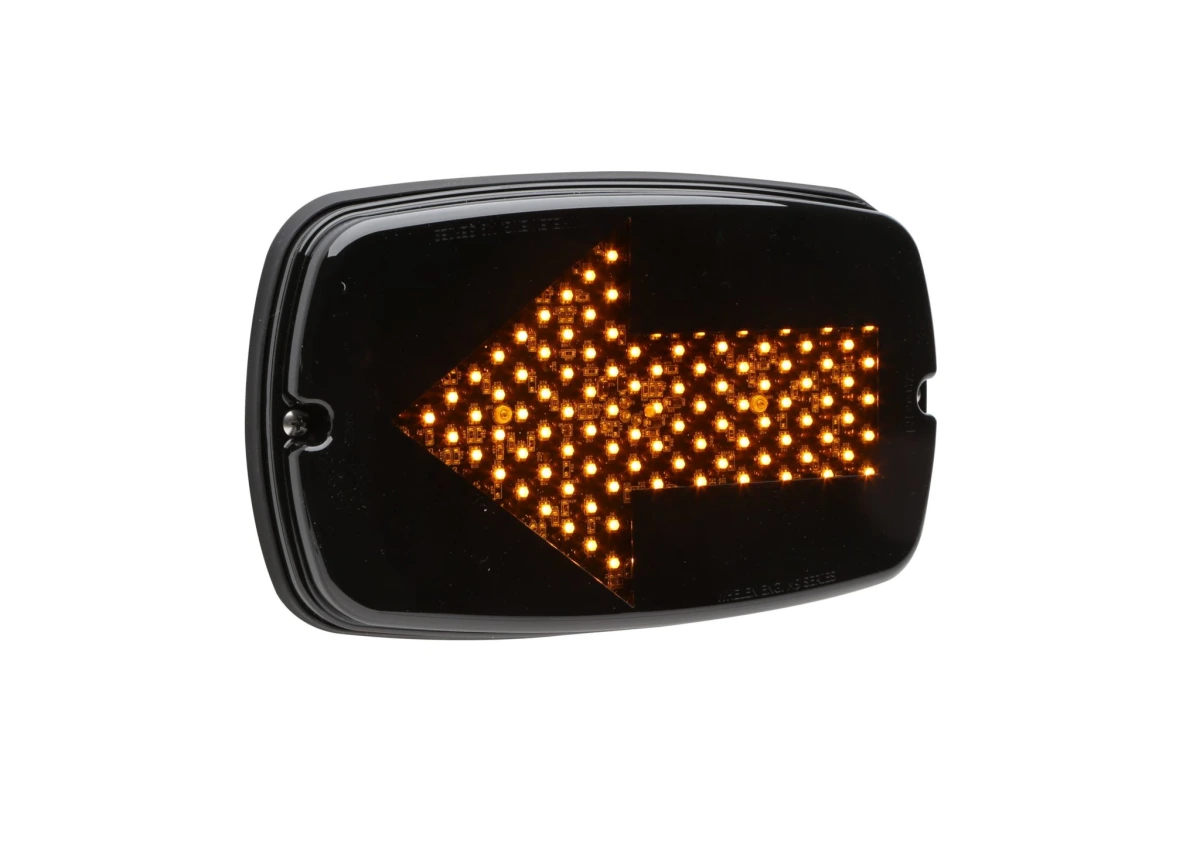

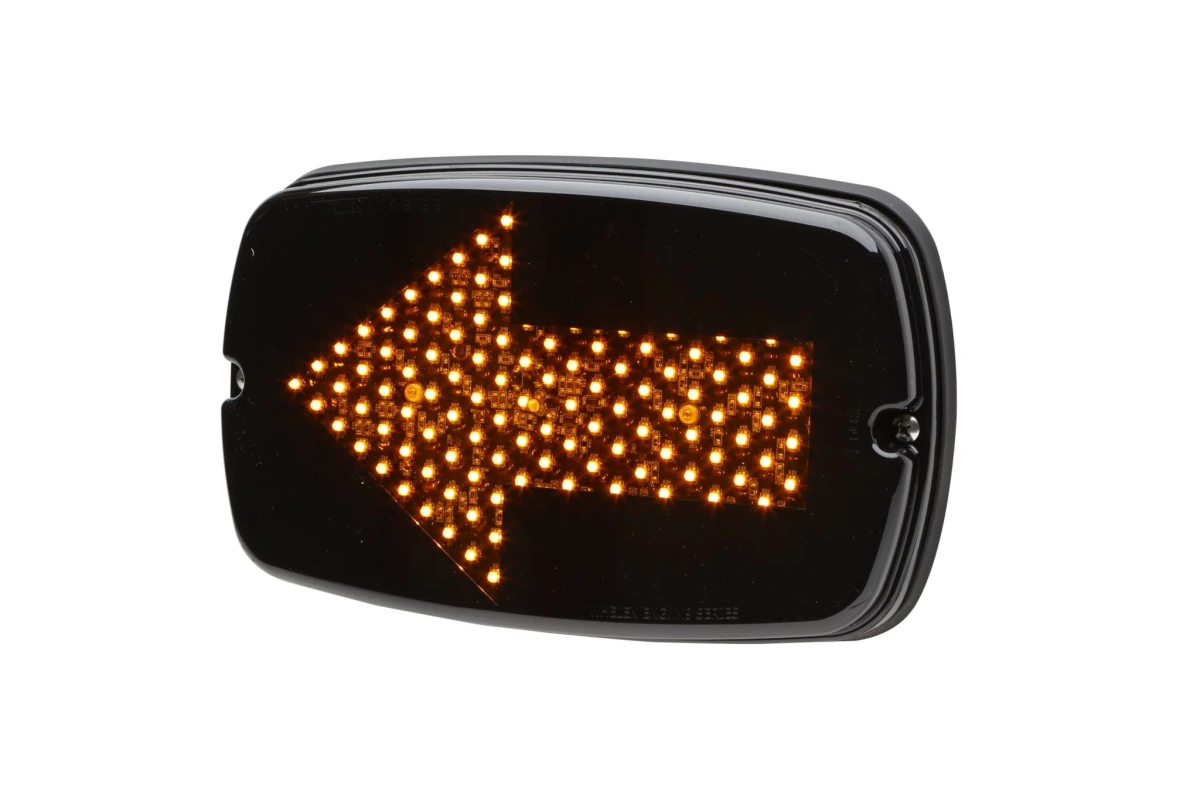

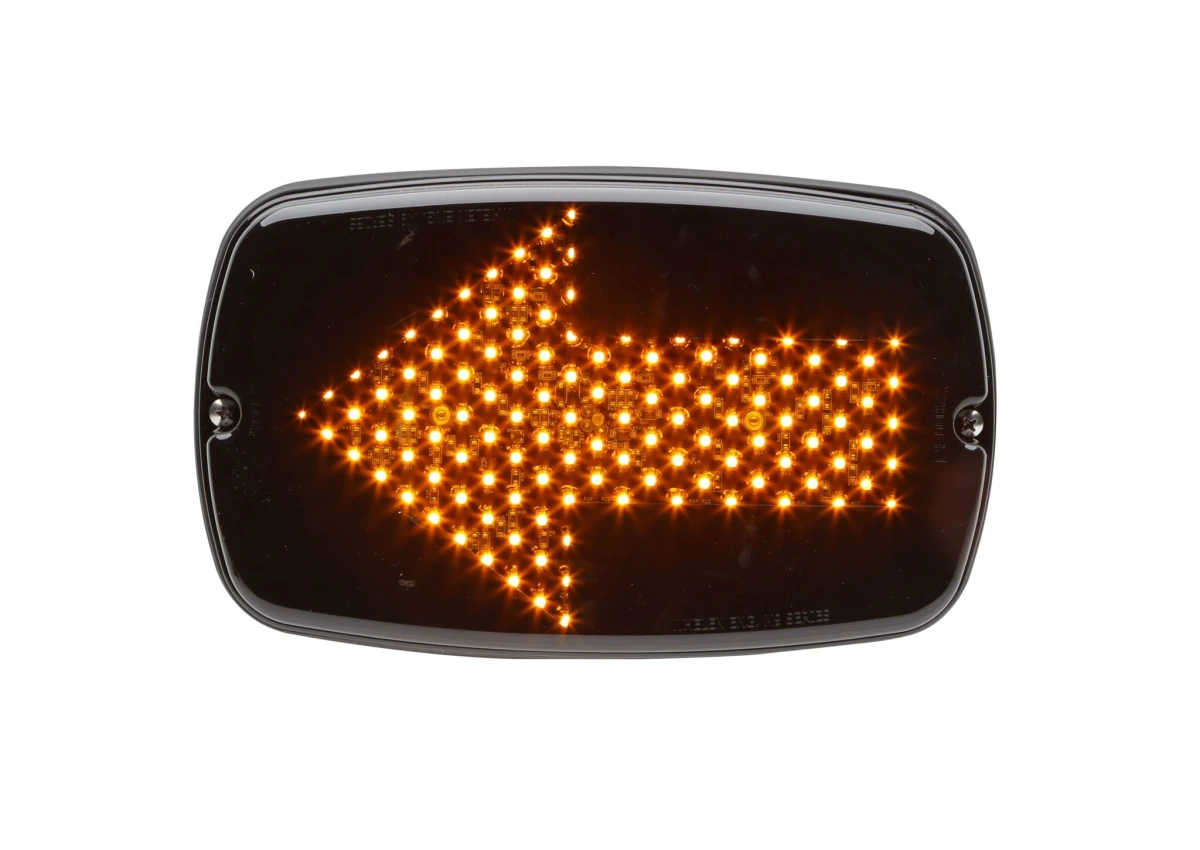

Amber turn signal: 1.2 (average)

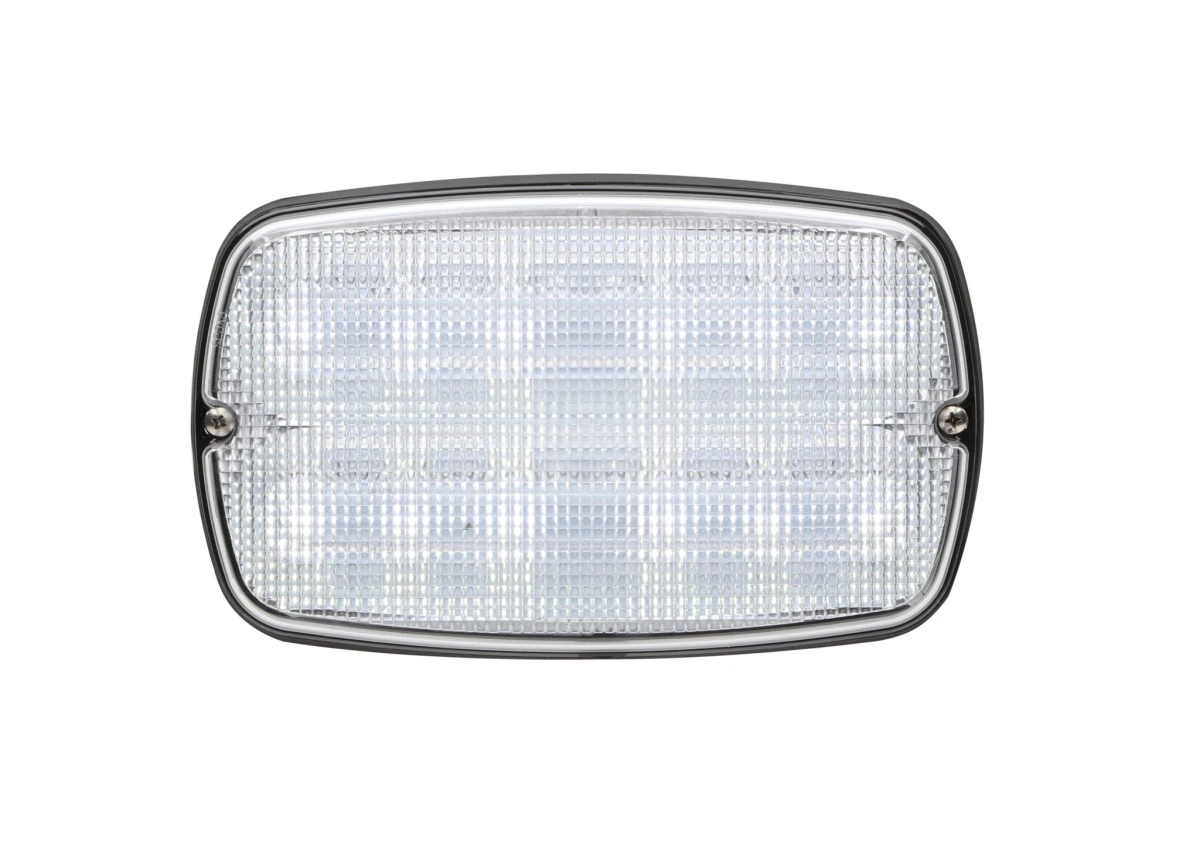

Back-up light: 1.8 (average)

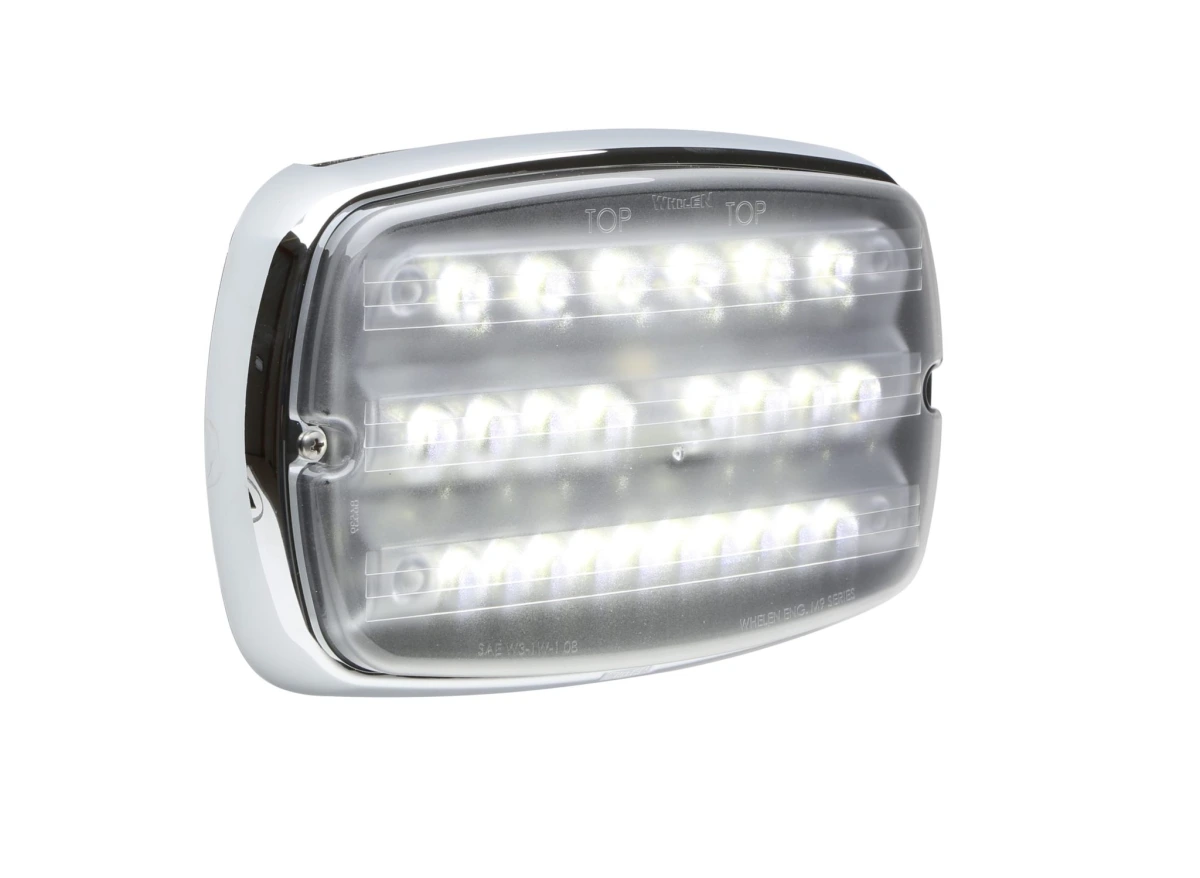

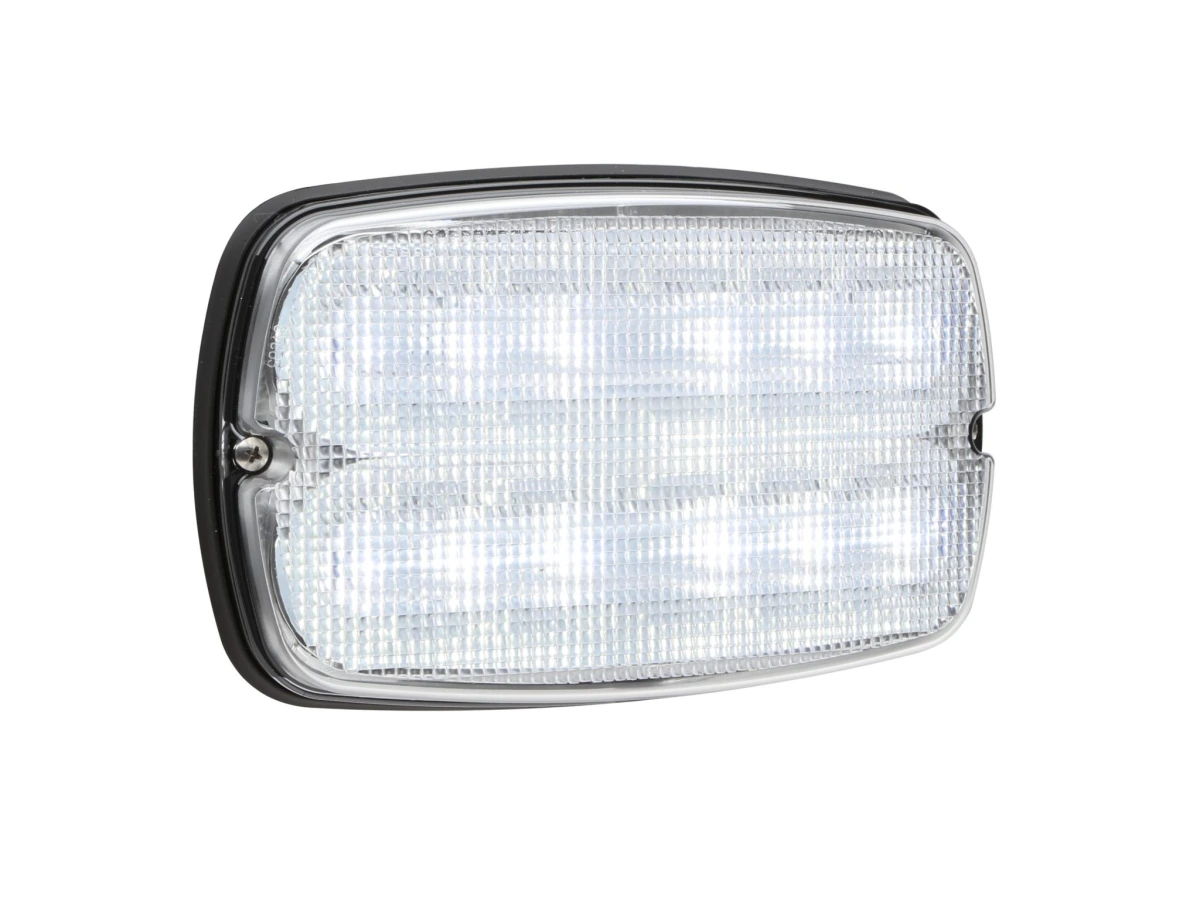

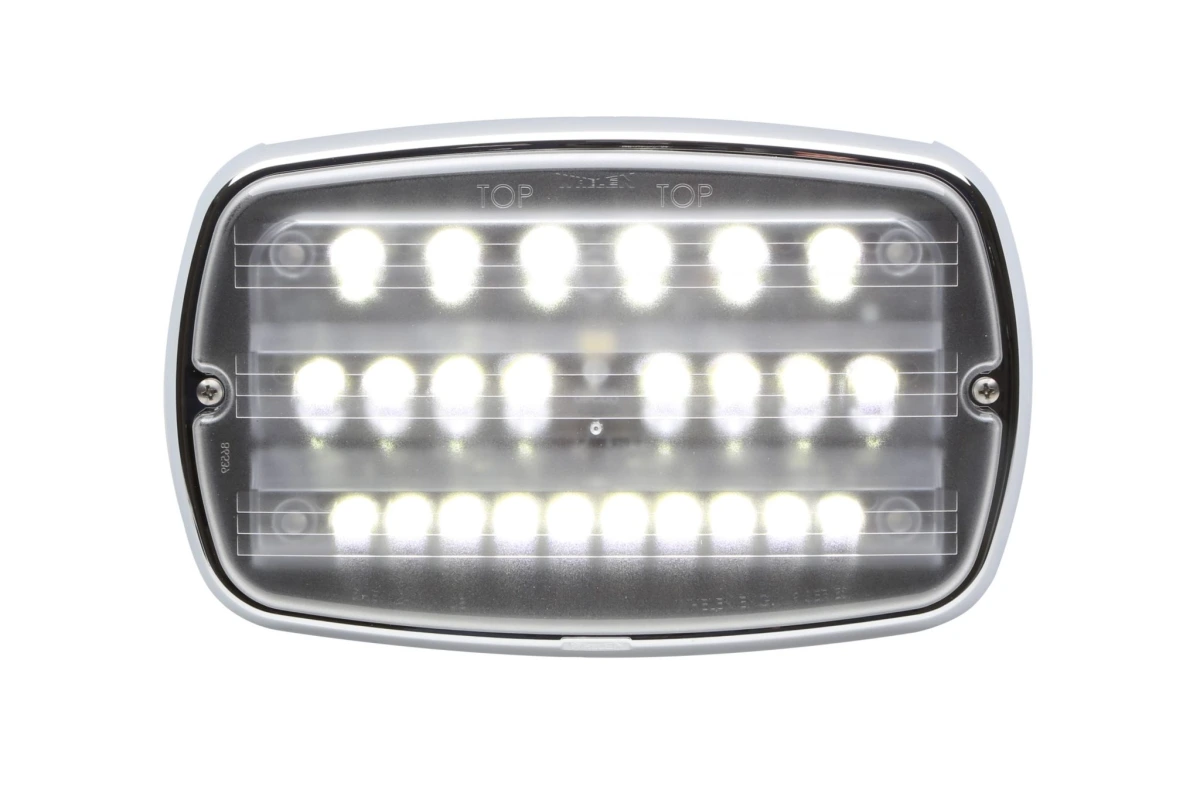

Scenelight: 6.0 (average)
Light Options Single or Split color

Steady-burn

Internal flasher+
Lenses Clear

Color
Flash Patterns* Single color: 159 Scan-Lock® flash patterns

Double color: 64 Scan-Lock flash patterns
Certifications SAE Class 1 (warning)

KKK-1822F

NFPA 1901

NFPA 1917

SAE

EC65
Warranty Five year warranty

* Number of sequencing combinations vary by model

+ Sync or low power functions
