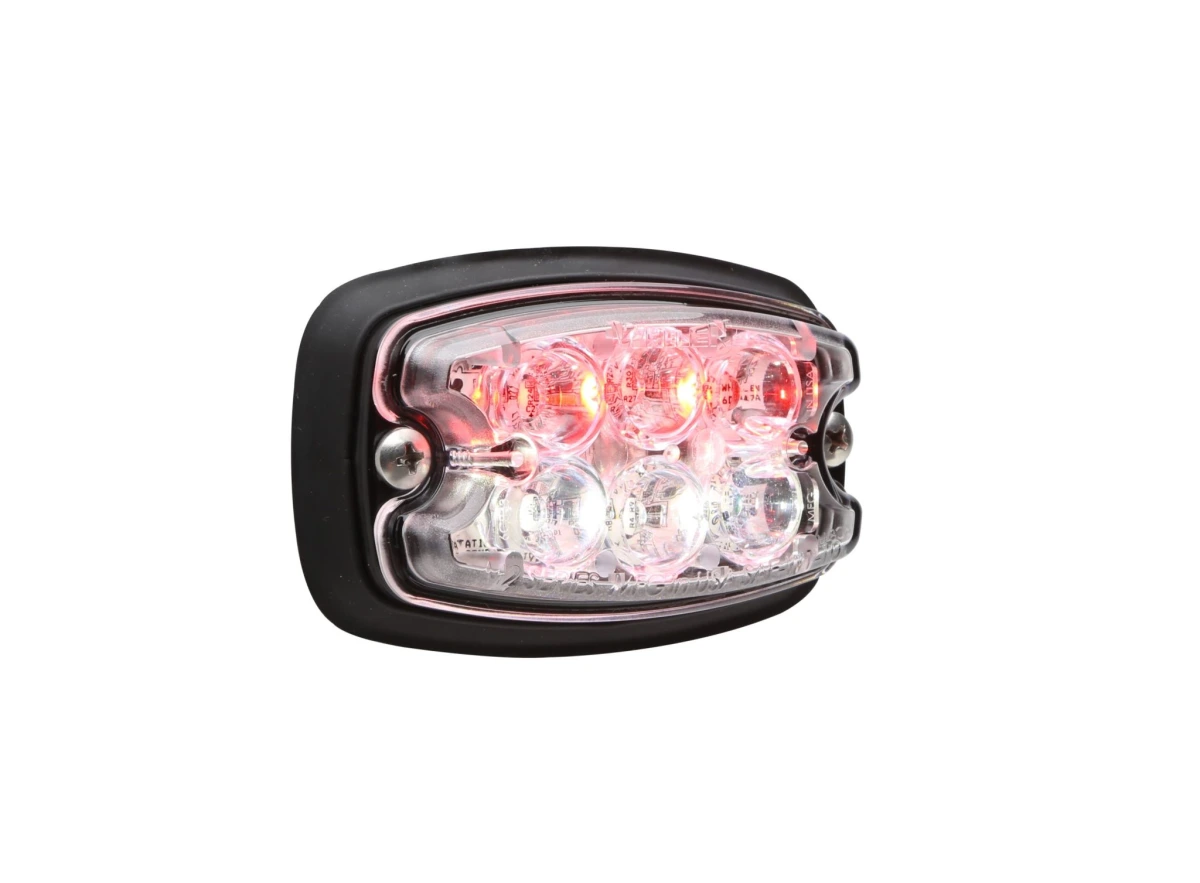

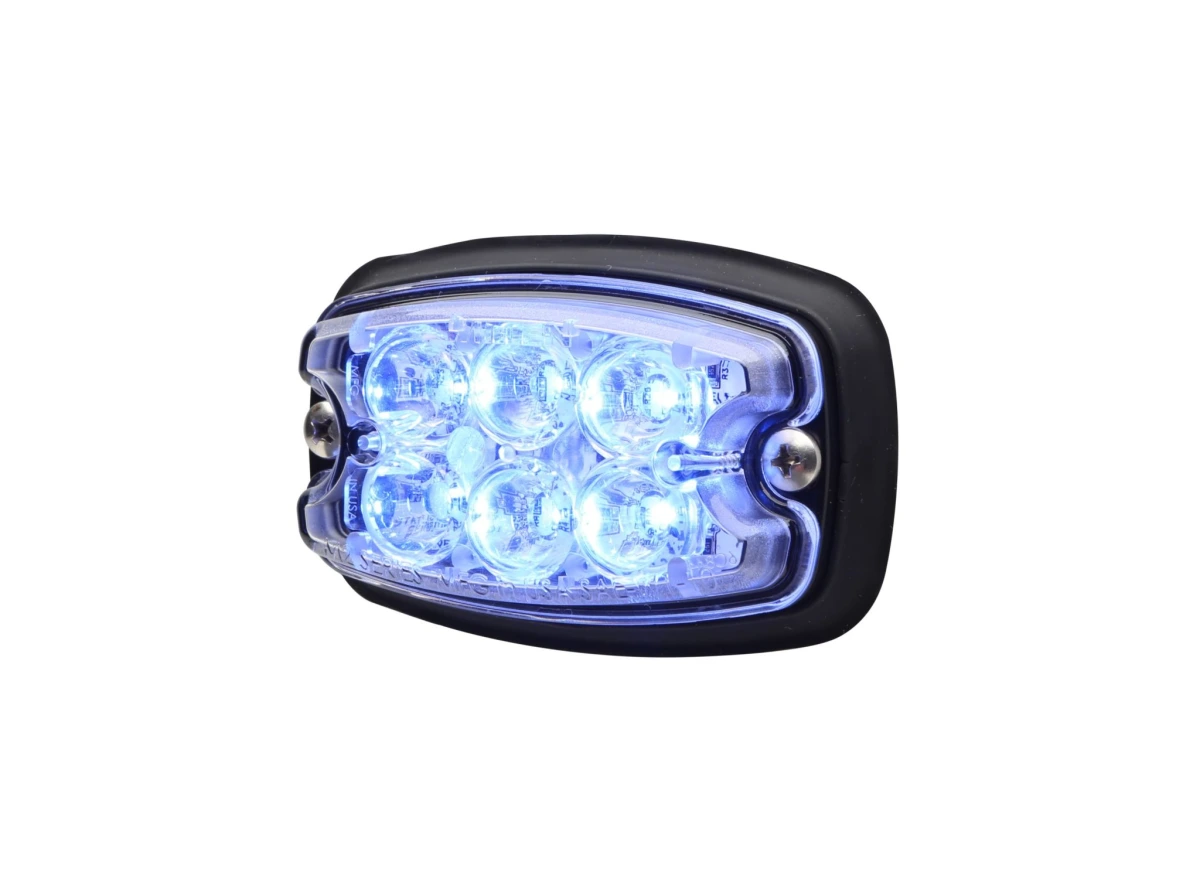

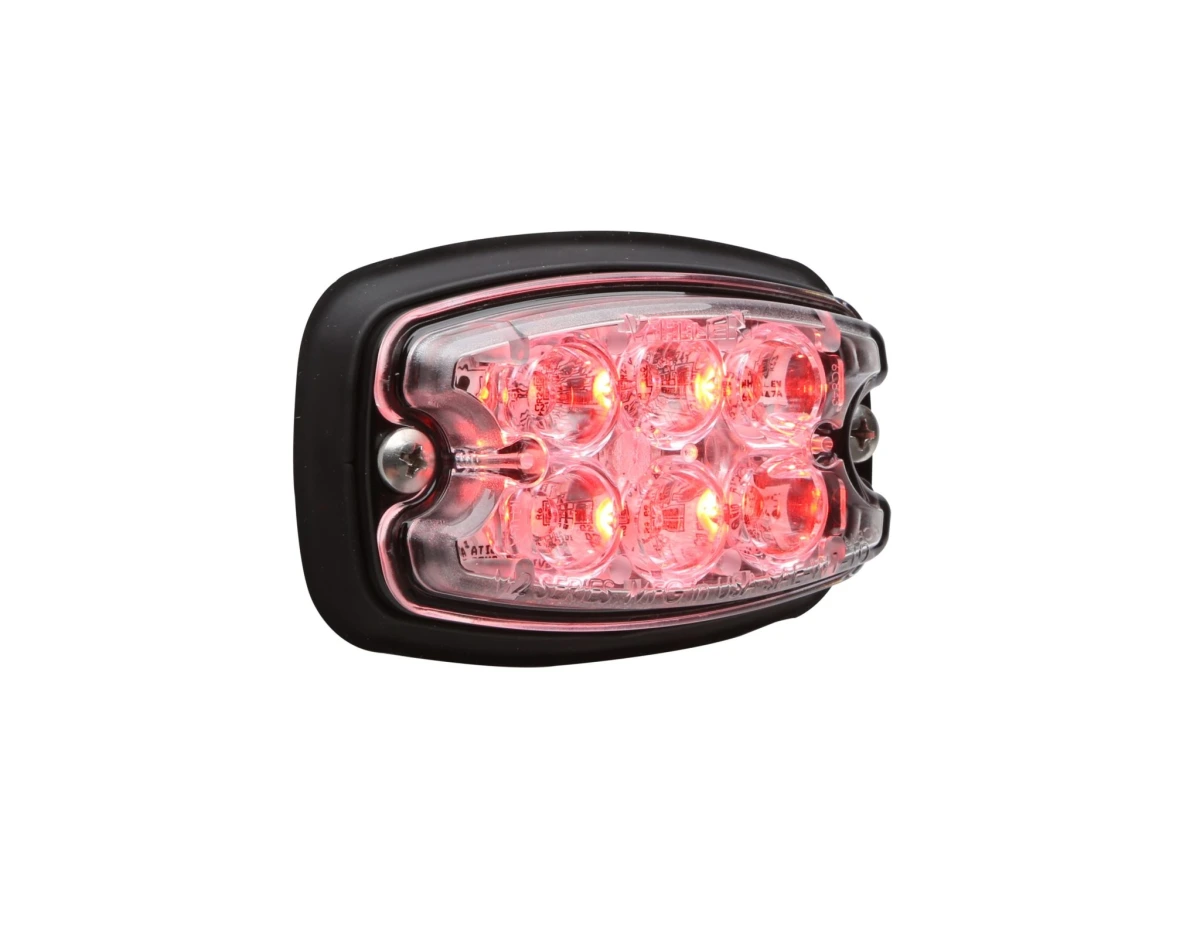

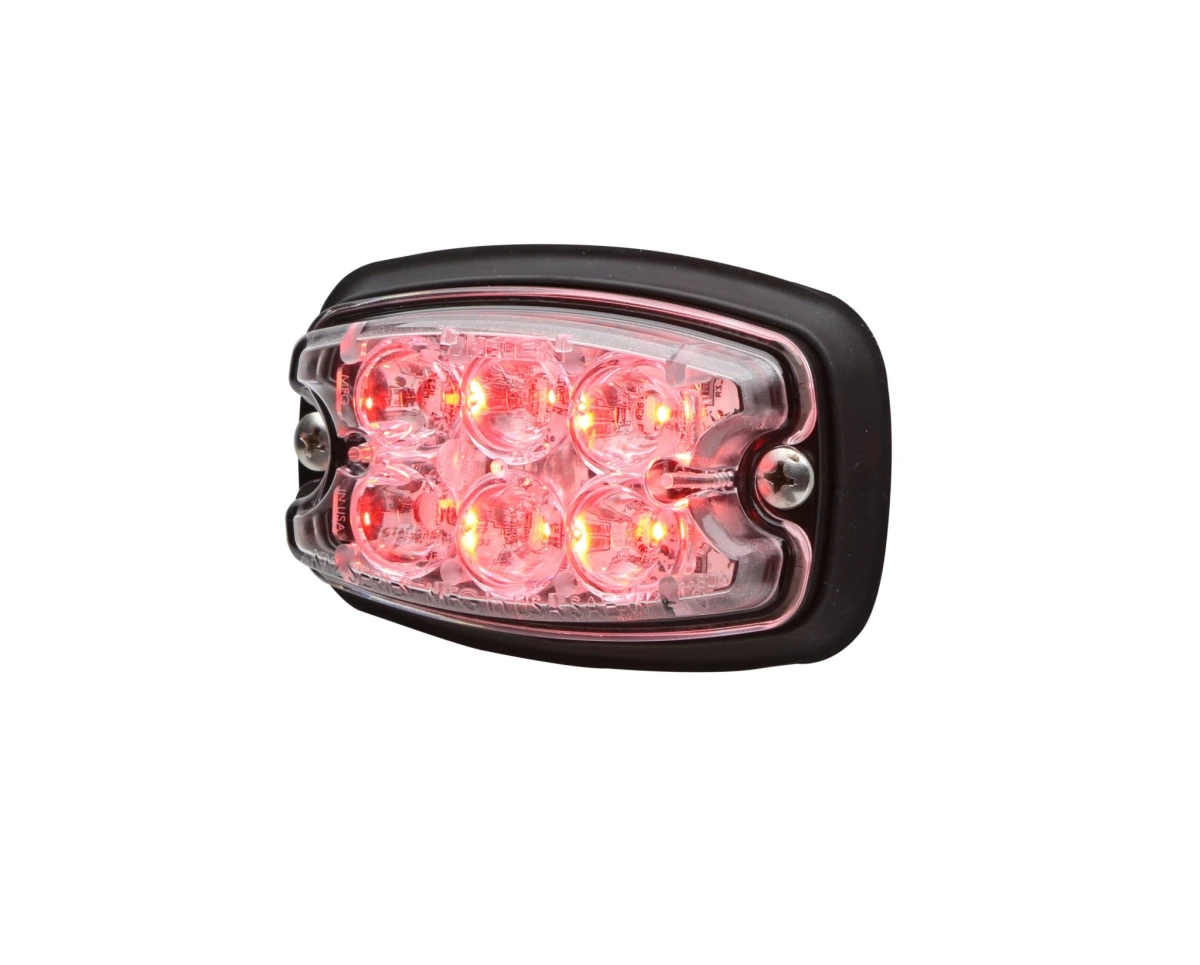

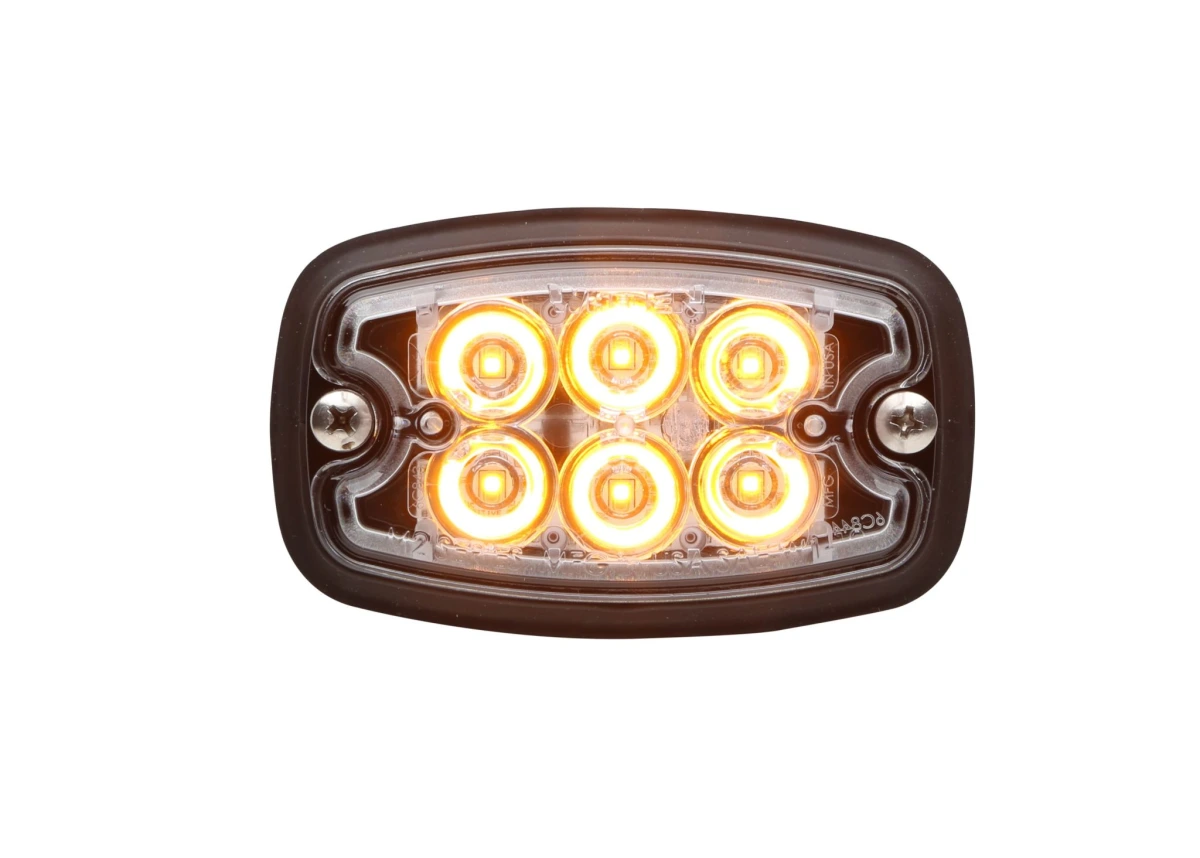

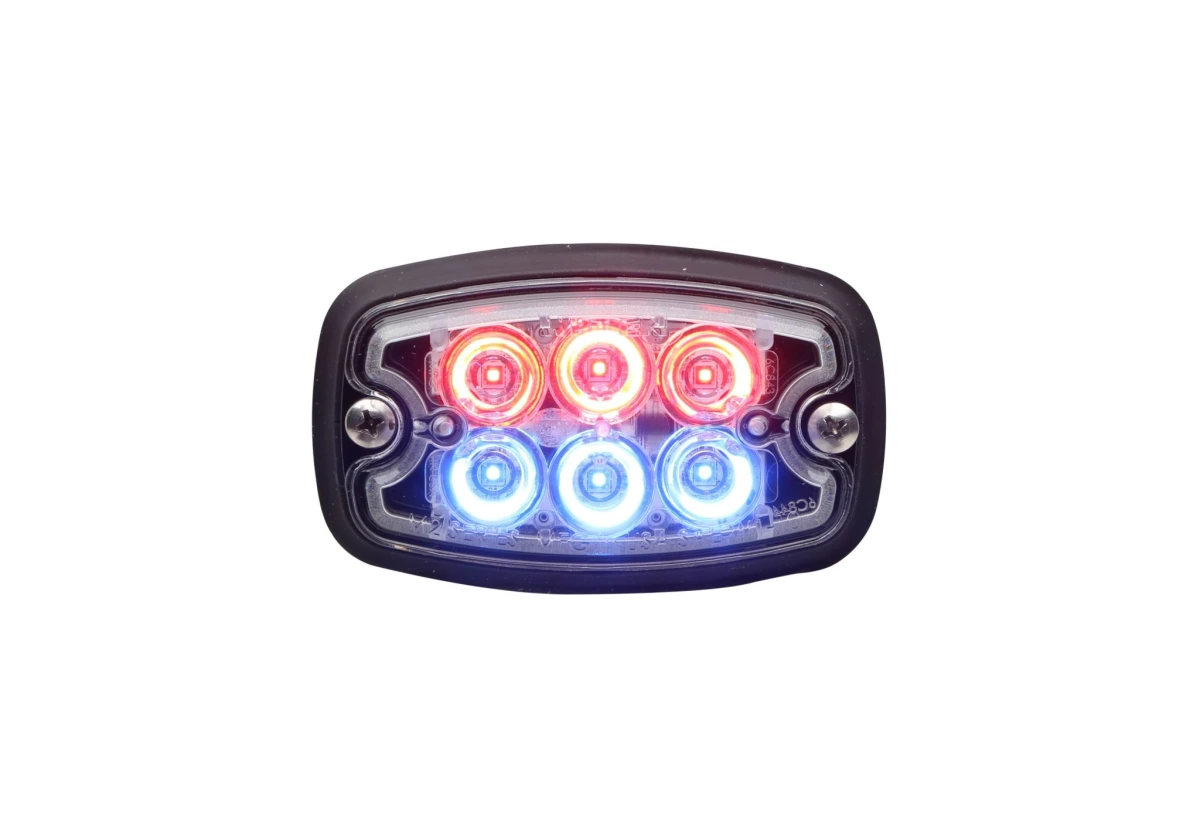

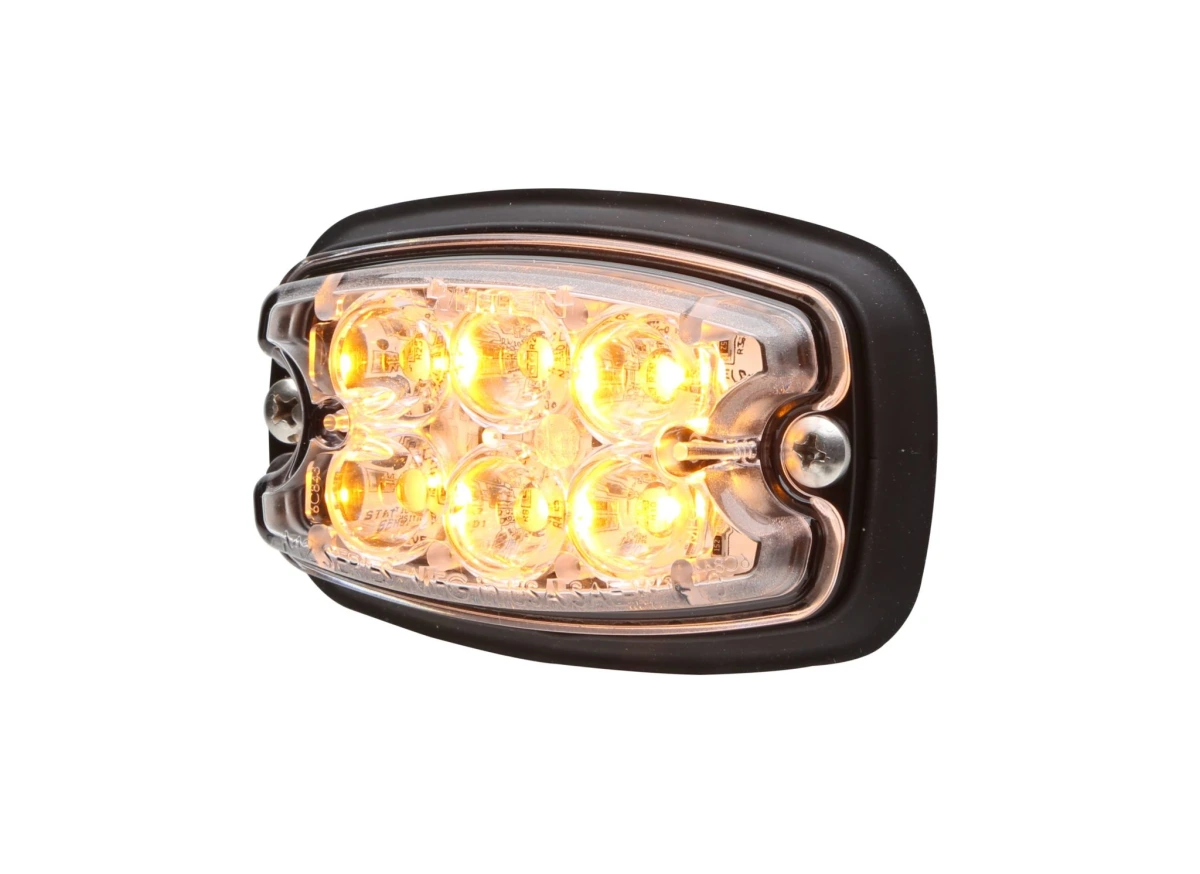

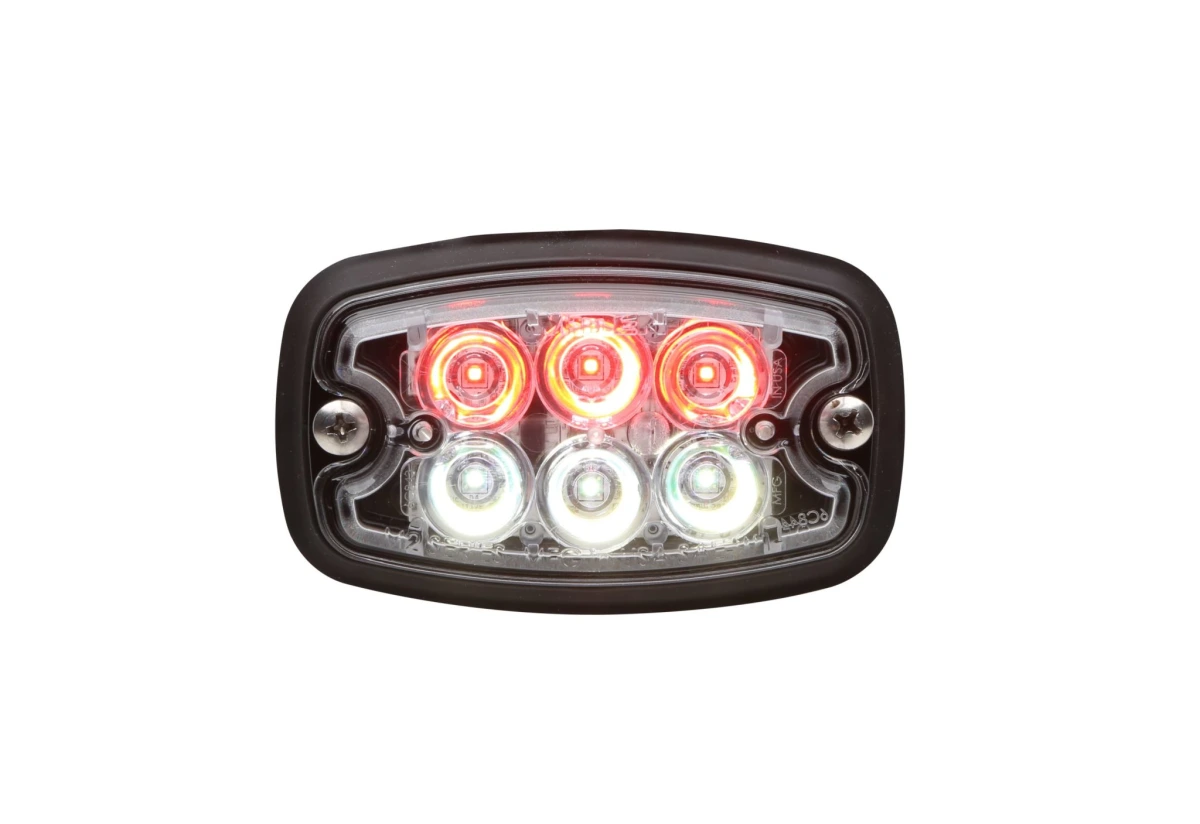

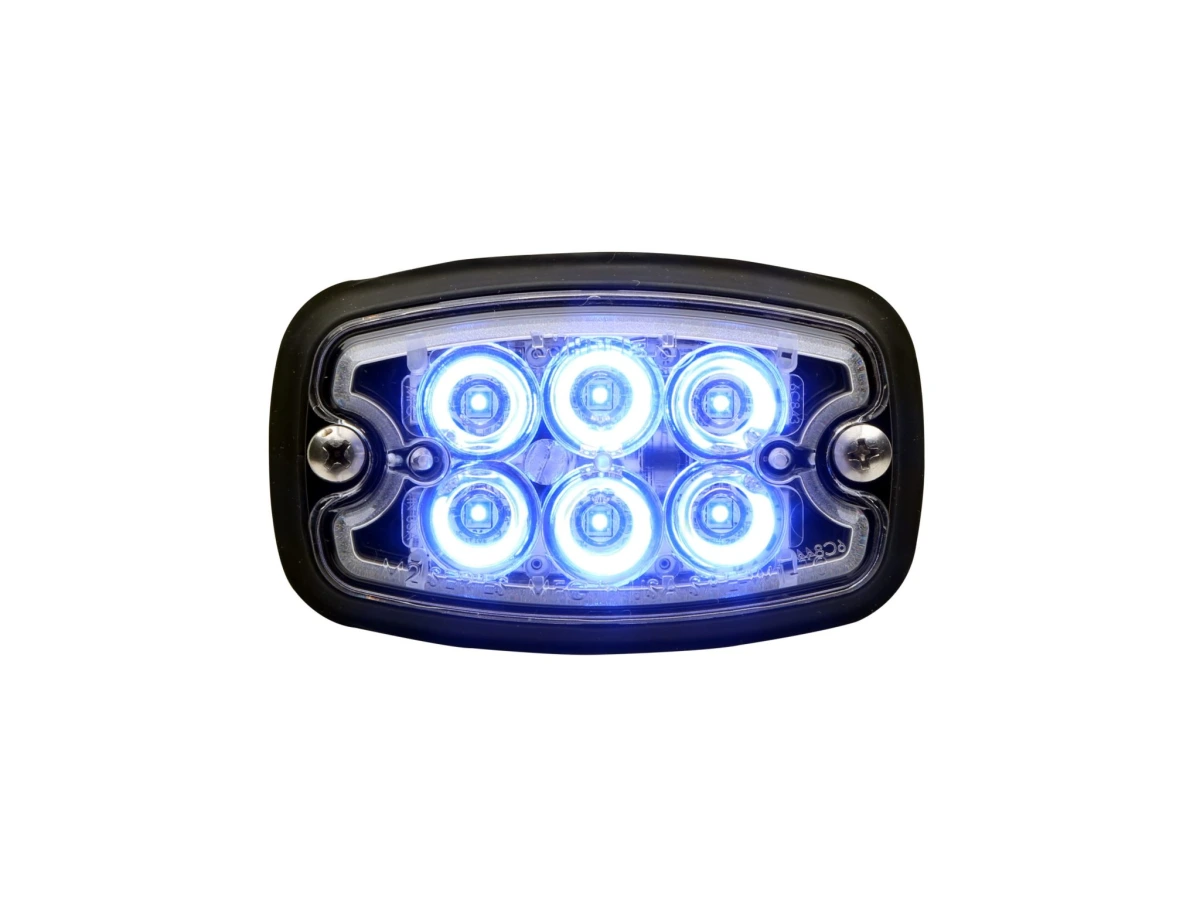

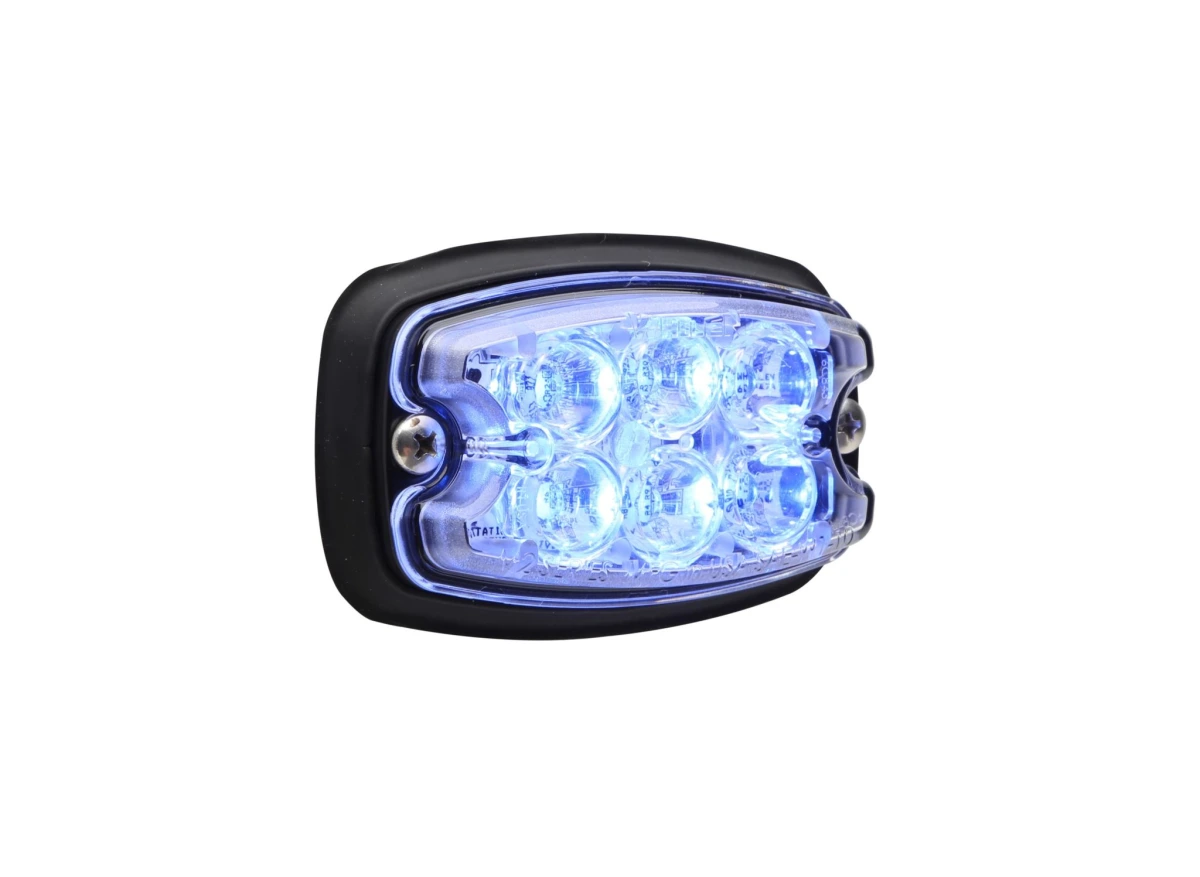

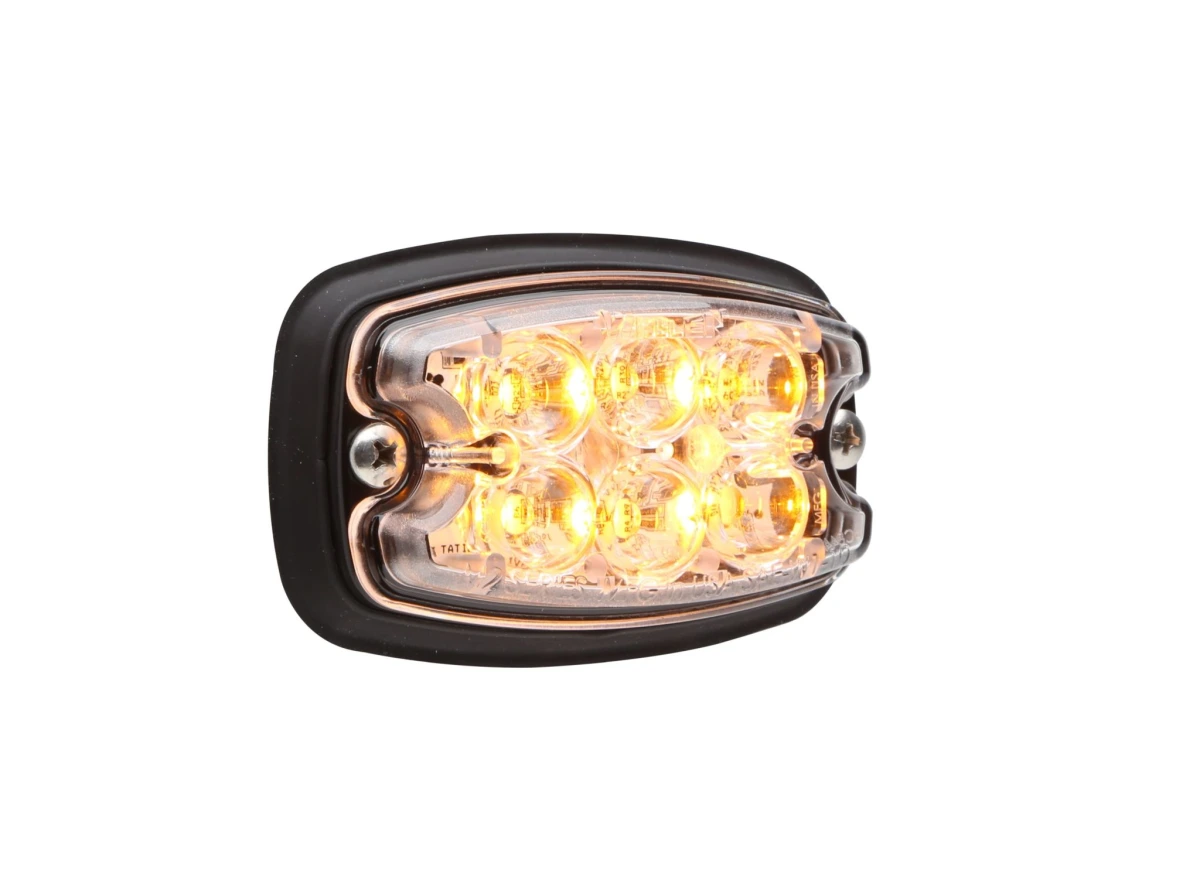

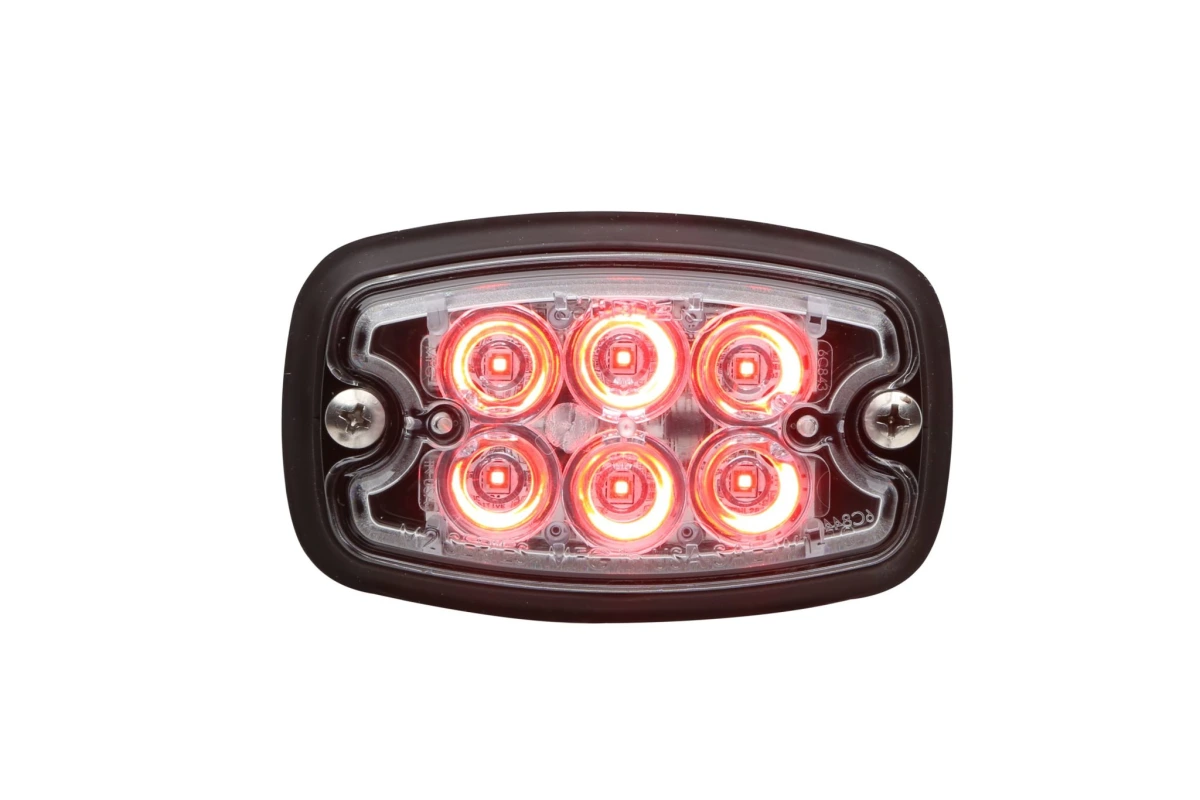

Whelen M2
The smallest of the M Series®, the M2 comes in standard and wide-angle models to accommodate several uses.
Product Description
- Hard-coated lenses
- Surface mounts via two screws for easy installation

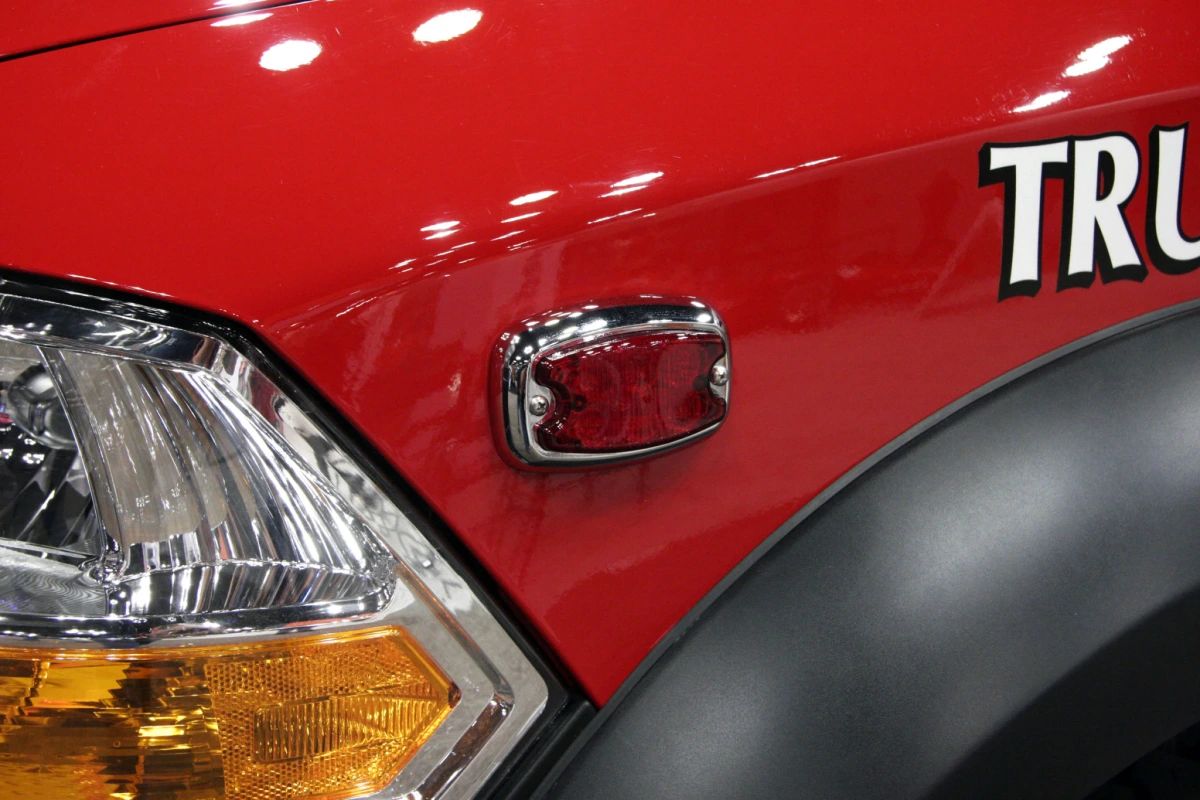

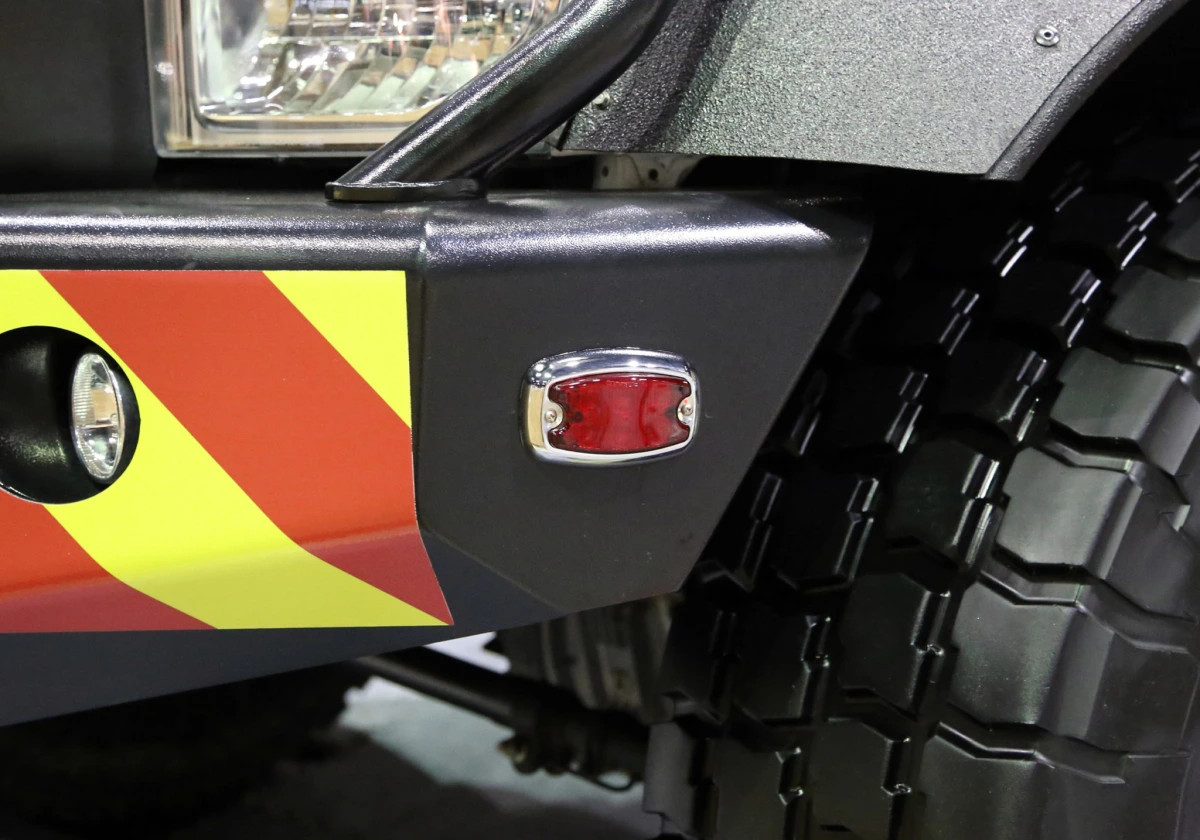

- A variety of mounting brackets and optional Chrome or Black flanges are available

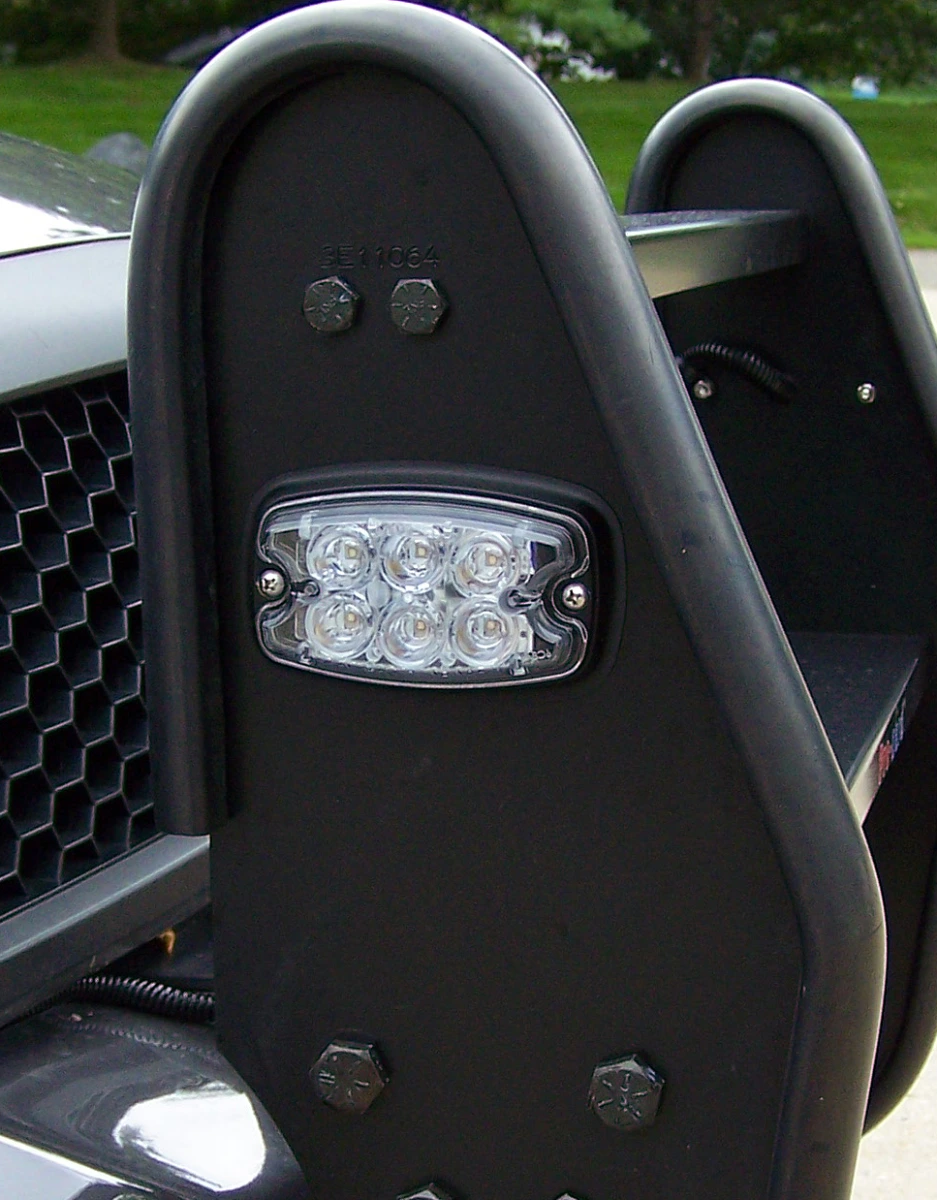

- Can be mounted vertically or horizontally
- Wide-angle lens models for NFPA 1901 and KKK-1822F applications
Dimensions
M2 Series
2"³ (53mm) H x 3.7"³ (93mm) W x .9"³ (23mm) D
Specifications
| Amps | 1.0 (peak), .45 (average) |

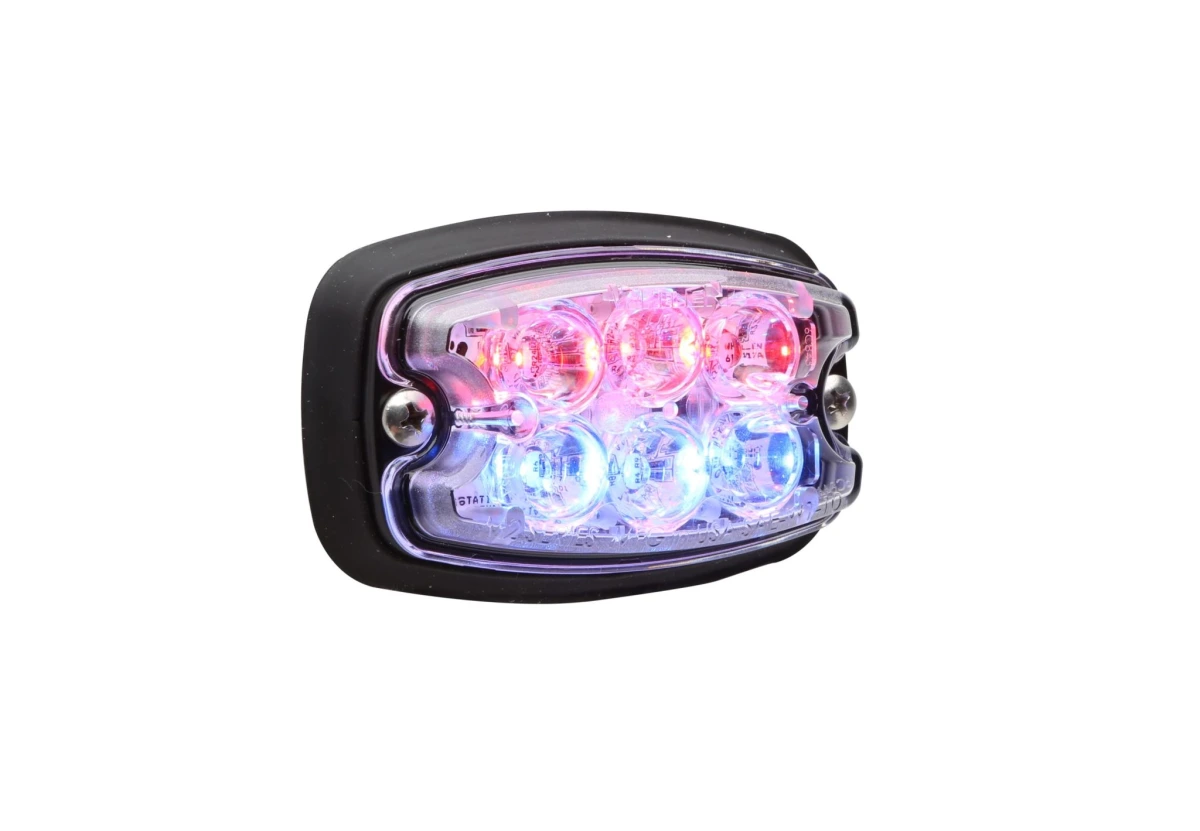

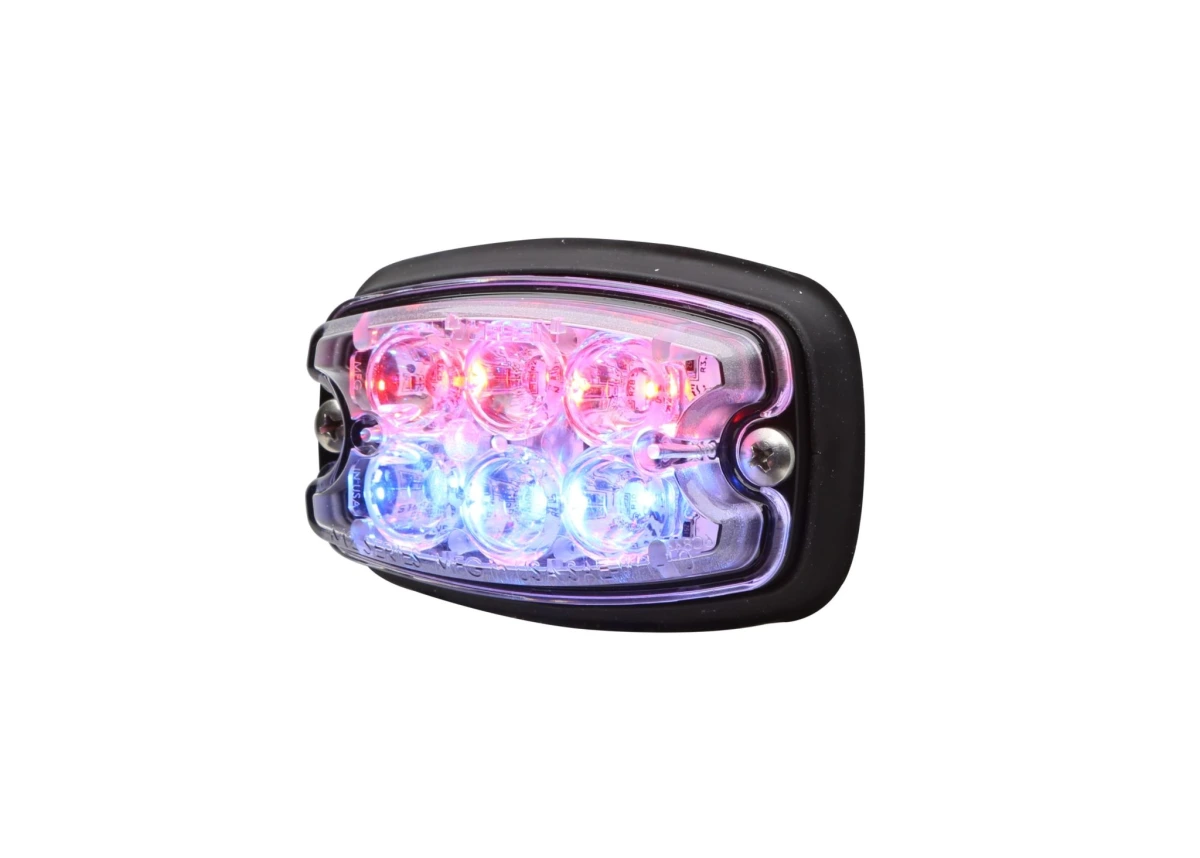

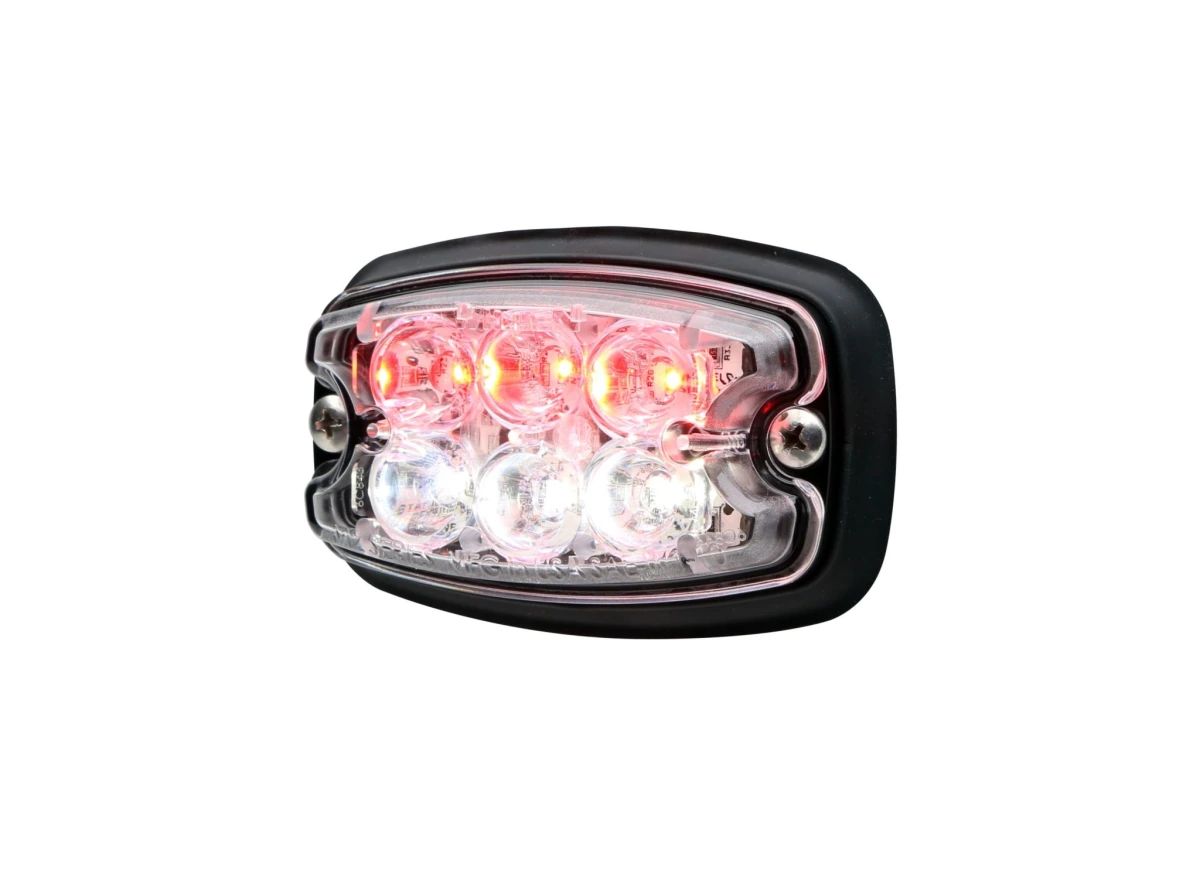

| Light Options | Single or Split color
Steady-burn Internal flasher+ |
| Lenses | Clear
Color |
| Flash Patterns* | Single color: 25 Scan-Lock® flash patterns
Double color: 69 Scan-Lock flash patterns |
| Certifications | SAE Class 1 (warning)
KKK-1822F NFPA 1901 NFPA 1917 SAE EC65 |
| Warranty | Five year warranty |
* Number of sequencing combinations vary by model
+ Sync or low power functions
