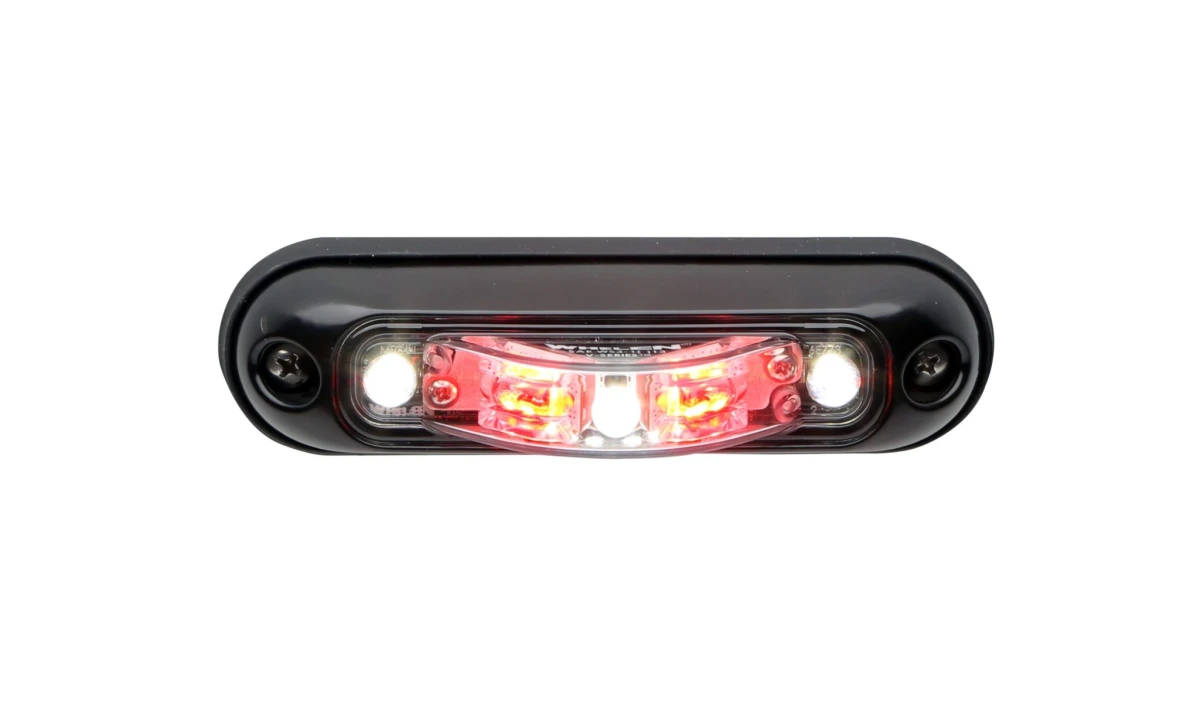

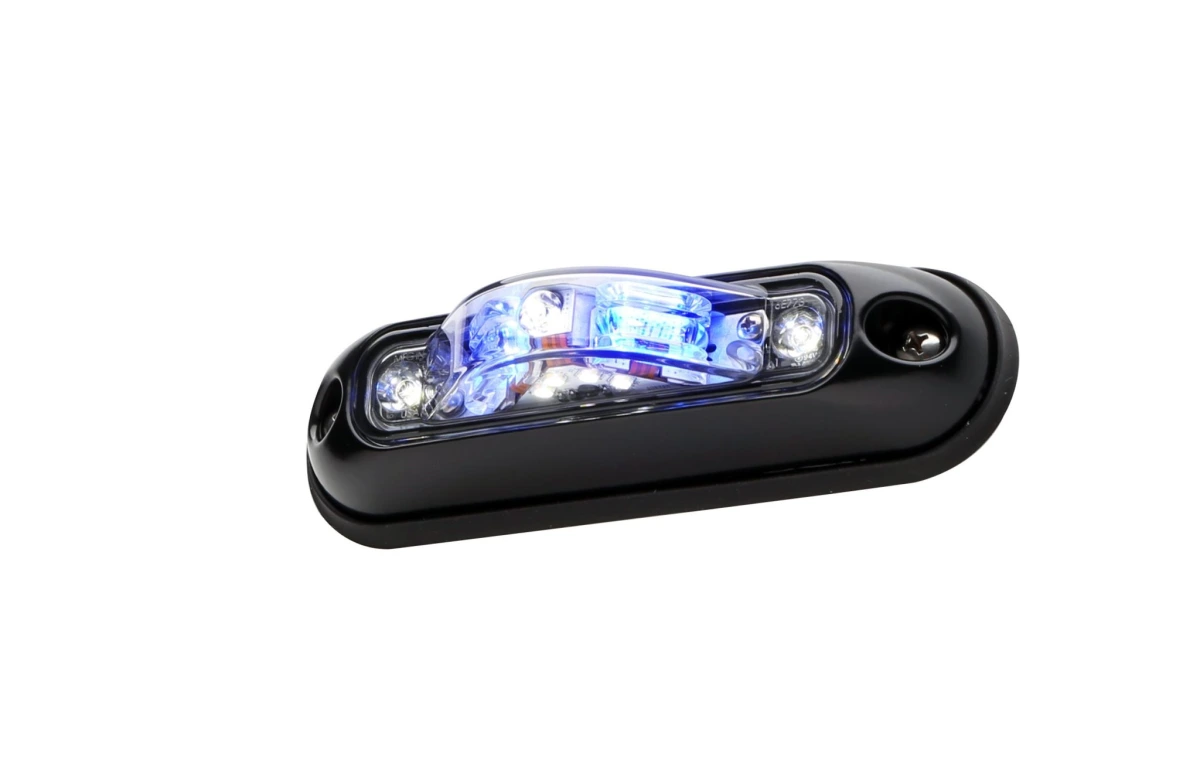

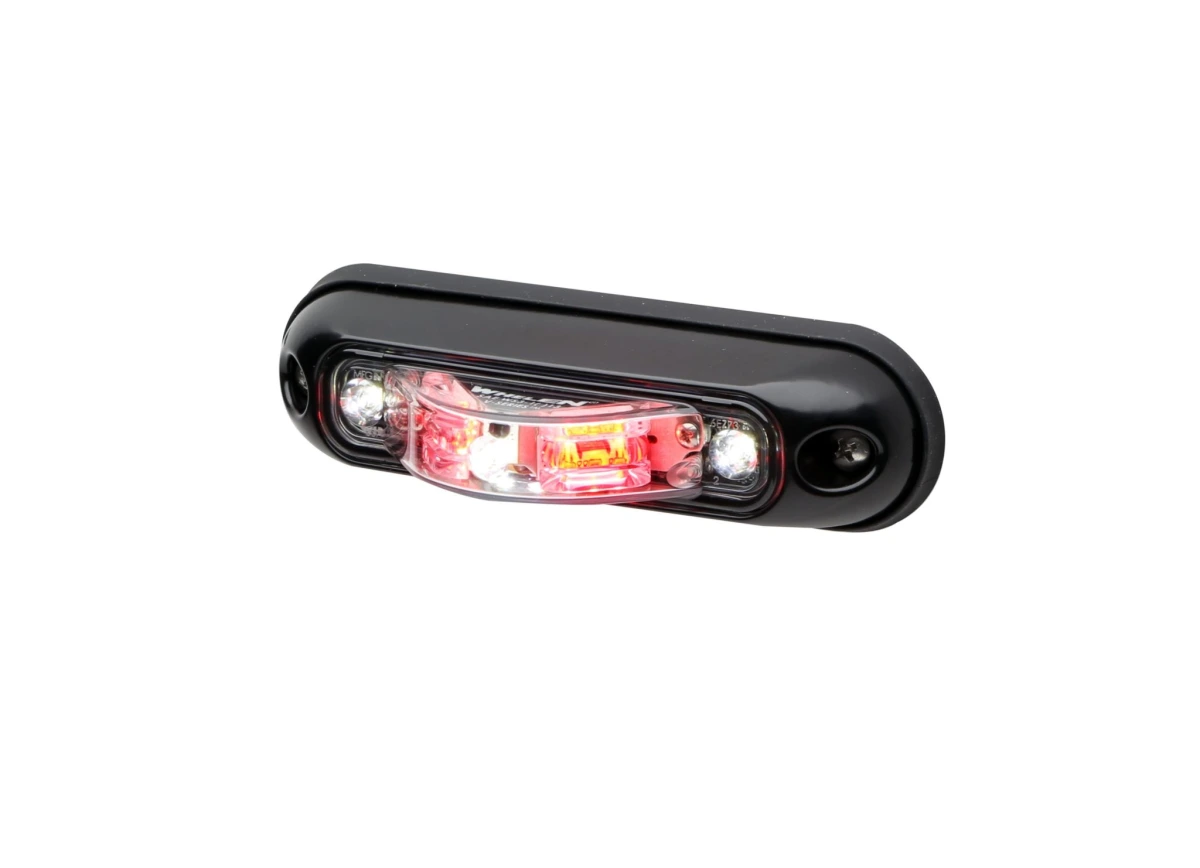

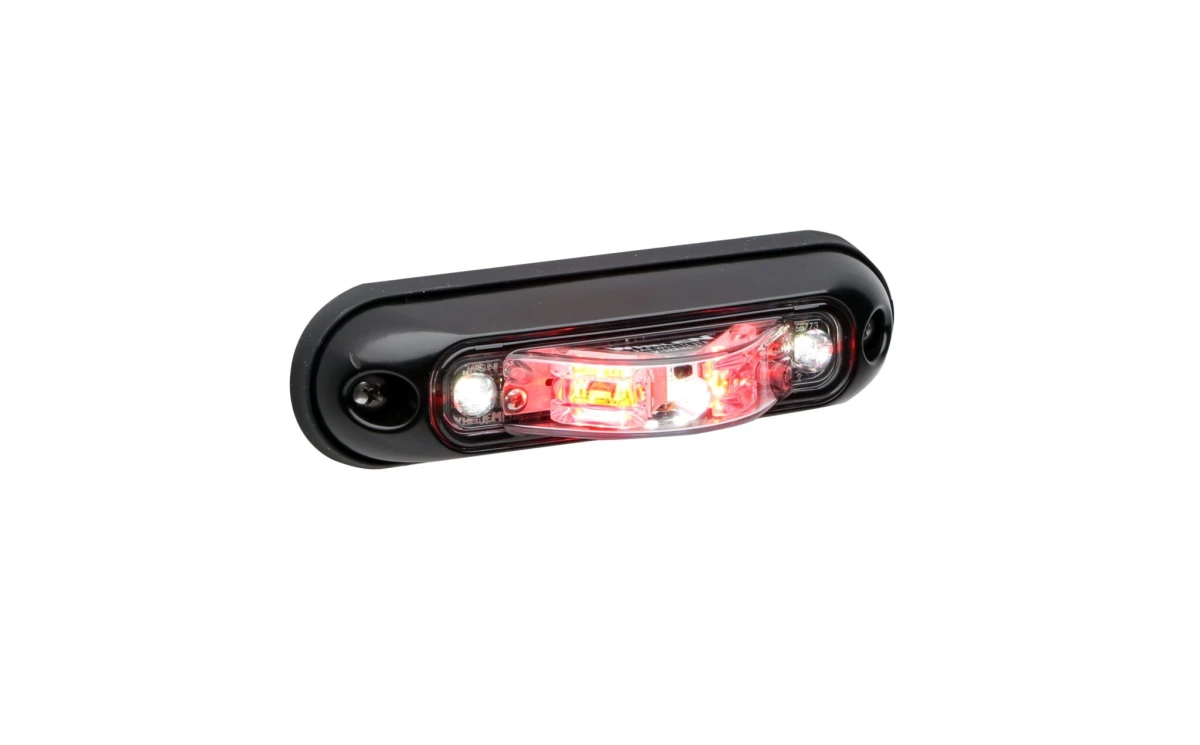

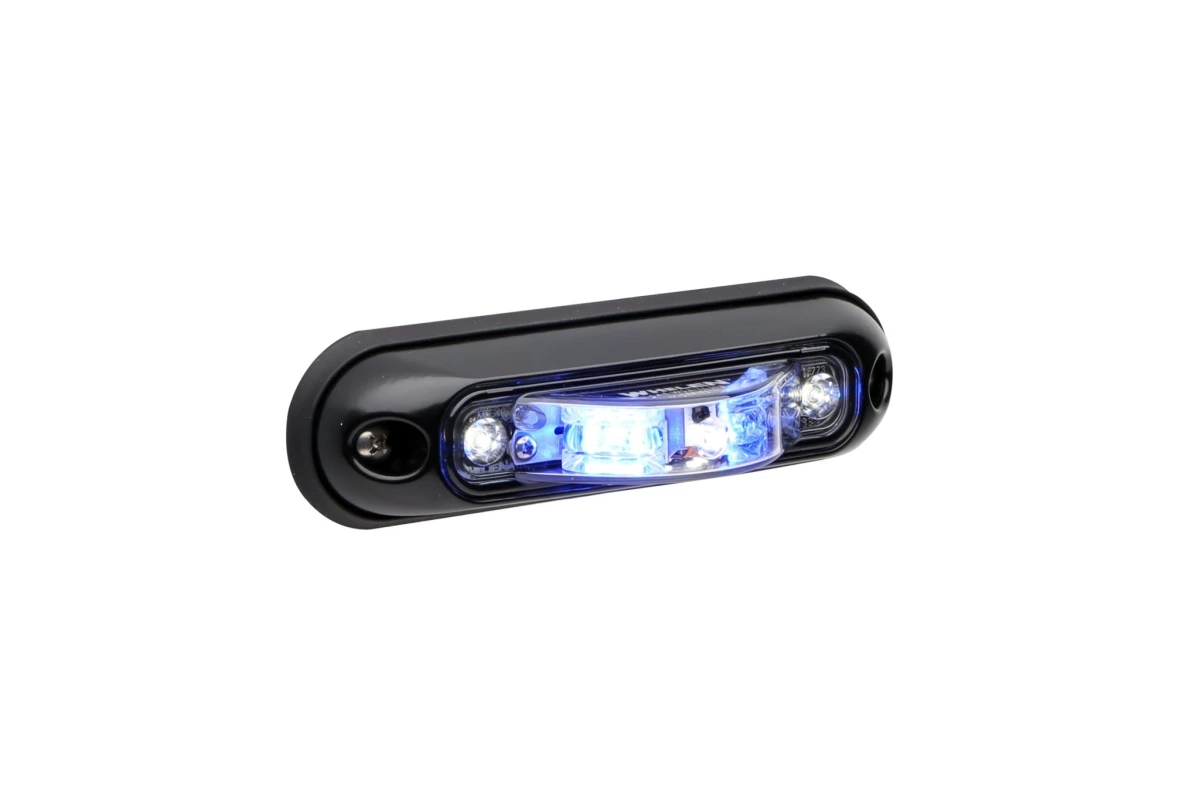

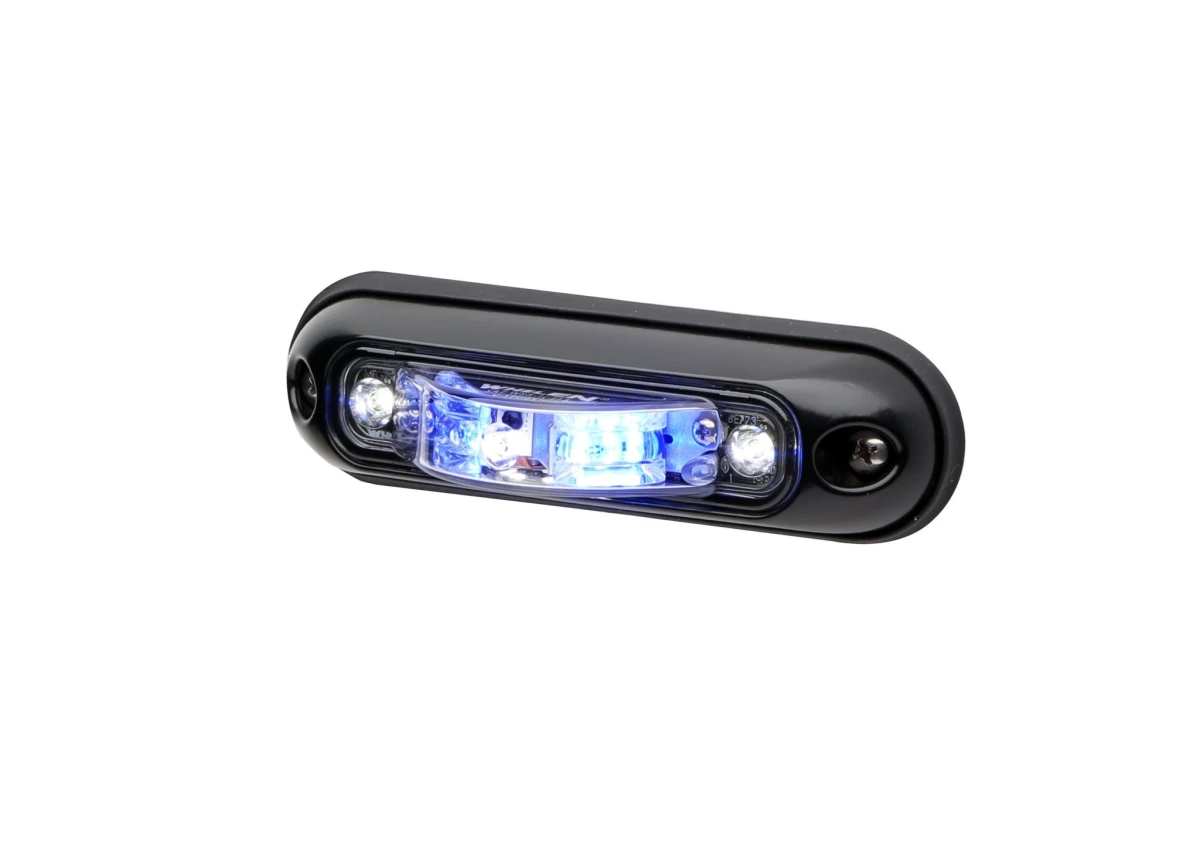

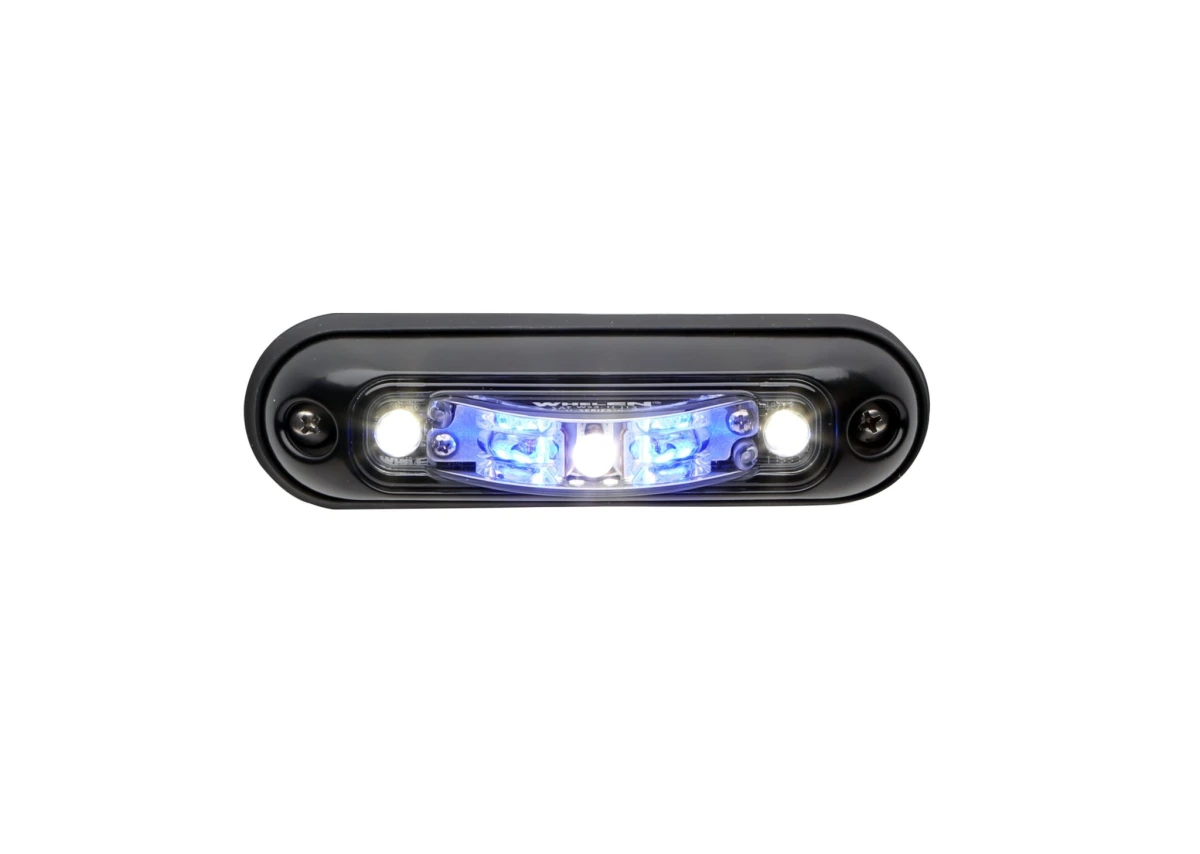

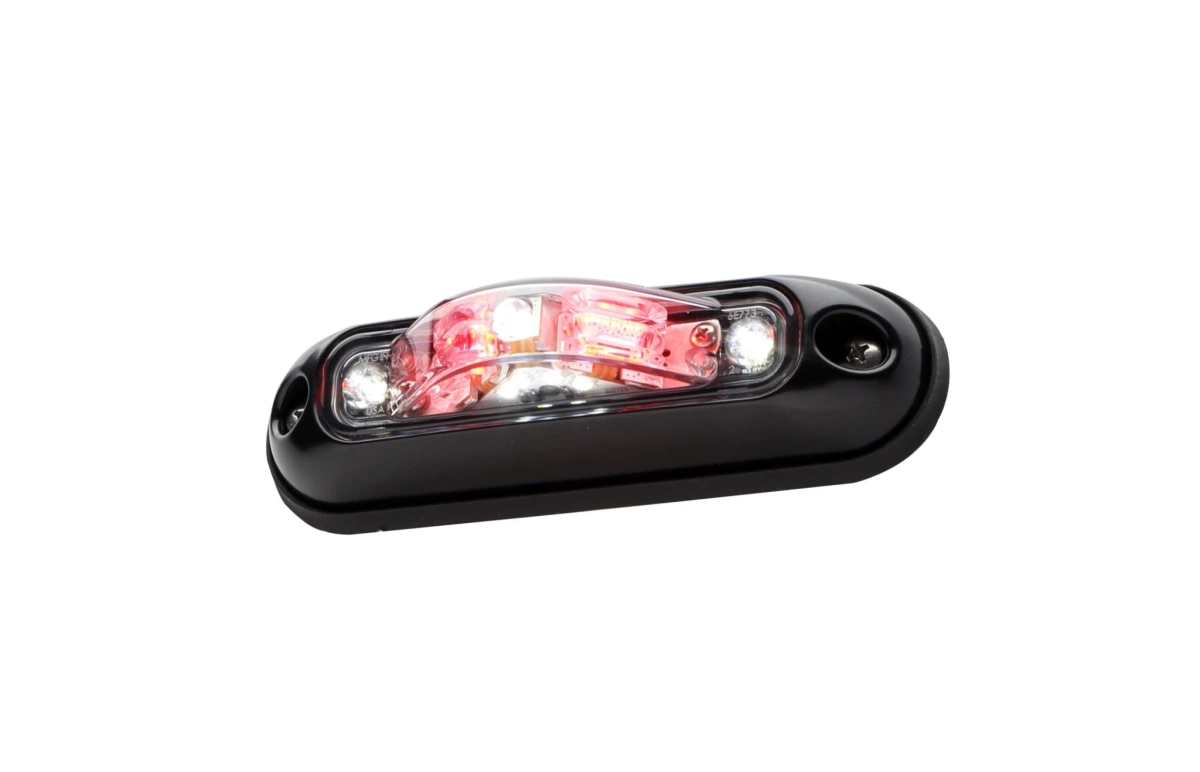

Whelen ION V-Series
Utilizing multiple planes of light in one lighthead, the ION V-Series is available in a three-in-one combination or single color warning models.
Product Description
ION V-Series®
Utilizing multiple planes of light in one lighthead, the ION V-Series is available in a three-in-one combination or single color warning models.
V-Series:
- Combination models have 180° wide-angle warning, illumination, and puddle light
- Single color models have combination 180° and TIR directional warning
- Warning segment available in Red, Amber, Blue, or White
- 10" 6-wire pigtail with sync wire allows up to eight lightheads to be synchronized together for the warning segment of the lighthead
ION V-Series
1"³ (25mm) H x 4"³ (102mm) W x 2.2"³ (56mm) D
V-Series:
| Voltage | 12 VDC |
| Amps | Combination Model: warning lights 0.76 amps (average), alley lights 0.31 amps (average), puddle lights 0.12 amps (average)
Single Color Warning Model: 1.147 amps (average) |
| Flash Patterns | Warning Segment: 25 Scan-Lock® flash patterns |
| Certifications | SAE Class 1 Certified*
IP67 |
| Warranty | Five year warranty |
