Whelen

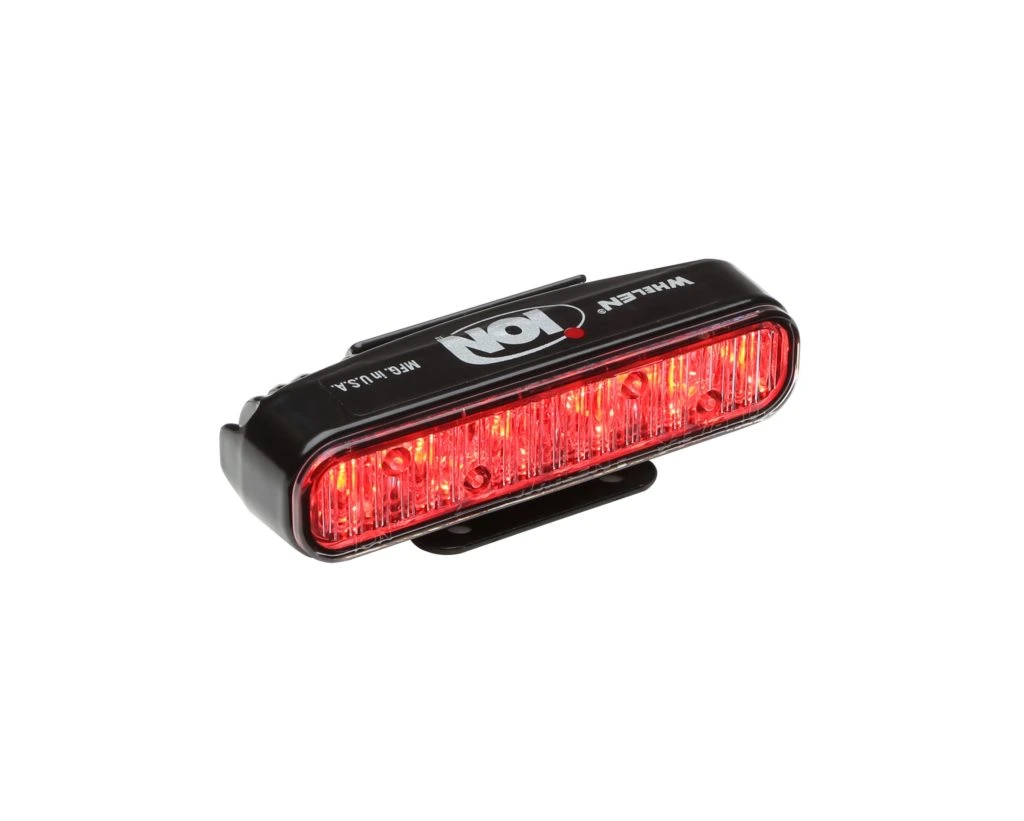

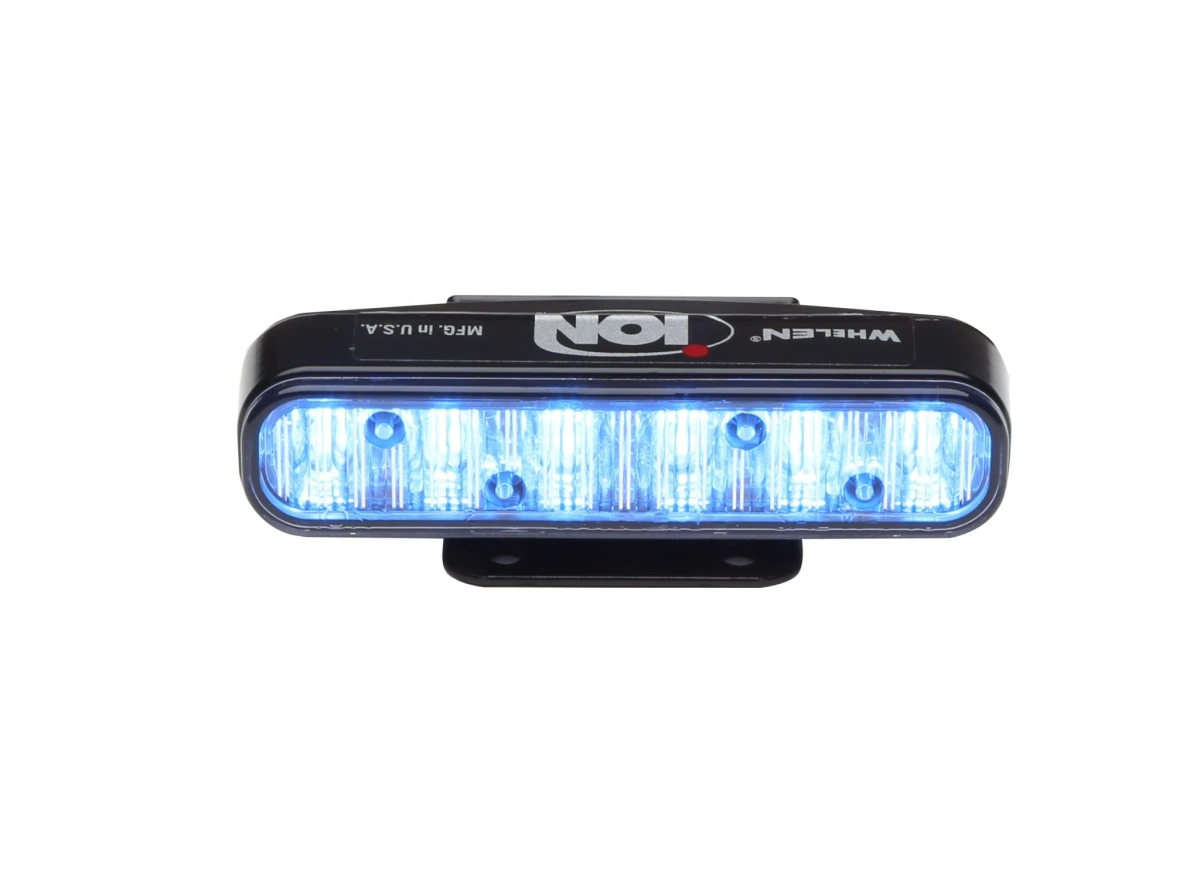

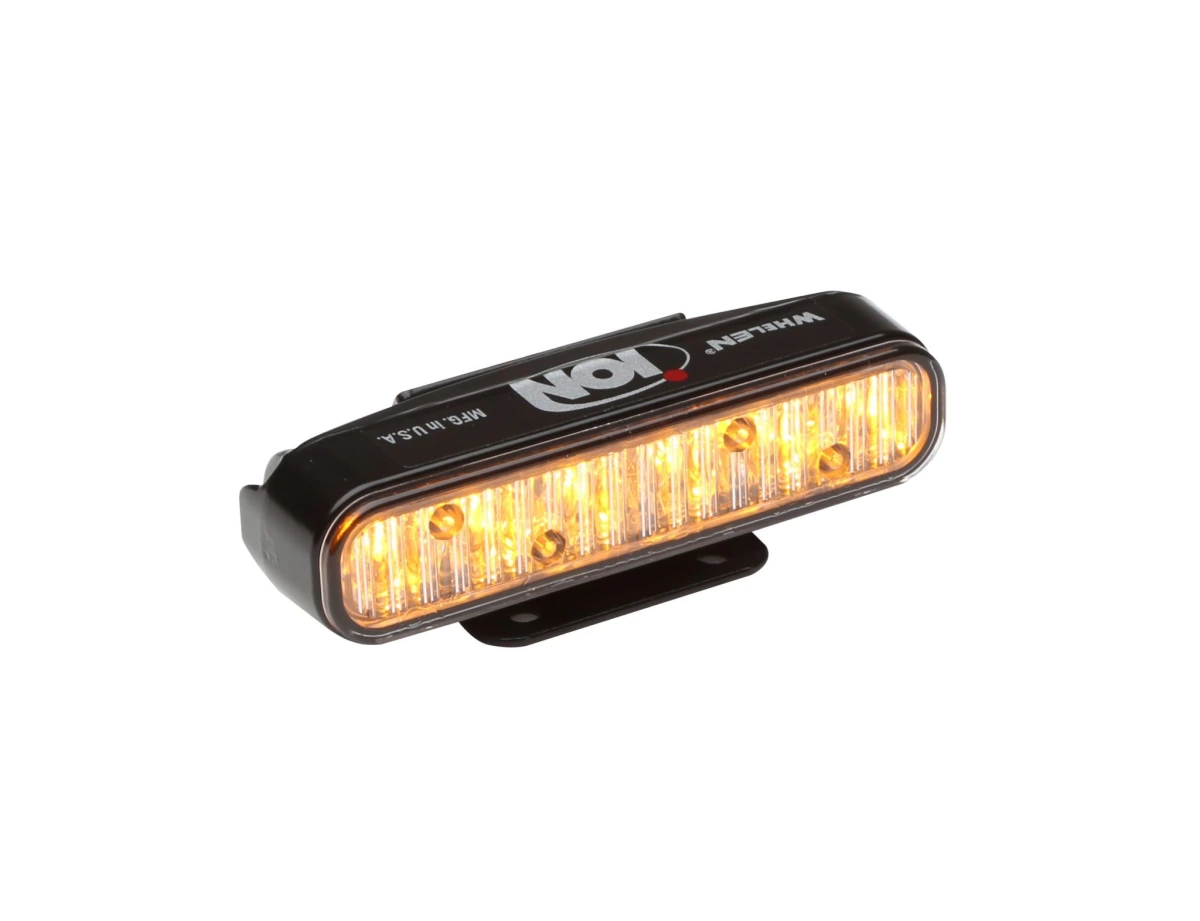

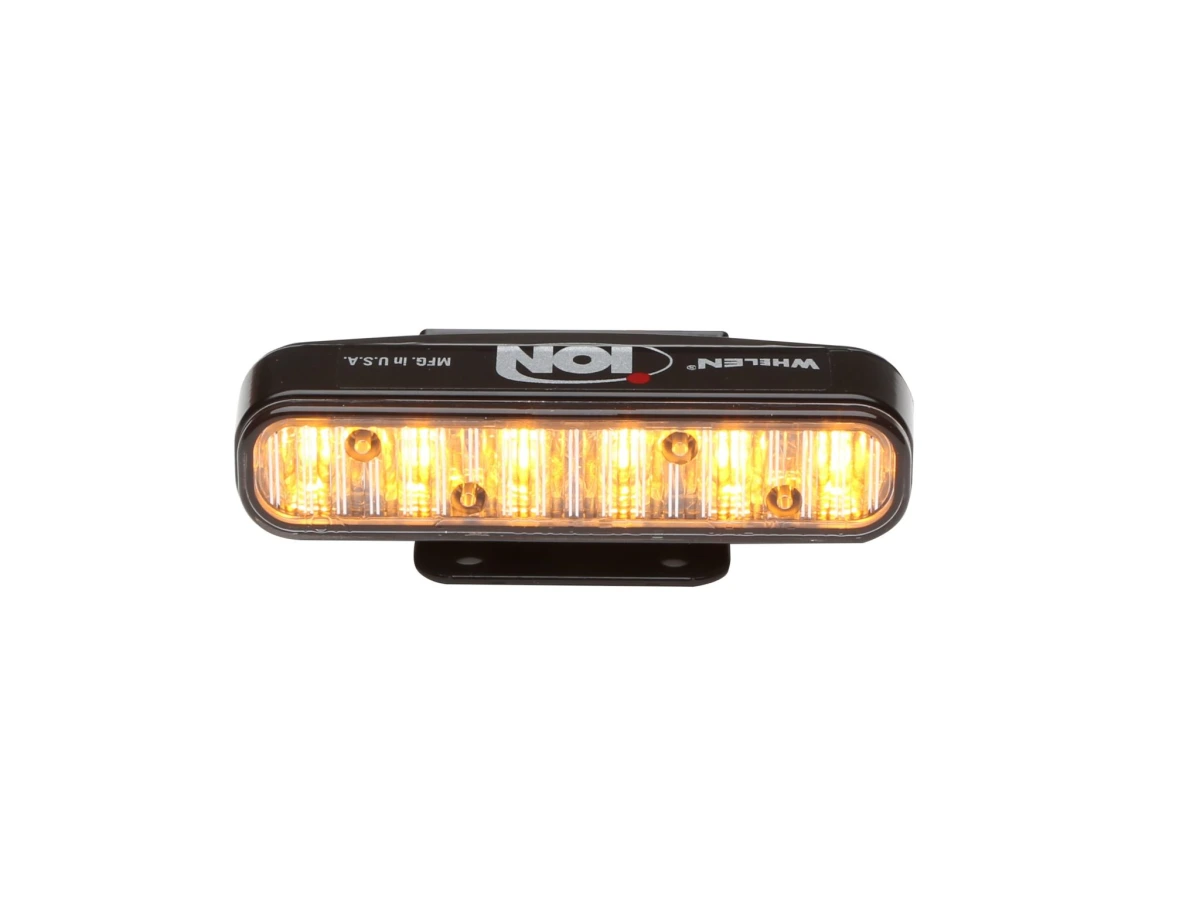

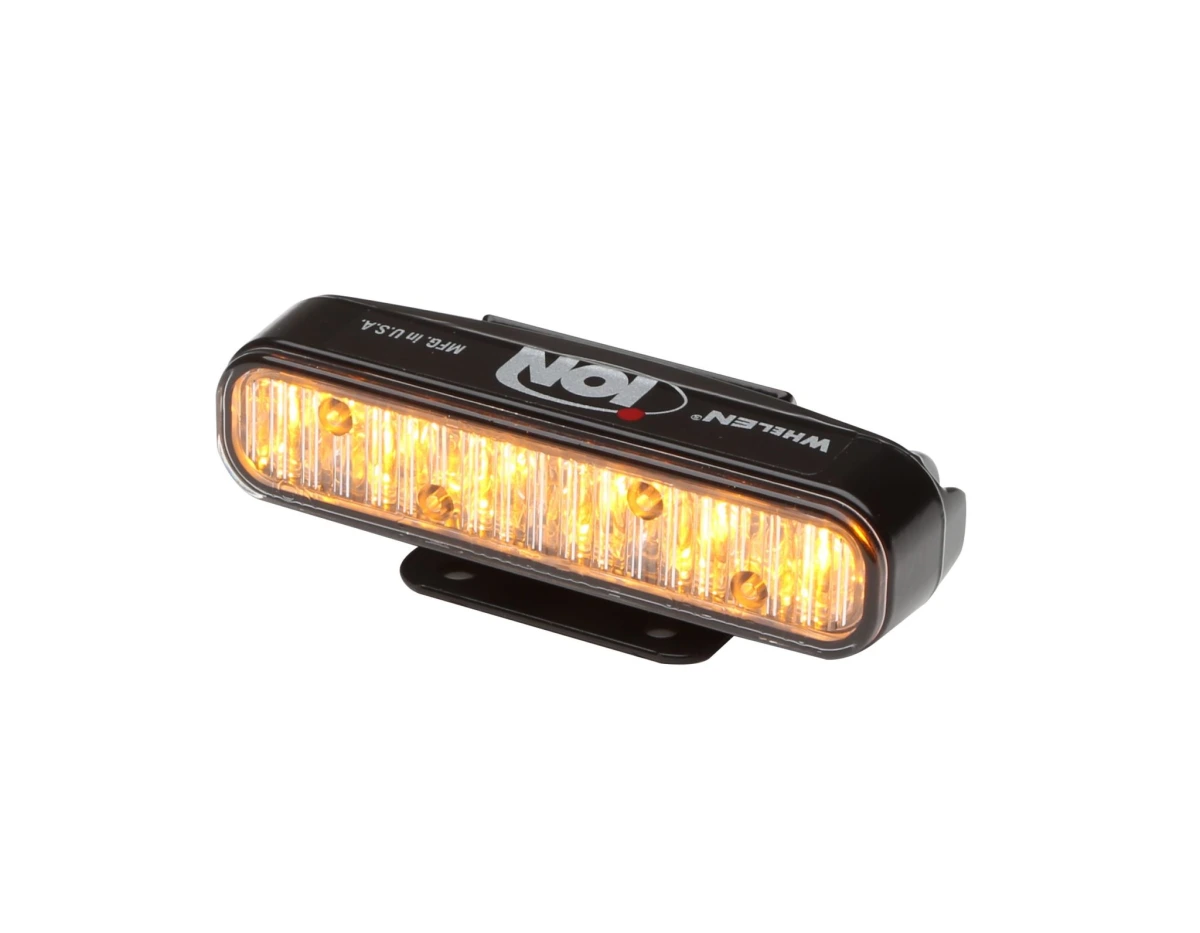

Whelen ION

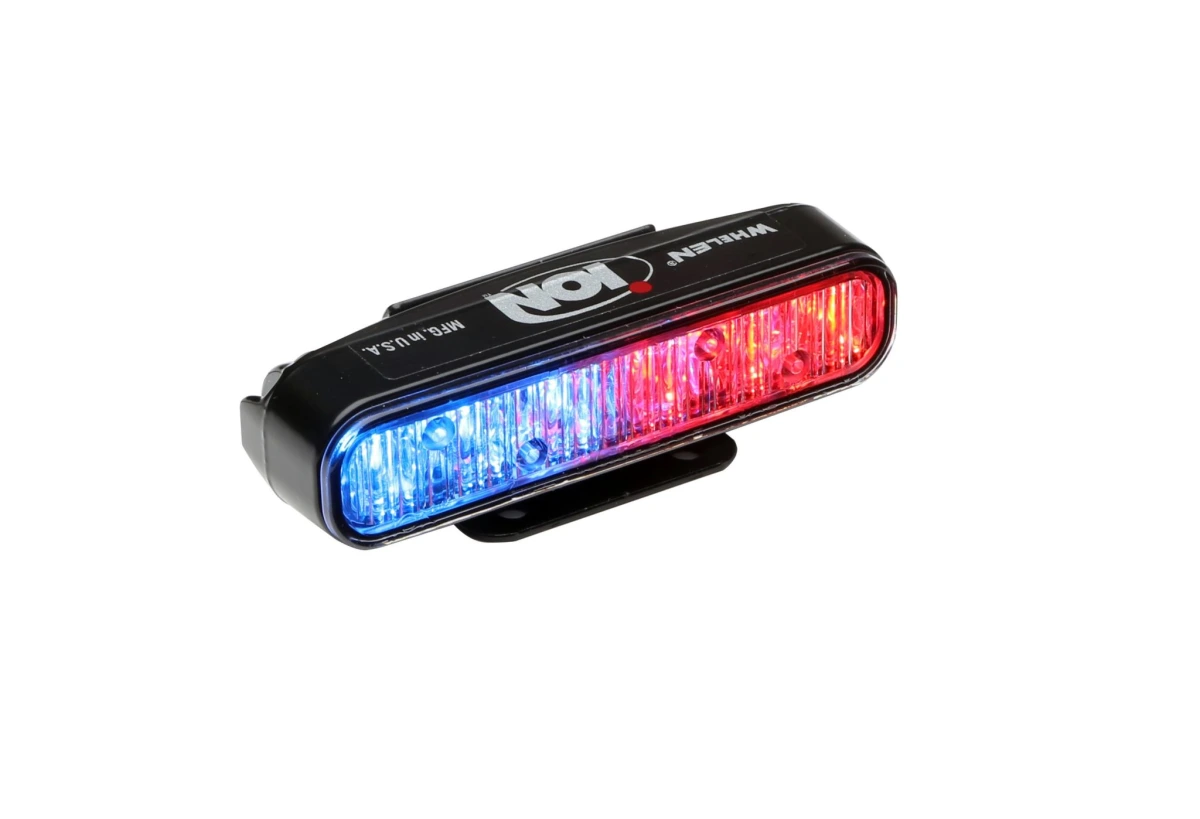

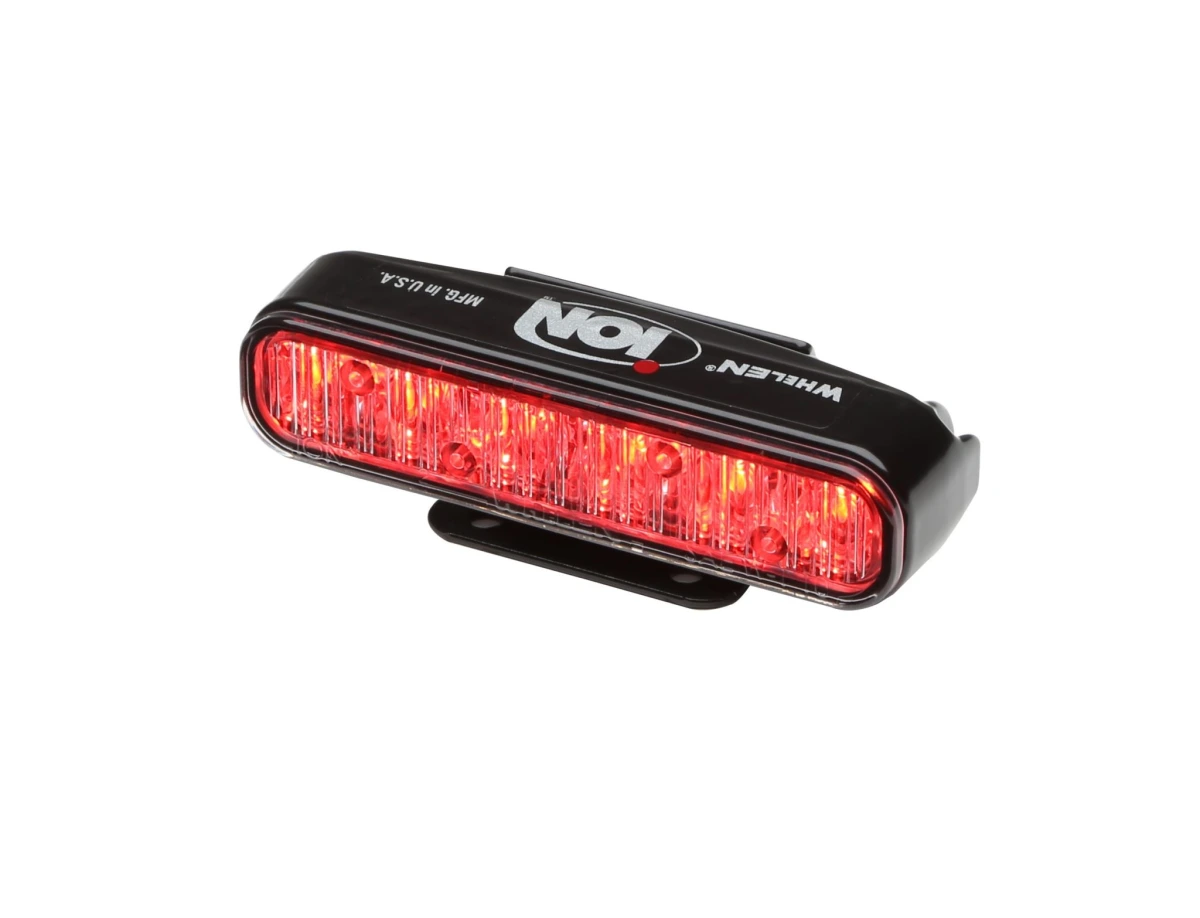

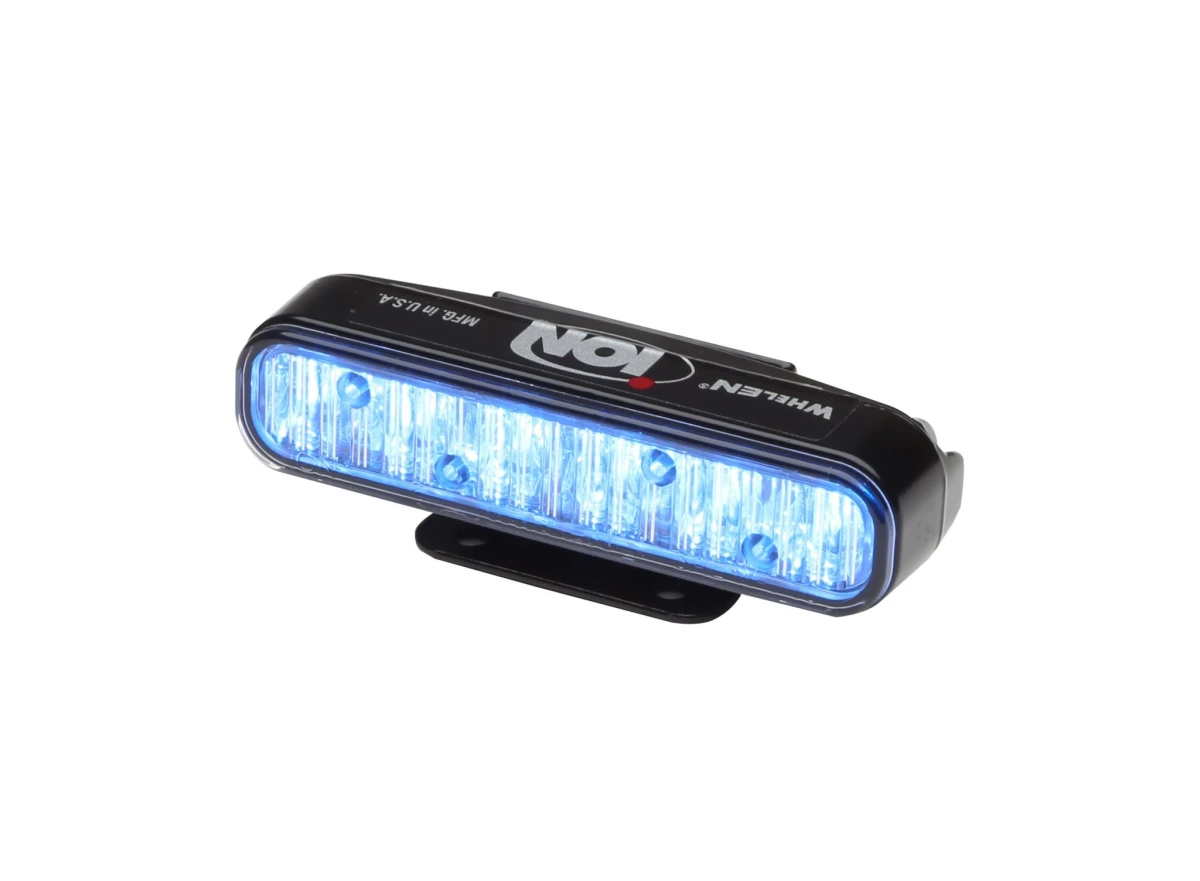

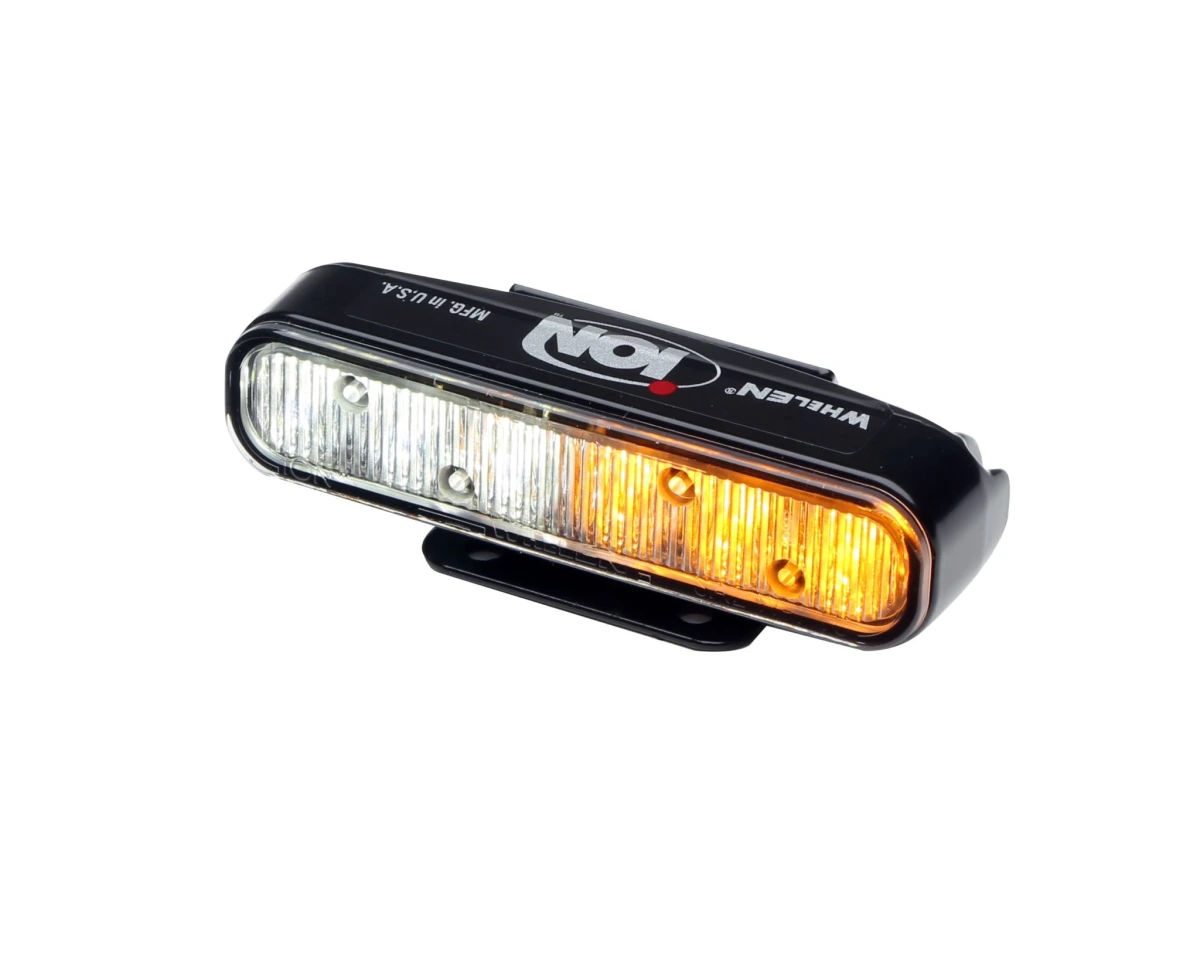

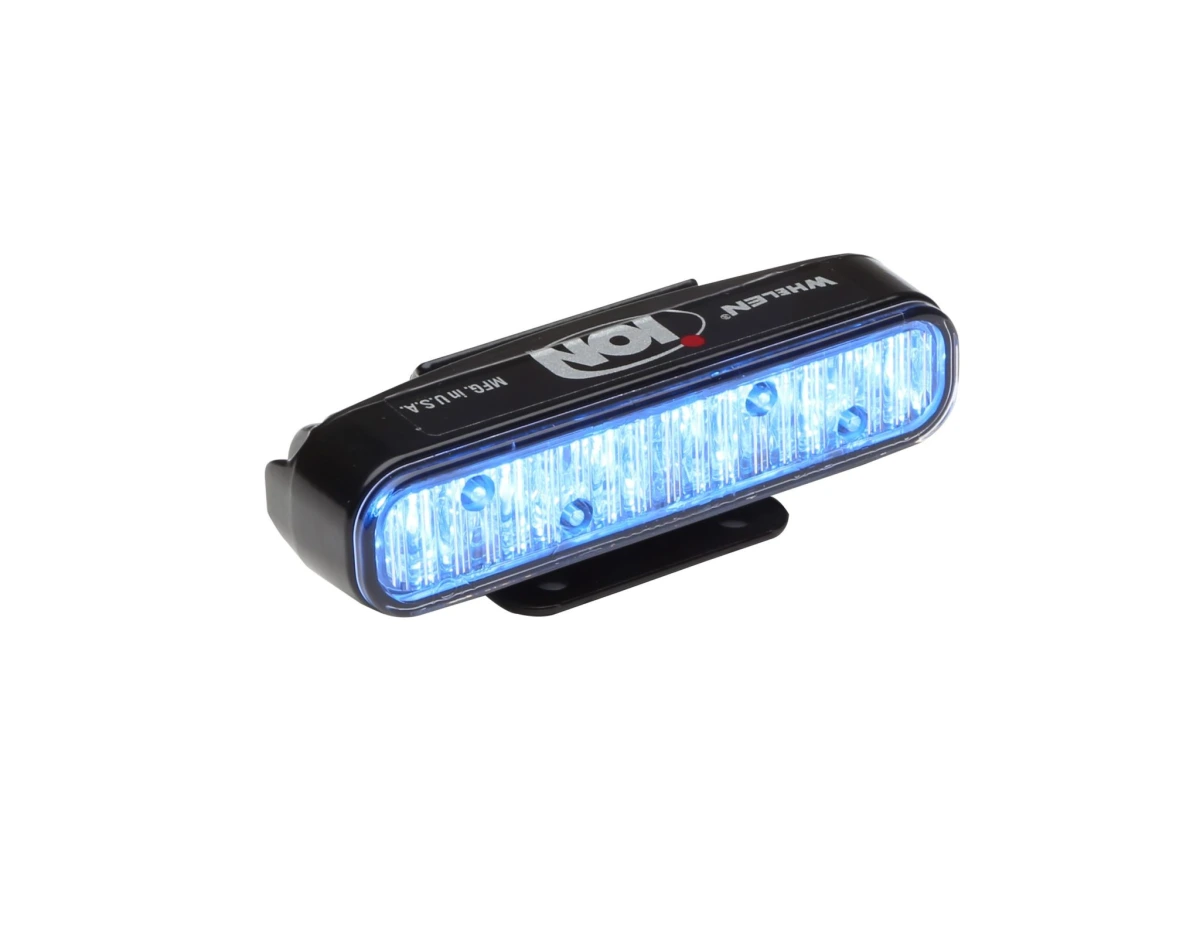

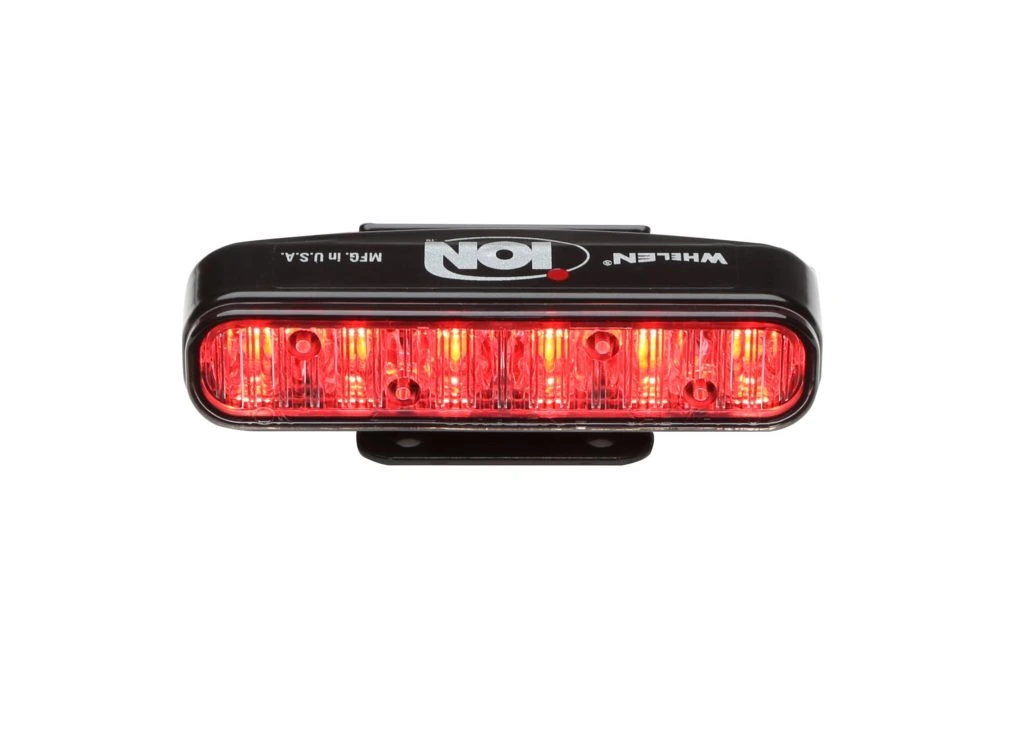

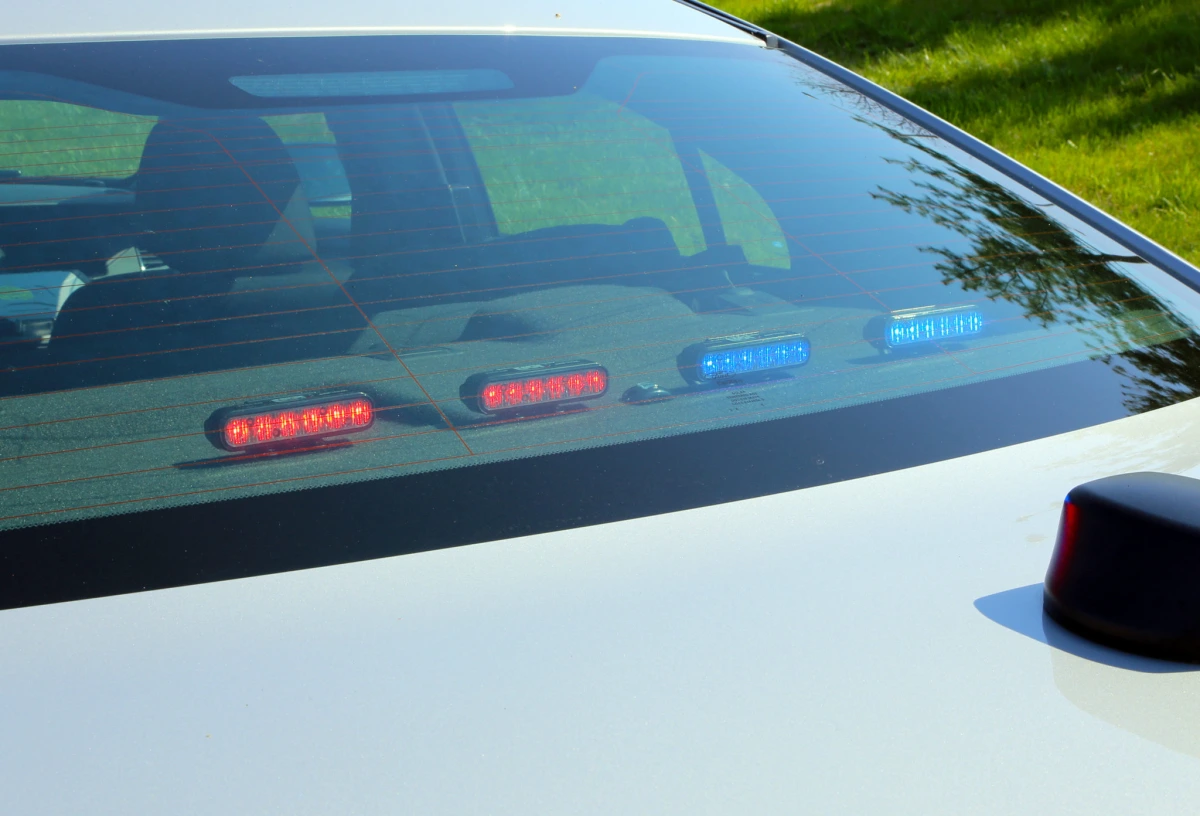

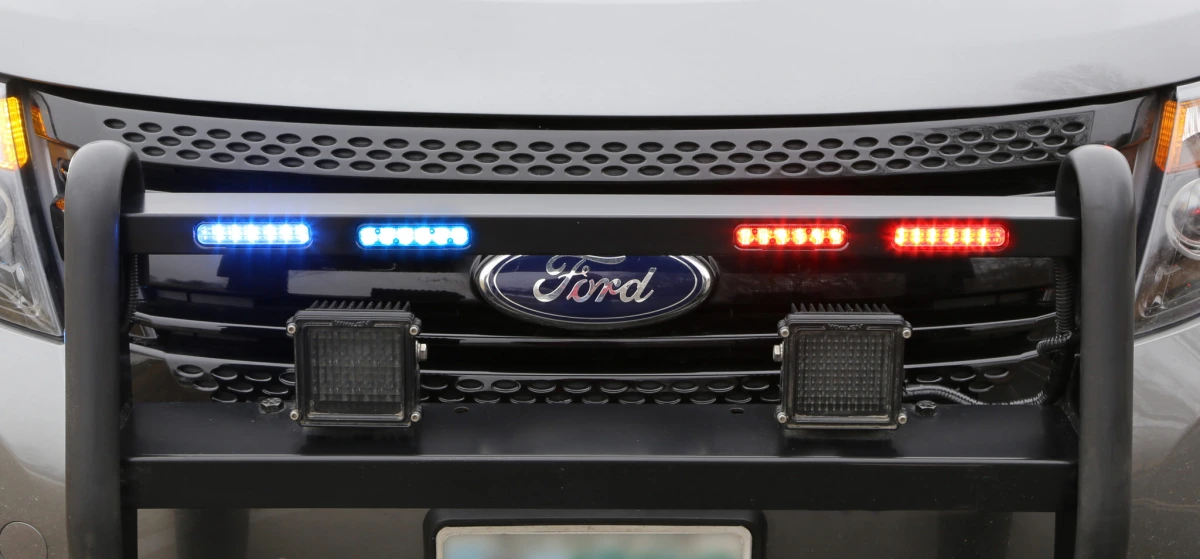

Compact and versatile, ION Series lightheads are designed to be utilized in a multitude of applications with numerous mounting options

Product Description

Available in Amber, Blue, Red, and/or White
Hard-coated lenses
Synchronize to other Whelen sync products

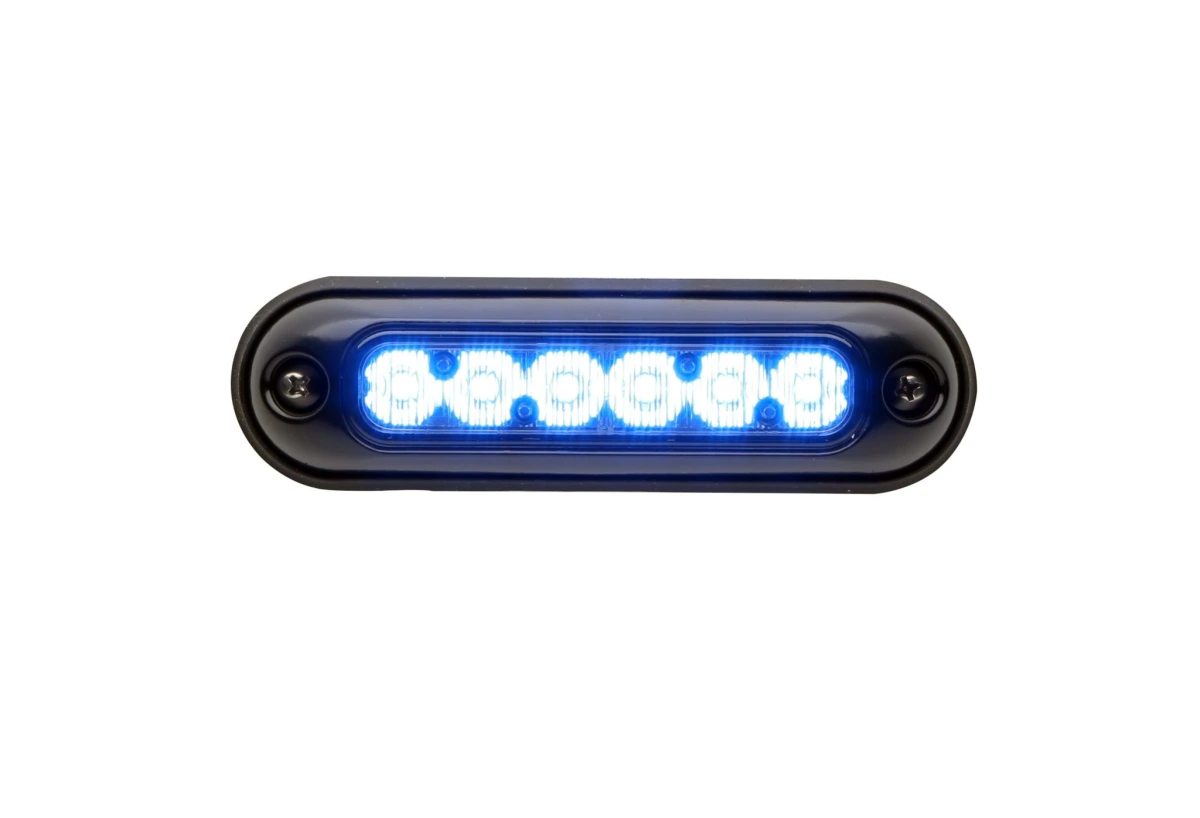

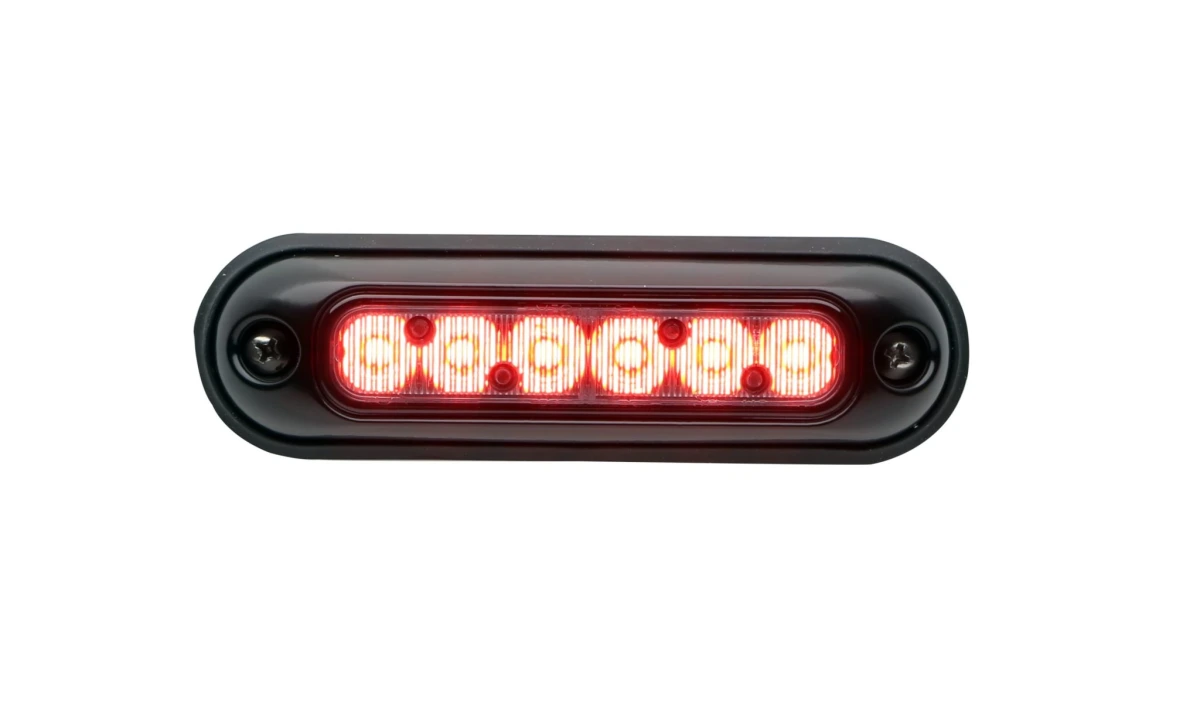

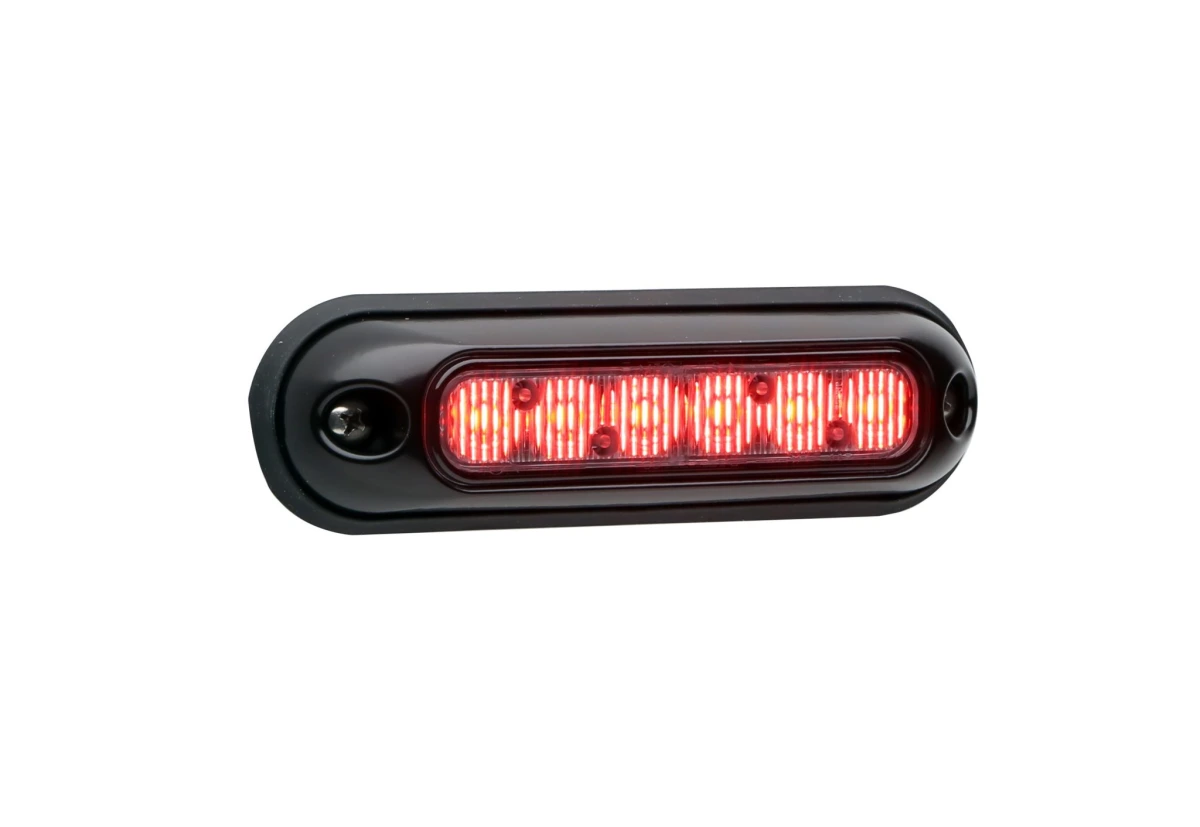

Available in universal or surface mount

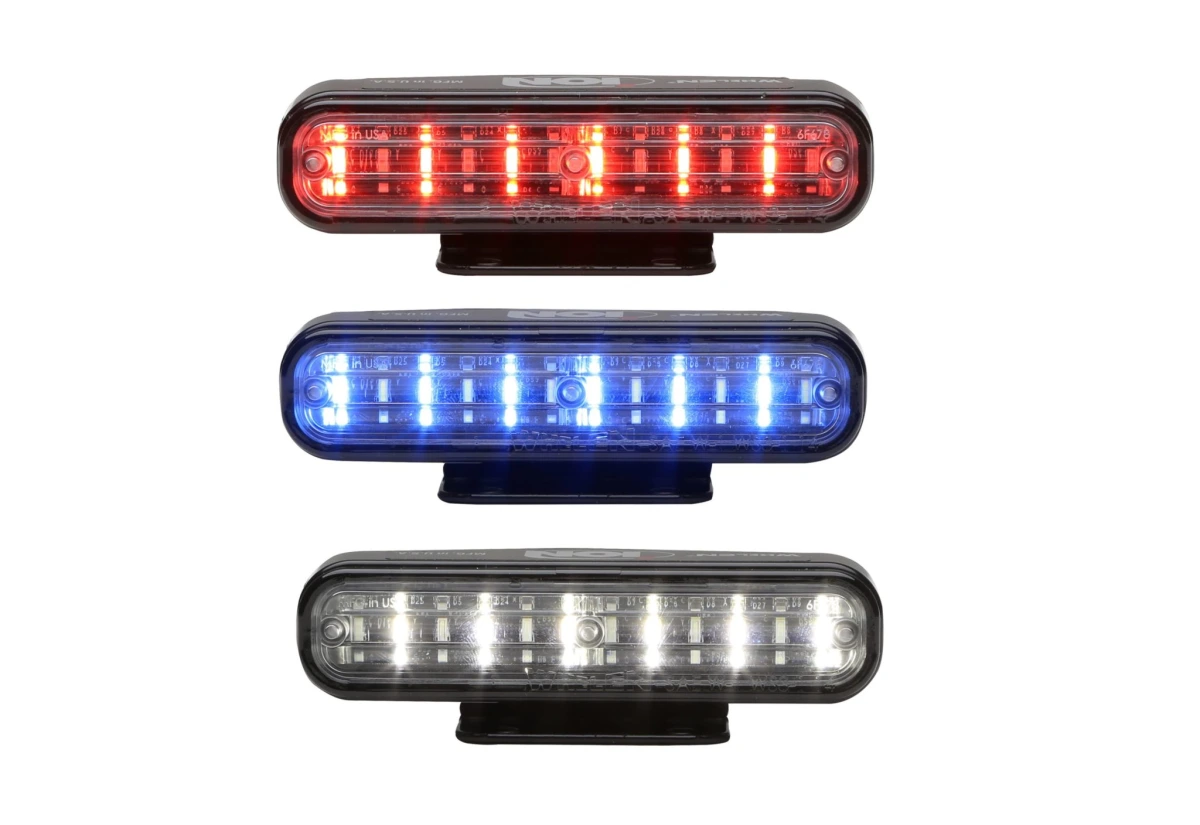

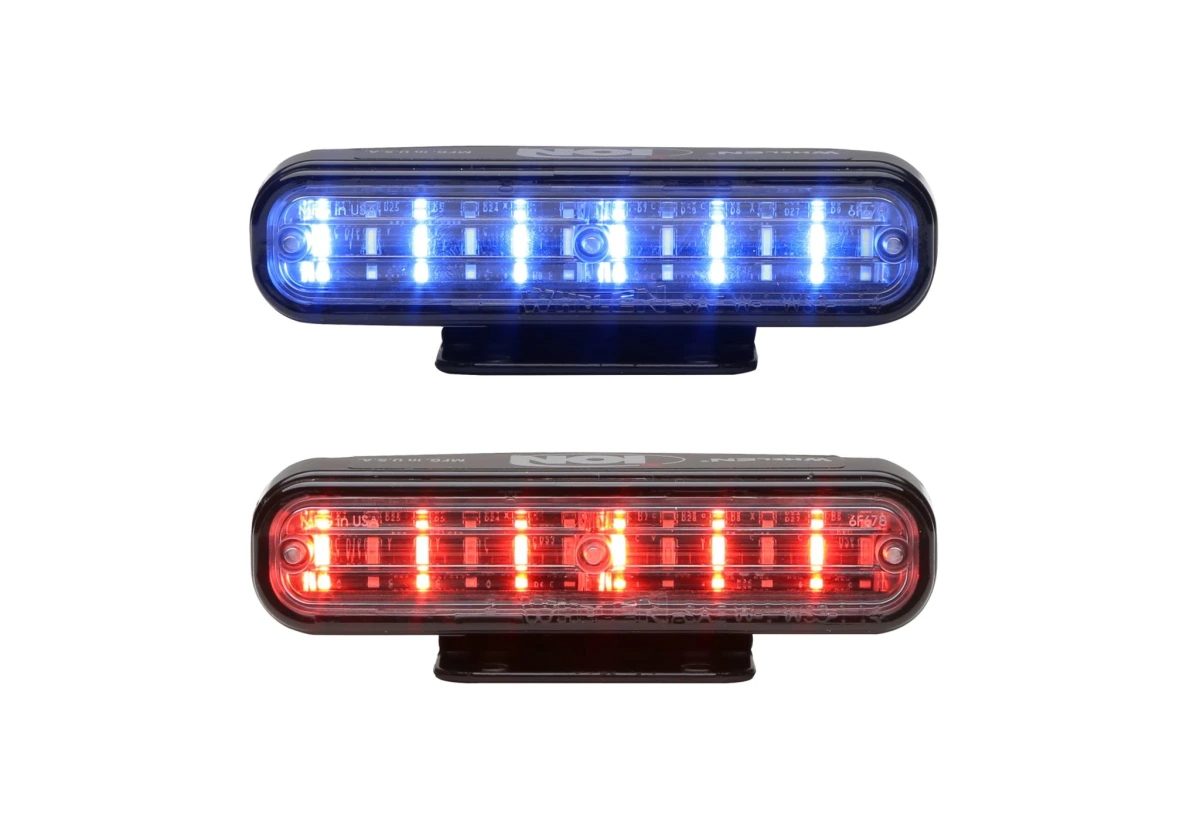

- Universal mount models include combination permanent/ pedestal, clip, edge mounts, and double-sided tape, with a Black or White housing
- Universal mount options include bail/swivel bracket in Black or White, rubber grommet, and pedestal mount in Black or White

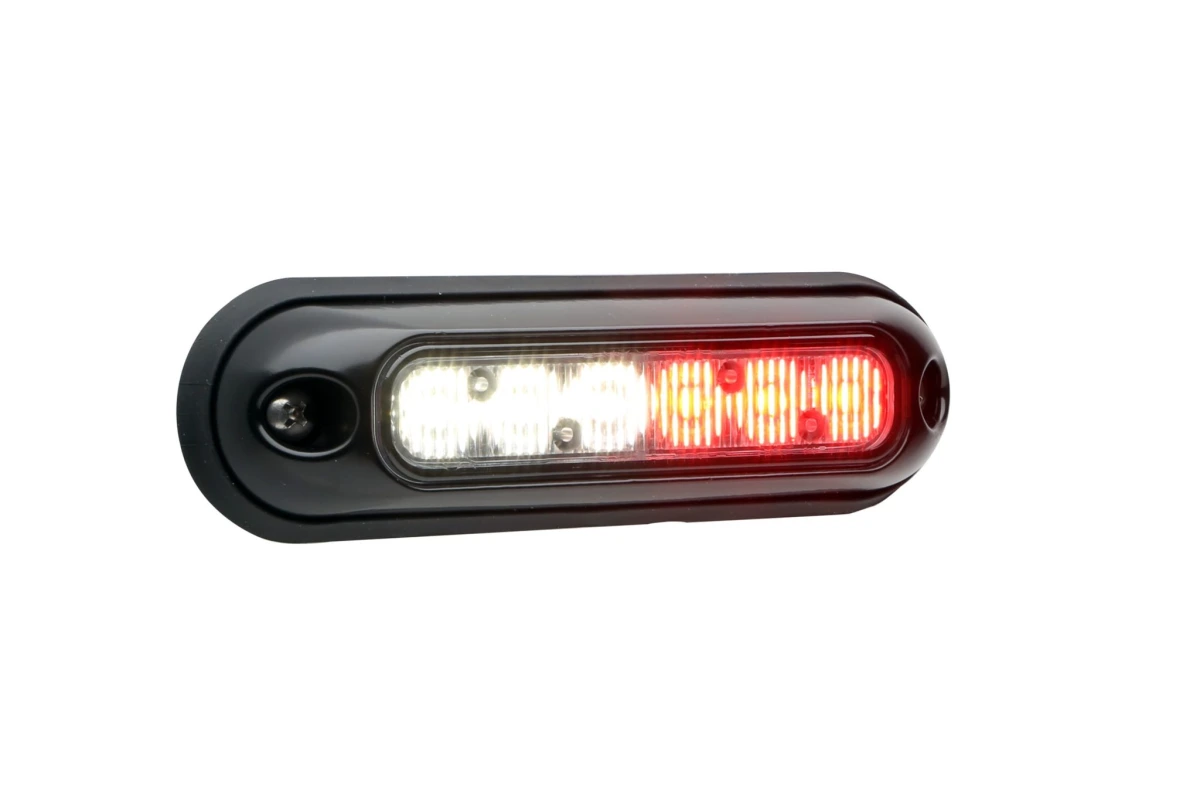

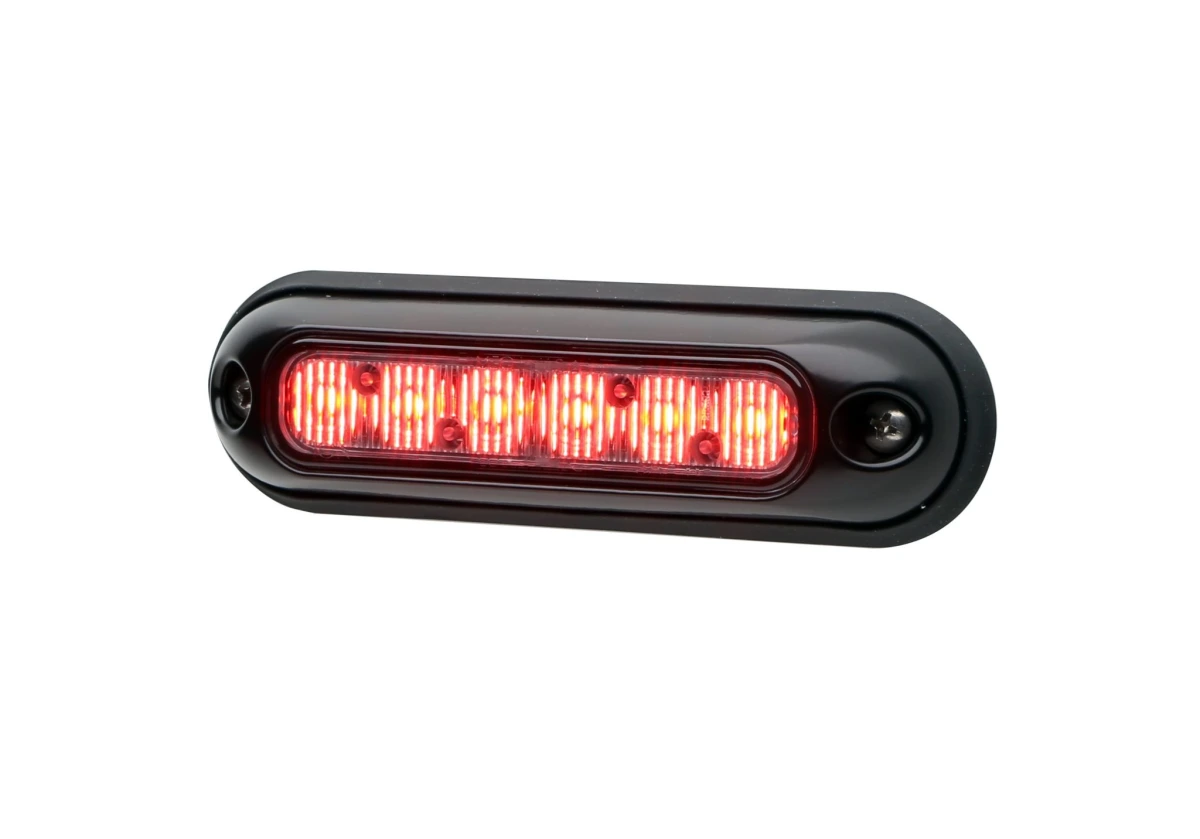

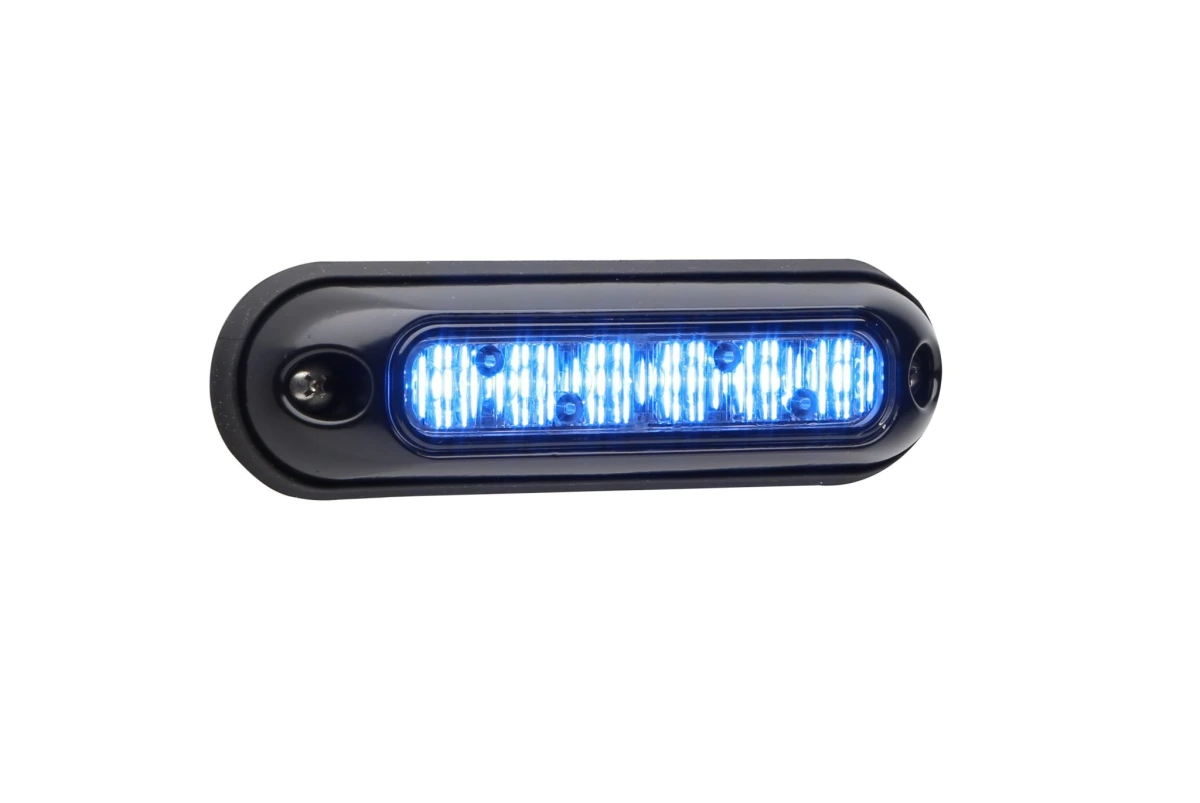

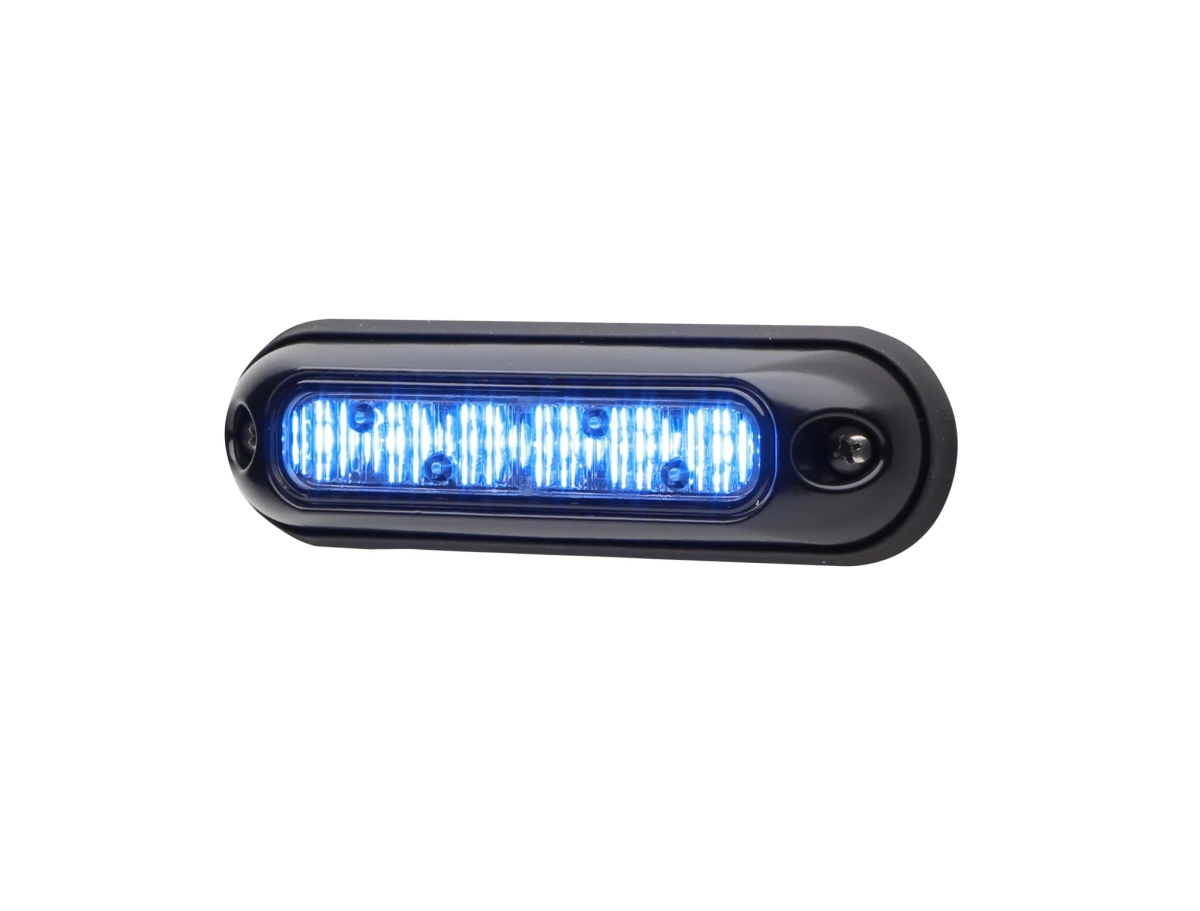

- Surface mount models include flange, available in Black, White, or Chrome

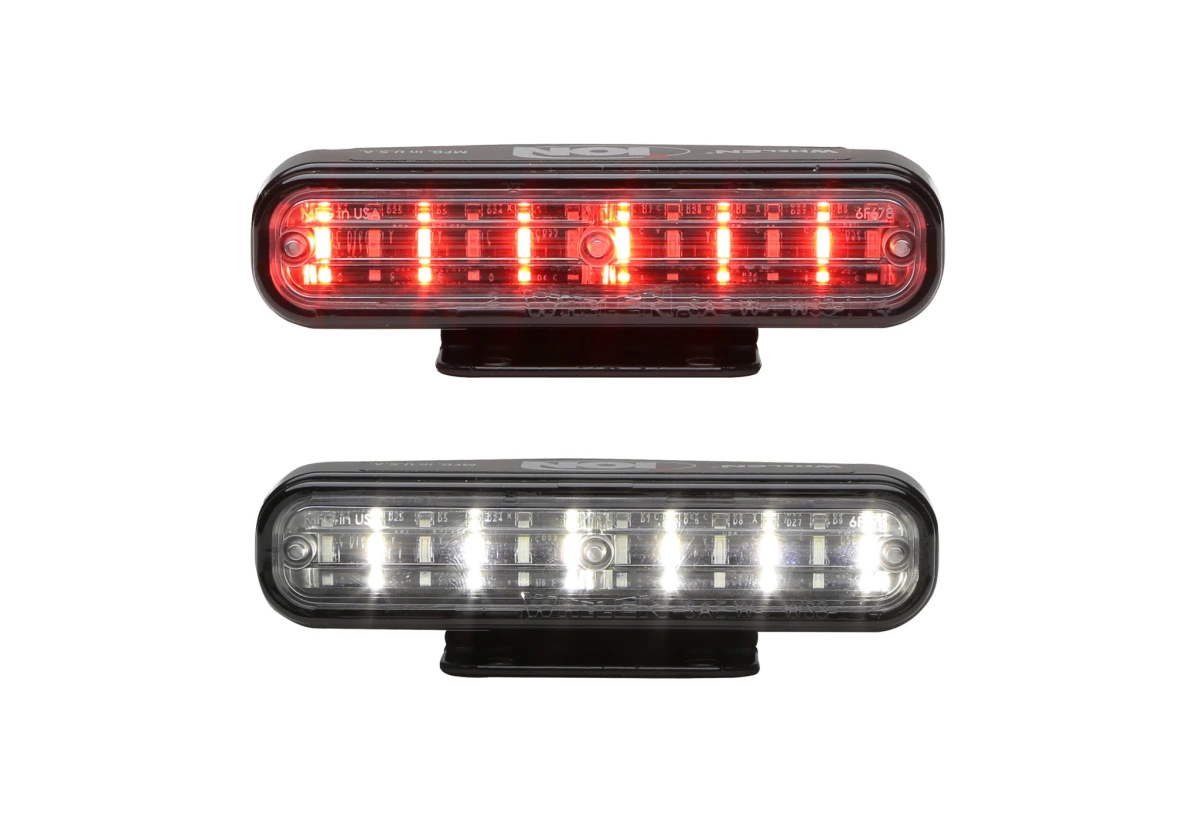

Available with Class 1 Certified Smoked lenses

Specifications

SOLO®:

Voltage	12 VDC
Amps	0.4 amps (average)
Flash Patterns	SOLO: 25 Scan-Lock® flash patterns DUO: 69 Scan-Lock flash patterns
Certifications	SAE Class 1 Certified* IP67 Wide-angle surface mount model meets NFPA 1901, KKK1822F requirements
Warranty	Five year warranty

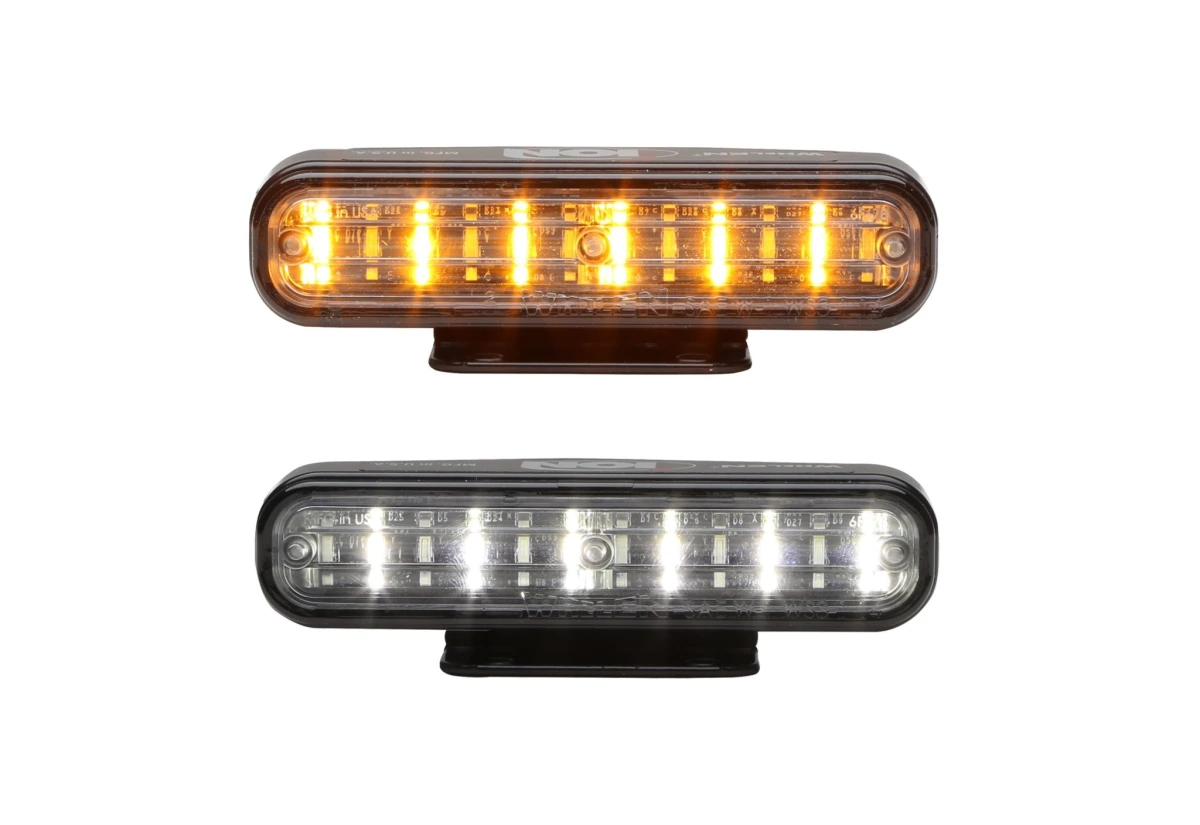

DUO®:

Voltage	12 VDC
Amps	0.28 amps/color (average)
Flash Patterns	64 Scan-Lock® flash patterns
Certifications	SAE Class 1 Certified* IP67
Warranty	Five year warranty

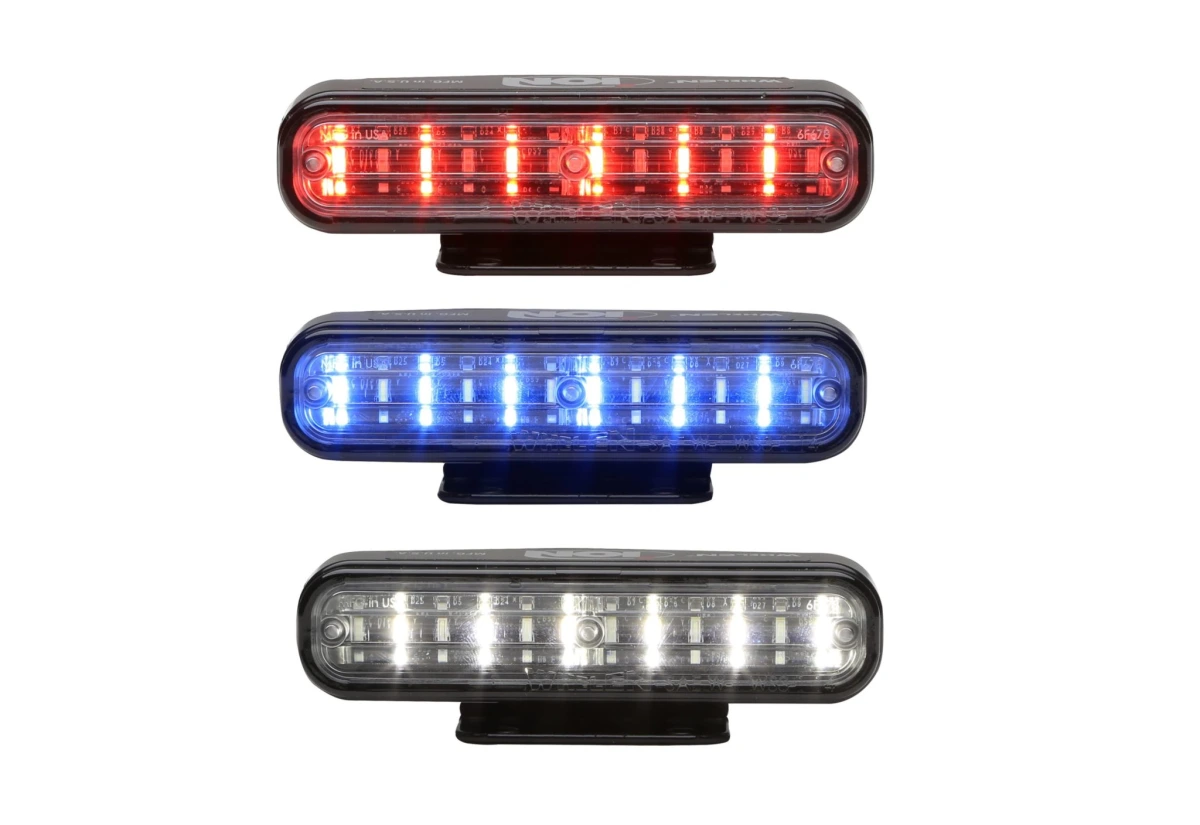

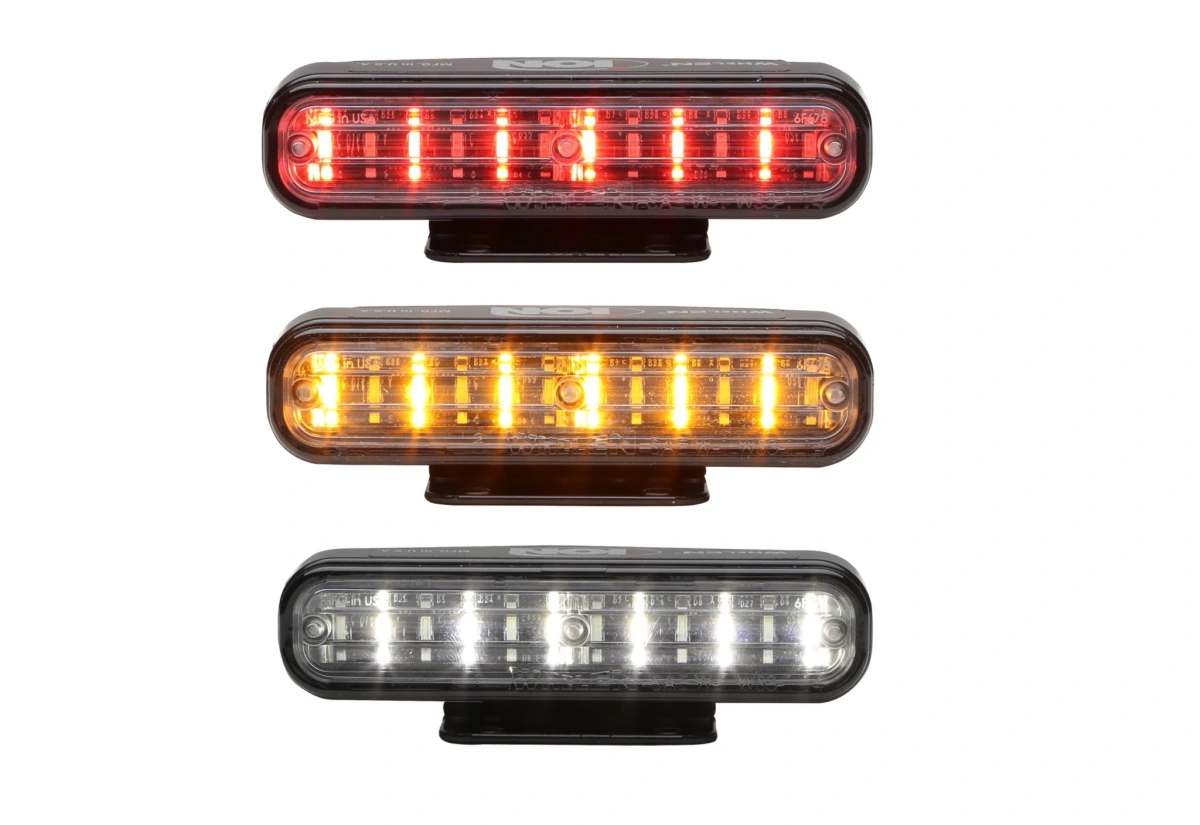

TRIO®:

Voltage	12 VDC
Amps	0.40 amps/color (average)
Flash Patterns	25 Scan-Lock® flash patterns
Certifications	SAE Class 1 Certified* IP67
Warranty	Five year warranty

Product Configuration

Configure This Product

Choose from the available product options below. Pricing and the configuration summary update automatically.

Model Single selection · Choose exactly one Required

Solo Included Split Included Duo Included Trio Included

Lens Single selection · Choose exactly one Required

Clear Included Smoked Included Clear (Wide Angle) Included Smoked (Wide Angle) Included

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Amber Included Amber Part IONA Blue Included Blue Part IONB Red Included Red Part IONR White (Clear) Included White Part IONC Green Included Green Part IONG

Color Single selection · Choose exactly one Required

Amber +$0.60 Amber Part IONSMA Blue +$0.60 Blue Part IONSMB Red +$0.60 Red Part IONSMR White (Clear) +$0.60 White Part IONSMC

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Amber +$12.97 Amber with smoked lens Part XONA Blue +$12.97 Blue with smoked lens Part XONB Red +$12.97 Red with smoked lens Part XONR White (Clear) +$12.97 White with smoked lens Part XONC

Color Single selection · Choose exactly one Required

Amber +$13.60 Amber with smoked lens Part XONSMA Blue +$13.60 Blue with smoked lens Part XONSMB Red +$13.60 Red with smoked lens Part XONSMR White (Clear) +$13.60 White with smoked lens Part XONSMC

Lens Single selection · Choose exactly one Required

Clear Included Smoked Included Clear (Wide Angle) Included Smoked (Wide Angle) Included

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

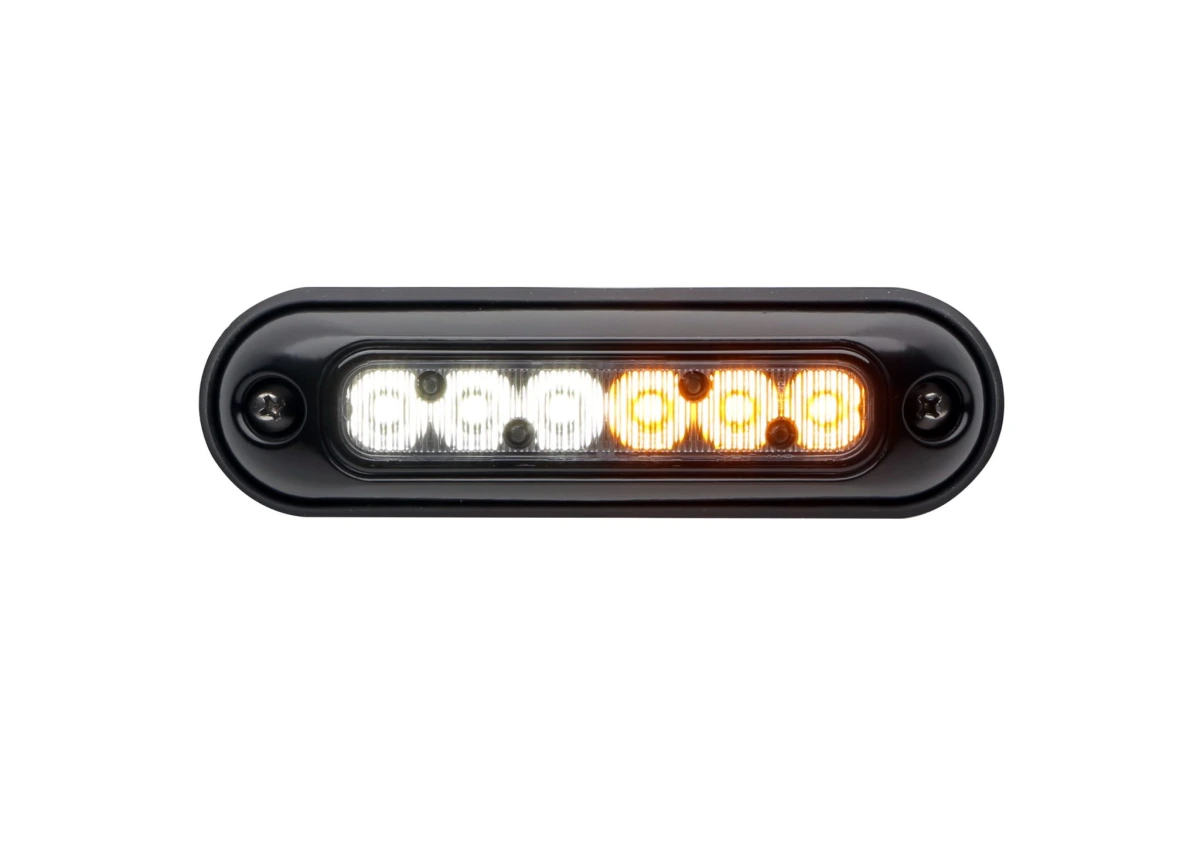

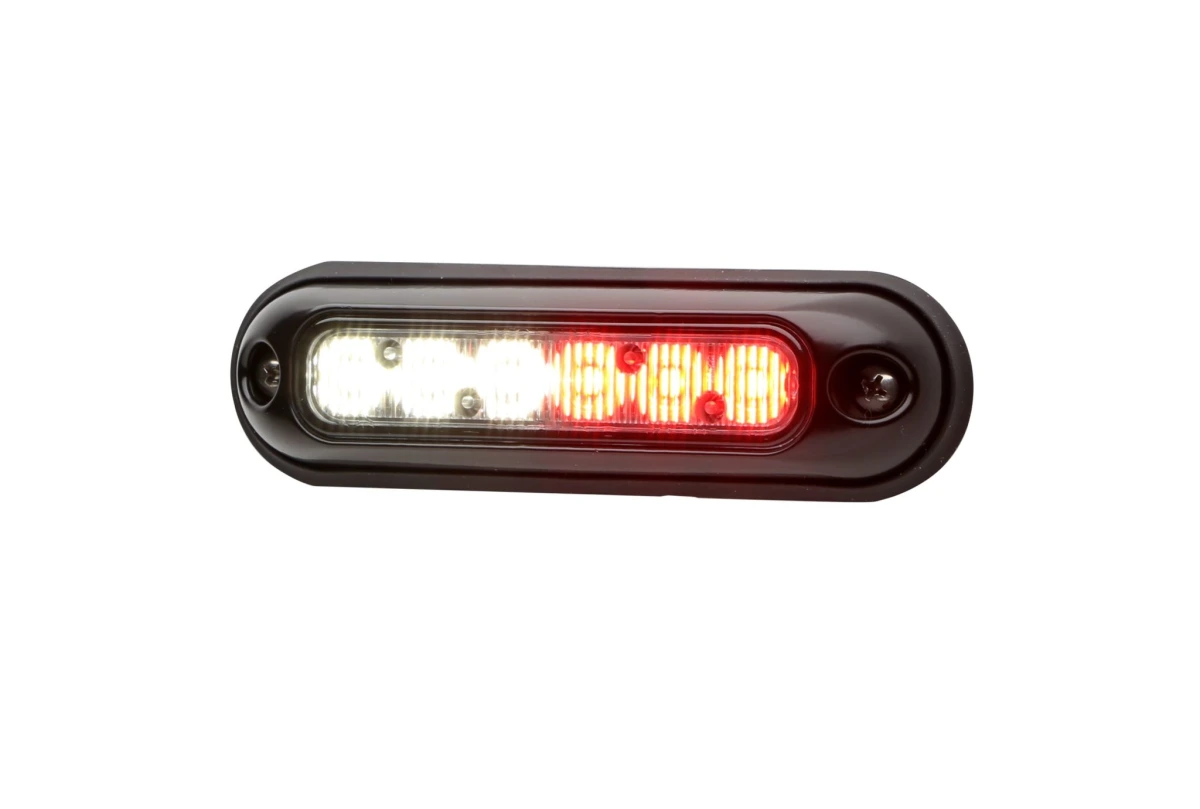

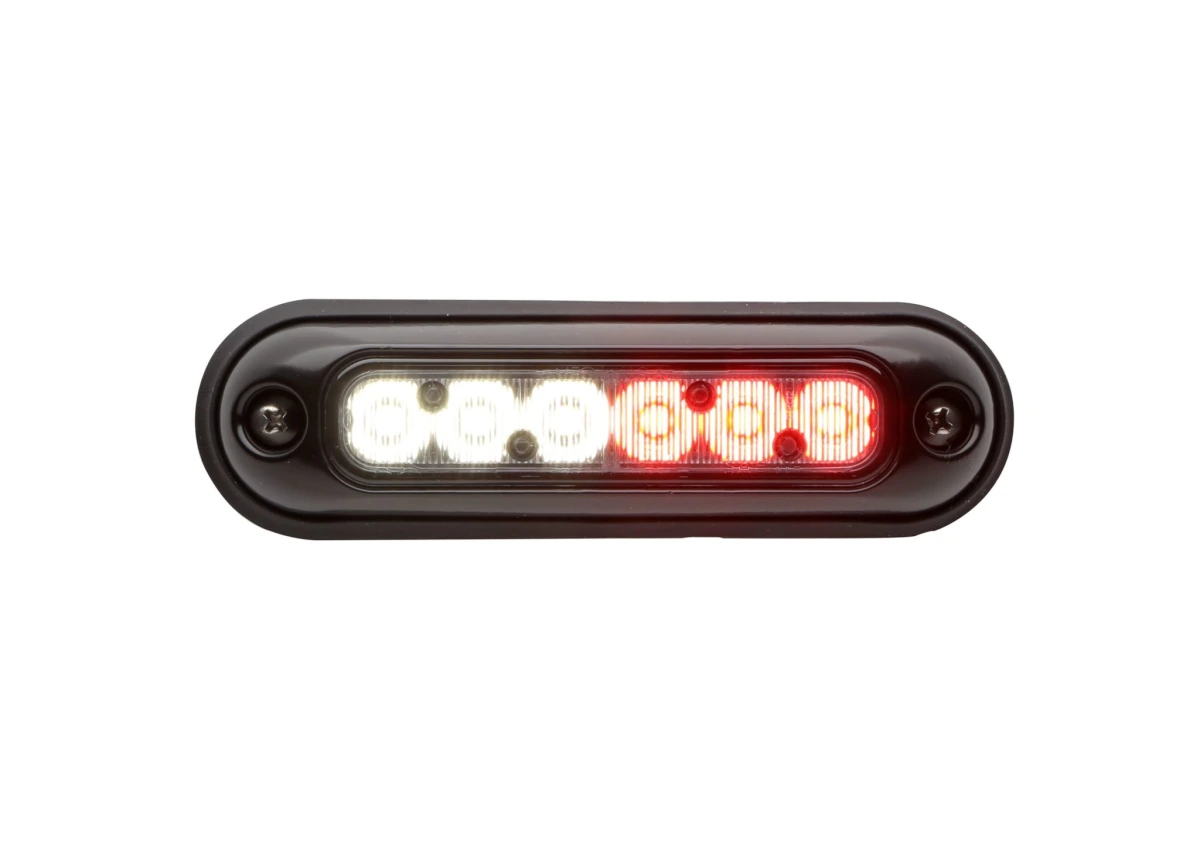

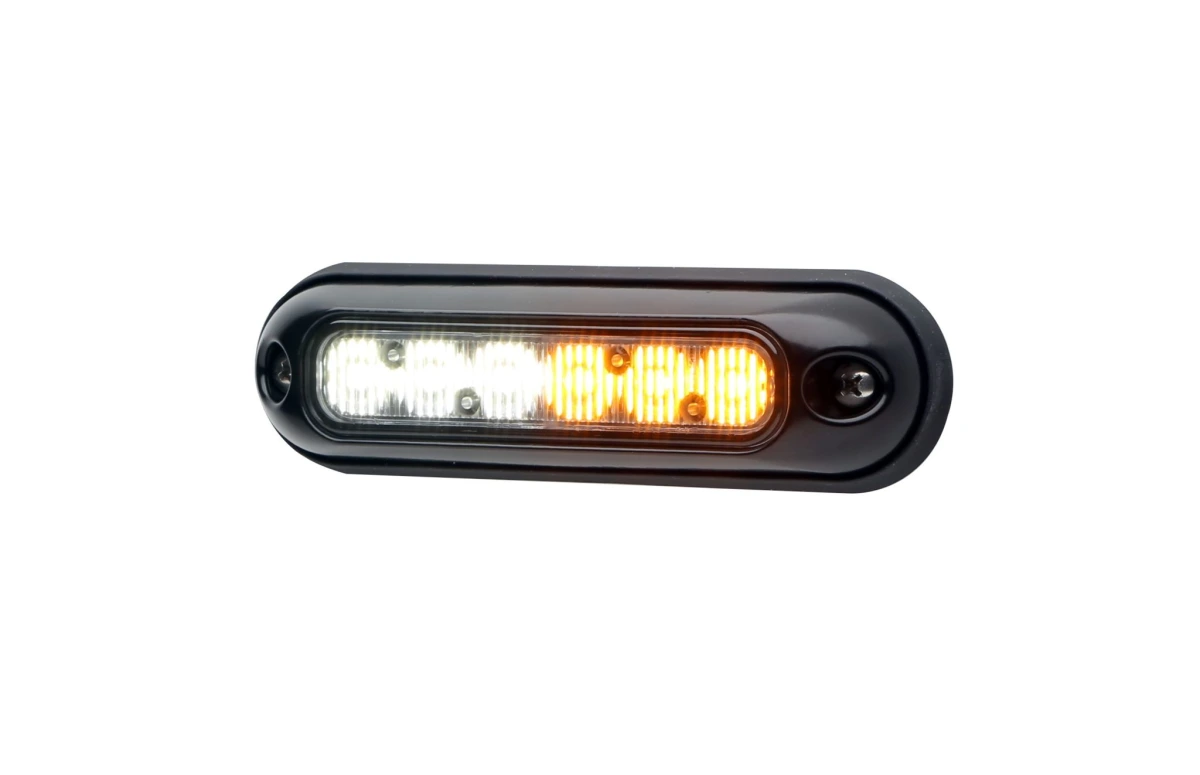

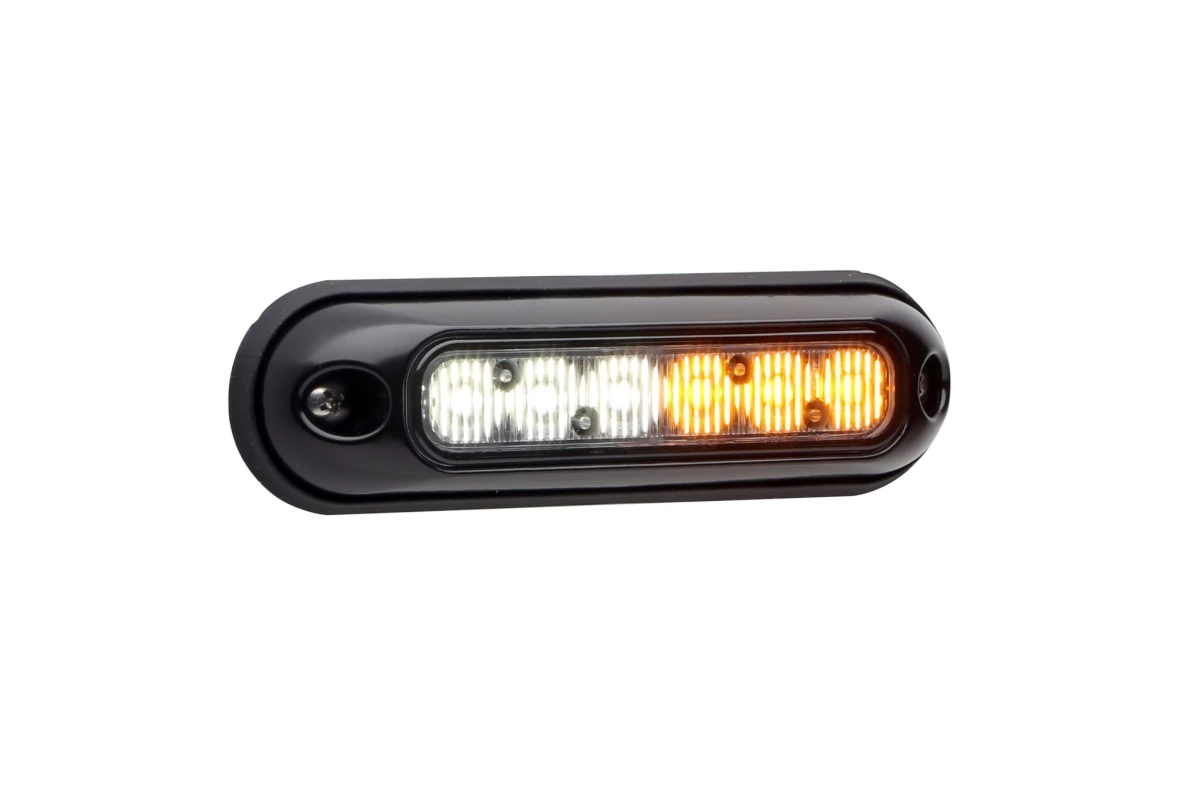

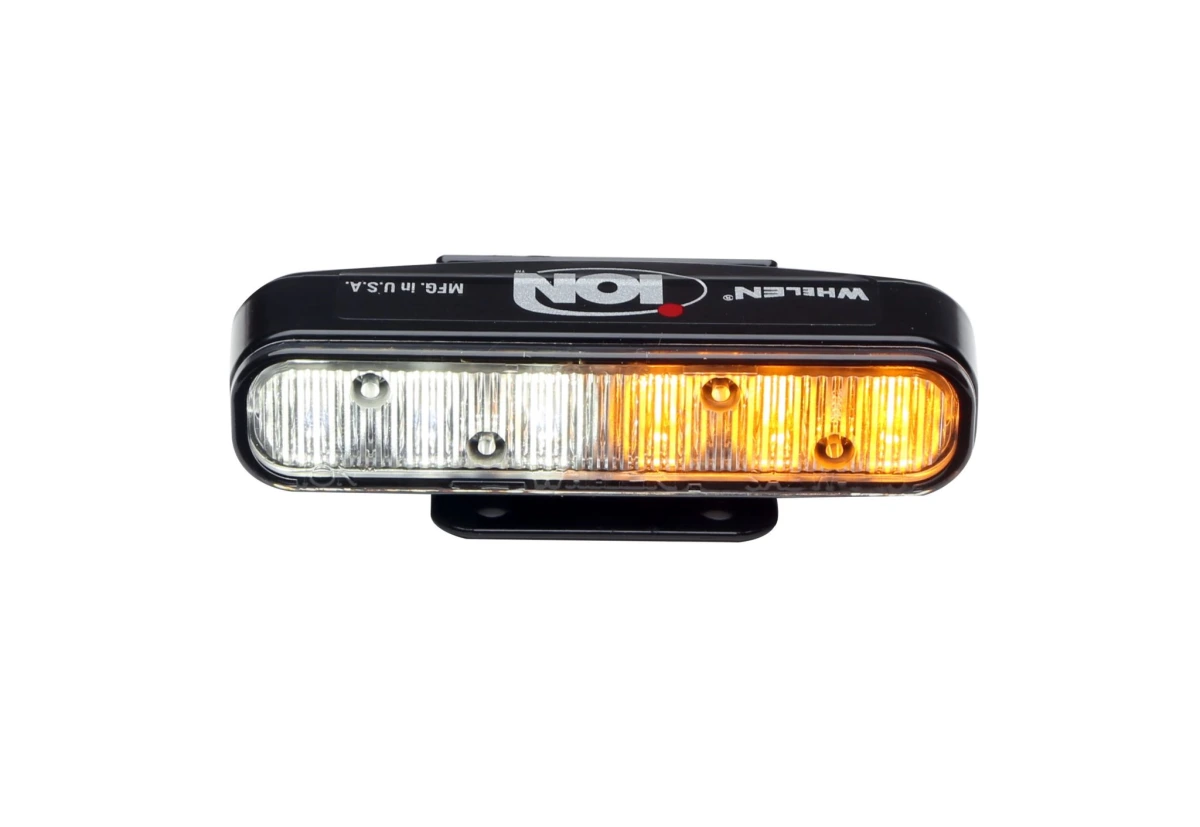

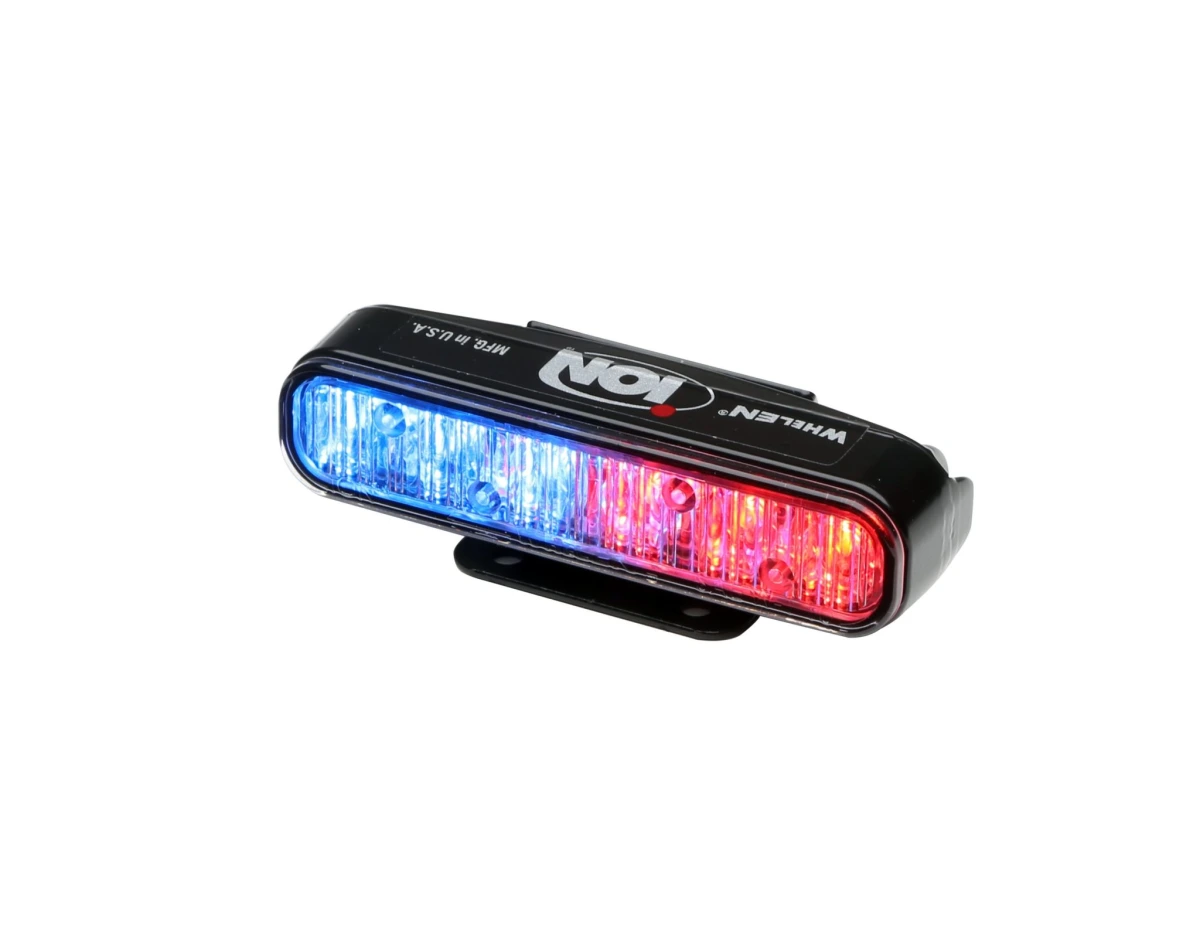

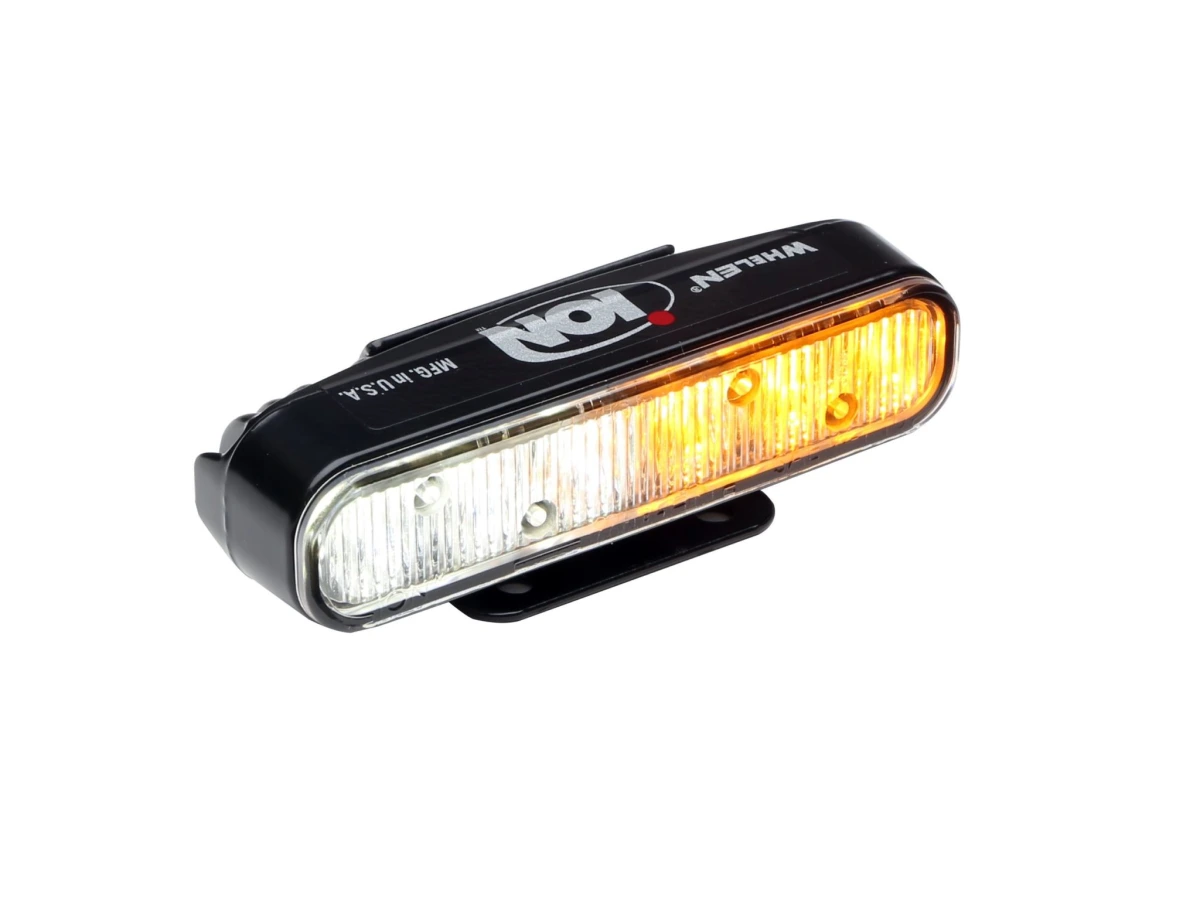

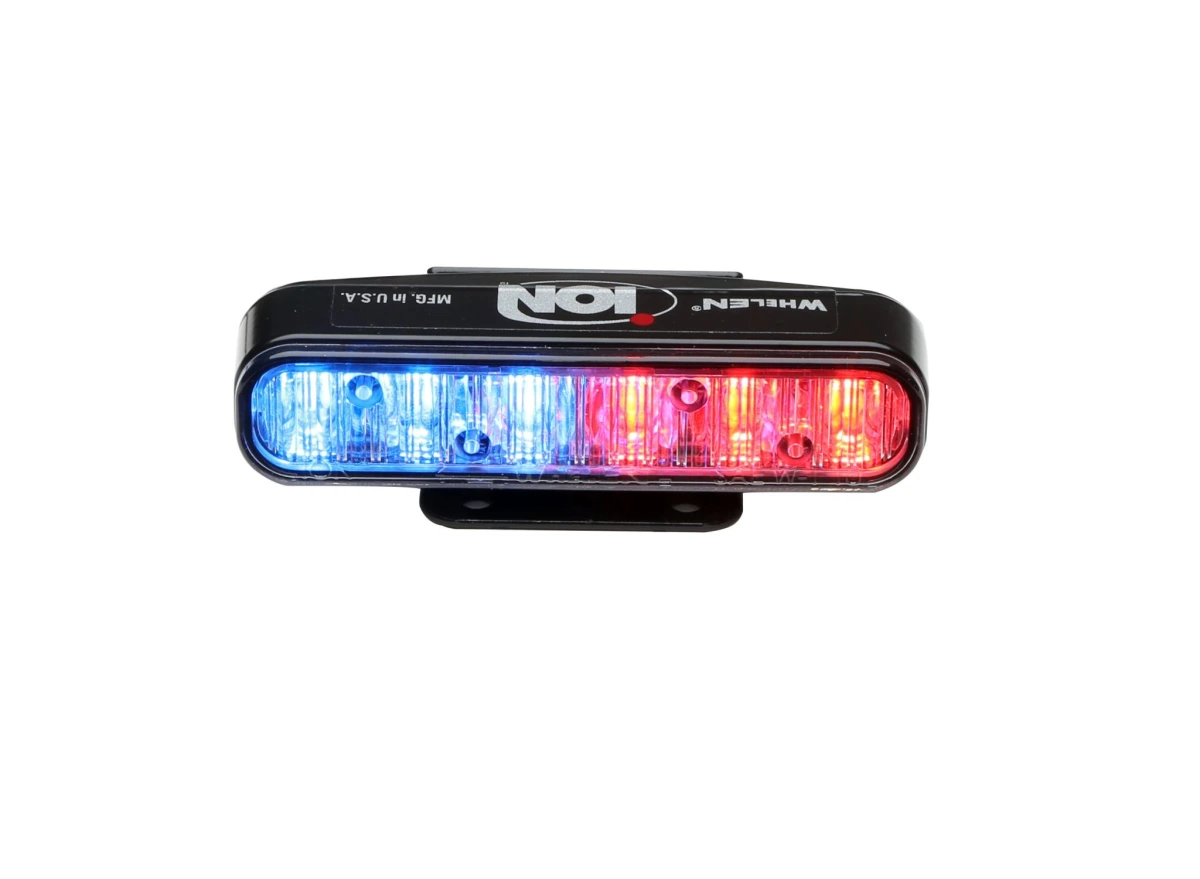

Blue / Amber (Split) Included Blue / Amber Part IONM Amber / White (Split) Included Amber / White Part IONF Red / Blue (Split) Included Red / Blue Part IONJ Red / White (Split) Included Red / White Part IOND

Color Single selection · Choose exactly one Required

Blue / Amber (Split) +$0.60 Blue / Amber Part IONSMM Amber / White (Split) +$0.60 Amber / White Part IONSMF Red / Blue (Split) +$0.60 Red / Blue Part IONSMJ Red / White (Split) +$0.60 Red / White Part IONSMD

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Blue / Amber (Split) +$12.97 Blue / Amber Part XONM Amber / White (Split) +$12.97 Amber / White Part XONF Red / Blue (Split) +$12.97 Red / Blue Part XONJ Red / White (Split) +$12.97 Red / White Part XOND

Color Single selection · Choose exactly one Required

Blue / Amber (Split) +$32.60 Blue / Amber Part XONSMM Amber / White (Split) +$32.60 Amber / White Part XONSMF Red / Blue (Split) +$32.60 Red / Blue Part XONSMJ Red / White (Split) +$32.60 Red / White Part XONSMD

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Amber Included Amber Part WIONA Blue Included Blue Part WIONB Red Included Red Part WIONR White (Clear) Included White Part WIONC

Color Single selection · Choose exactly one Required

Amber +$3.60 Amber Part WIONSMA Blue +$3.60 Blue Part WIONSMB Red +$3.60 Red Part WIONSMR White (Clear) +$3.60 White Part WIONSMC

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Amber +$12.97 Amber Part WXONA Blue +$12.97 Blue Part WXONB Red +$12.97 Red Part WXONR White (Clear) +$12.97 White Part WXONC

Color Single selection · Choose exactly one Required

Amber +$32.60 Amber Part WXONSMA Blue +$32.60 Blue Part WXONSMB Red +$32.60 Red Part WXONSMR White (Clear) +$32.60 White Part WXONSMC

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Blue / Amber (Split) Included Blue / Amber Part WIONM Amber / White (Split) Included Amber / White Part WIONF Red / Blue (Split) Included Red / Blue Part WIONJ Red / White (Split) Included Red / White Part WIOND

Color Single selection · Choose exactly one Required

Blue / Amber (Split) +$23.60 Blue / Amber Part WIONSMM Amber / White (Split) +$23.60 Amber / White Part WIONSMF Red / Blue (Split) +$23.60 Red / Blue Part WIONSMJ Red / White (Split) +$23.60 Red / White Part WIONSMD

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Blue / Amber (Split) +$12.97 Blue / Amber Part WXONM Amber / White (Split) +$12.97 Amber / White Part WXONF Red / Blue (Split) +$12.97 Red / Blue Part WXONJ Red / White (Split) +$12.97 Red / White Part WXOND

Color Single selection · Choose exactly one Required

Blue / Amber (Split) +$32.60 Blue / Amber Part WXONSMM Amber / White (Split) +$32.60 Amber / White Part WXONSMF Red / Blue (Split) +$32.60 Red / Blue Part WXONSMJ Red / White (Split) +$32.60 Red / White Part WXONSMD

Lens Single selection · Choose exactly one Required

Clear Included Smoked Included

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Blue / Amber +$21.60 Blue / Amber Part I2M Amber / White +$21.60 Amber / White Part I2F Red / Blue +$21.60 Red / Blue Part I2J Red / White +$21.60 Red / White Part I2D Blue / White +$21.60 Blue / White Part I2E Red / Amber +$21.60 Red / Amber Part I2K

Color Single selection · Choose exactly one Required

Blue / Amber +$21.60 Blue / Amber Part I2SMM Amber / White +$21.60 Amber / White Part I2SMF Red / Blue +$21.60 Red / Blue Part I2SMJ Red / White +$21.60 Red / White Part I2SMD Blue / White +$21.60 Blue / White Part I2SME

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Blue / Amber +$31.93 Blue / Amber with smoked lens Part XI2M Amber / White +$31.93 Amber / White with smoked lens Part XI2F Red / Blue +$31.93 Red / Blue with smoked lens Part XI2J Red / White +$31.93 Red / White with smoked lens Part XI2D Blue / White +$31.93 Blue / White with smoked lens Part XI2E

Color Single selection · Choose exactly one Required

Blue / Amber +$54.60 Blue / Amber with smoked lens Part XI2SMM Amber / White +$54.60 Amber / White with smoked lens Part XI2SMF Red / Blue +$54.60 Red / Blue with smoked lens Part XI2SMJ Red / White +$54.60 Red / White with smoked lens Part XI2SMD Blue / White +$54.60 Blue / White with smoked lens Part XI2SME

Lens Single selection · Choose exactly one Required

Clear Included Smoked Included

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Mount Single selection · Choose exactly one Required

Universal Mount (Stud-mount) Included Surface Mount Included

Color Single selection · Choose exactly one Required

Red / Blue / White +$48.77 Red / Blue / White Part I3JC Red / Blue / Amber +$48.77 Red / Blue / Amber Part I3JA Red / Amber / White +$48.77 Red / Amber / White Part I3KC Blue / Amber / White +$48.77 Blue / Amber / White Part I3MC

Color Single selection · Choose exactly one Required

Red / Blue / White +$49.60 Red / Blue / White Part I3SMJC Red / Blue / Amber +$49.60 Red / Blue / Amber Part I3SMJA Red / Amber / White +$49.60 Red / Amber / White Part I3SMKC Blue / Amber / White +$49.60 Blue / Amber / White Part I3SMMC

Color Single selection · Choose exactly one Required

Red / Blue / White +$57.20 Red / Blue / White Part XI3JC Red / Blue / Amber +$57.20 Red / Blue / Amber Part XI3JA Red / Amber / White +$57.20 Red / Amber / White Part XI3KC Blue / Amber / White +$57.20 Blue / Amber / White Part XI3MC

Color Single selection · Choose exactly one Required

Red / Blue / White +$83.60 Red / Blue / White Part XI3SMJC Red / Blue / Amber +$83.60 Red / Blue / Amber Part XI3SMJA Red / Amber / White +$83.60 Red / Amber / White Part XI3SMKC Blue / Amber / White +$83.60 Blue / Amber / White Part XI3SMMC

Base Price $113.39

Options Adjustment $0.00

Configured Price $113.39

Selected Options 0

No options selected.
