Federal Signal [PFPDM-1] Power Distribution Module – 100A Max Load
Product Description

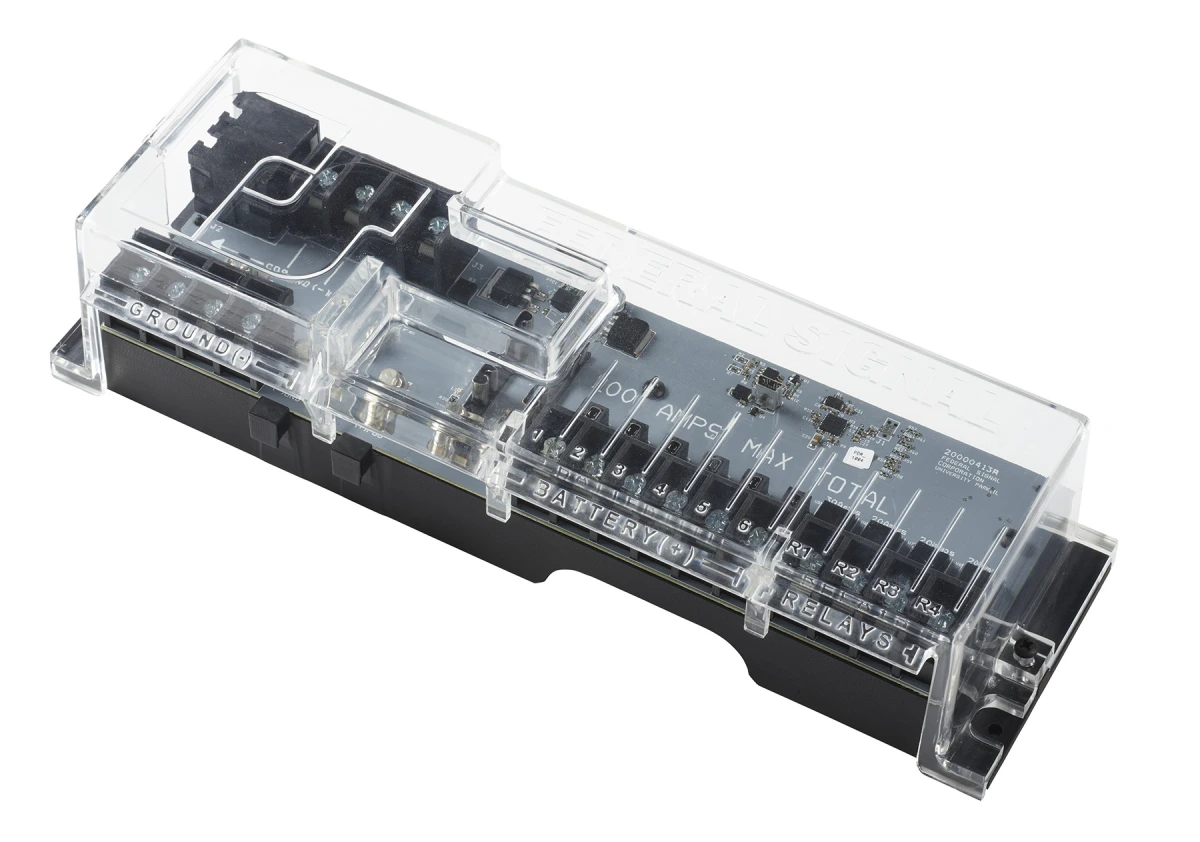

The Federal Signal PFPDM-1 Pathfinder Power Distribution Module provides centralized electrical power distribution for emergency vehicle lighting and auxiliary equipment. Designed to work with Federal Signal Pathfinder siren and light control systems, the PFPDM-1 distributes power from a single main power source while supporting a maximum combined load of 100 amps.
By consolidating electrical connections into a centralized module, the PFPDM-1 helps simplify emergency vehicle installations, reduce potential failure points, and improve serviceability. Integrated diagnostic LEDs and programmable outputs provide additional flexibility for managing connected equipment.
Centralized Power Distribution
The PFPDM-1 distributes electrical power from one main source to multiple connected circuits, reducing the need for separate power distribution connections throughout the vehicle. Individual positive and ground terminals accommodate different circuit requirements, with specific current limits assigned to each output.
Programmable Output Control
The module includes four programmable outputs that operate in conjunction with a compatible Federal Signal Pathfinder controller. These outputs can be configured using Federal Signal's Convergence Network Configuration Software, allowing connected equipment to be controlled according to the vehicle's programmed operating requirements.
- One programmable output rated for a maximum of 30 amps.
- Three programmable outputs rated for a maximum of 20 amps each.
- Configuration through Federal Signal Convergence Network software and a compatible Pathfinder controller.
FS Convergence Network Integration
The PFPDM-1 features four FS Convergence Network serial ports for connecting compatible Federal Signal equipment, including lightbars and directional warning lights. These connections support integration with the Pathfinder control system and help simplify installation of compatible network-enabled devices.
Integrated Diagnostics and Circuit Protection
Built-in LED indicators help technicians identify circuit activity and electrical faults. Green LEDs indicate active programmable outputs, while red fuse diagnostic LEDs illuminate when an associated fuse is blown and the affected circuit has a load.
The module incorporates Maxi and Mini fuse positions with designated maximum fuse ratings to support protection of connected circuits.
Technical Specifications
- Manufacturer: Federal Signal
- Model Number: PFPDM-1
- Product Type: Pathfinder Power Distribution Module
- Maximum Total Current Output: 100 amps
- Power Connections: Main battery positive (+) and battery ground (-)
- Network Connections: Four FS Convergence Network ports
- Programmable Outputs: Four total; one 30-amp output and three 20-amp outputs
- Positive Distribution Outputs: Two 40-amp maximum outputs and six 30-amp maximum outputs, in addition to the programmable outputs
- Ground Distribution Outputs: Two 40-amp maximum connections and eight 30-amp maximum connections
- Fuse Positions: Two Maxi fuse positions rated up to 40 amps each and six Mini fuse positions rated up to 30 amps each
- Diagnostics: Active-output and blown-fuse LED indicators
- Programming: Federal Signal Convergence Network Configuration Software
Individual circuit ratings represent maximum allowable current for each designated connection. The combined output of the module must not exceed 100 amps.
Compatibility and Applications
The Federal Signal PFPDM-1 is designed for use with compatible Pathfinder siren and light control systems, including the Pathfinder PF200 platform. It provides centralized power distribution and network connectivity for compatible emergency vehicle warning lights and auxiliary electrical equipment.
Typical applications include police vehicles, fire apparatus, and other emergency response vehicles equipped with compatible Federal Signal control systems. Installation requirements and connected equipment compatibility should be verified for each vehicle configuration.
Important Installation Considerations
- A compatible Pathfinder controller is required to configure and operate the module's programmable outputs.
- The main battery supply must be protected by an appropriately rated circuit breaker installed near the battery, not exceeding 100 amps.
- Individual output ratings and the 100-amp total module limit must be observed.
- Wiring, fusing, and installation must follow Federal Signal's published instructions.
- The protective cover must remain installed during operation.
The Federal Signal PFPDM-1 provides an integrated solution for centralized power distribution, programmable circuit control, and FS Convergence Network connectivity in professionally equipped emergency vehicles.
