Panorama - Sharkee LTE, Dual WiFi & GPS/GNSS Sharkfin Antenna

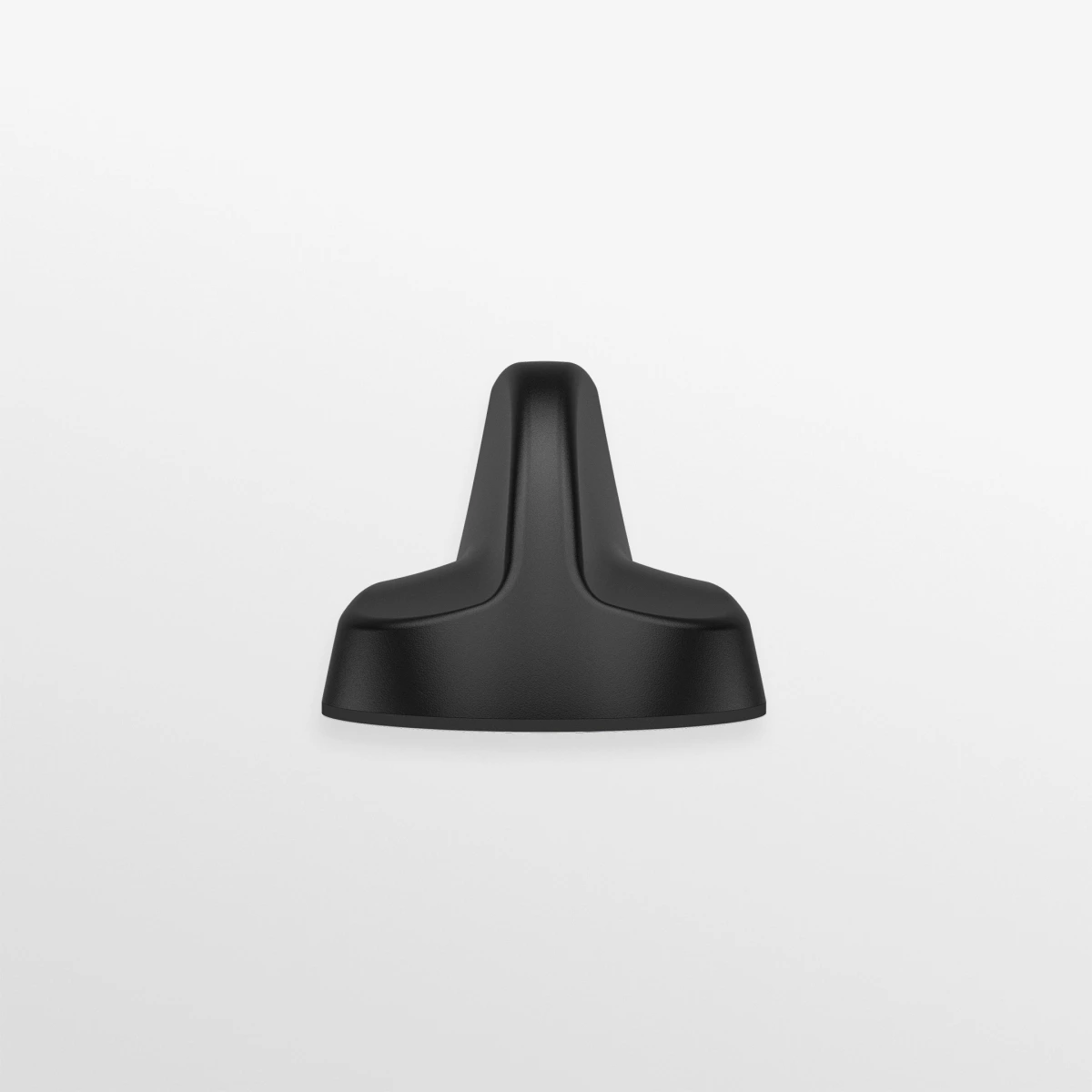

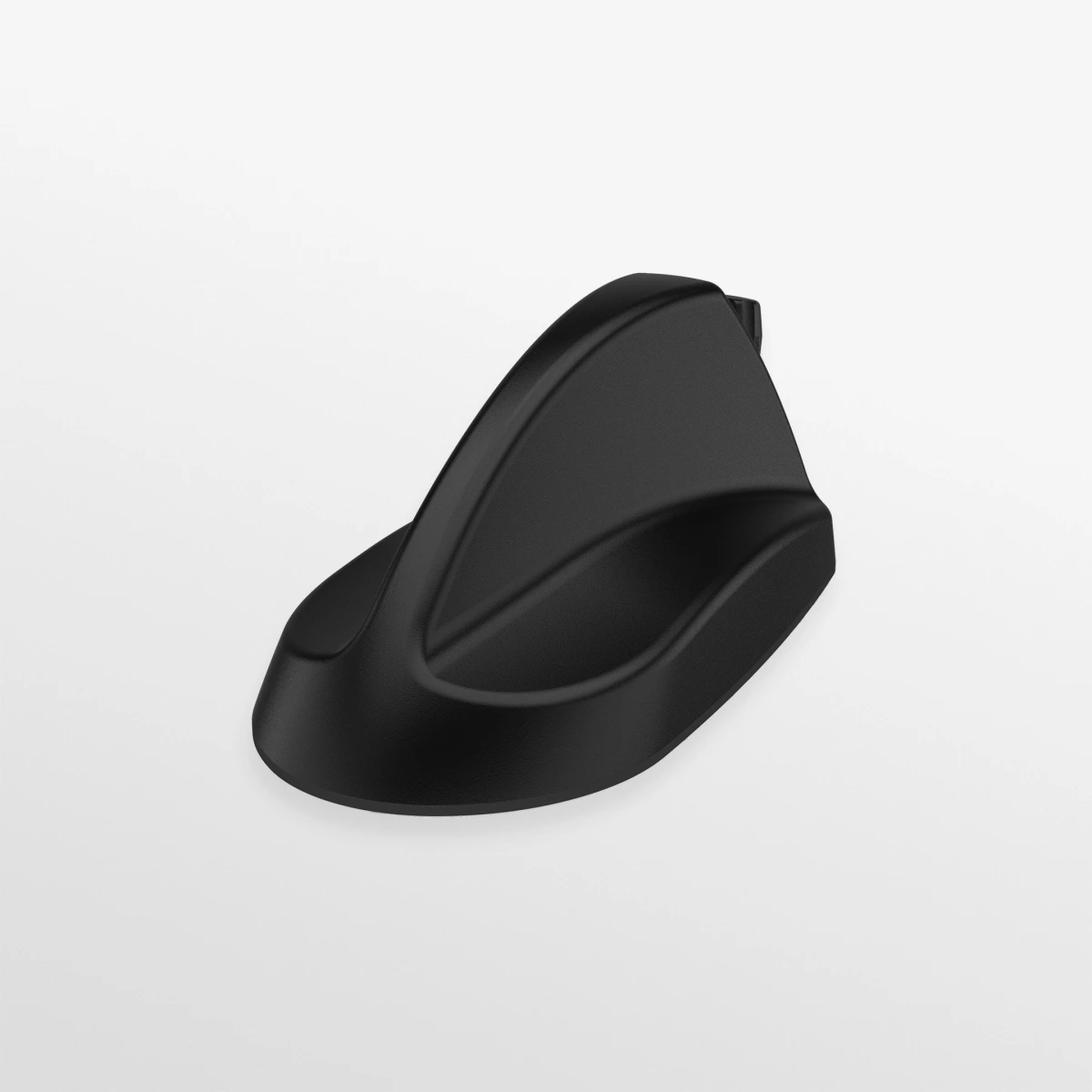

The GPSB5G Sharkee® provides antenna coverage for multiple technologies including GPS, WiFi and LTE within one OEM sharkfin style housing.
Product Description
The GPSB5G Sharkee® provides antenna coverage for multiple technologies including GPS, WiFi and LTE within one OEM sharkfin style housing.
The GPSB5G Sharkee® provides antenna coverage for multiple technologies within one antenna housing. The GPSB range is trusted by public safety, utilities and transportation companies all over the world and the GPSB5G upgrades the range with an improved GPS/GNSS module with advanced filtering and 4G/5G coverage.

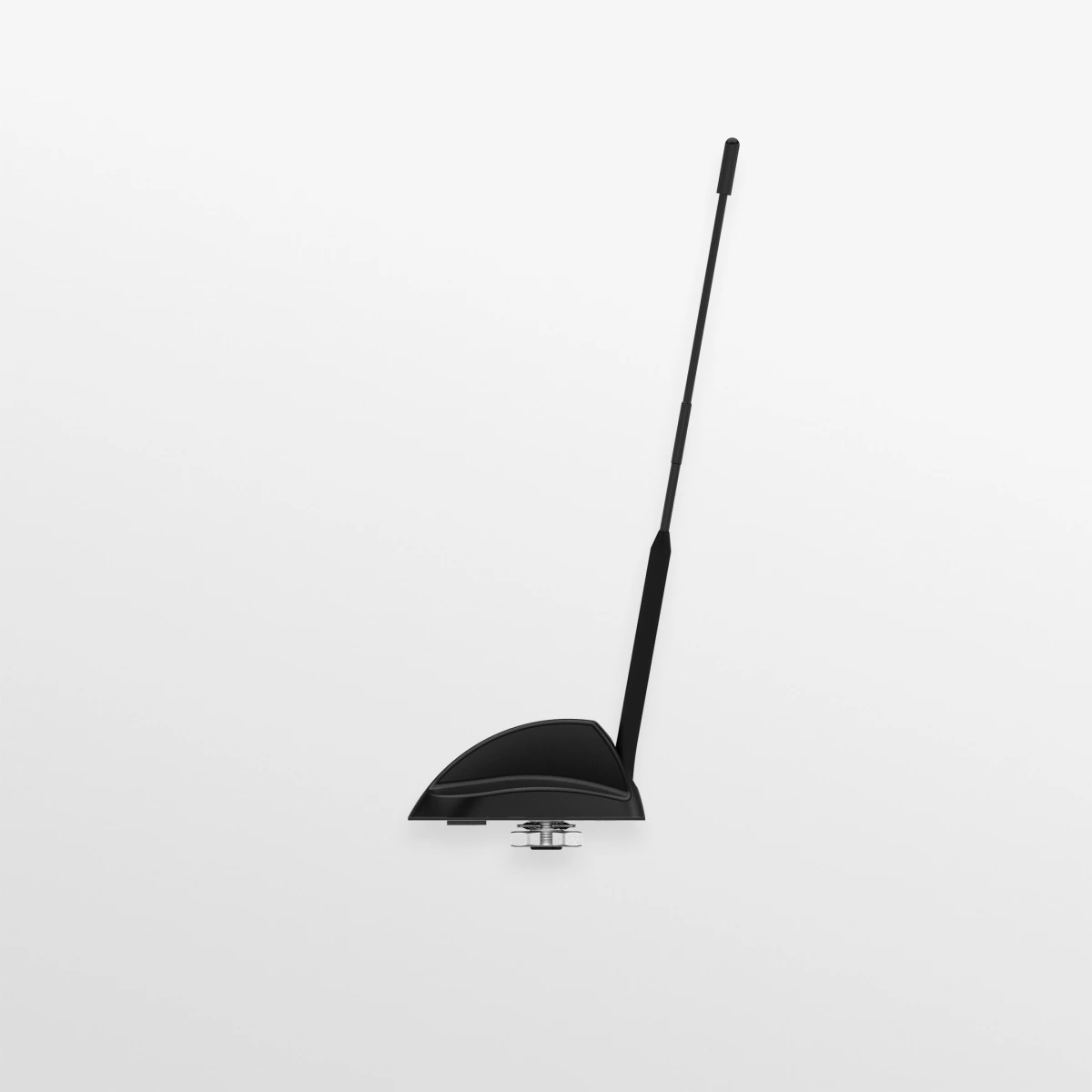

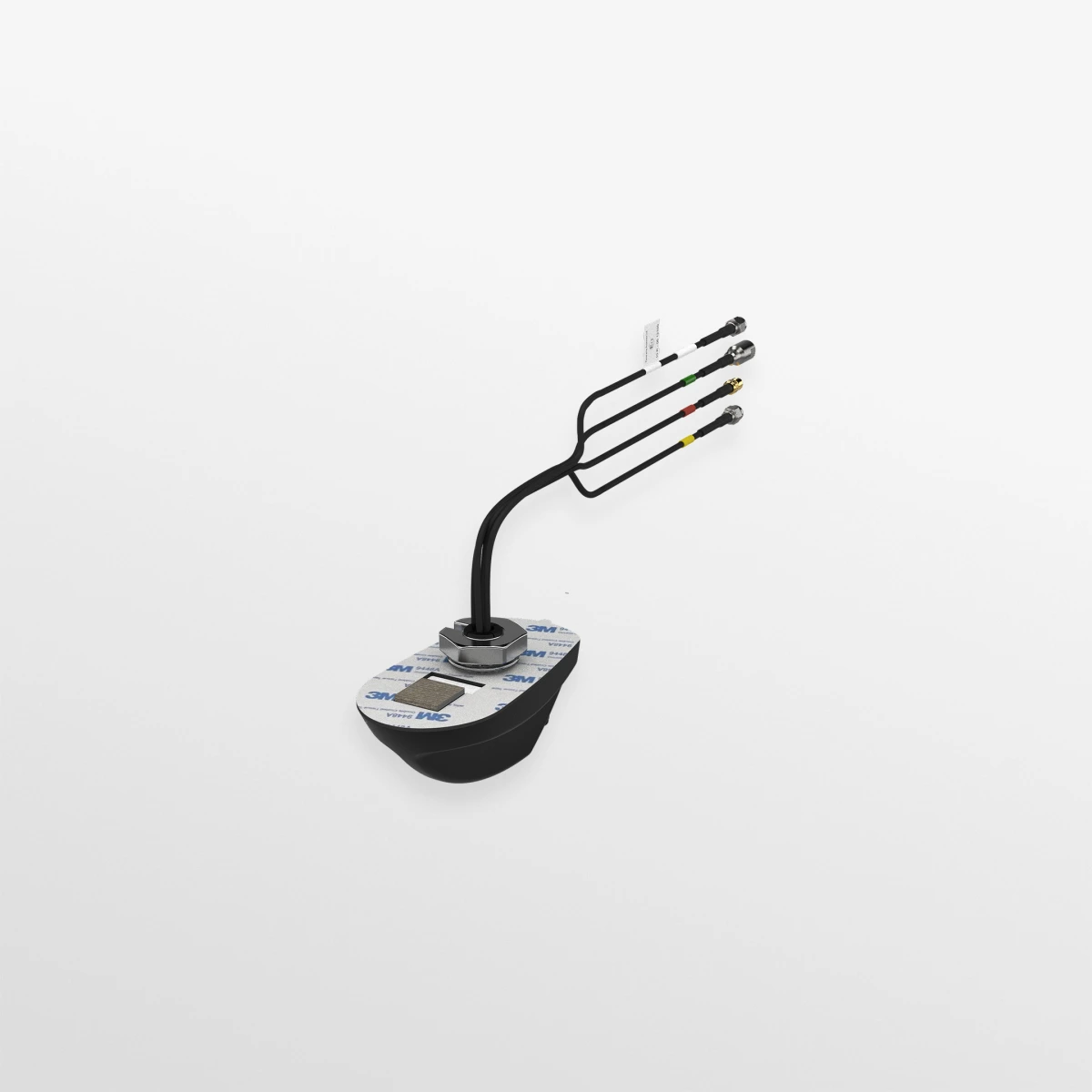

The GPSB5G offers three internal antenna systems, GPS/GNSS, 4G/5G cellular (698-960/1710-3800MHz), dual band WiFi (2.4/5.0GHz) and an optional whip mounting for VHF or UHF whips. Requiring only a single hole fixing, the GPSB5G reduces vehicle damage, cost of installation and visual impact whilst protecting vehicle resale value.

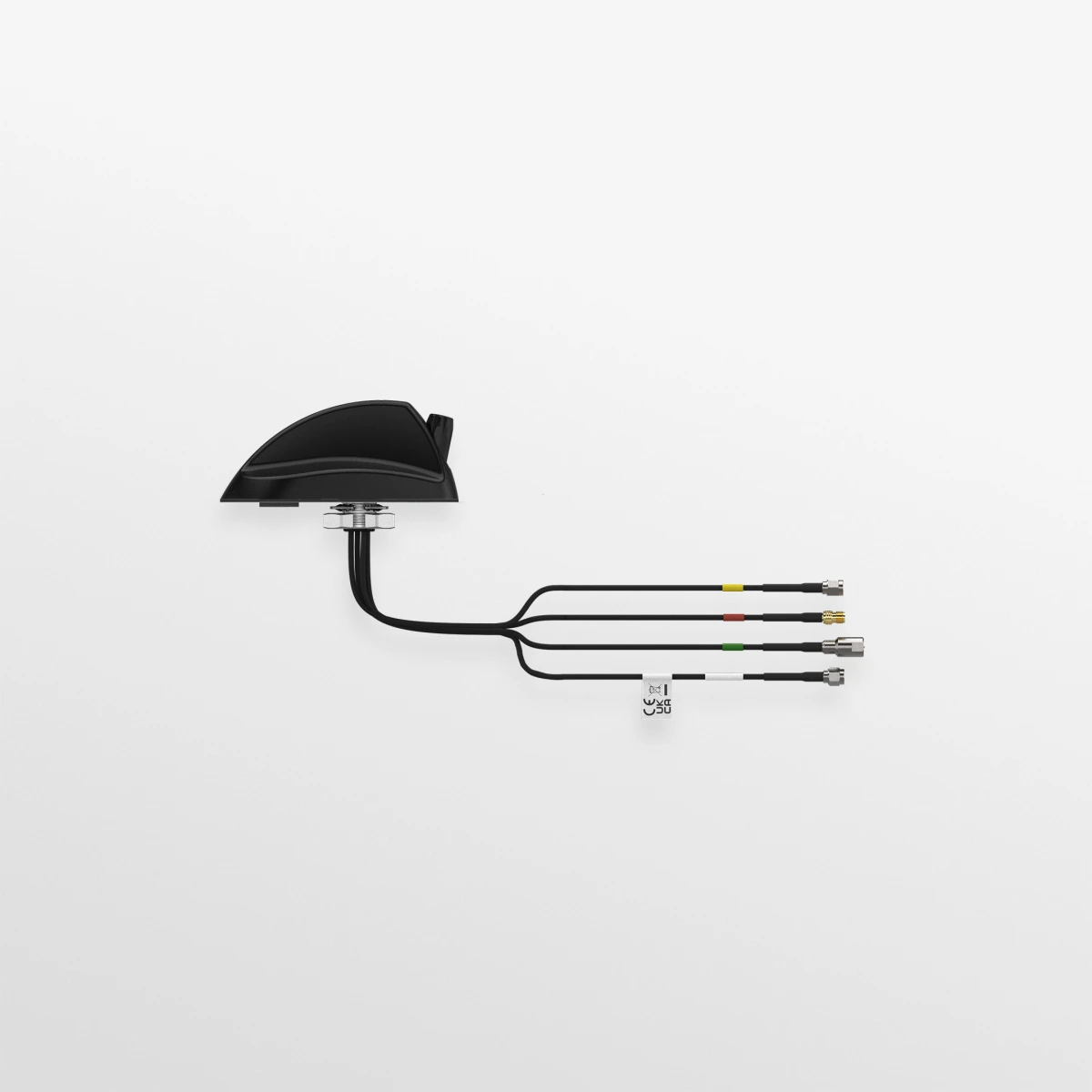

The GPSB5G is suitable for the public safety (covert and discreet), industrial and transportation sectors, where a cost effective, efficient and robust antenna is essential to the application. Fitted with flame retardant pigtail cables compliant to UNECE R118 the GPSB5G is suitable for fitment to M3 category vehicles.
| ELECTRICAL DATA | |
|---|---|
| Pattern | Omnidirectional |
| Cellular LTE Elements | SiSo |
| GPS DATA | |
| LNA GAIN (dB) | 26 |
| Number of GPS Elements | 1 Module |
| MECHANICAL DATA | |
| Colour | Black |
| Length | 120 (mm) | 4.72 (in) |
| Width | 58 (mm) | 2.28 (in) |
| Height | 50 (mm) | 1.97 (in) |
| Operating Temperature | -40° / +80°C (-40.0° / +176.0°F) |
| TERMINATION DATA | |
| Connector (WIFI) | SMA (f) |
| Connector (GPS) | FME (f) |
| Connector (VHF/UHF) Whip | FME (m) |
| Connector (LTE) | SMA (m) |
| MOUNTING DATA | |
| Mounting Type Fixed | Panel |
| Mounting Methods | Panel |
| APPROVALS DATA | |
| IP Rating | IP66 |
| TECHNOLOGY DATA | |
| Technology | GPS; 4G/5G; WIFI; 5G; CBRS; GNSS |
