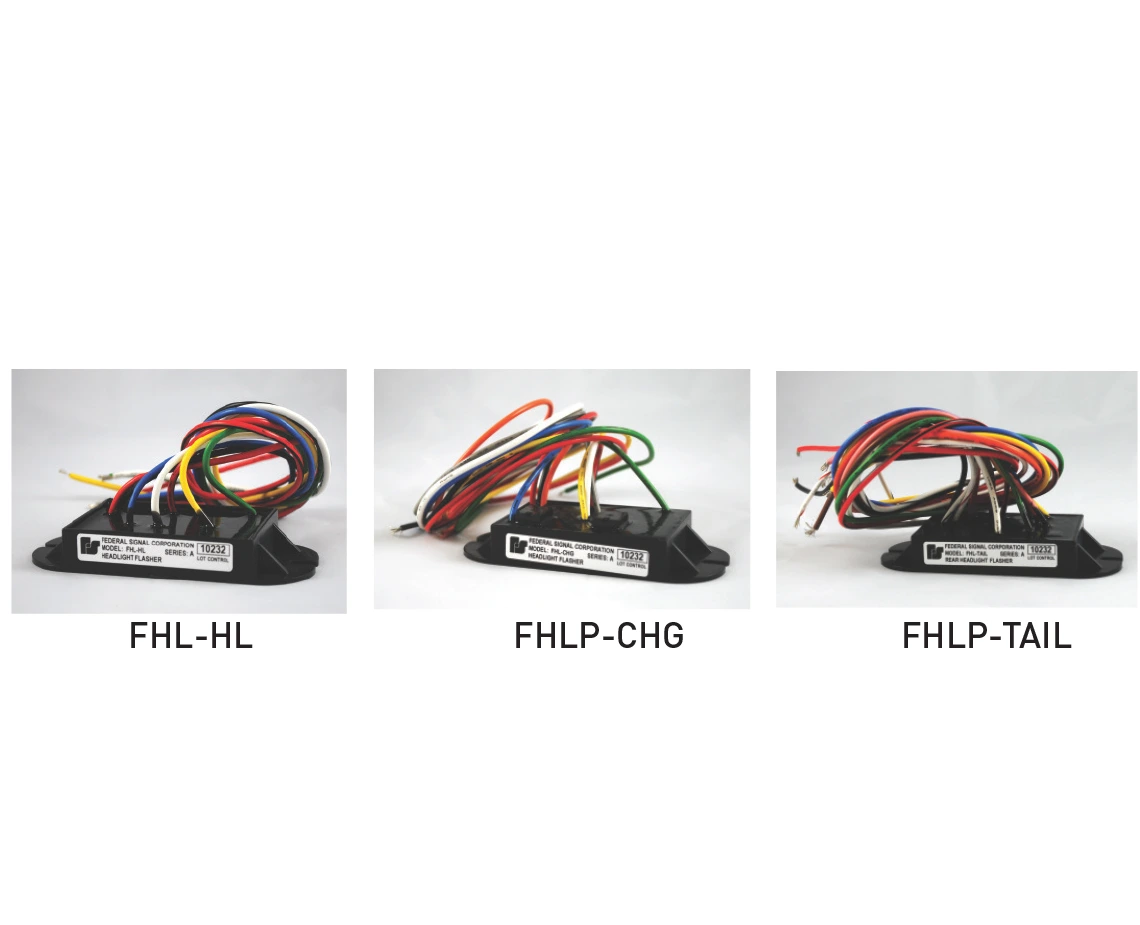

Federal Signal Police/Fire Headlight Taillight Flashers

• Multiple flash pattern options are selectable at installation
• Flashers feature high beam deactivation and low voltage/reverse polarity protection
• Vehicle-specific flashers/mounts for a variety of vehicles
• Three-year warranty

Federal Signal offers a wide variety of Headlight and Taillight flashers made especially for Police and non-Police vehicle applications. Our flashers feature solid-state reliability and customized brackets for the unique Police car applications such as the Ford® Police Interceptor® Utility, Chevrolet® Tahoe, and Dodge® Charger. Flash patterns are selectable on all models, except for the Tahoe. Other features include Low Voltage Protection, Reverse Polarity Protection, High-beam deactivation, and Night-time cut-off. The FHL2-SC provides unsurpassed reliability and value in a relay-driven package. The FHL2-SC is an economical solution for those applications that do not utilize Police package vehicles. Federal Signal"™s taillight flasher is universal for most applications. The FHL-TAIL can be integrated into vehicles that do not have a vehicle integrated taillight flasher

	FHL-HL	FHL-CHR	FHL2-SC	FHL-TAIL
Vehicle Electrical System	8/30 Vdc negative ground	10/16 Vdc negative ground	12 Vdc negative ground	12 Vdc negative ground
Maximum Output Current	Two 9.5 circuits per side		Two 10 A circuits  per side	Two 5 A circuits  per side
Circuit Switching	High-Side
Low Voltage Protection	"¢	"¢	"¢	"¢
Reverse Polarity Protection	"¢	"¢	"¢	"¢
High Beam Deactivation	"¢	"¢	"¢
Automatic Night-time Cut-off	"¢	"¢
Flash Patterns	7 selectable patterns		90 fpm	2.6 FPS
Mounting Bracket	Multi-Vehicle
Physical Specifications
Height	0.7 in (1.78 cm)
Length	4.7 in (11.9 cm)
Width	2.05 in (5.2 cm)
Shipping Weight
	1.0 lb (0.5 kg)
