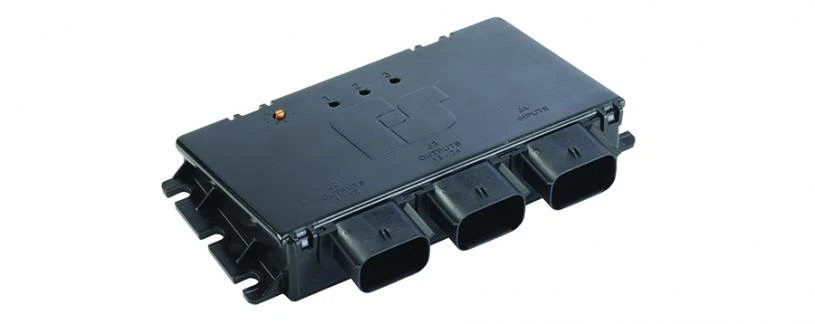

Federal Signal EXPMOD24 & EXPMOD32

The EXPMOD24 24-Channel Expansion module works with any Pathfinder siren to provide an additional (24) flashing outputs to a Pathfinder System. (2) of the (24) outputs feature diode-protected inputs to serve as OEM LED brake light flash control. The 24-Channel Expansion Module is controlled by a Pathfinder siren that can be programmed through the Convergence Network Configuration Software to provide a high-level of distributed and customizable control capability. The maximum output current for each relay can also be set with the Convergence Network Configuration Software. The 24-channel Expansion Module is potted to help protect it from unfavorable weather conditions, making it ideal for under-the-hood mounting. Up to four 24-Channel Expansion Modules can be used with a Pathfinder siren.

The 32-Channel Expansion module works with any Pathfinder siren to provide an additional 32 flashing outputs to a Pathfinder system. The Expansion Module makes installation faster and easier by providing 3-SPDT, diode-isolated relays allowing for brake light blackout and/or brake/taillight flash, eliminating the need for a taillight flasher. The blackout feature allows trained officers to cut off all rear lighting to avoid detection. The 32-Channel Expansion Module is programmed through the Convergence Network Configuration Software to provide a high level of distributed and customizable control capability. The maximum output current for each relay can also be set within the software. The 32-Channel Expansion Module is potted to help protect it from unfavorable weather conditions making it ideal for under the hood mounting. Up to four 32-Channel Expansion modules can be used in a system. Each Expansion Module has a module identifier to easily help identify while programming in the Convergence Network Configuration software.
