Federal Signal

Federal Signal Corner LED

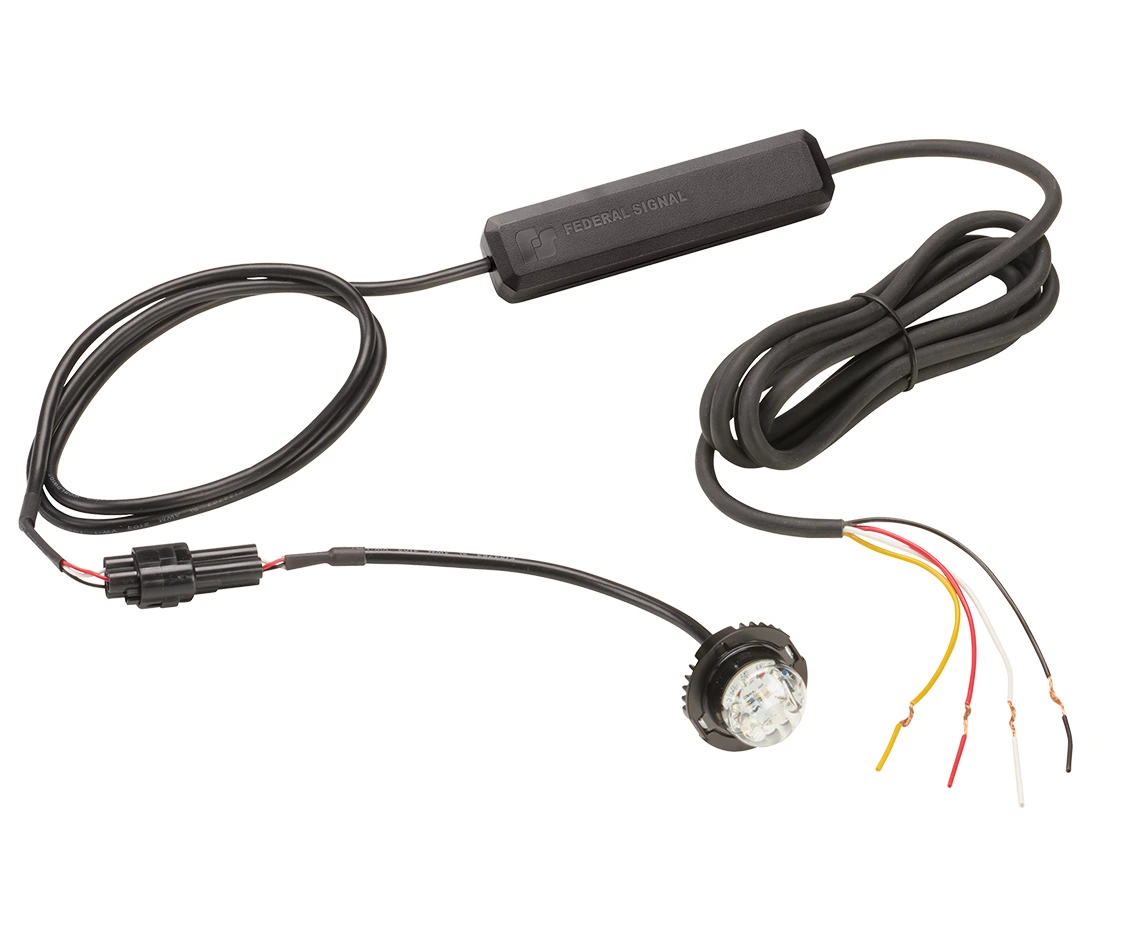

The 416900Z/416910Z Corner LEDs are made to stand the most punishing conditions while providing an impressive light output. Each light head is completely sealed to prevent any water ingression, and the system comes with a built-in flasher that is detachable with a weatherproof connector.

Product Description

  • Available in single- and dual-color models
  • (12) LEDs per light head
  • Suitable for external and internal use
  • Multiple heads can be synchronized and can flash simultaneously or alternately
  • Two mounting options; bezel for surface mounting or can be installed in a head lamp
  • (19) built-in selectable flash patterns
  • Optional bezels in White and Chrome sold separately
  • Steady burn models are available for use with the Pathfinder® siren or other external flashers
  • Five-year warranty

Features

Approvals:
  • All models are IP67 rated, moisture and dust proof

Corner LEDs Are Built To Withstand Some Of the Harshest Elements
The 416900Z/416910Z Corner LEDs are made to stand the most punishing conditions while providing an impressive light output. Each light head is completely sealed to prevent any water ingression, and the system comes with a built-in flasher that is detachable with a weatherproof connector.

To accommodate multiple mounting applications, both 416900Z and 416910Z light heads come with a bezel that conceals the mounting hardware for an appealing look for surface mounting and a gasket that allows for a head lamp installation.

Multiple Options All In One Package

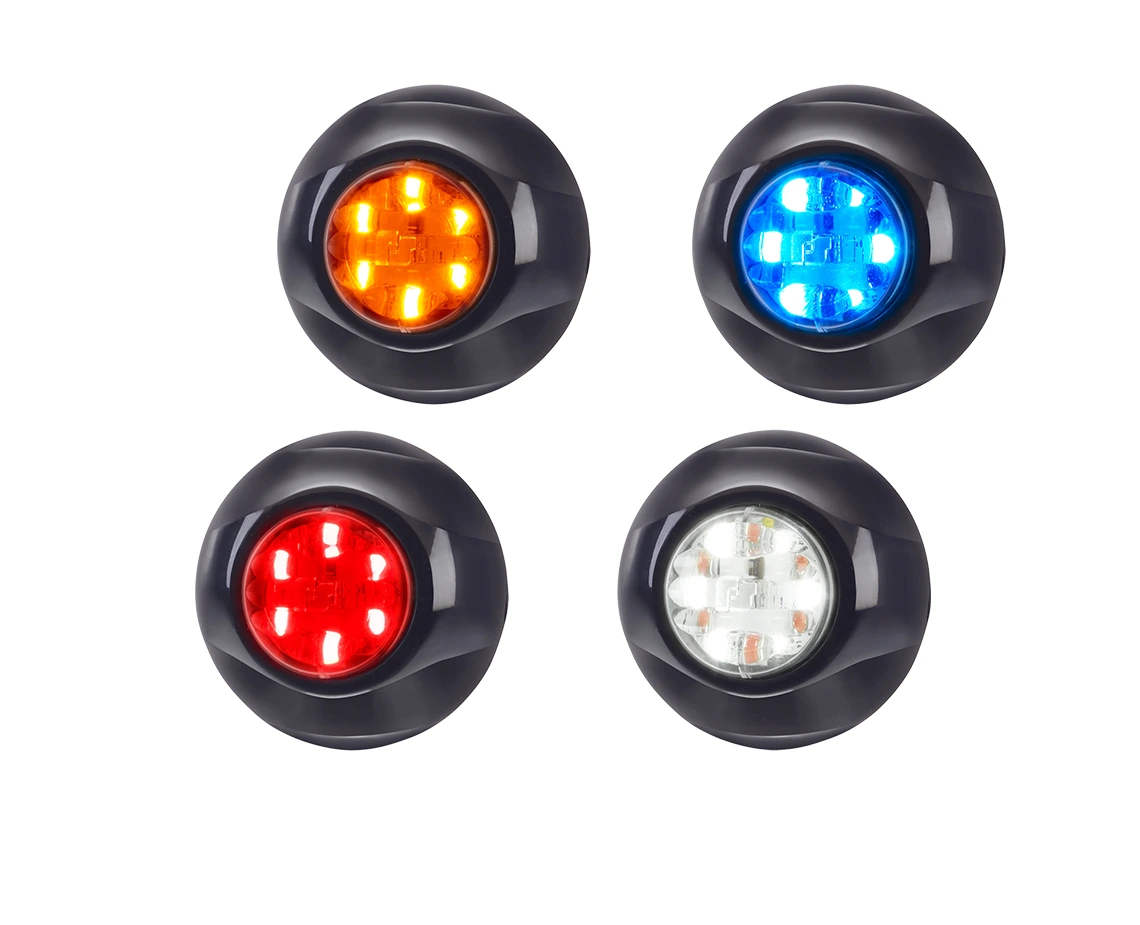

The 416900Z/416910Z corner LEDs come with (19) selectable flash patterns and can be programmed to operate independently or sync with multiple light heads. Single-color models are available in Blue, Red, Amber, and White. Dual-color light heads can flash one color or alternate between each color and are available in combinations of Amber/White, Blue/Amber, Blue/White, Blue/Red, Red/White, and Red/Amber.

Specifications

Voltage 12/24 Vdc
Current Draw 0.6 A maximum @ 12 Vdc
0.4 A maximum @ 24 Vdc
Operating Temp. -22Ëš to +176Ëš F (-30°  to +80° C)
Function Wire
Red +Vdc for Mode 1
White +Vdc for Mode 2
Black Ground
Yellow Synchronization
Physical Specifications (Light Head)
Diameter 1.5 in (3.81 cm) Light head
1.9 in (4.7 cm)  Bezel
Height 0.9 in (2.3 cm) Light head
0.5 in (1.2 cm) Bezel
Ship Weight
  1 lb (0.5 kg)
