Havis

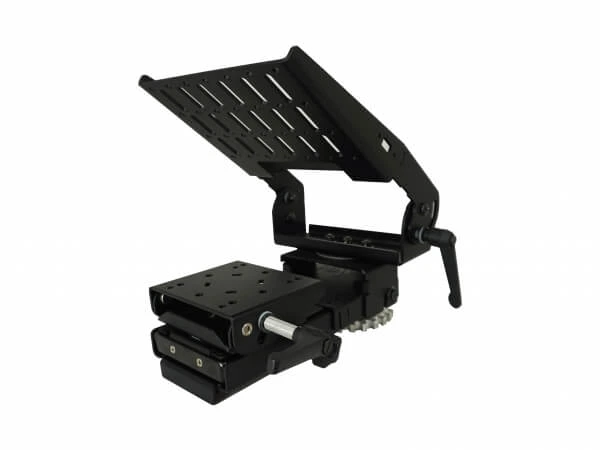

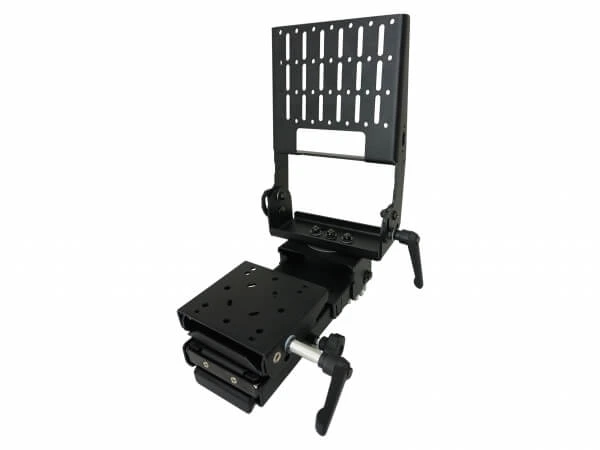

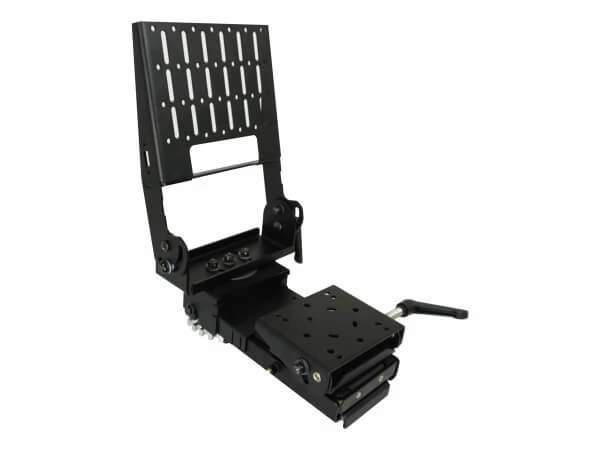

[C-MD-317] - Heavy-Duty Computer Monitor / Keyboard Mount and Motion Device

[Ptn: C-MD-317]

Product Description

  • Pre-assembled package includes: C-MD-119 (C-MD-114 with C-MD-204 tilt swivel), C-ADP-110 (adapter) and C-UMM-103 (universal monitor mount)
  • Slide out extension for keyboard of up to 3.3" (8.4 cm) if both monitor and keyboard extension is preferred see C-MD-318
  • C-MD-204 includes VESA 75 and AMPS hole patterns
  • C-KBM-1XX or C-KBM-2XX keyboard adapter's must be ordered separately if necessary
  • Includes VESA 75 and AMPS (effective 5/31/14) hole pattern for many monitors or devices
  • The C-MM-301 adaptors may still be required for some VESA 75 equipment depending on cable or mount hole locations
  • C-MM-2XX / C-MM-3XX monitor adapters must be ordered separately if necessary
  • Mounting pattern: 4 hole @ 2.125" square (1/4" Mounting hardware provided) to attach to a HDM pole or Havis consoles with forward mounting platform
  • Mounts to C-HDM-200 Series poles
  • Space saving solution allows additional equipment to be mounted in console
  • Monitor has 90° side to side swivel for improved viewing angle
  • Keyboard has 180° swivel for improved ergonomics
  • Quick-release knobs for monitor and keyboard tilt control
  • Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
  • Main swing arm with 180 deg horizontal rotation provides ergonomic positioning, securely locks rotation into place
