M9 Series
M9 Standard: 6.5" (165mm) H x 10.4"³ (263mm) W x 1.4"³ (35mm) D
M9 V-Series: 6.5" (165mm) H x 10.4"³ (263mm) W x 2.7"³ (69mm) D

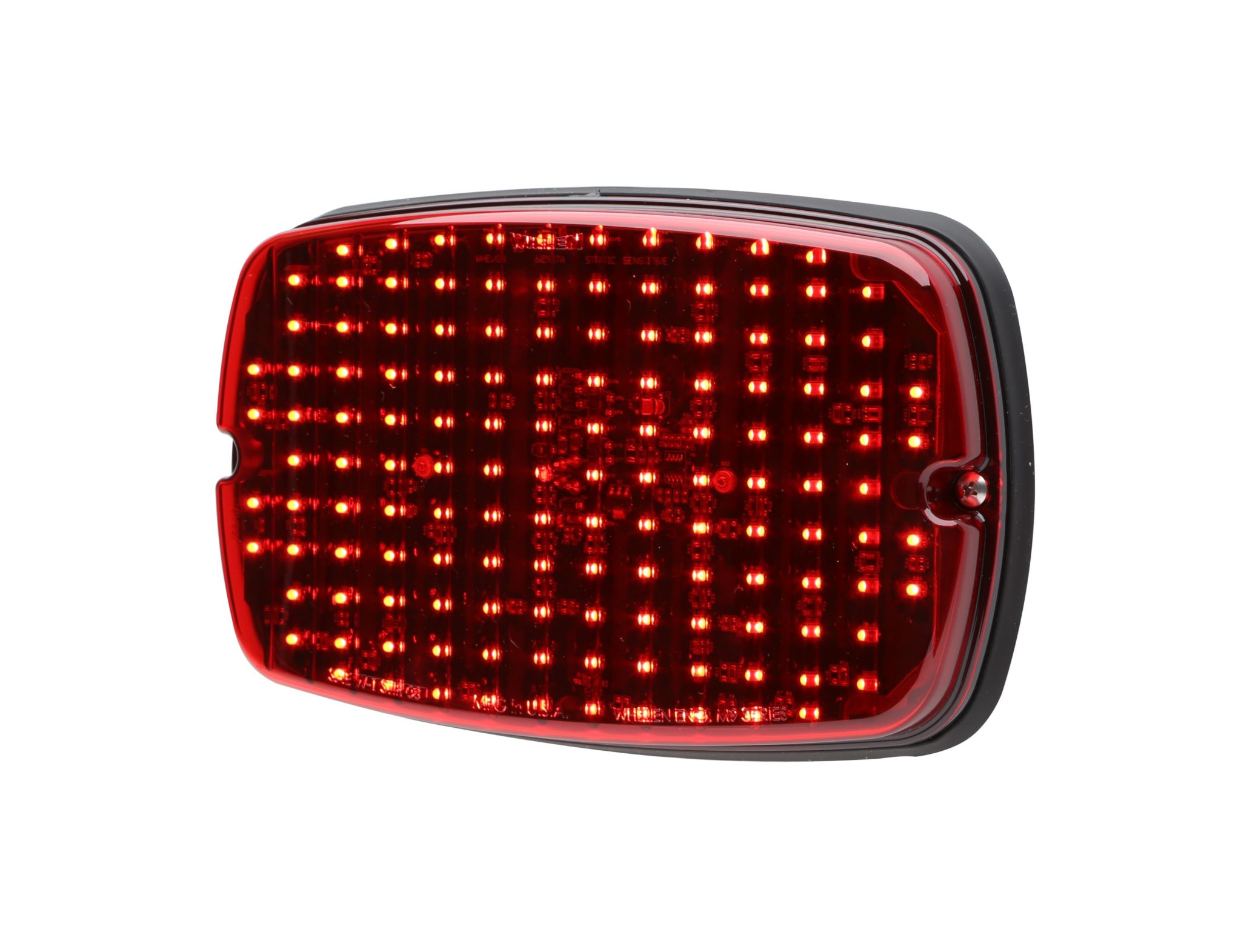

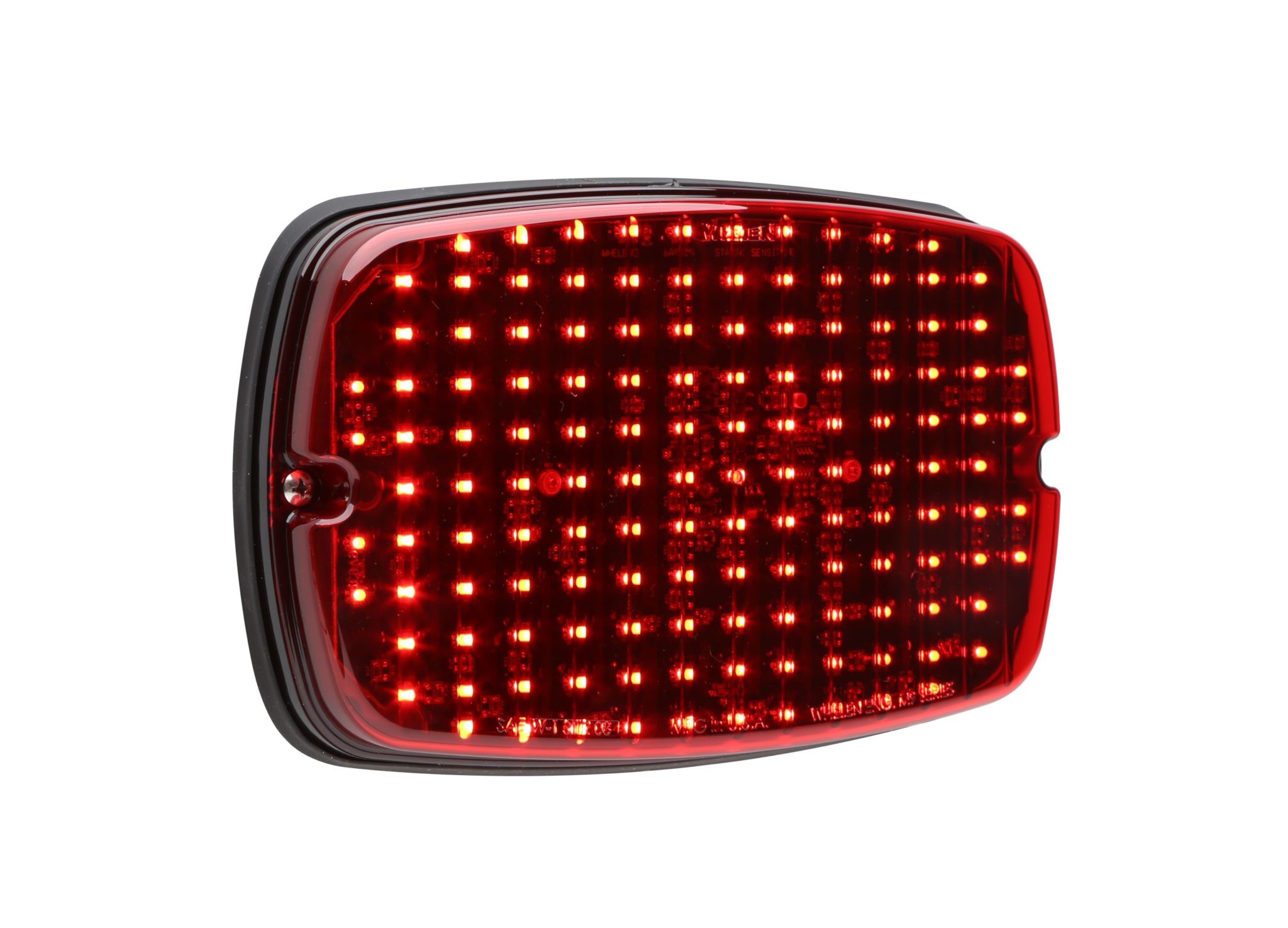

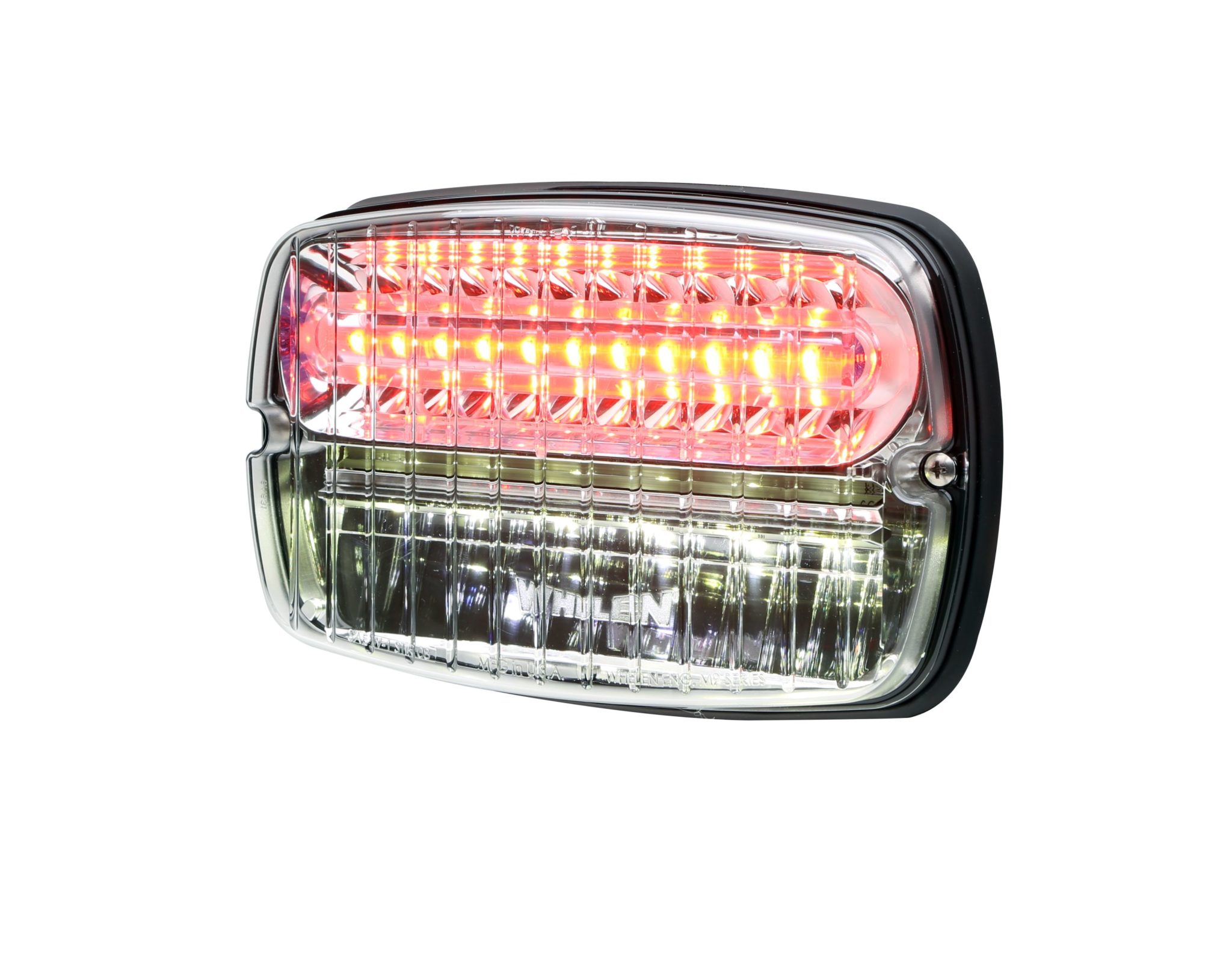

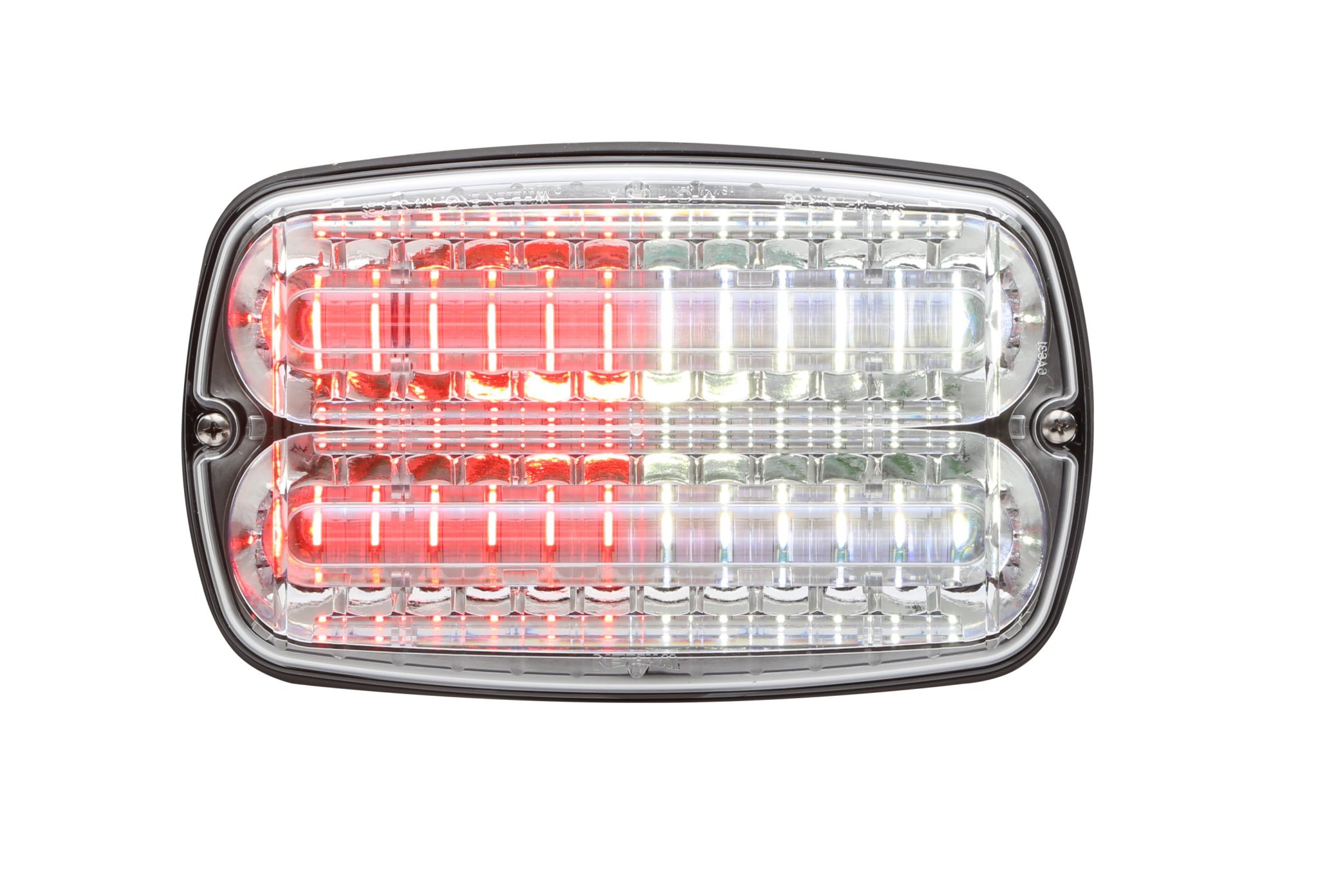

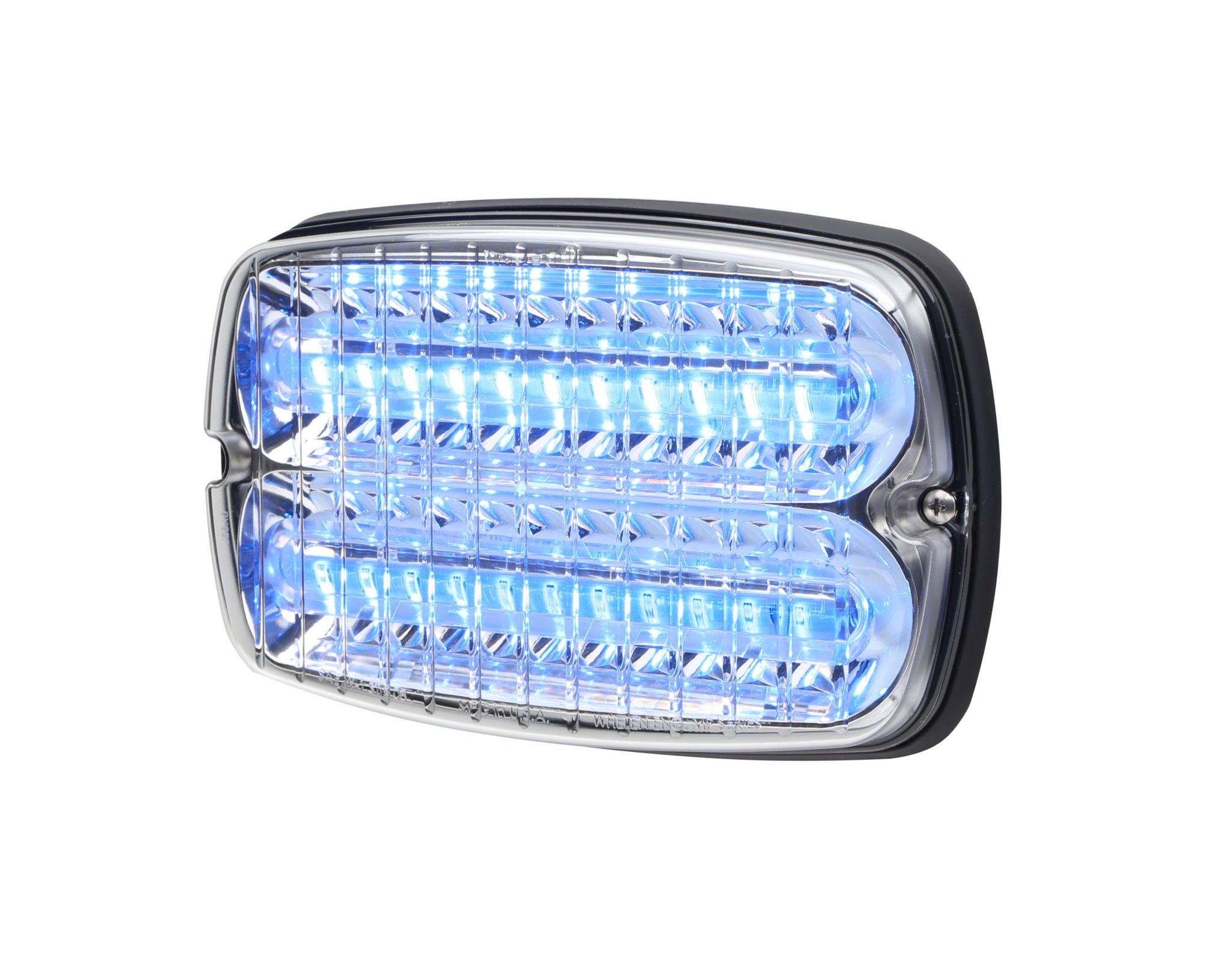

[M9K] Whelen M9

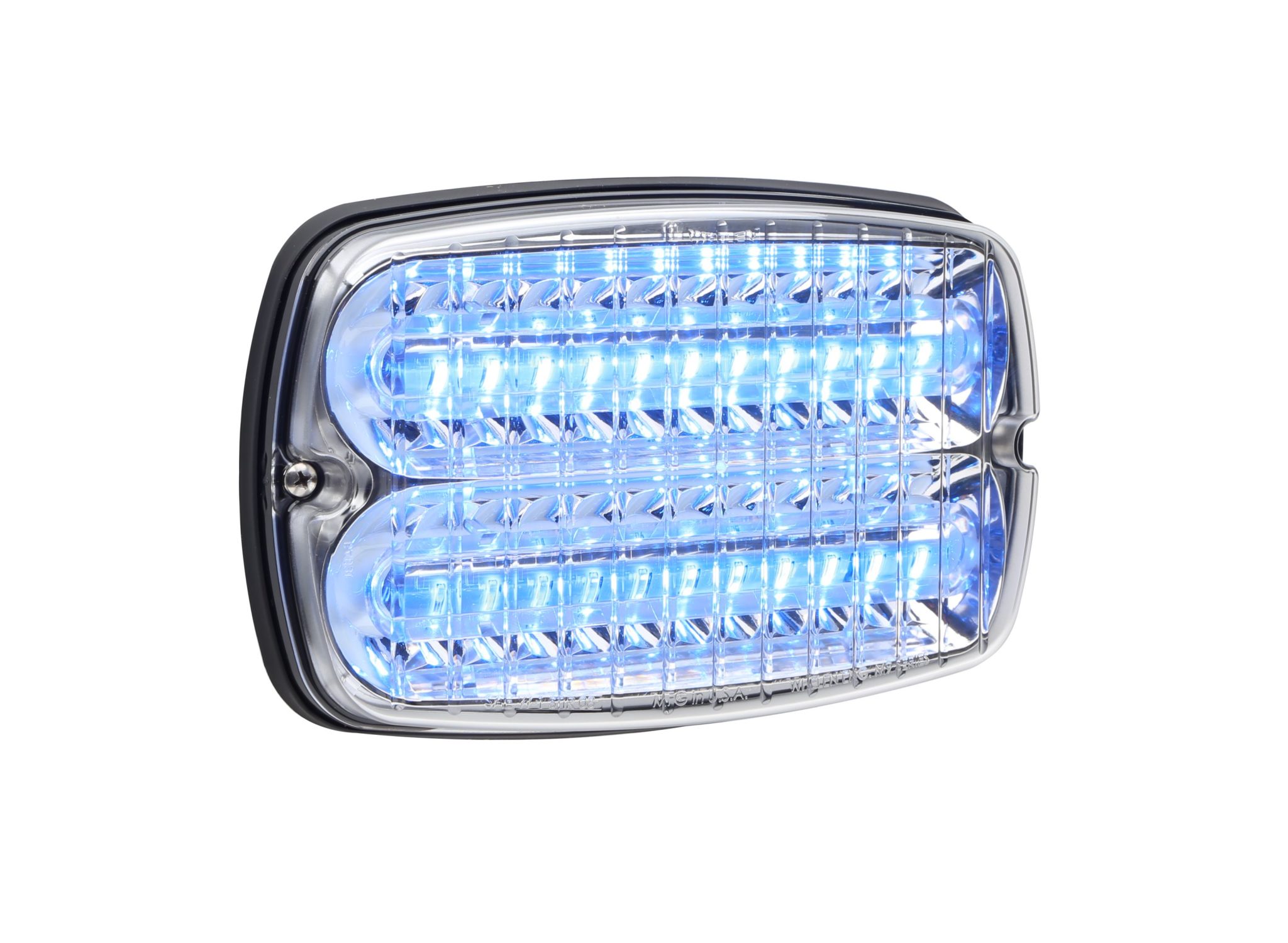

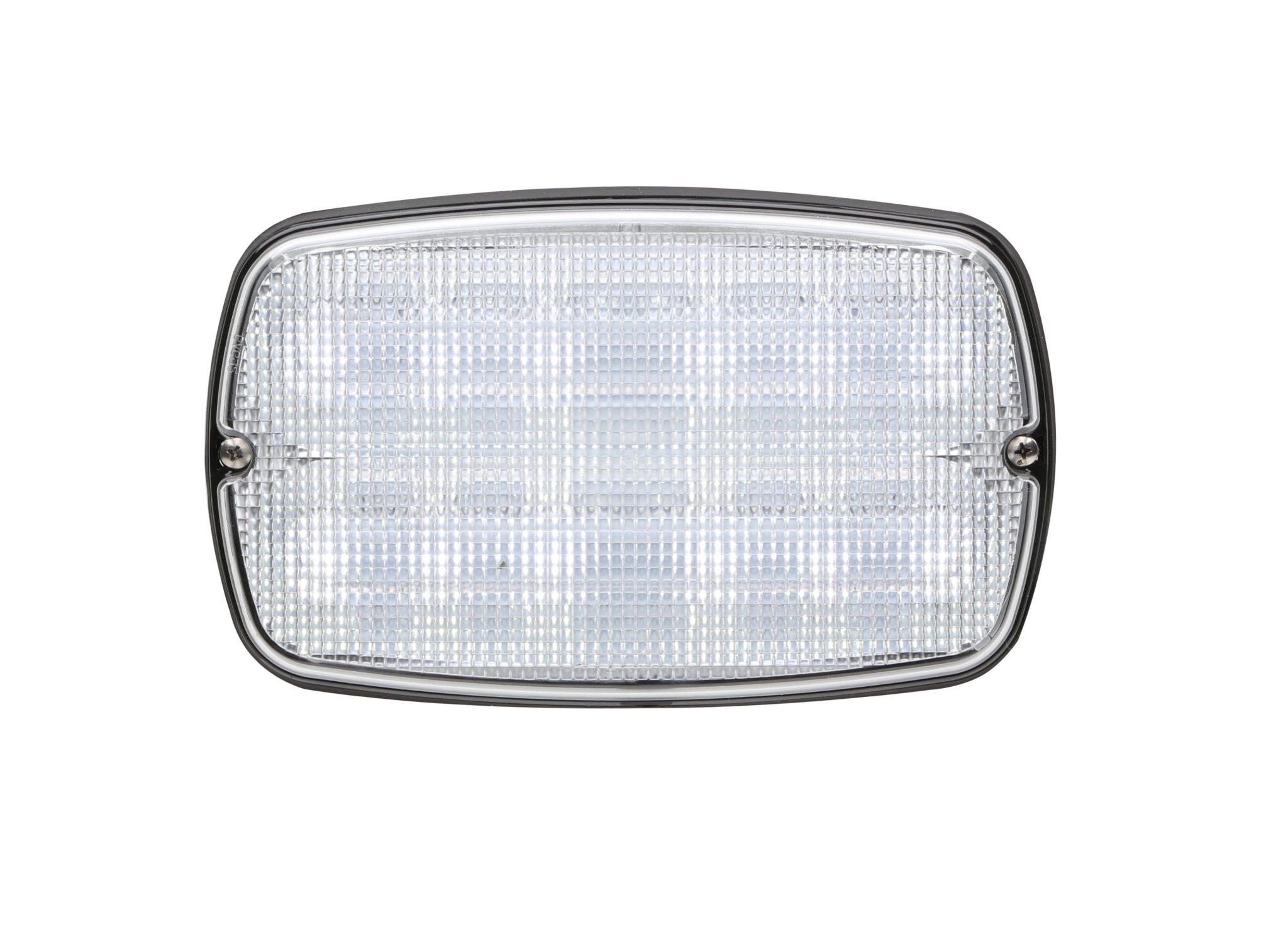

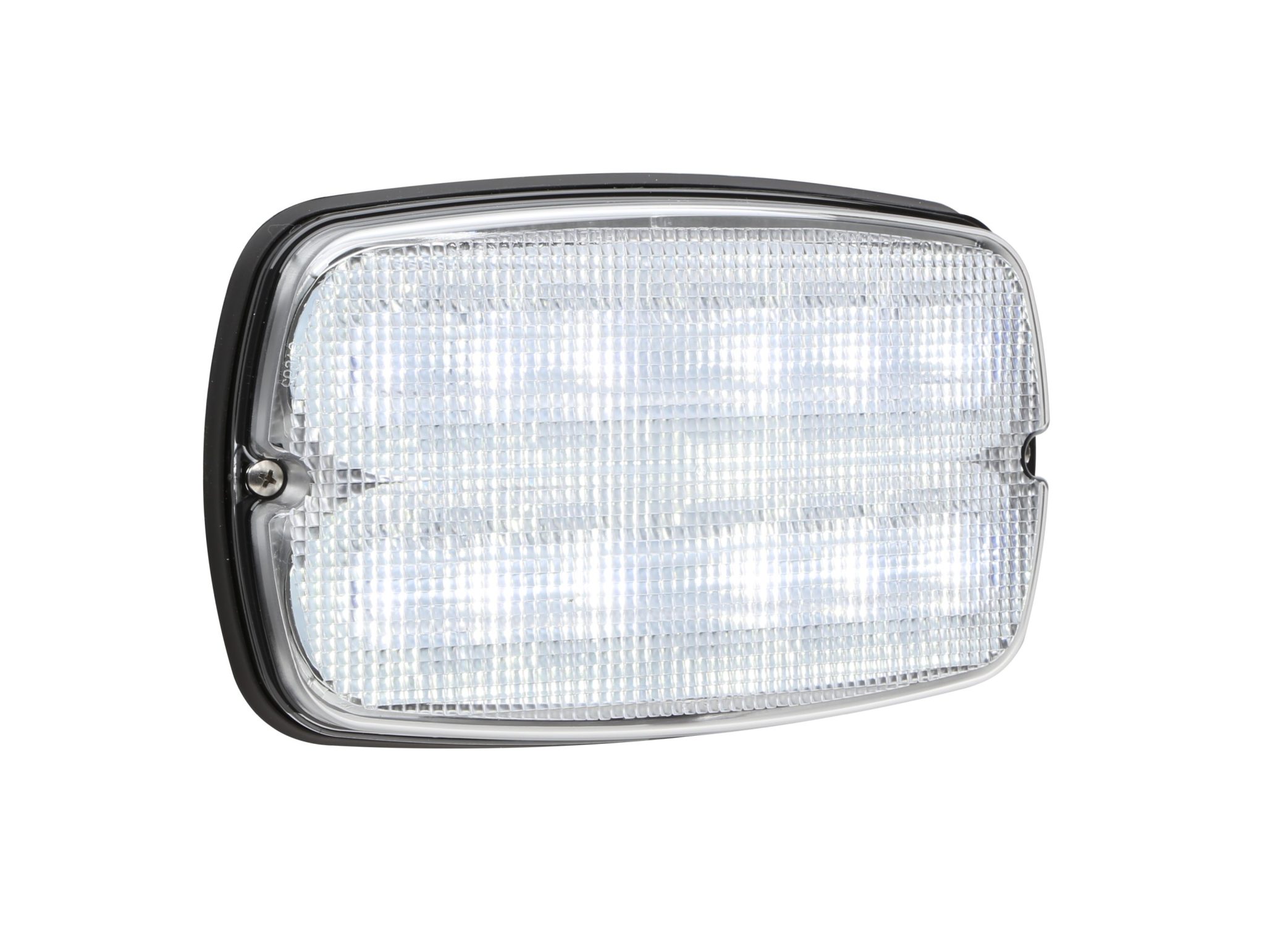

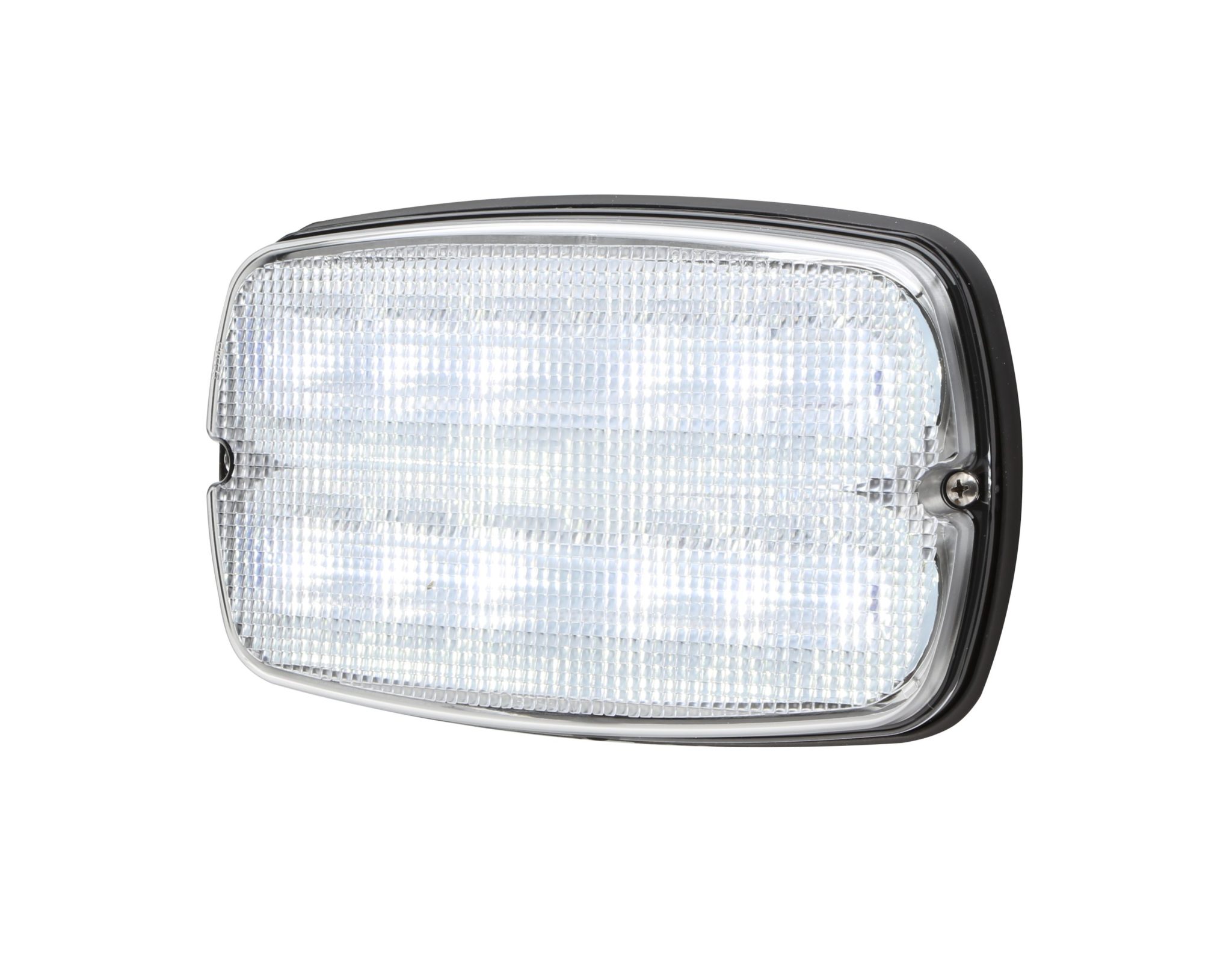

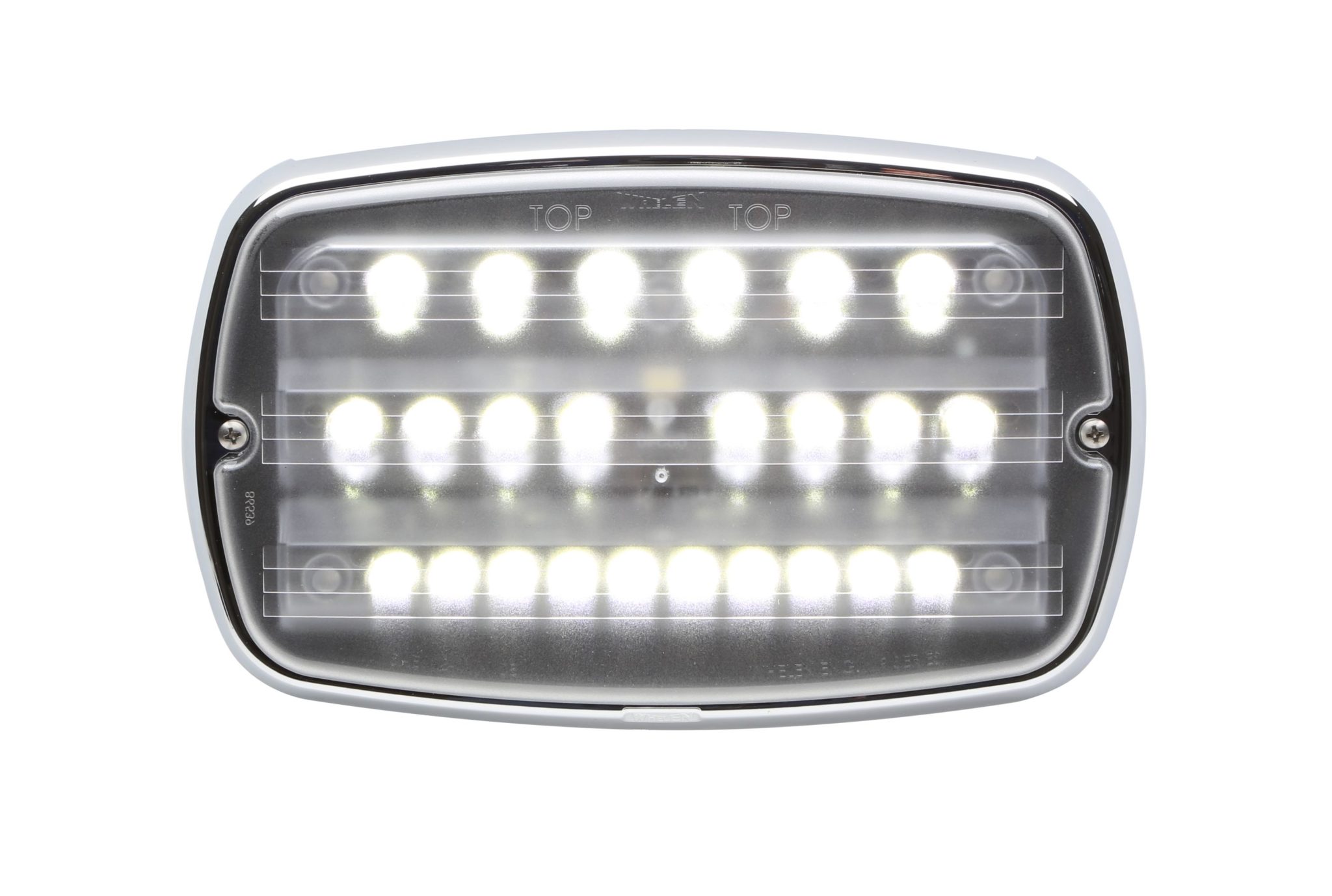

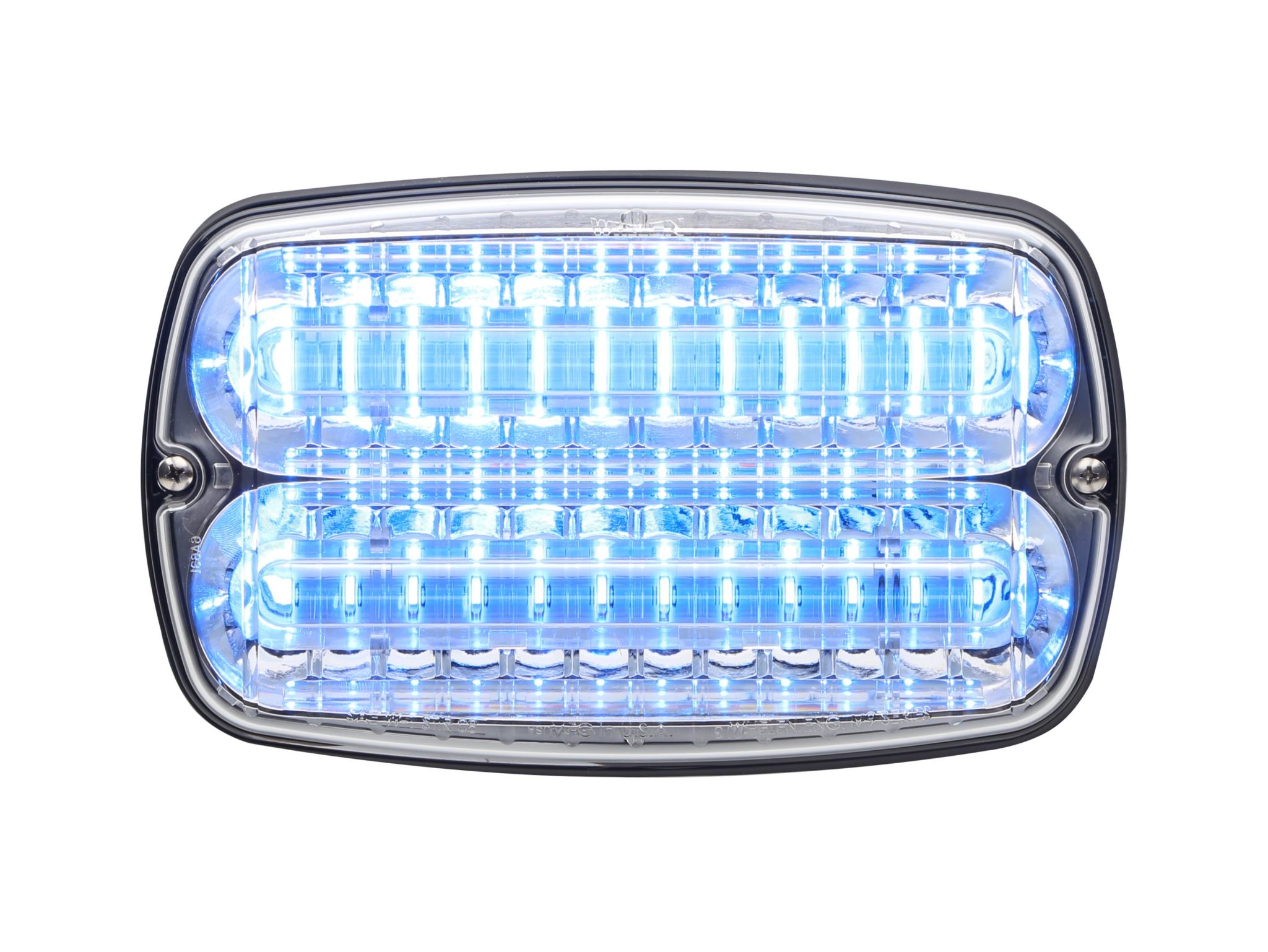

The largest of the M Series®, the M9 is a versatile lighthead for many applications.
Category: Whelen
SKU: 4372
Base Price:
Total Price:
Part Number:
Availability: Product must be ordered. Estimated lead time is expected to be 2-3 weeks.
Files
No files for this product

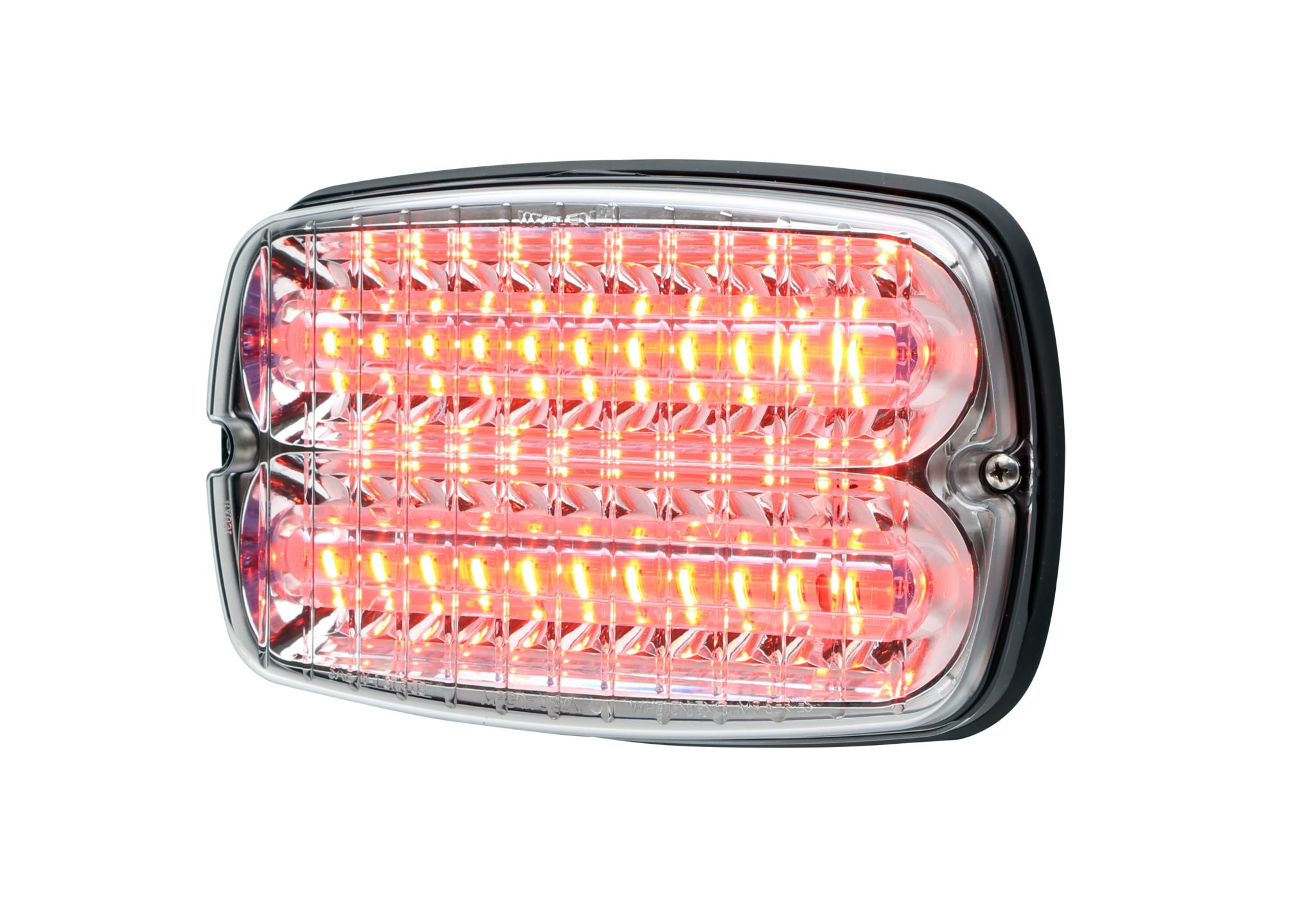

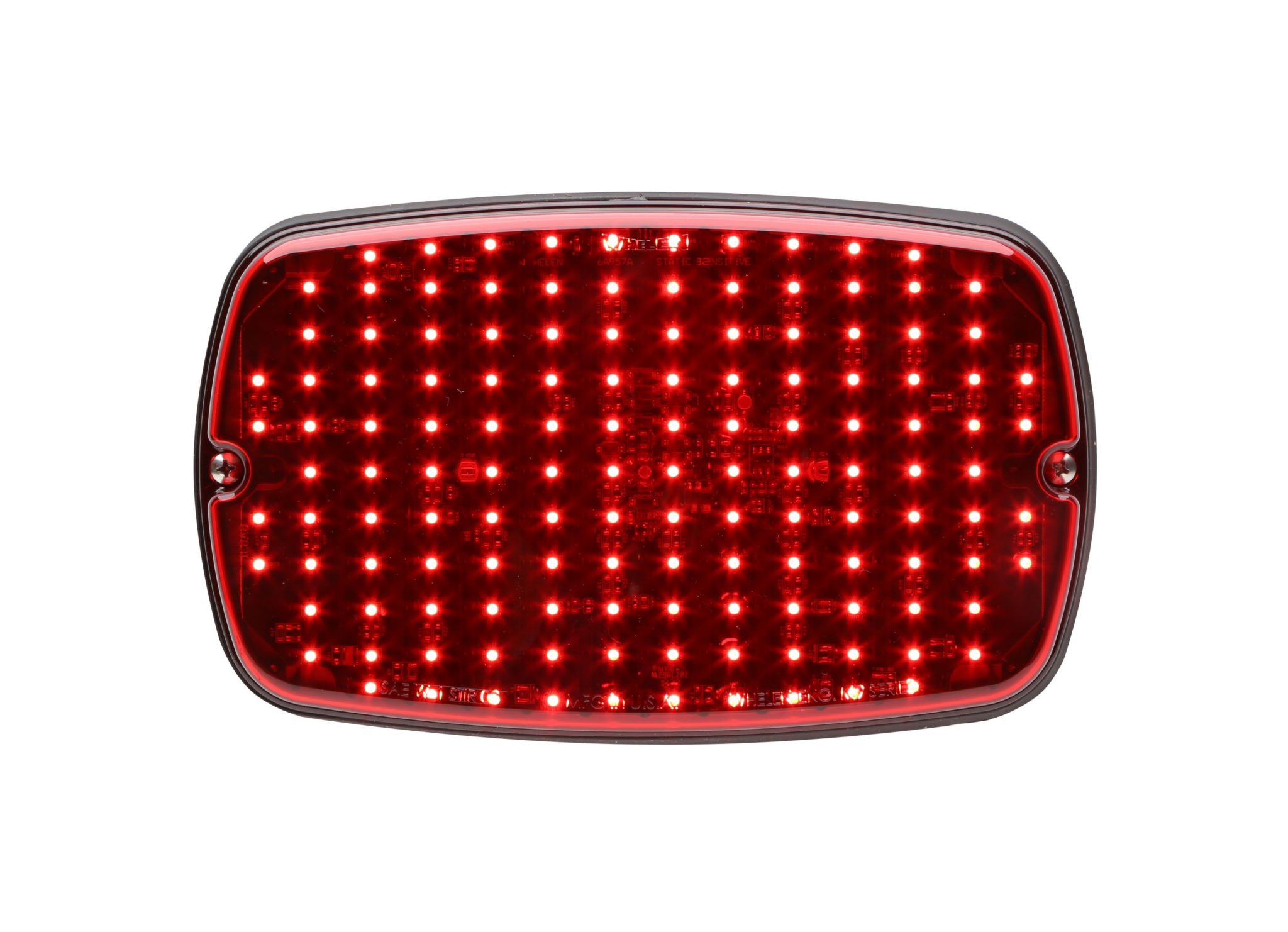

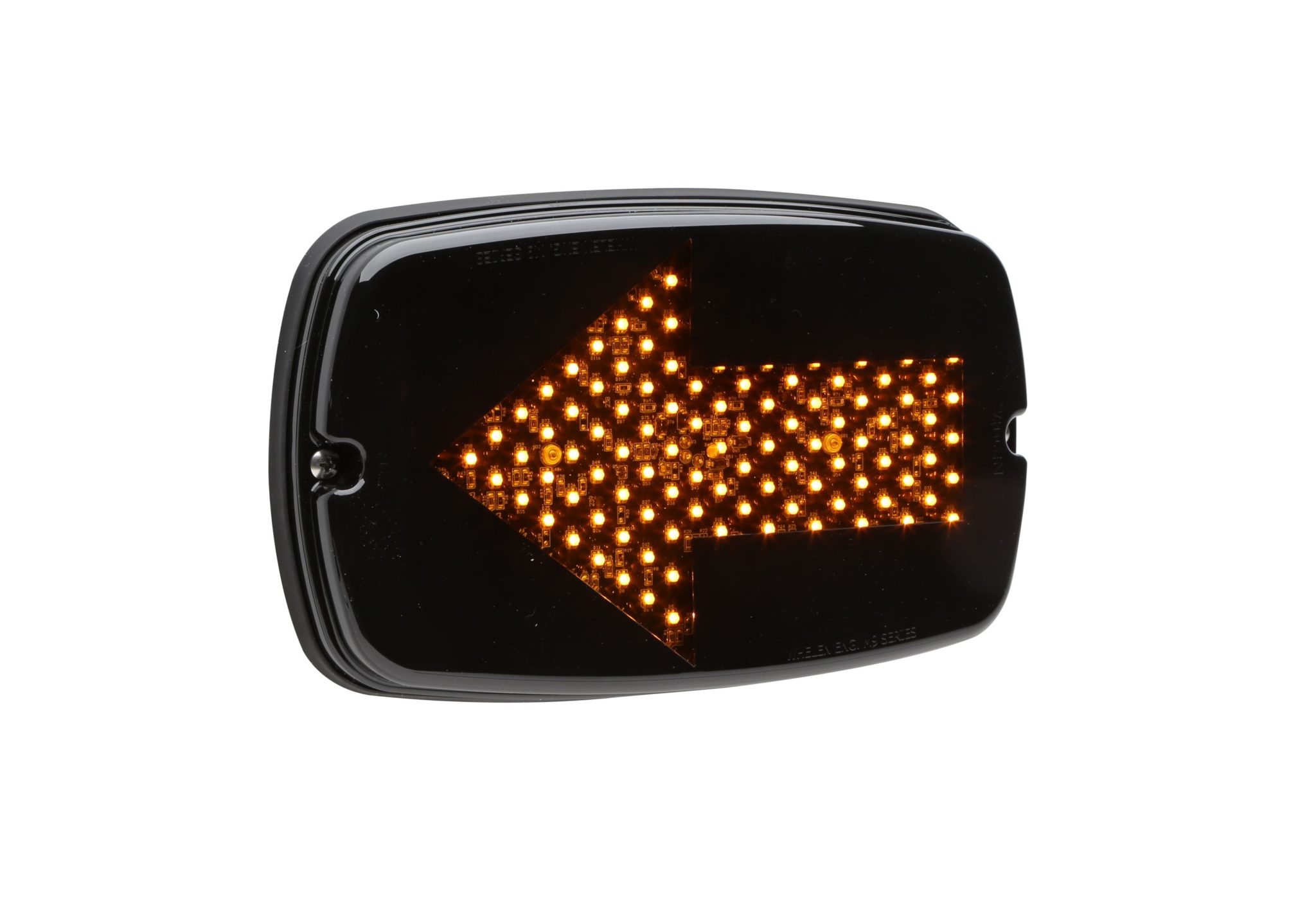

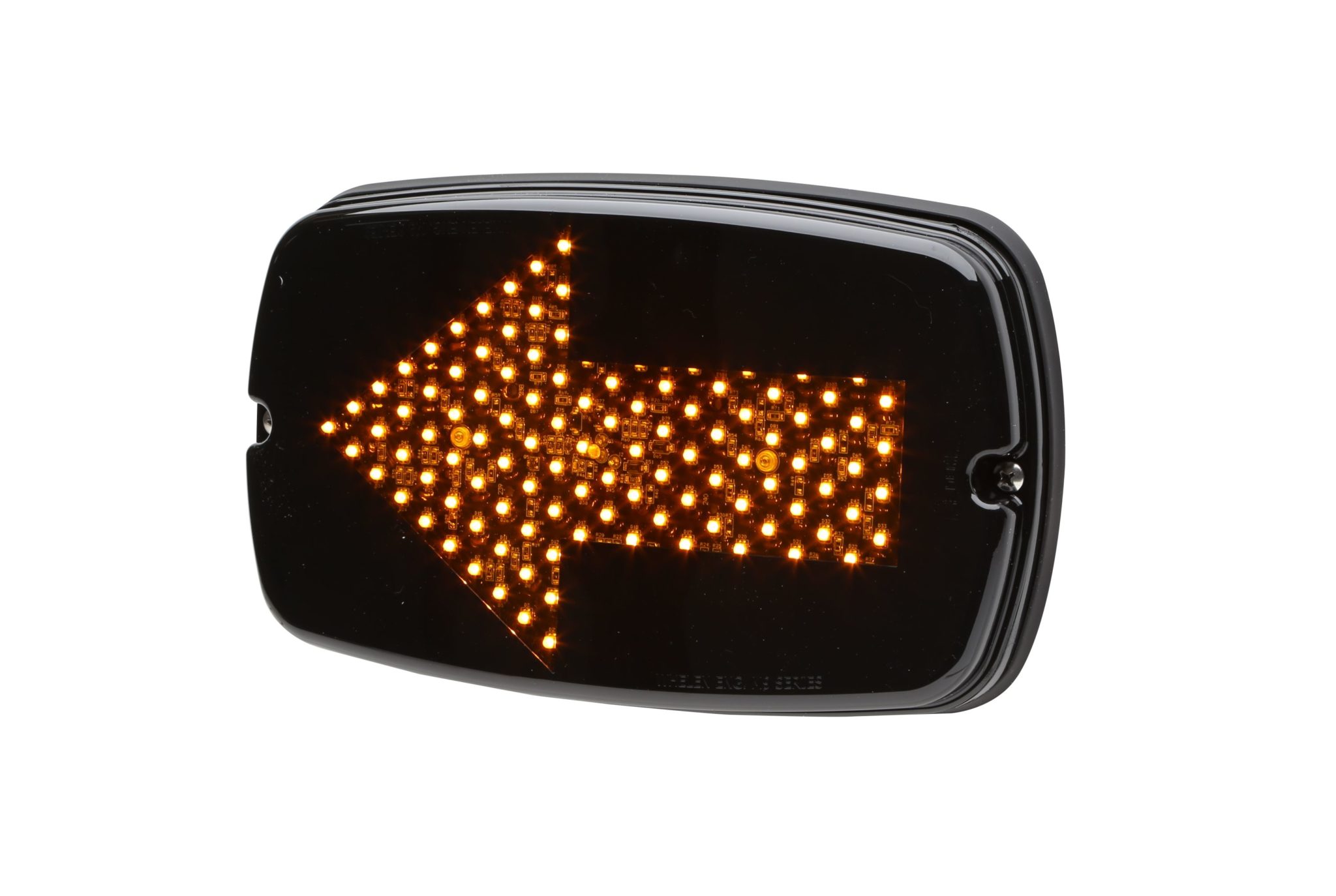

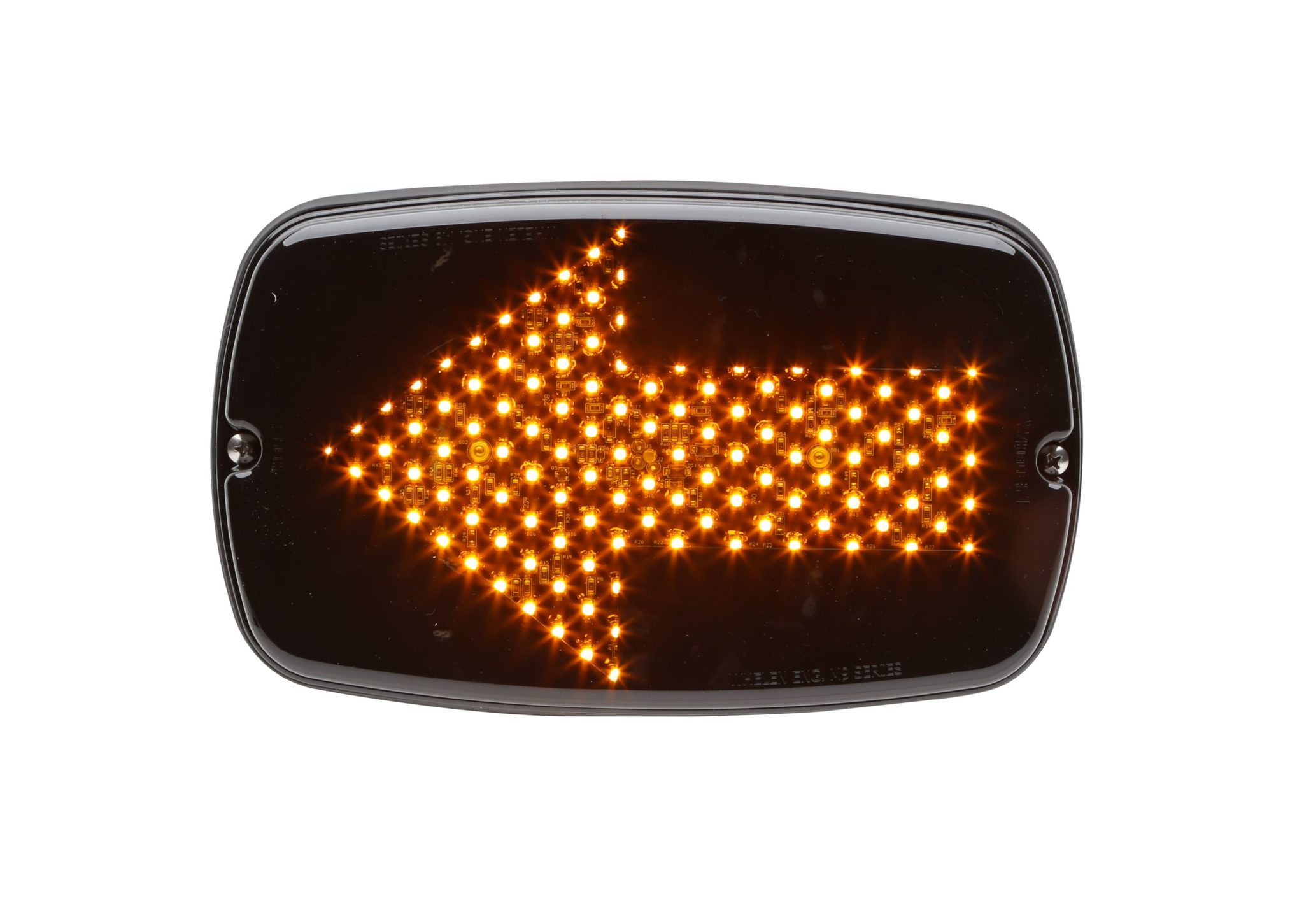

- Brake/tail/turn, turn, and back-up lights meet applicable SAE requirements

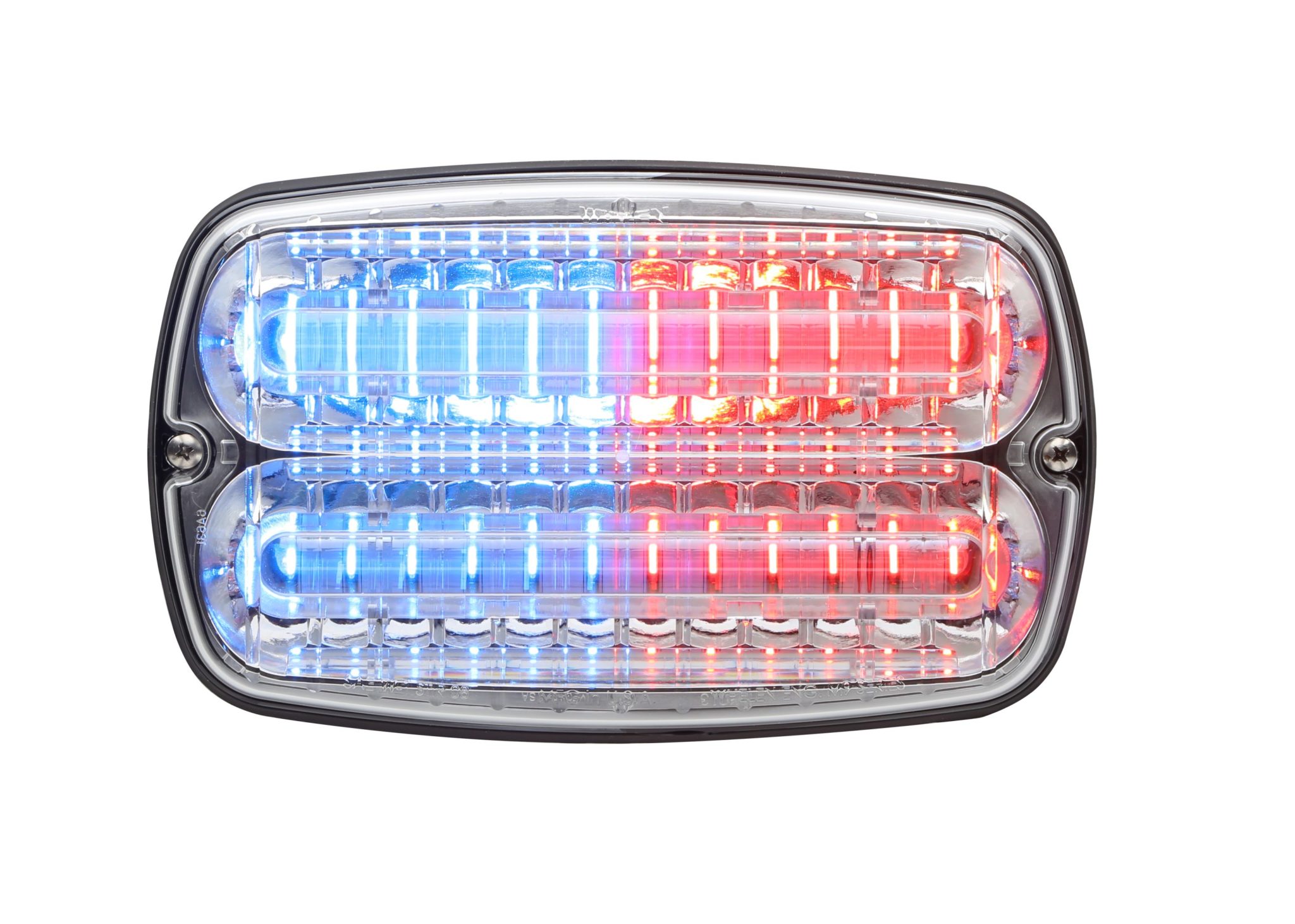

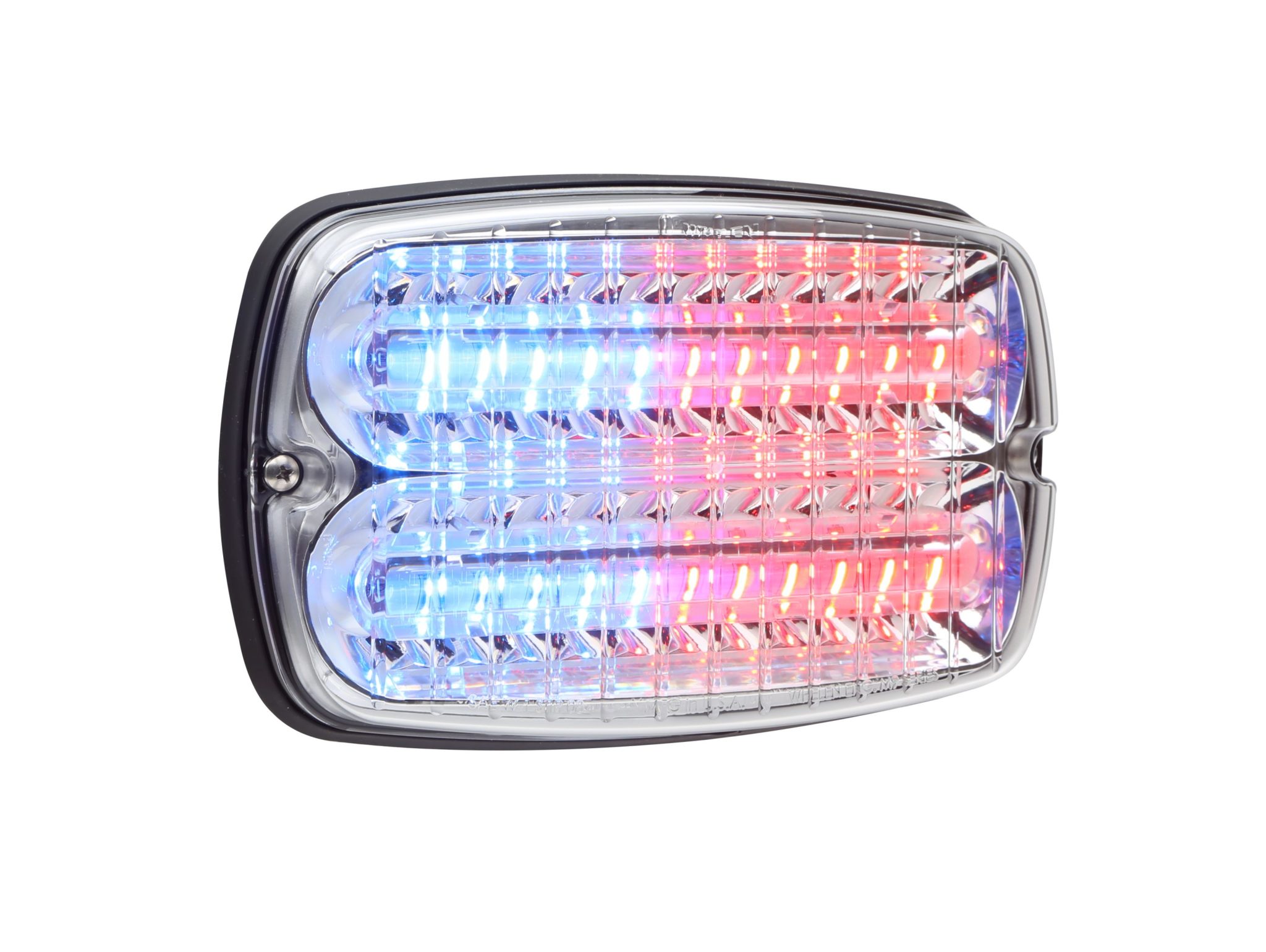

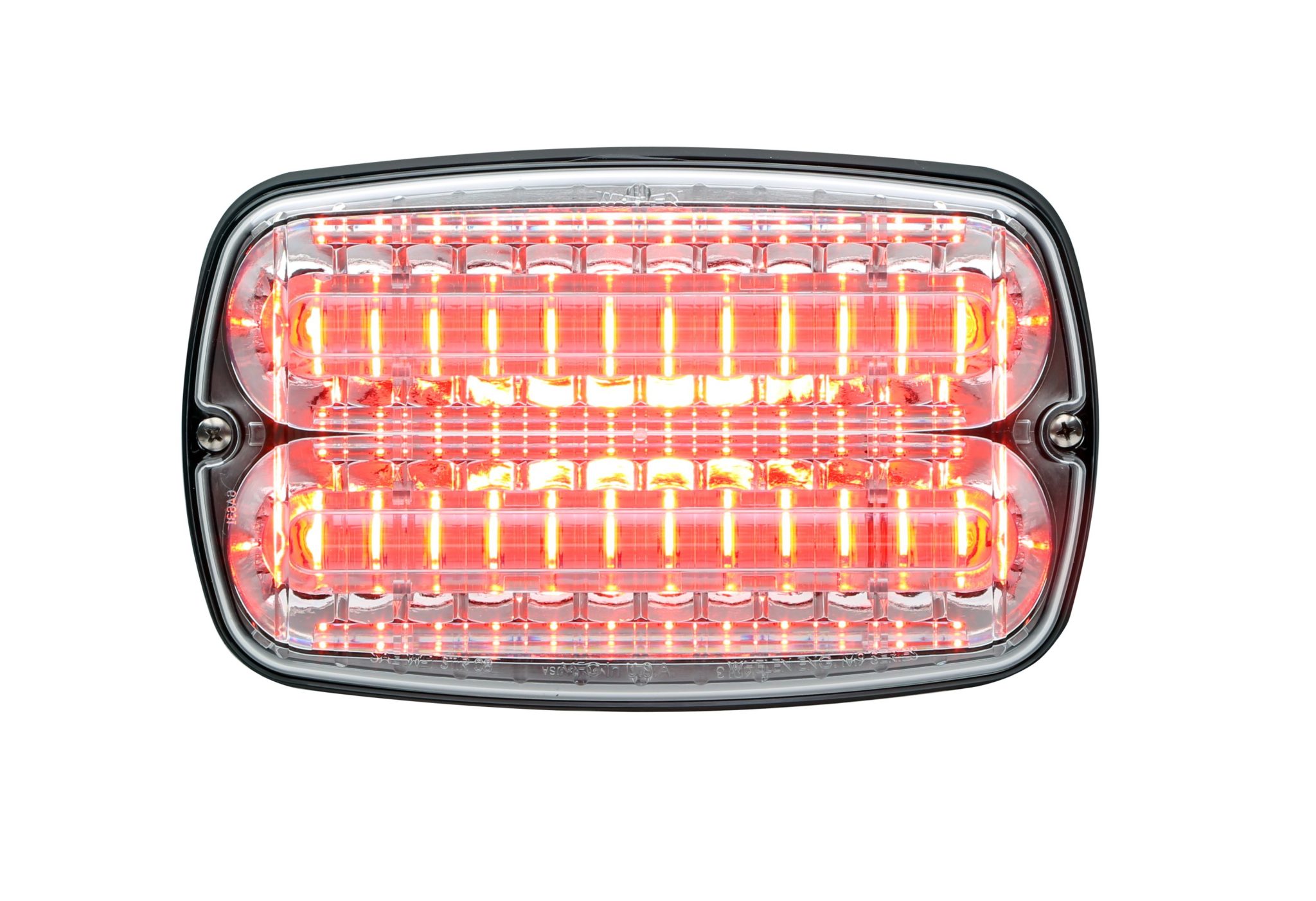

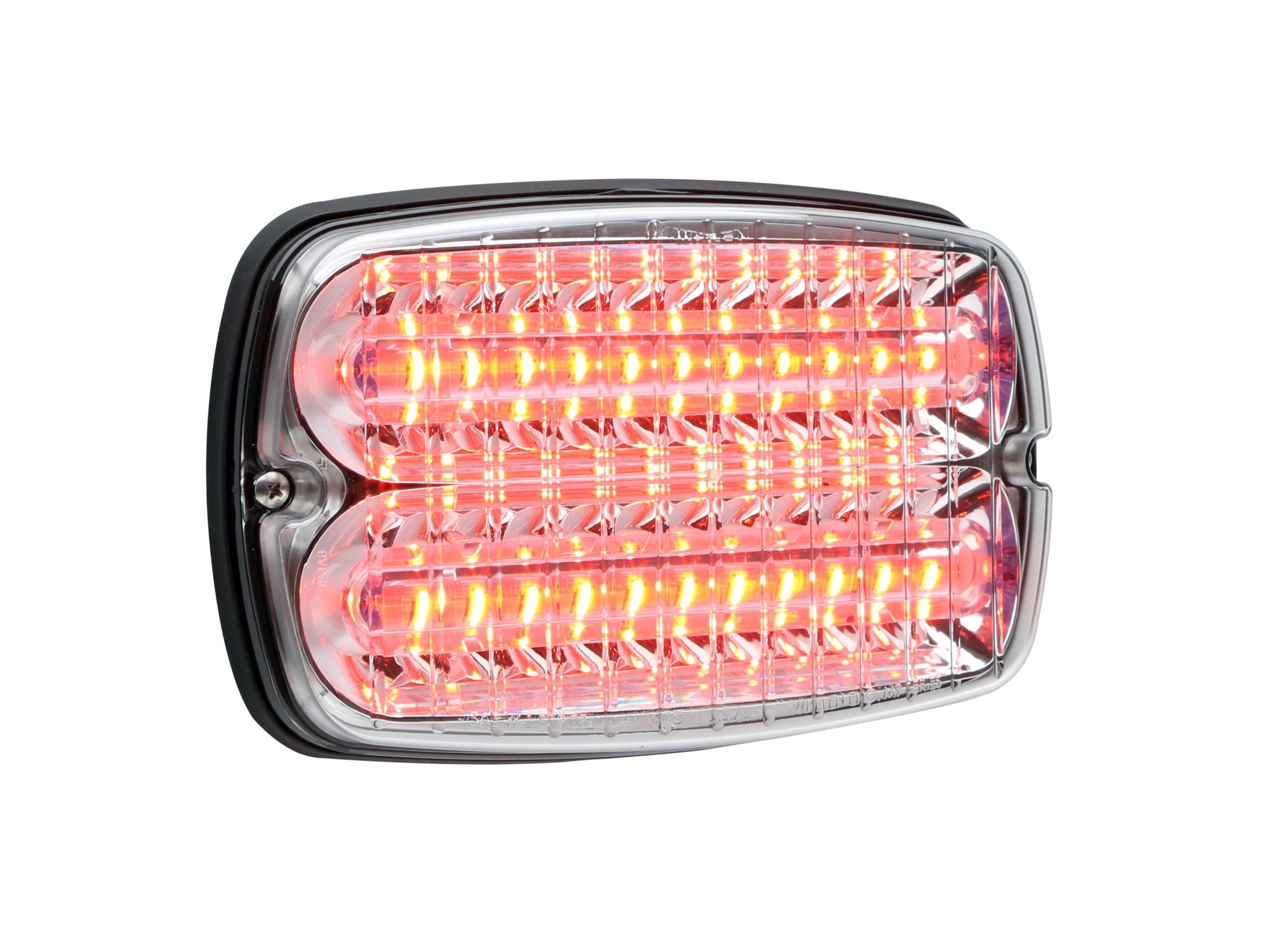

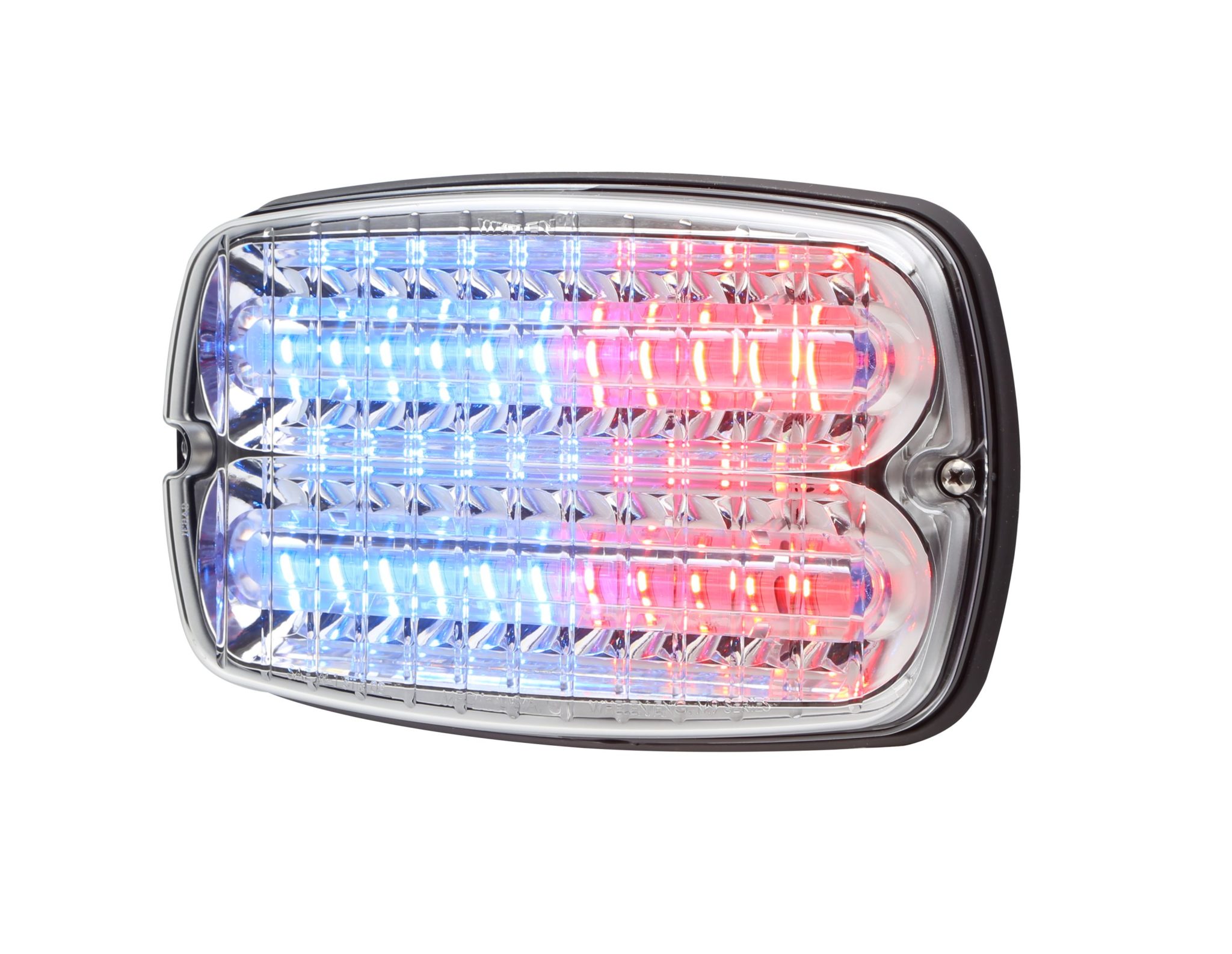

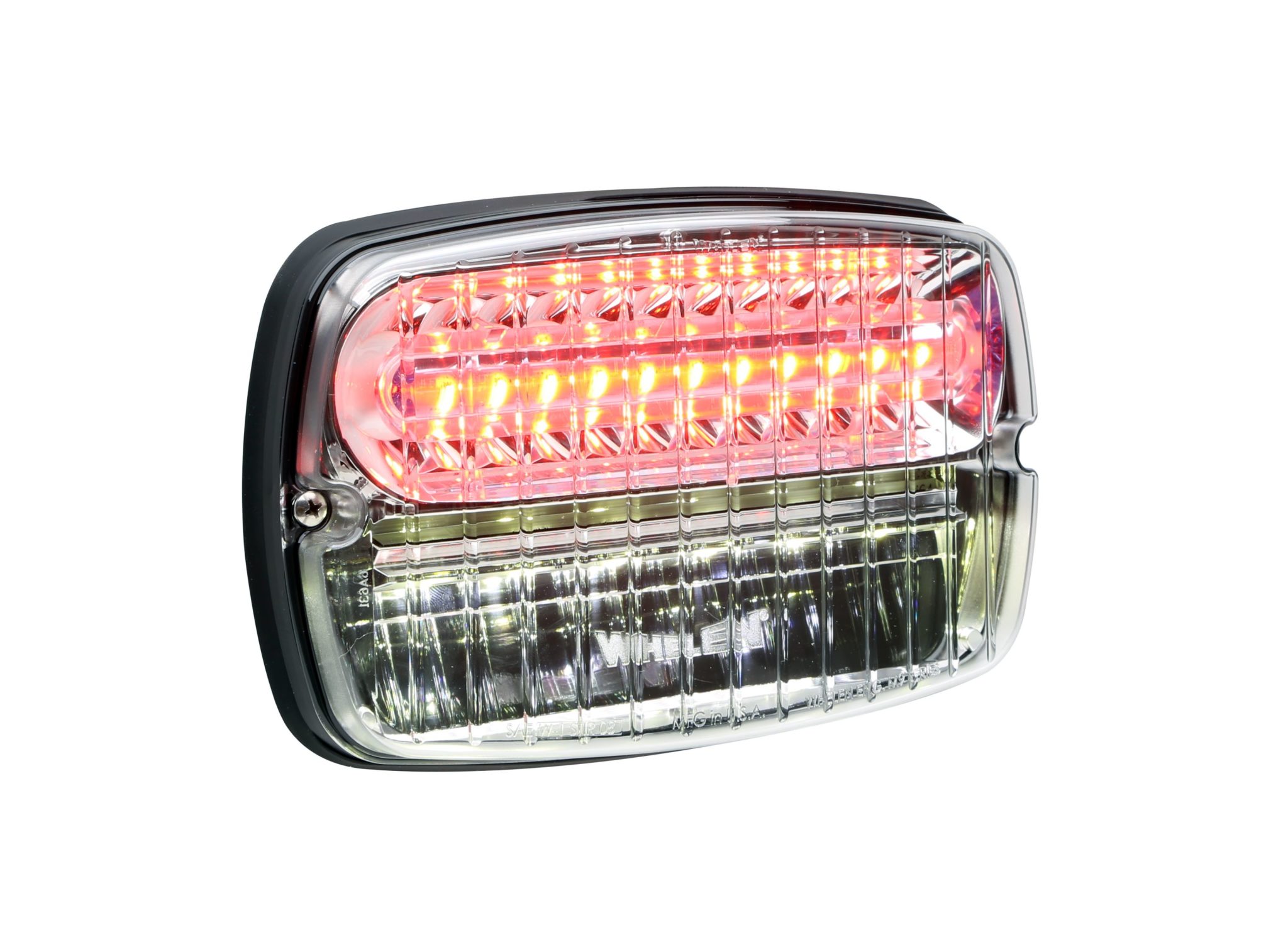

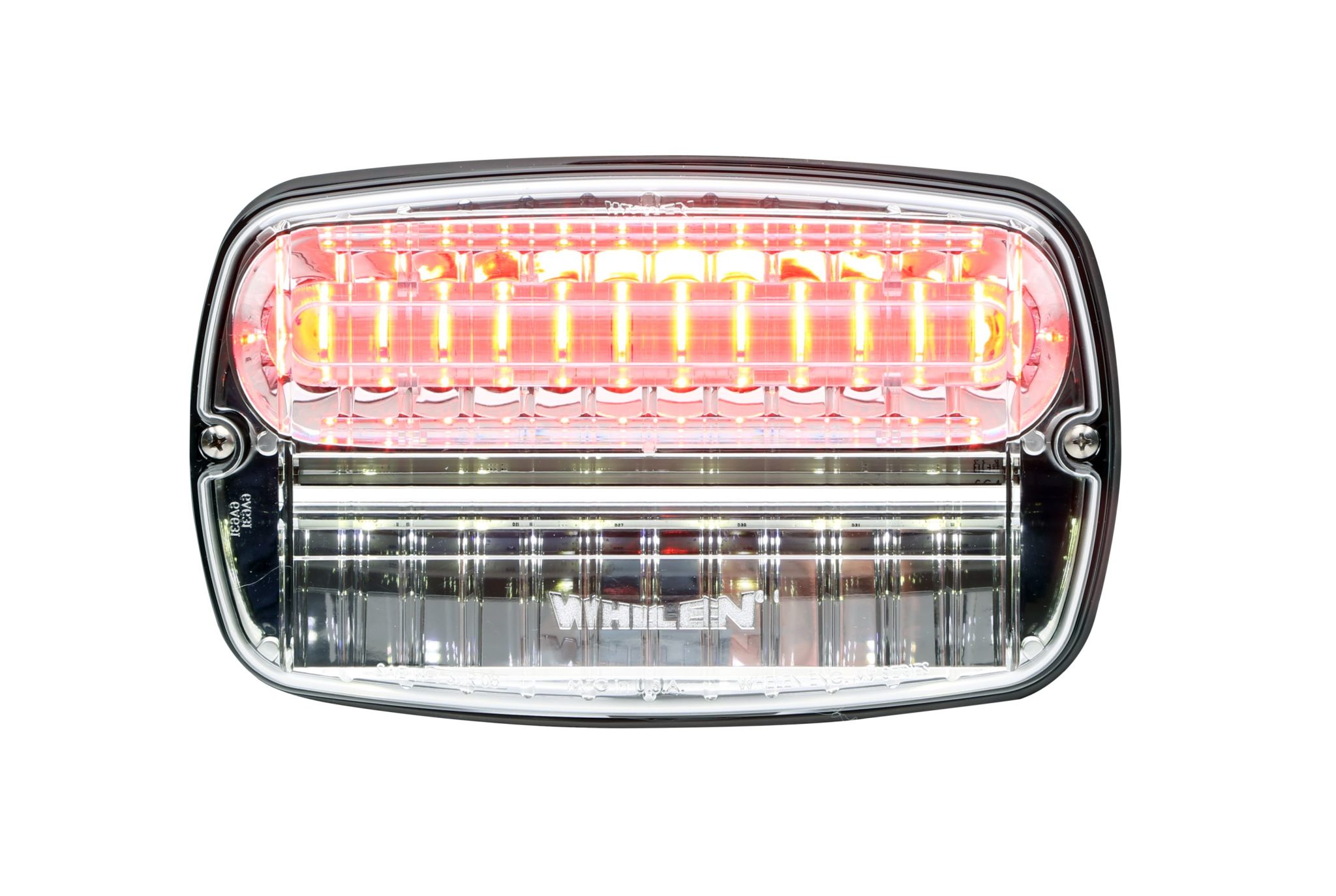

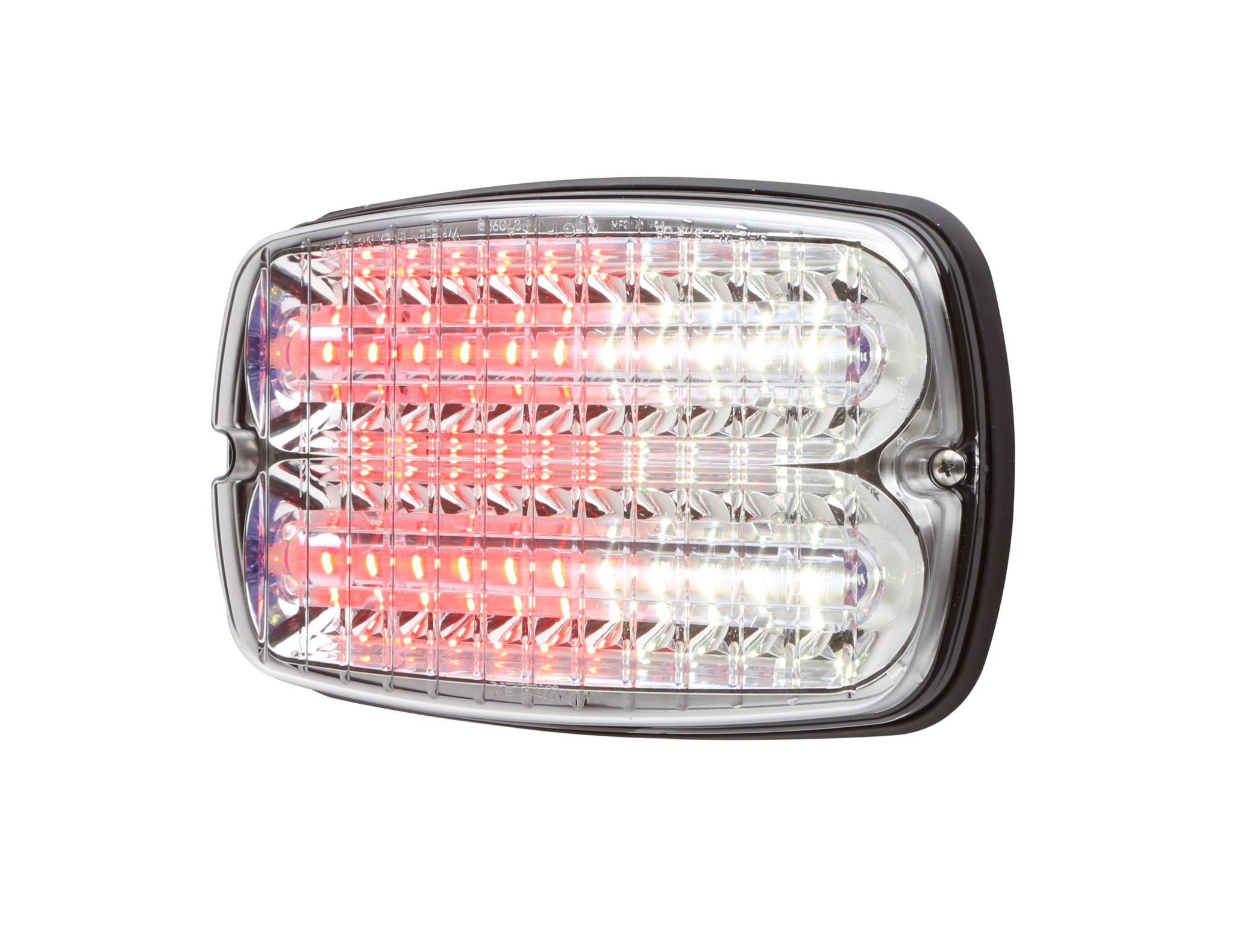

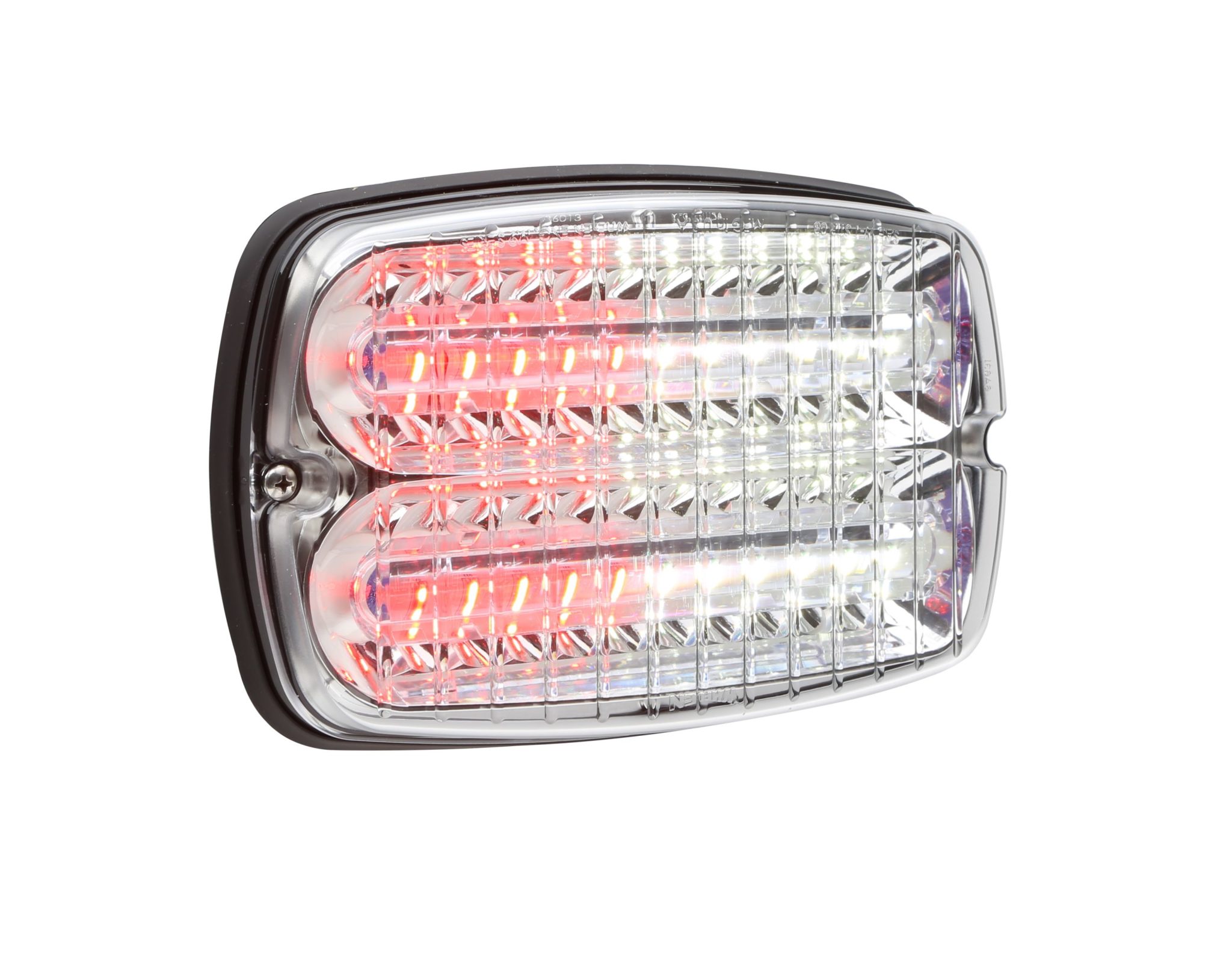

- DUO models include DVI® light patterns and our patented E Block® technology
- Hard-coated lenses

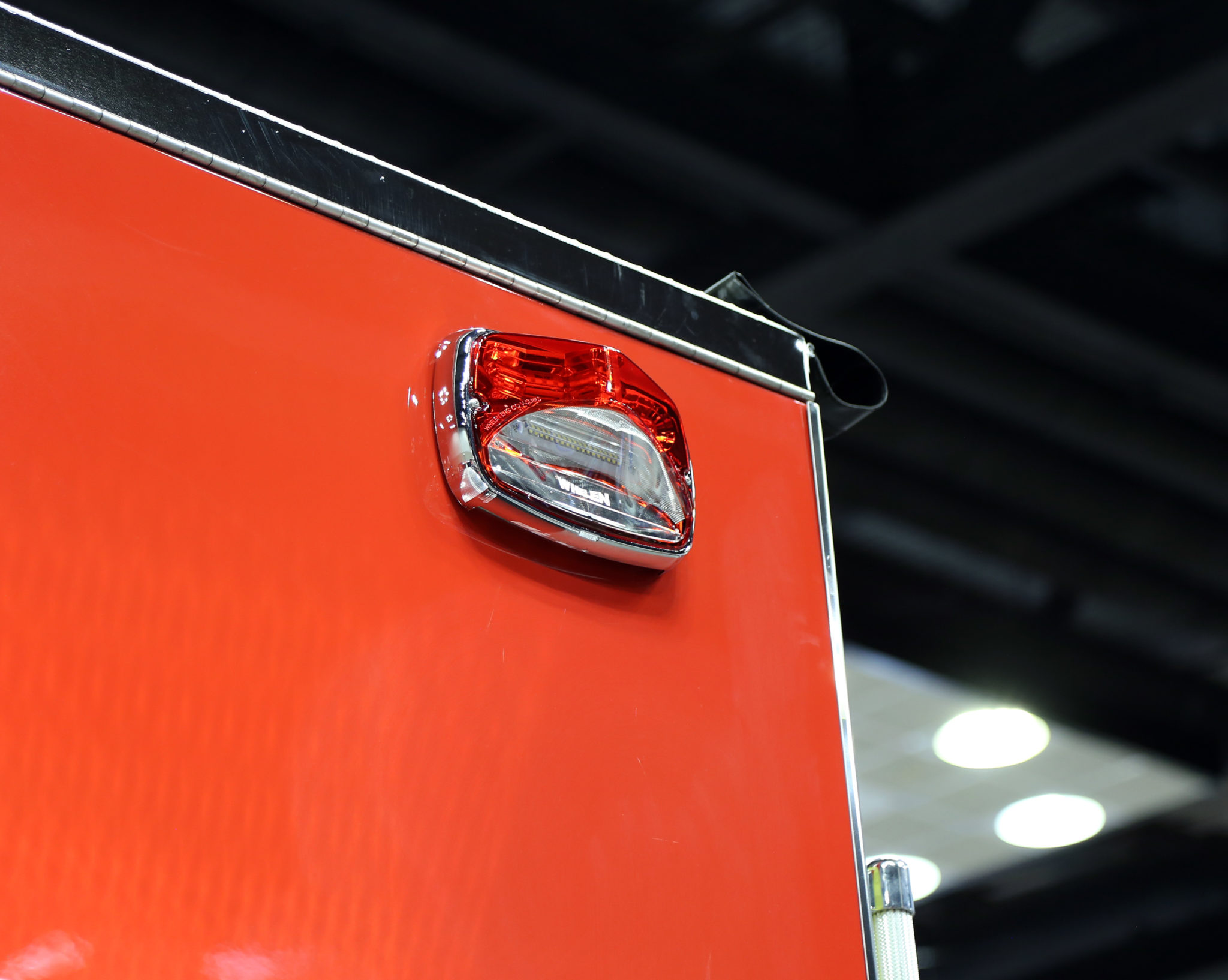

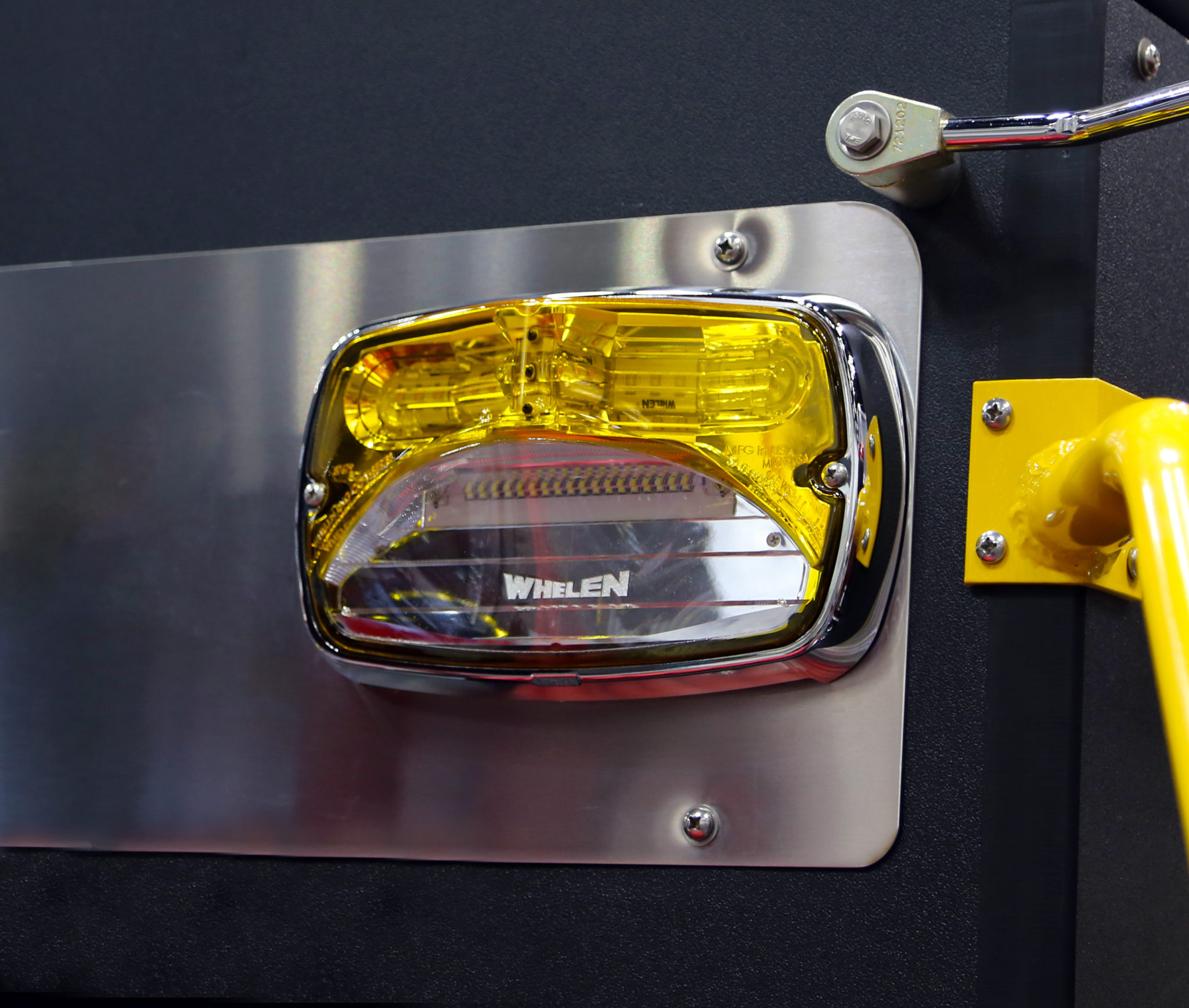

- Surface mounts via two screws for easy installation

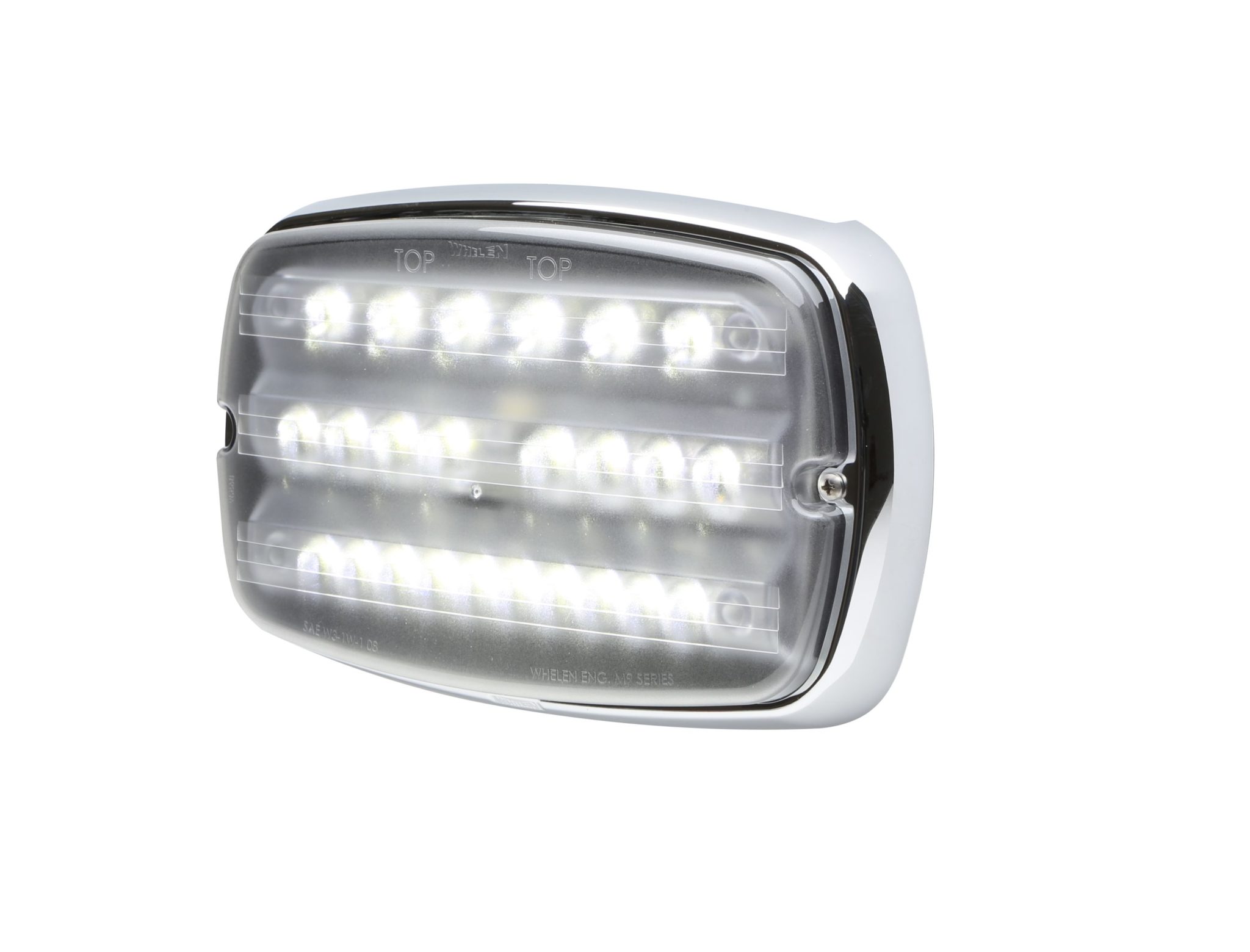

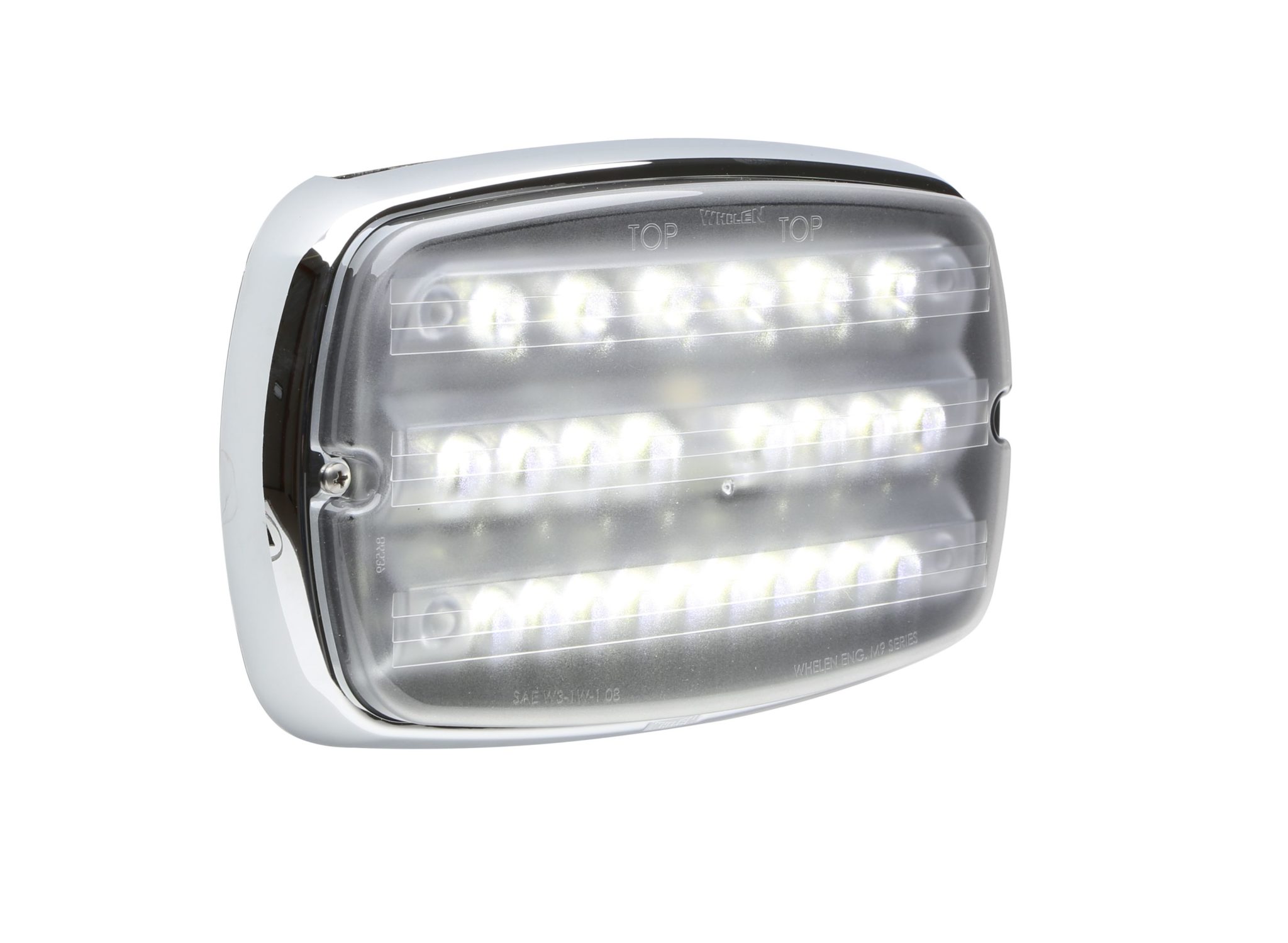

- A variety of mounting brackets and optional Chrome or Black flanges are available
- Can be mounted vertically or horizontally
Dimensions
Specifications
| Amps | Simultaneous: 3.0 (peak), 1.2 (average)

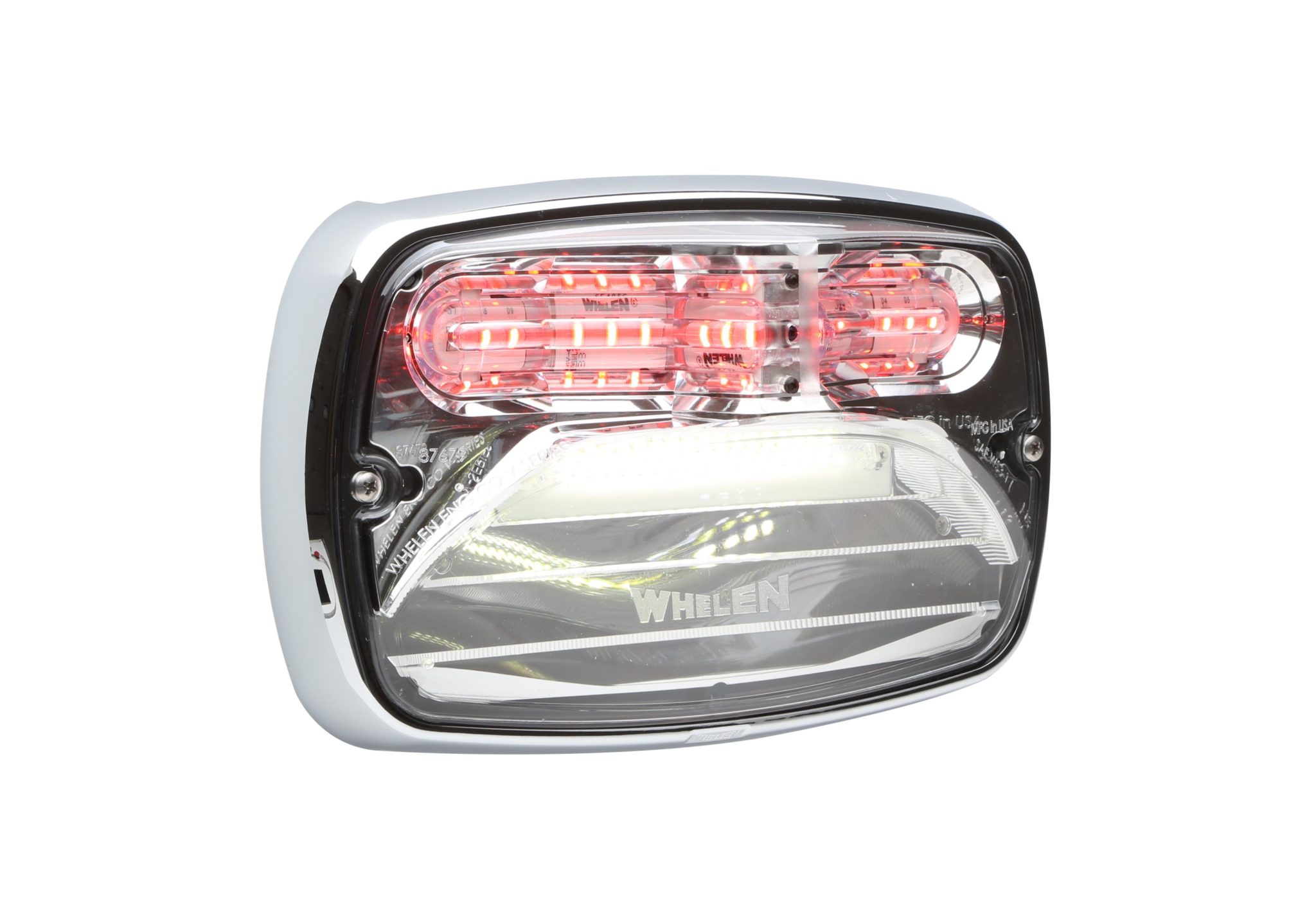

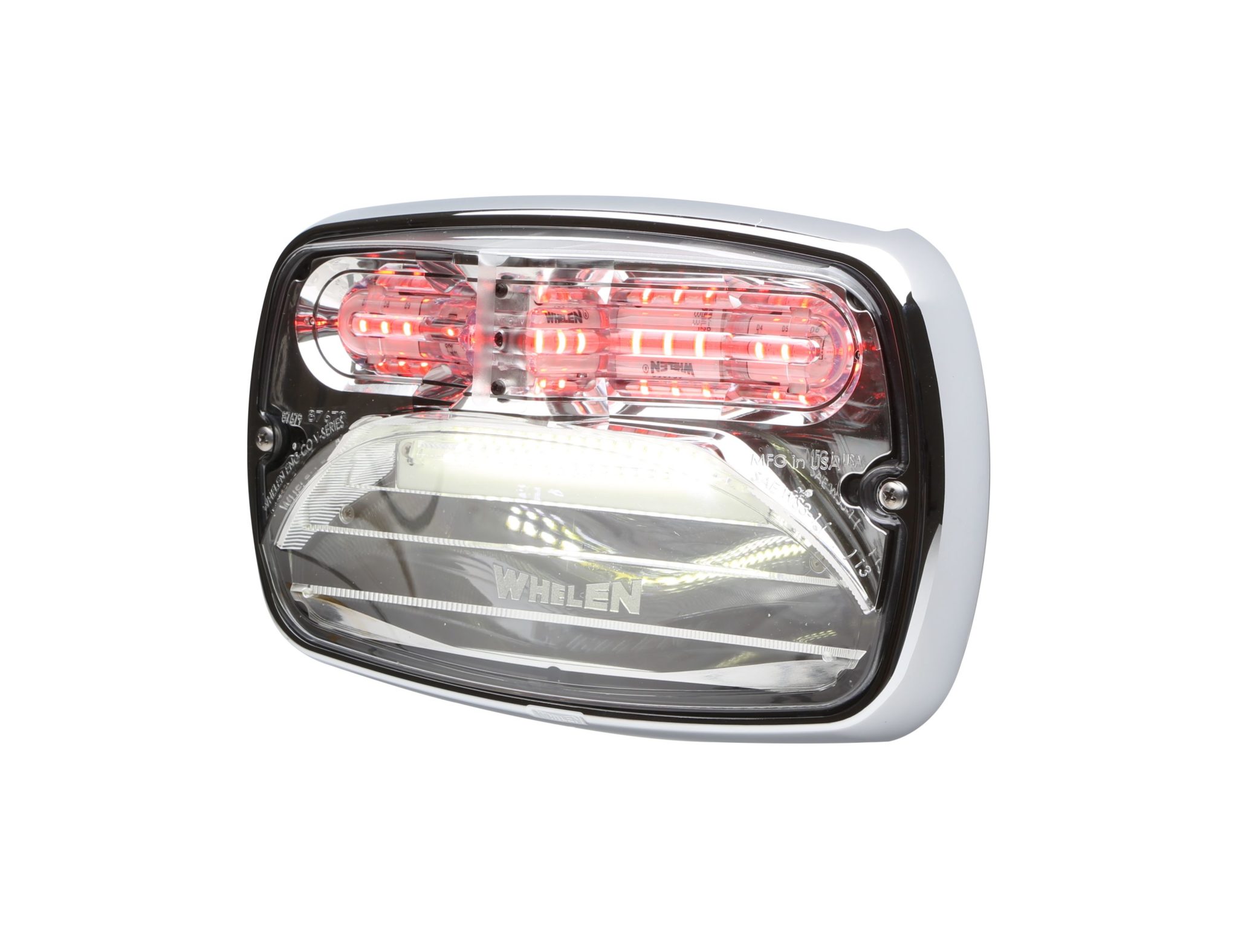

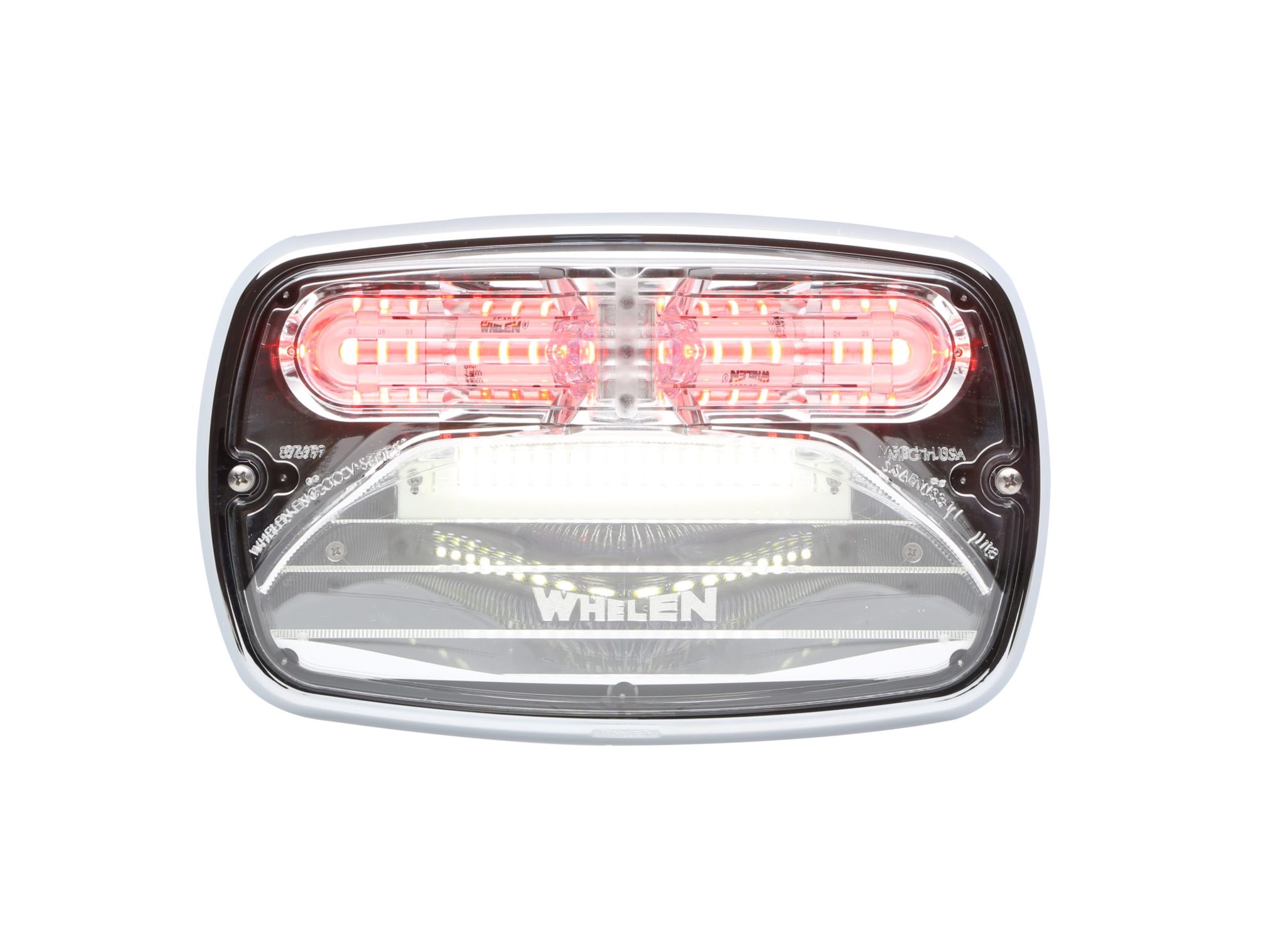

Alternating: 1.2 (peak), .6 (average) DUO® Series DUO Warning: 2.4 per color Combo Warning/Scenelight Combination Warning/Scenelight: 1.58 (Warning average), 1.53 (Scenelight average) DUO Combination Warning/Scenelight: 1.58 (Warning average per color), 1.53 (Scenelight average) Utility Models Scenelight, including flange: 6.0 (average) B/T/T: .75 (Brake/Turn average), .55 (Tail average) Amber turn signal: 1.2 (average) Back-up light: 1.8 (average) Scenelight: 6.0 (average) |
| Light Options | Single or Split color
Steady-burn Internal flasher+ |
| Lenses | Clear
Color |
| Flash Patterns* | Single color: 159 Scan-Lock® flash patterns
Double color: 64 Scan-Lock flash patterns |
| Certifications | SAE Class 1 (warning)
KKK-1822F NFPA 1901 NFPA 1917 SAE EC65 |
| Warranty | Five year warranty |
* Number of sequencing combinations vary by model
+ Sync or low power functions
