M6 Series
M6 Standard: 4.3" (109mm) H x 6.7"³ (109mm) W x 1.4"³ (35mm) D
M6 V-Series: 4.3" (109mm) H x 6.7"³ (109mm) W x 2.5"³ (64mm) D

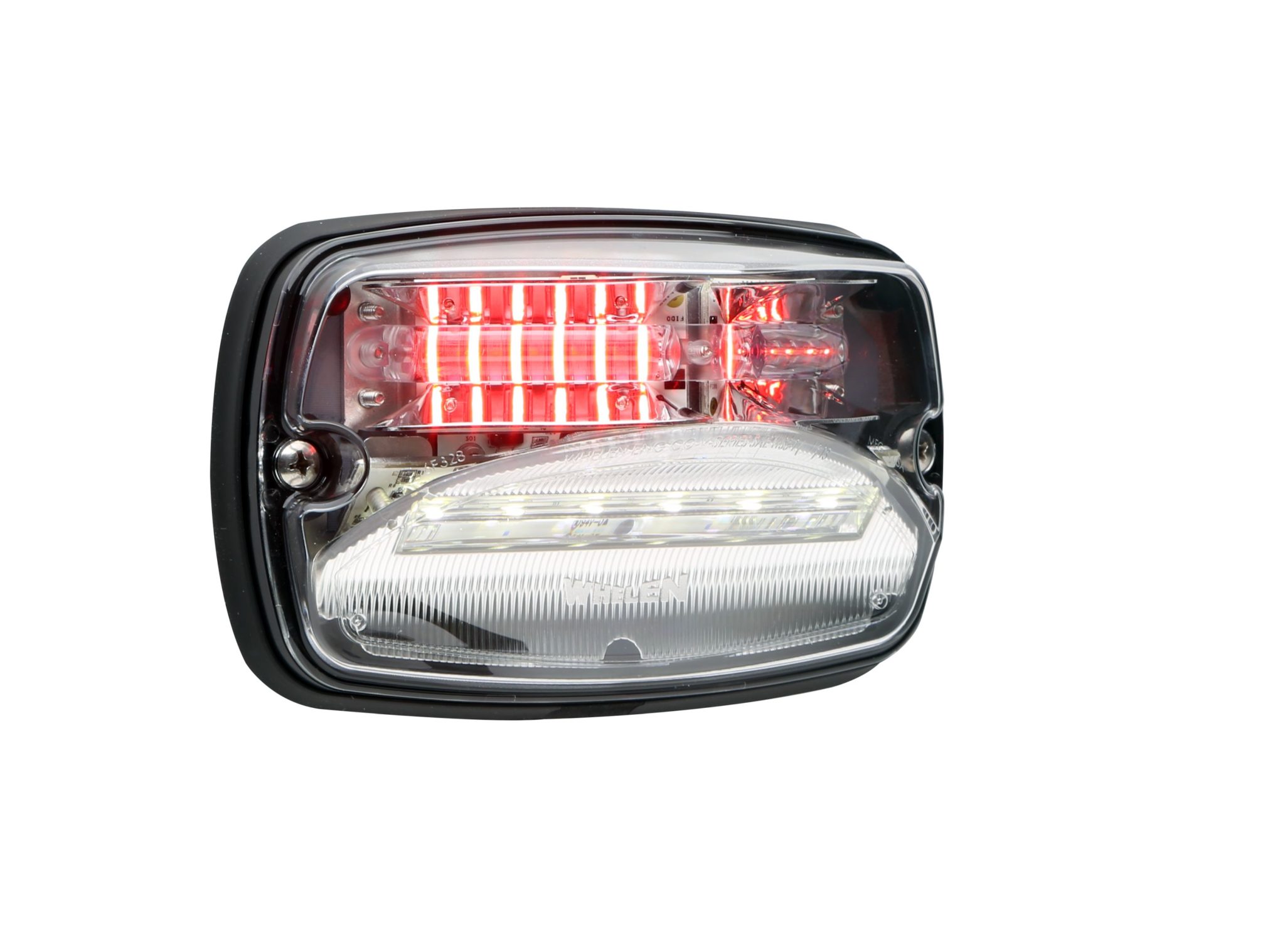

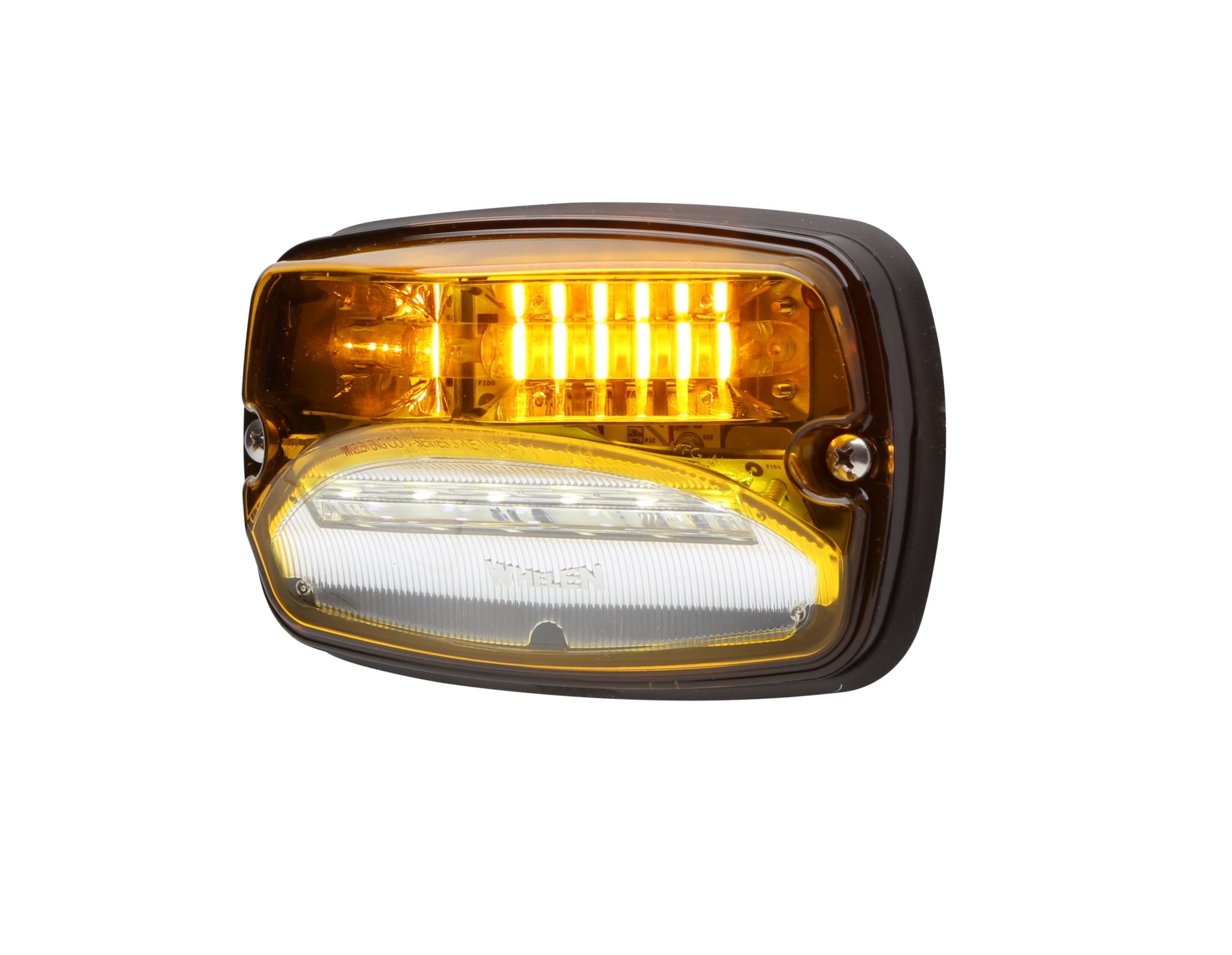

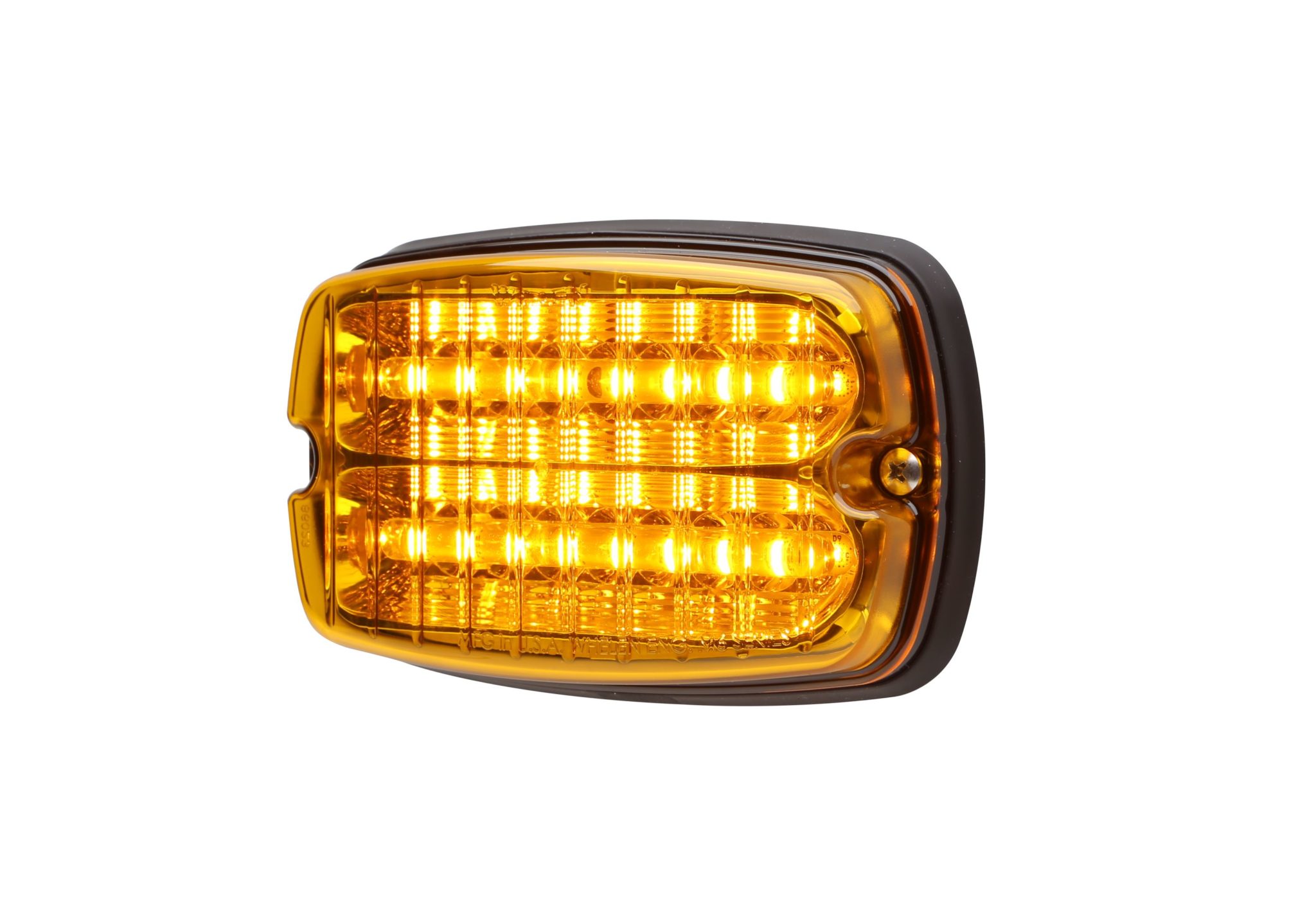

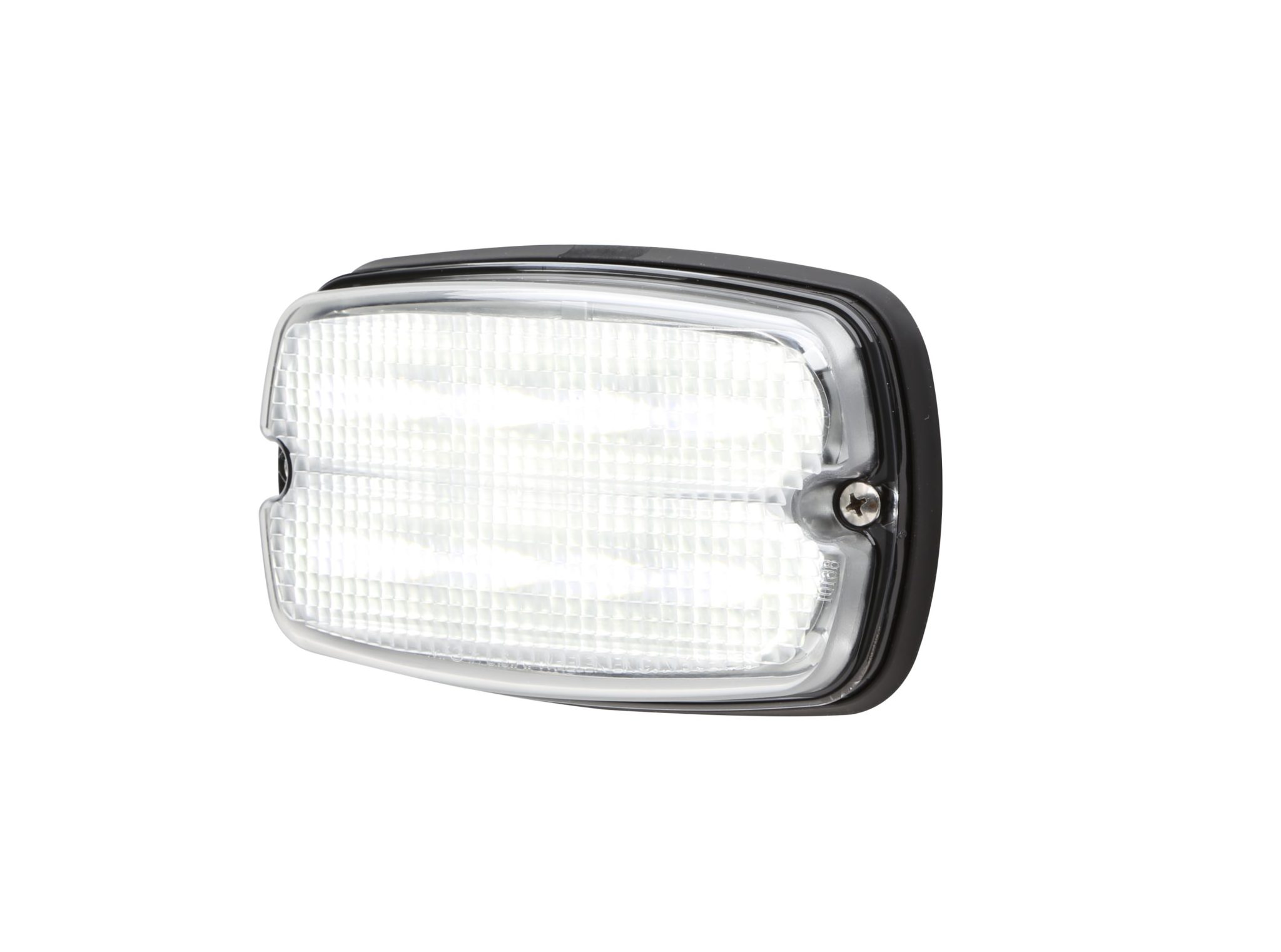

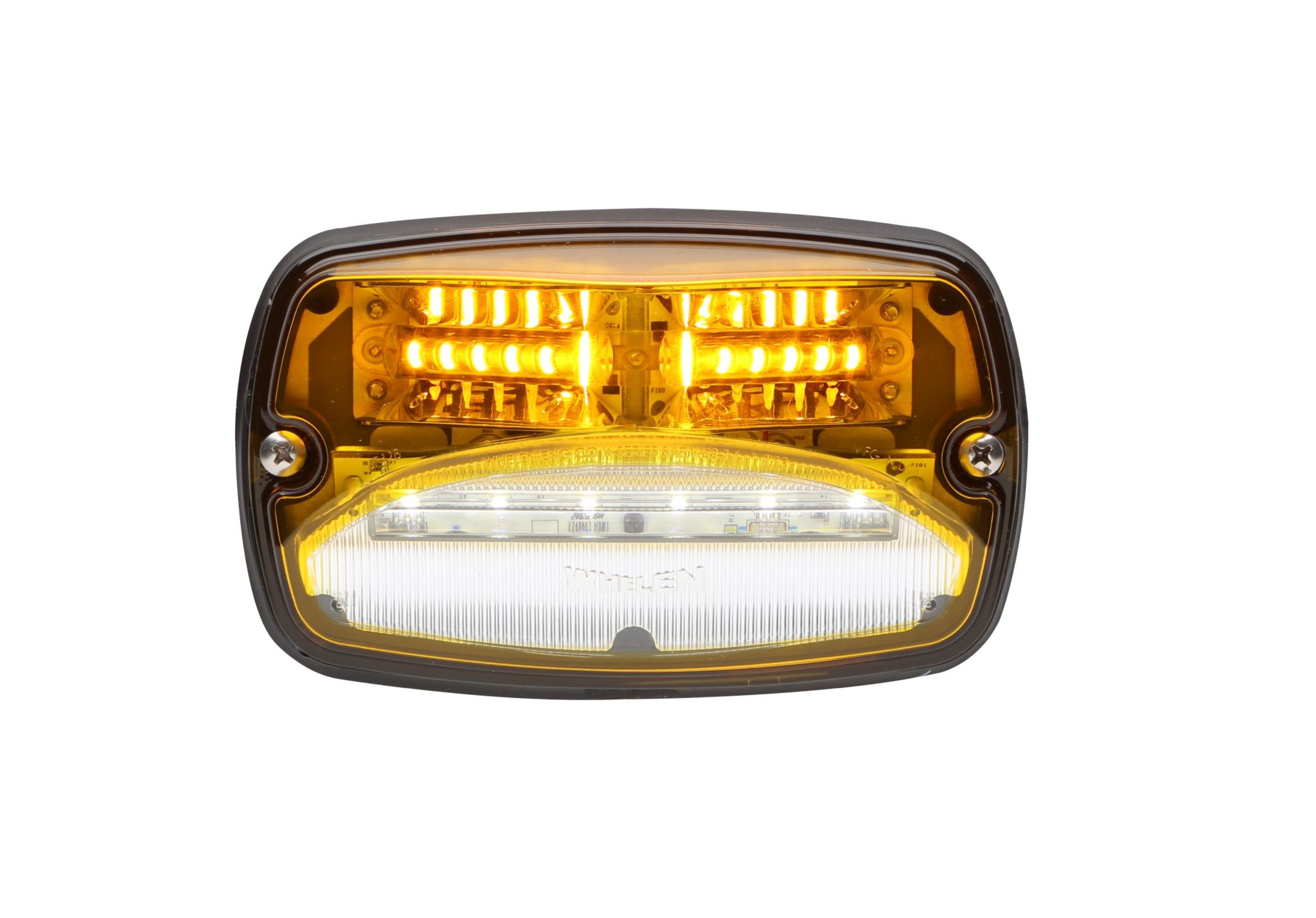

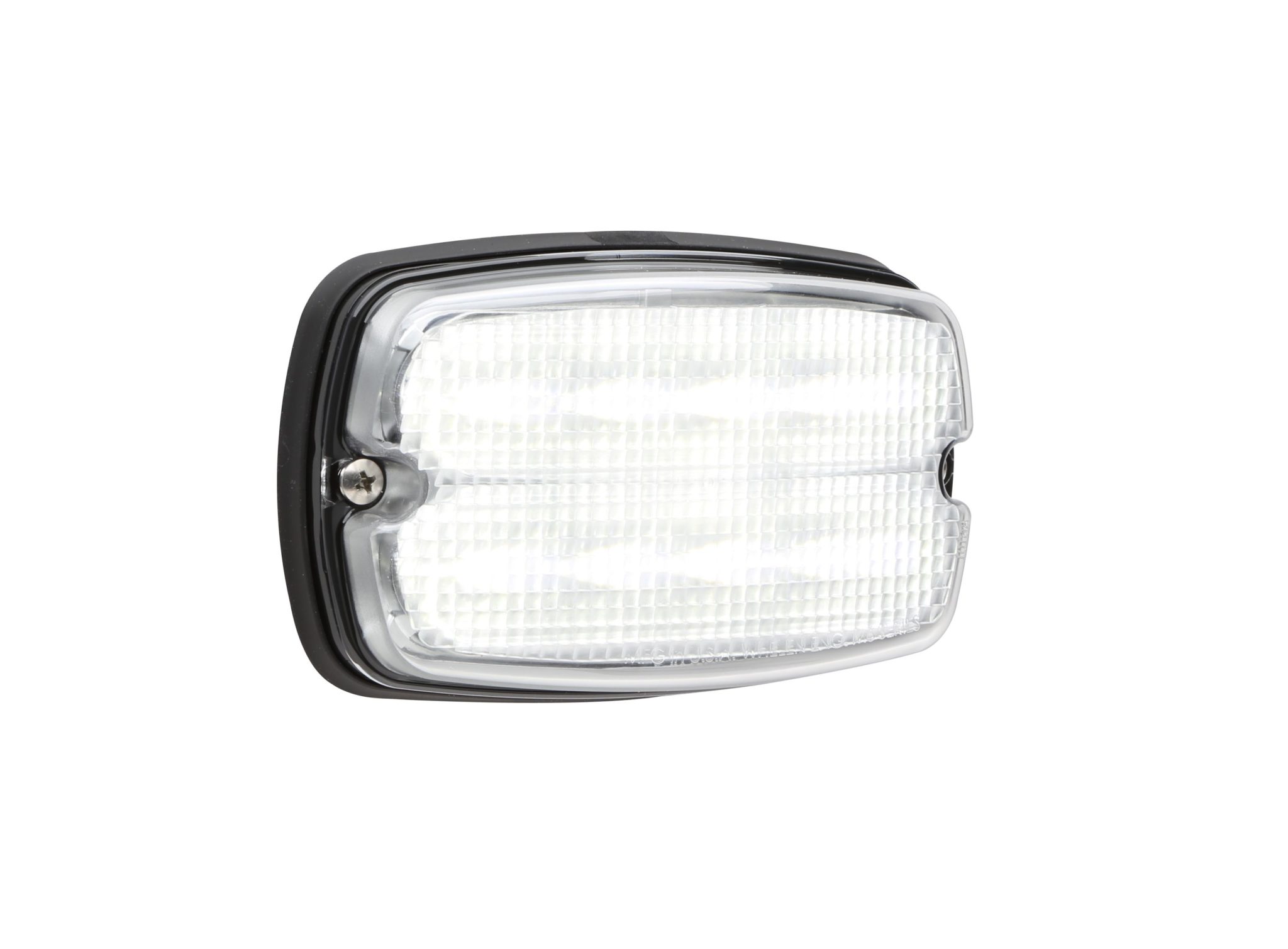

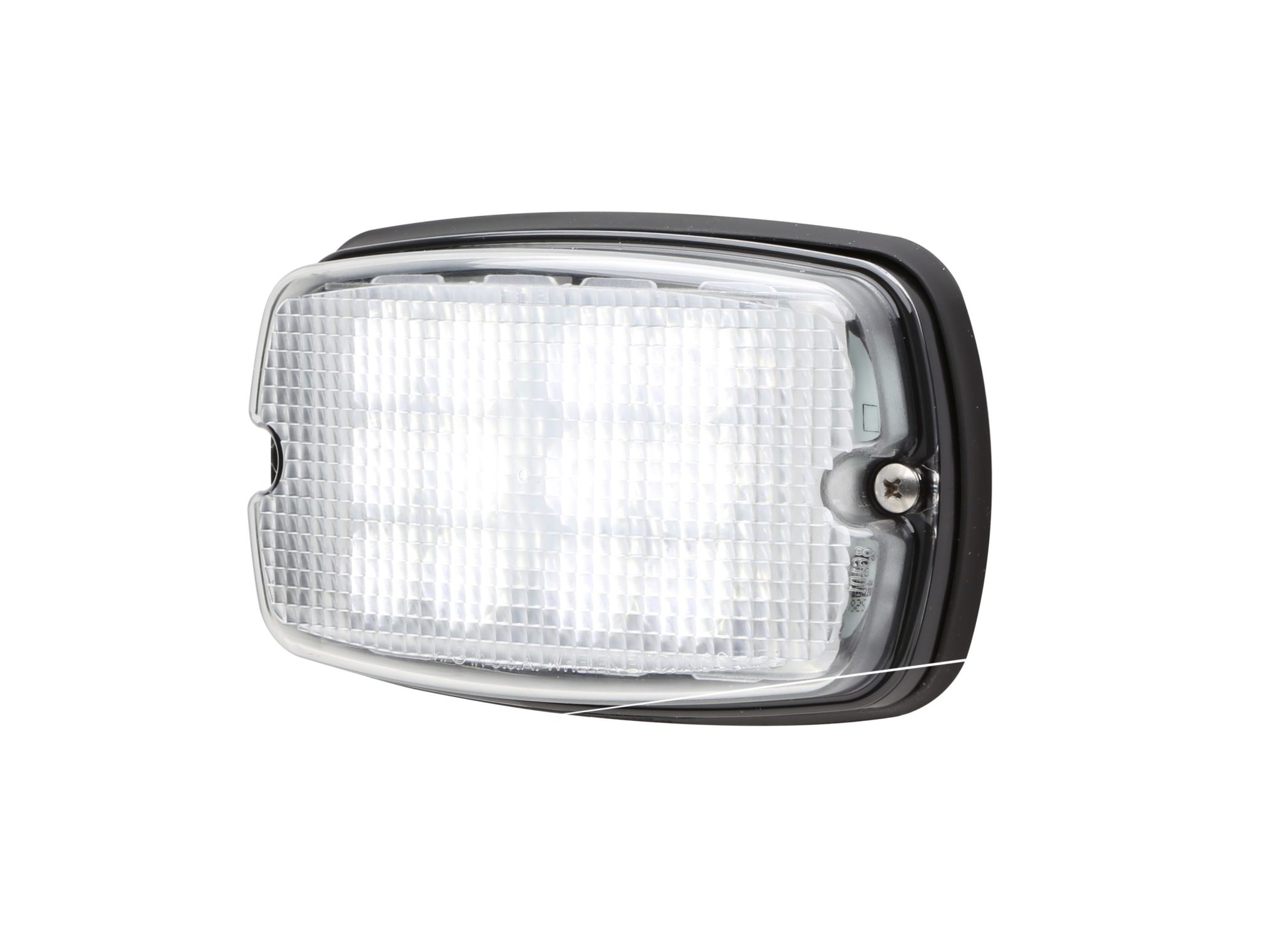

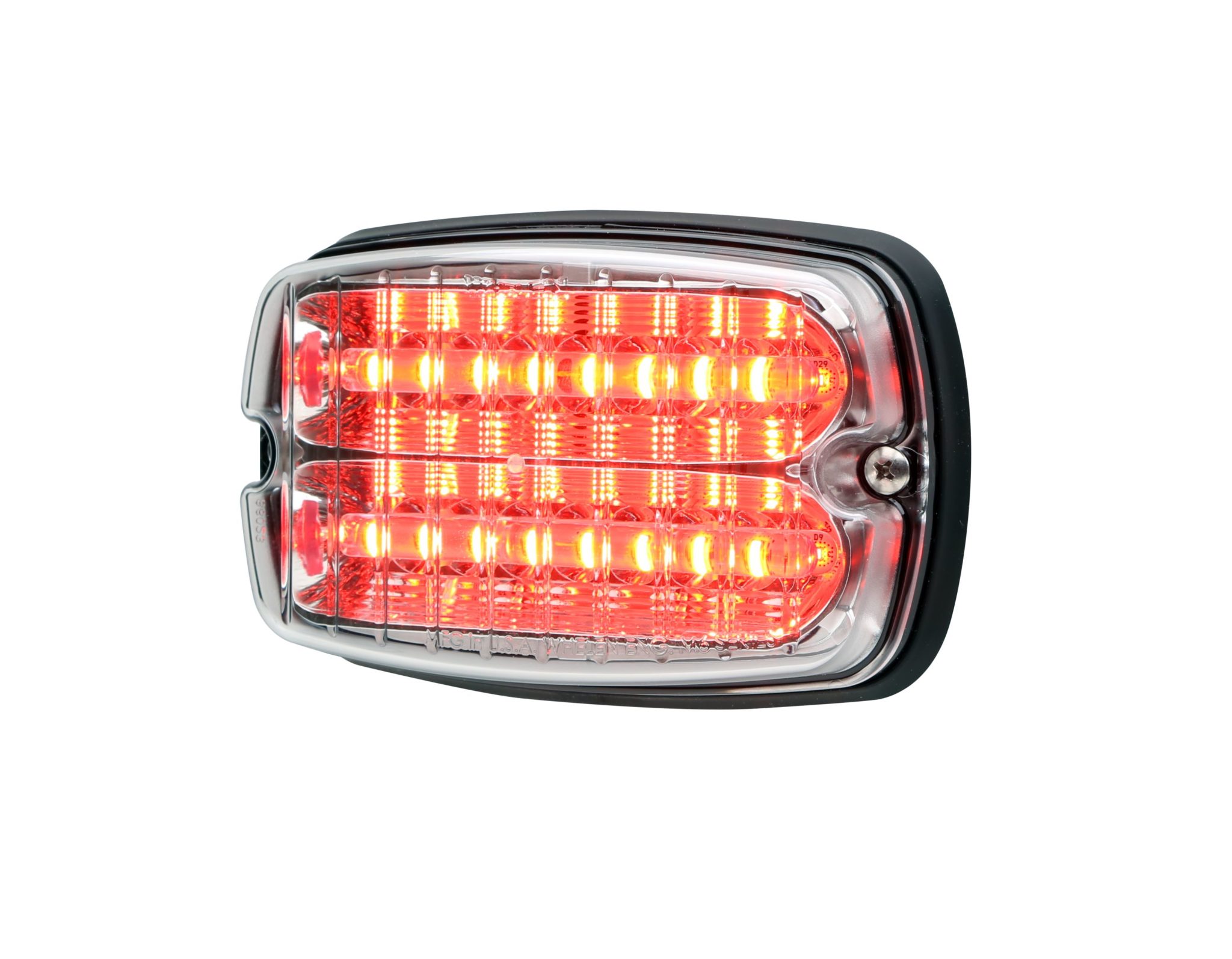

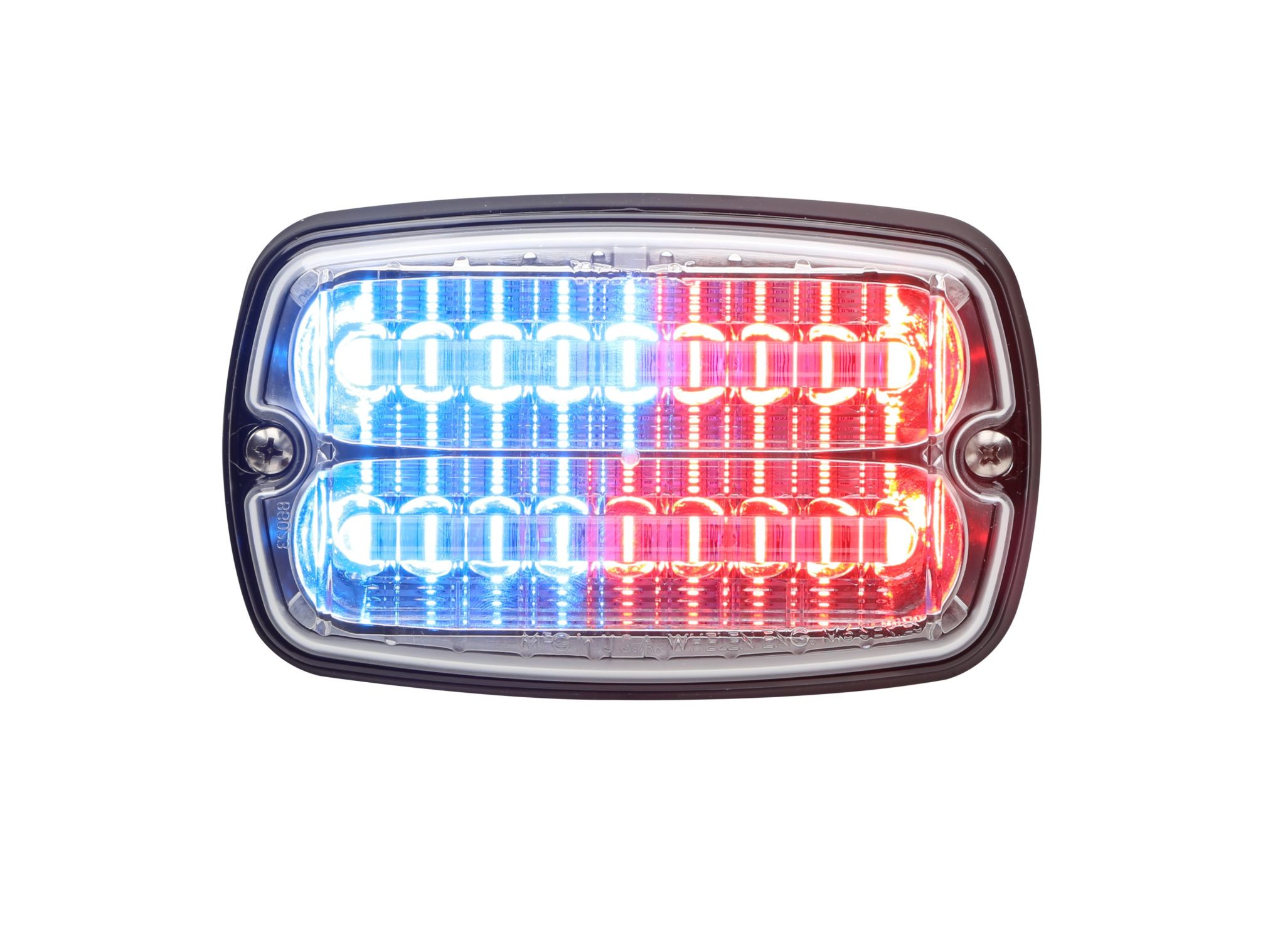

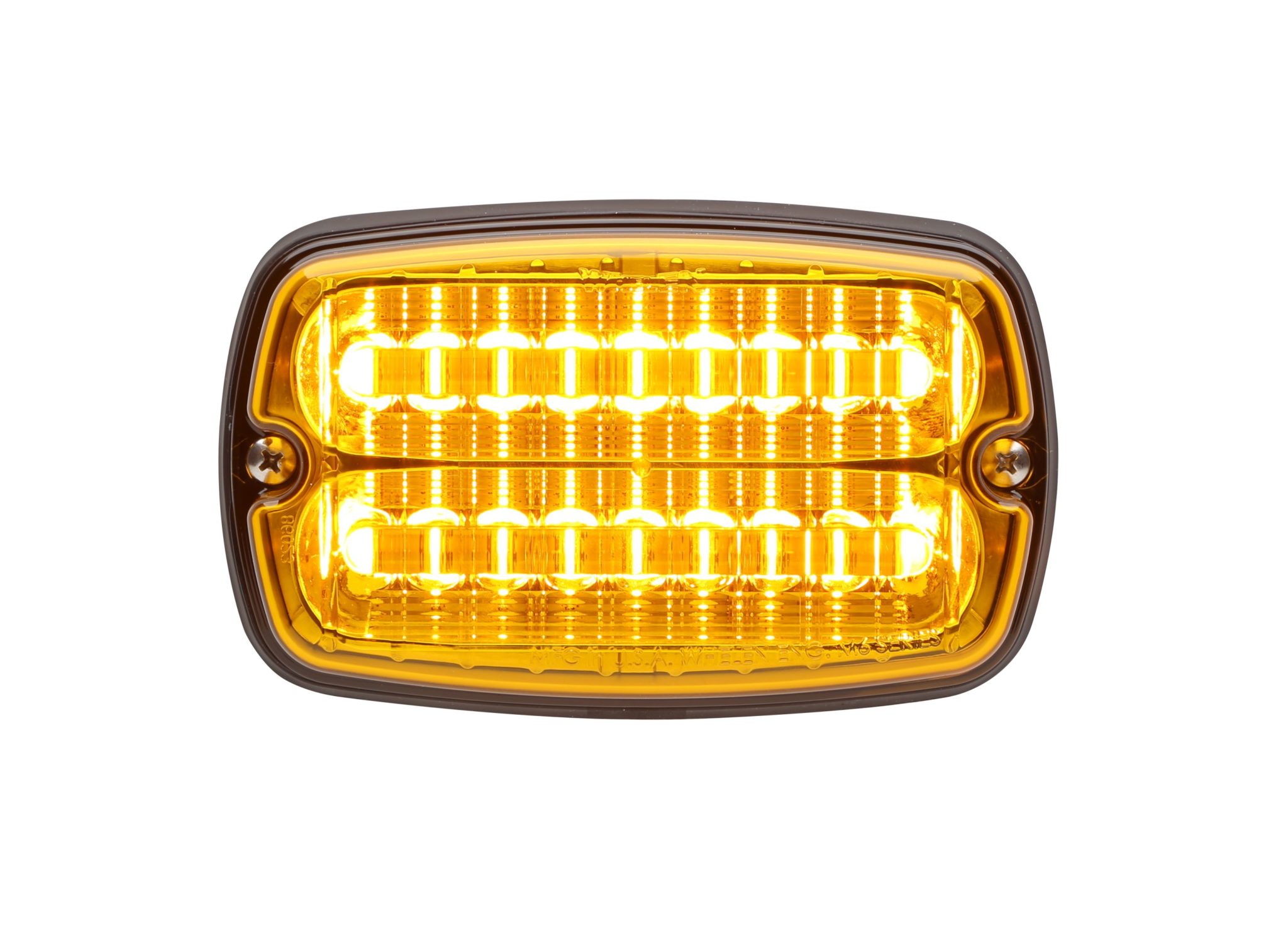

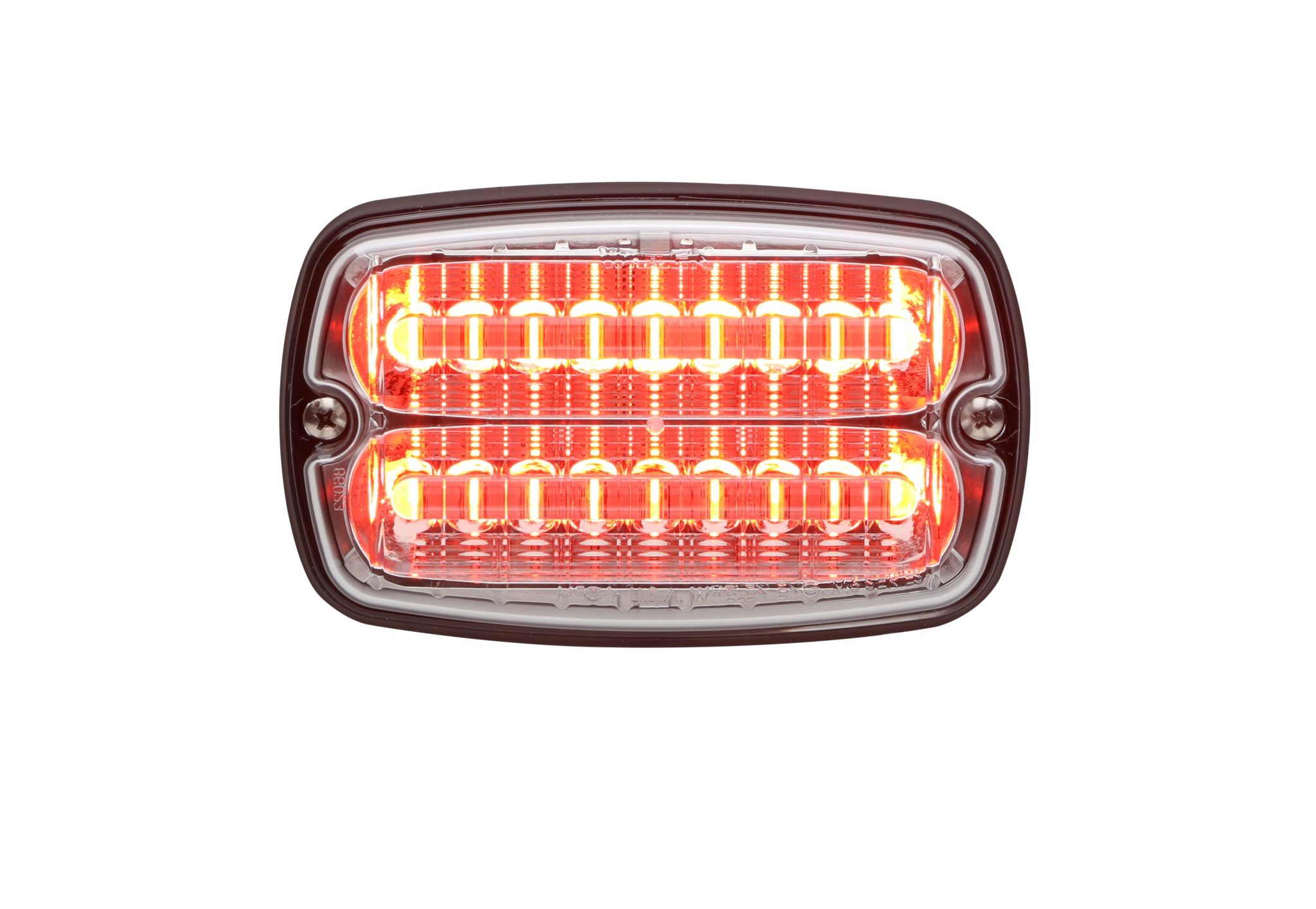

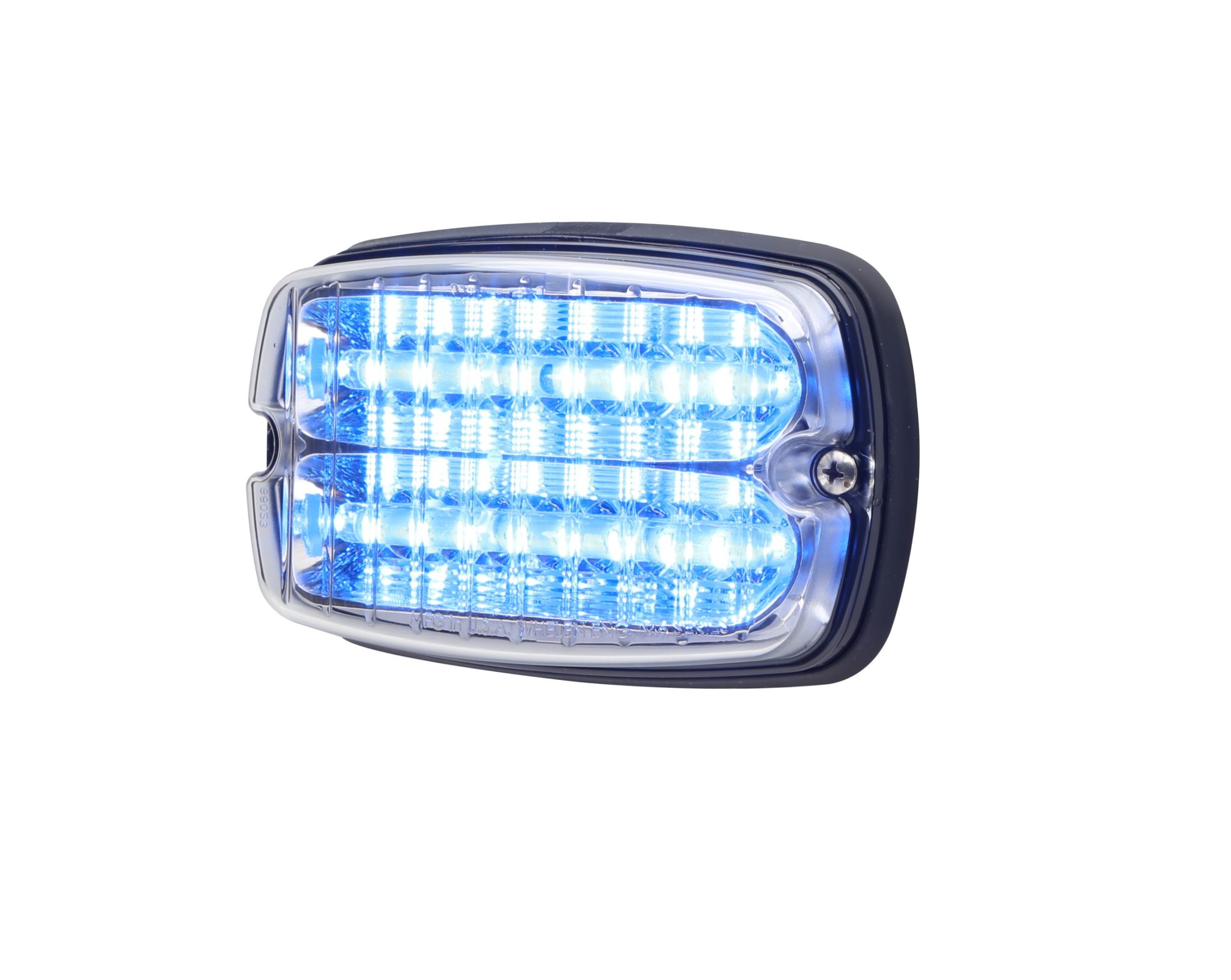

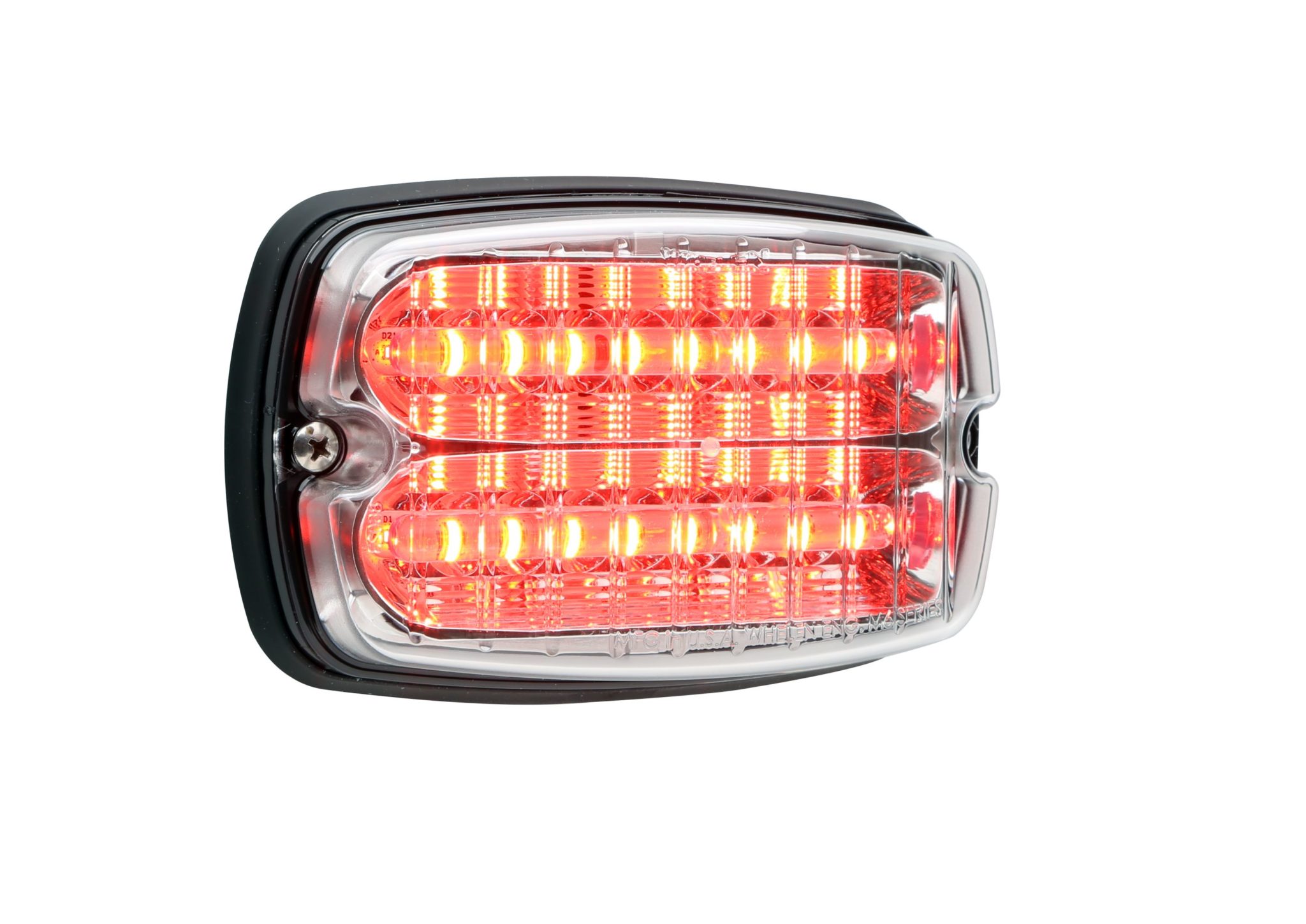

Whelen M6

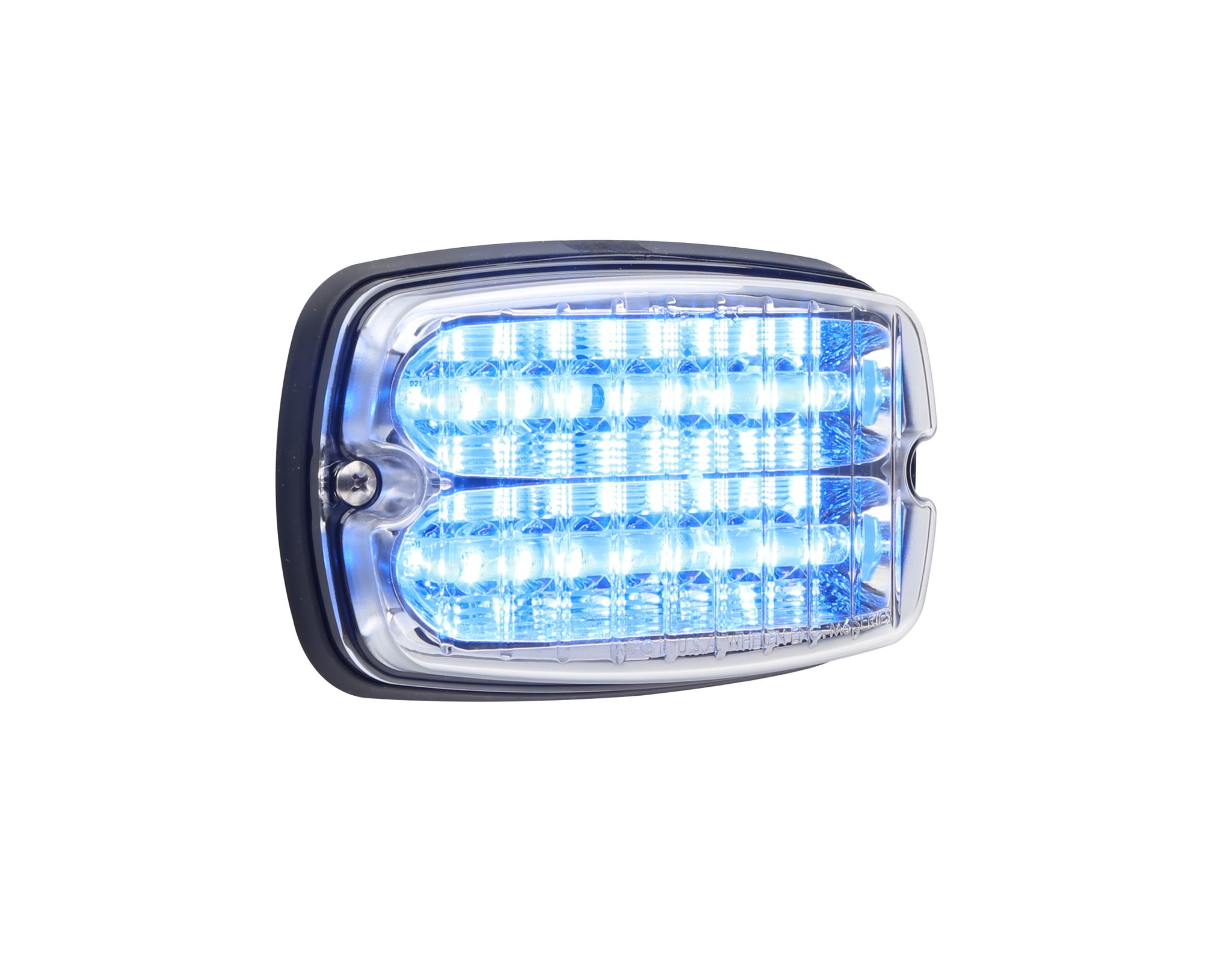

Mid-sized, versatile M Series® lighthead used for various applications.
Category: Whelen
SKU: 4370
Base Price:
Total Price:
Part Number:
Availability: Product must be ordered. Estimated lead time is expected to be 2-3 weeks.
Files
No files for this product

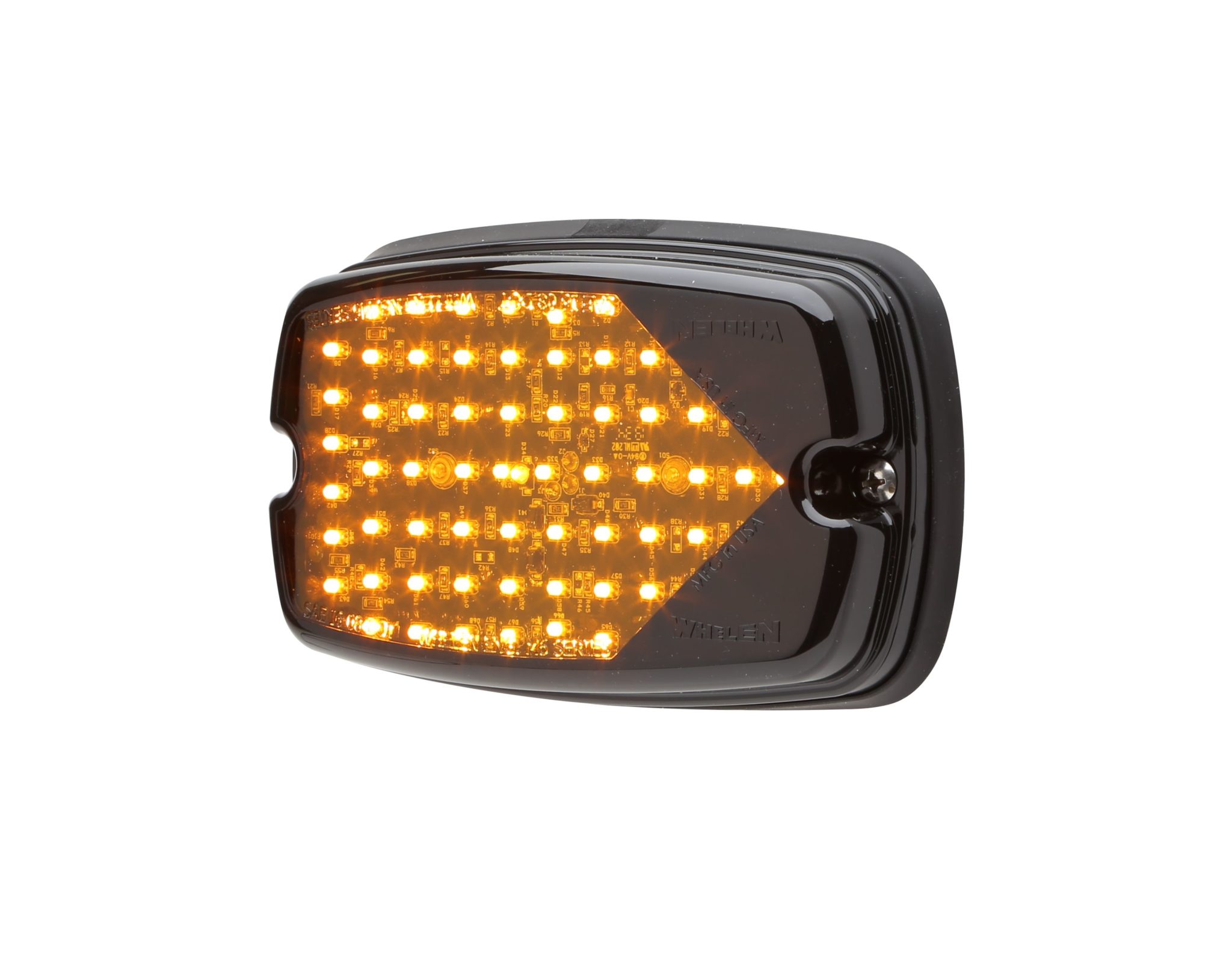

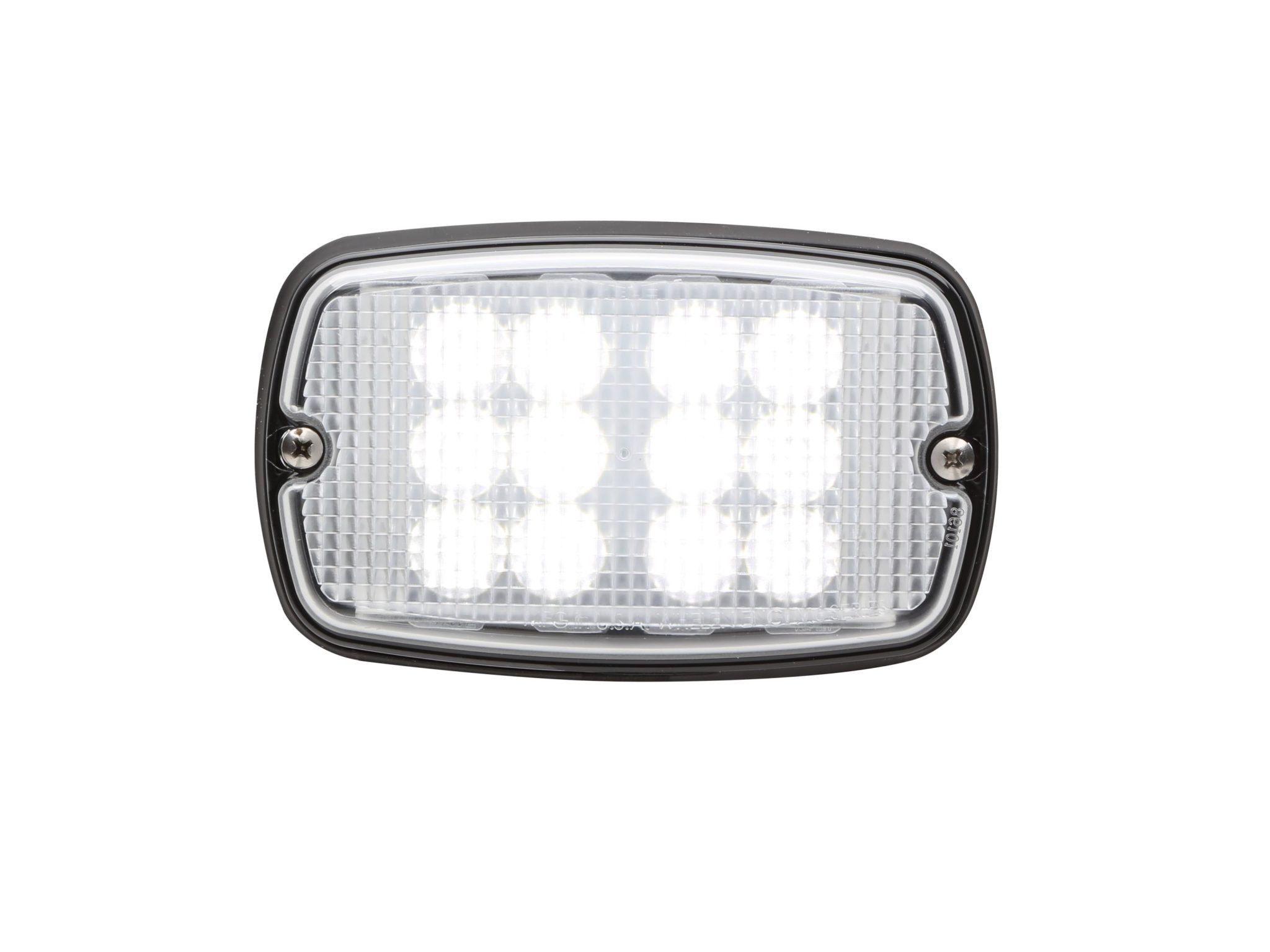

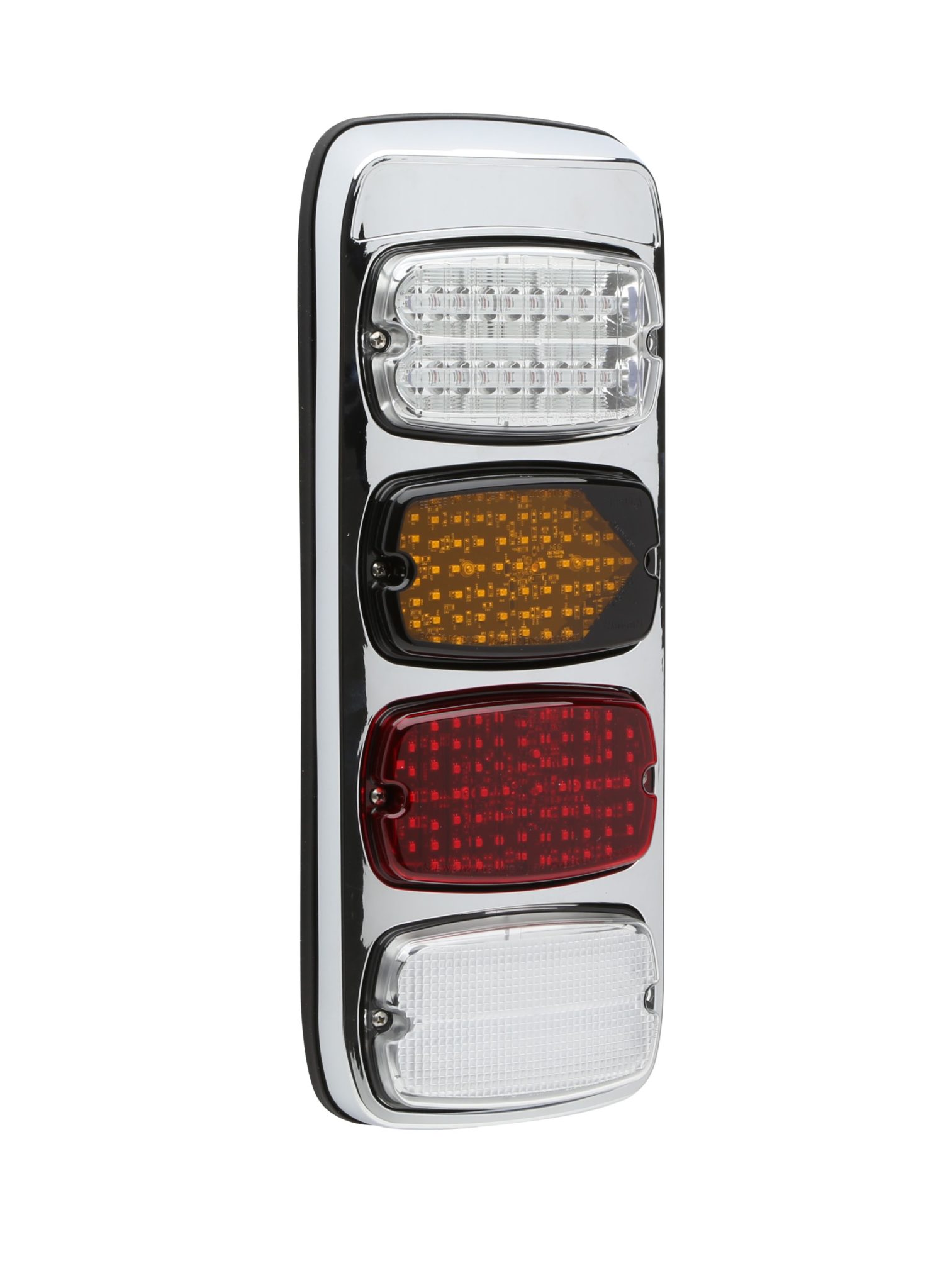

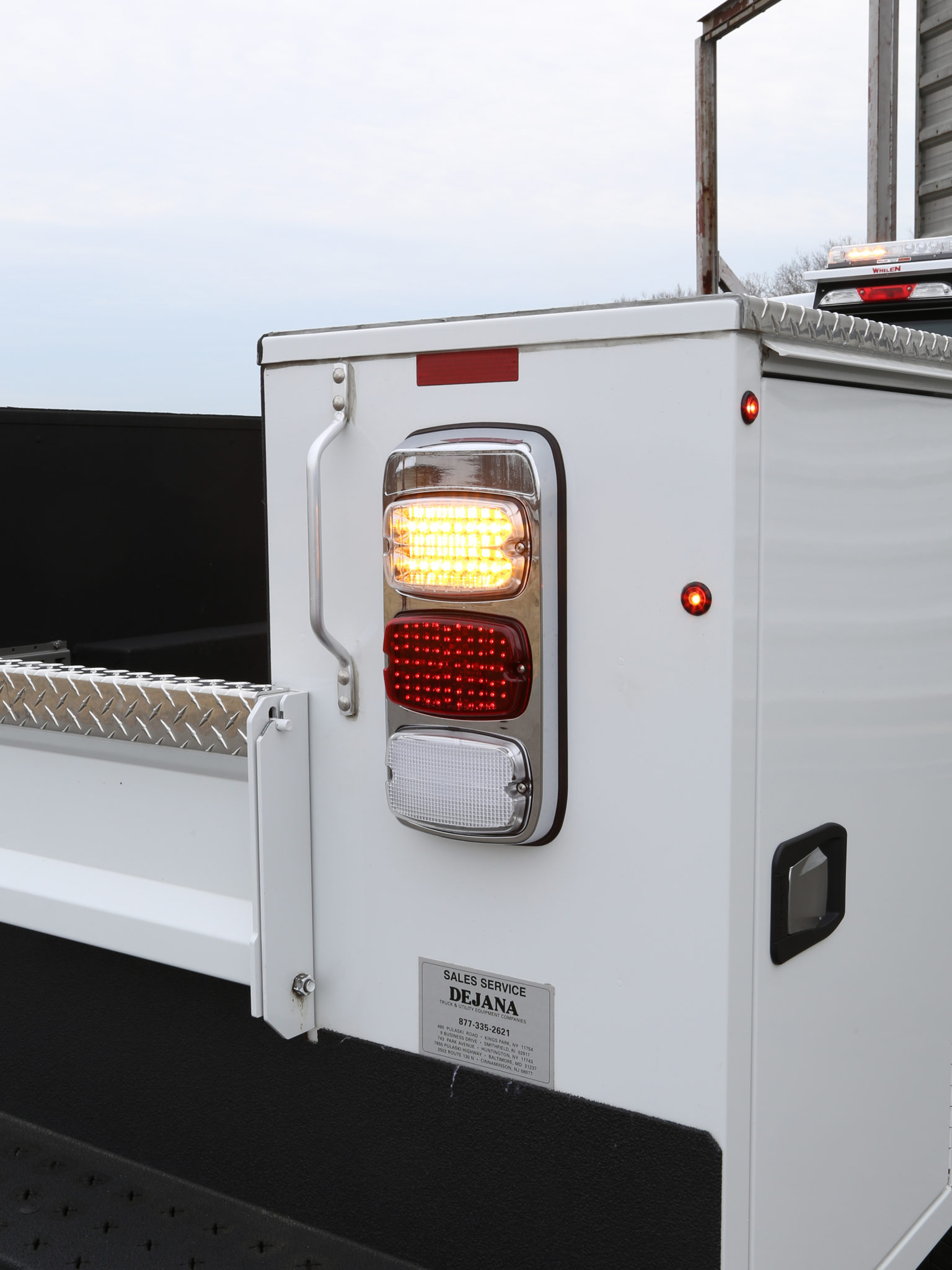

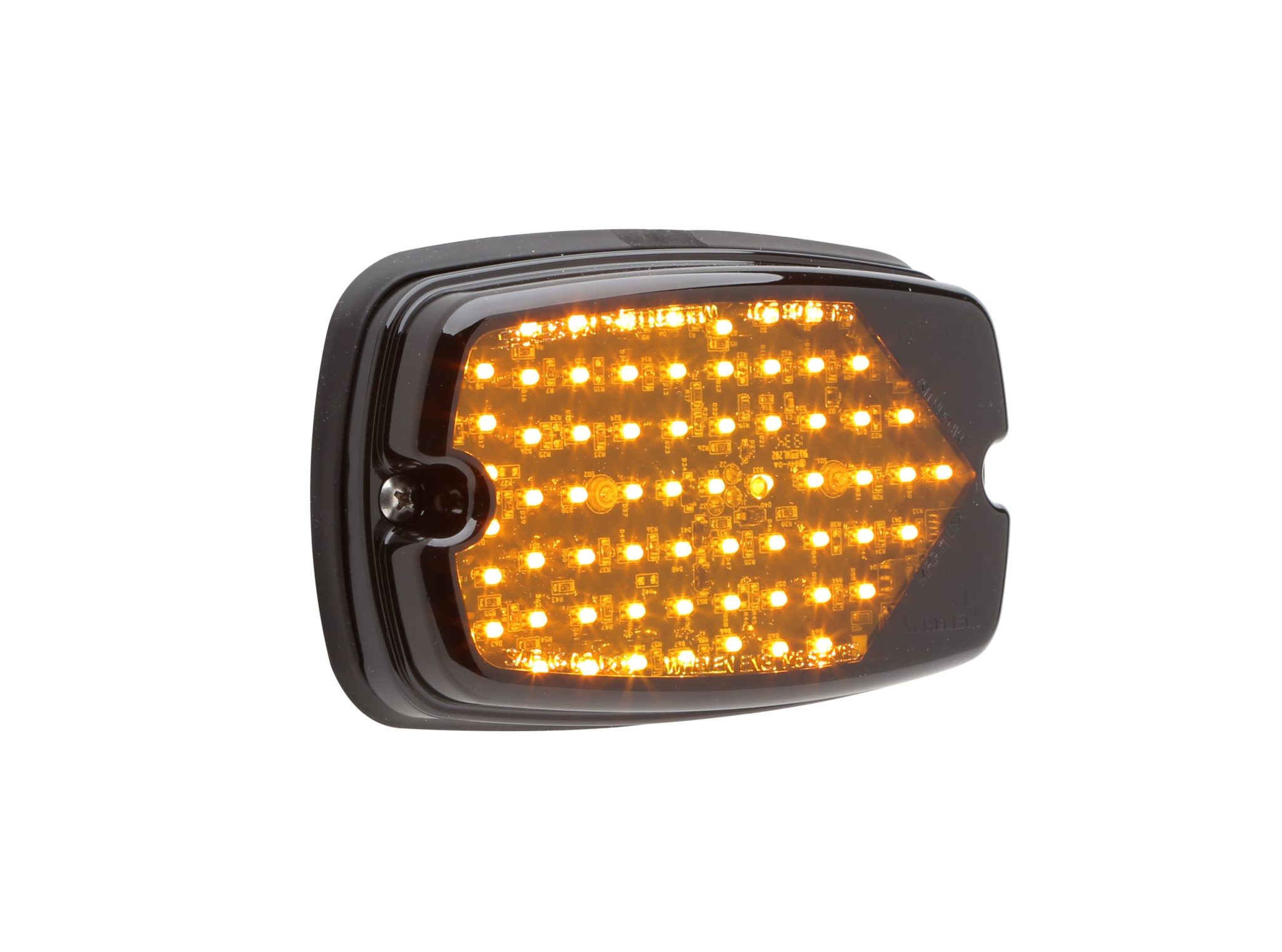

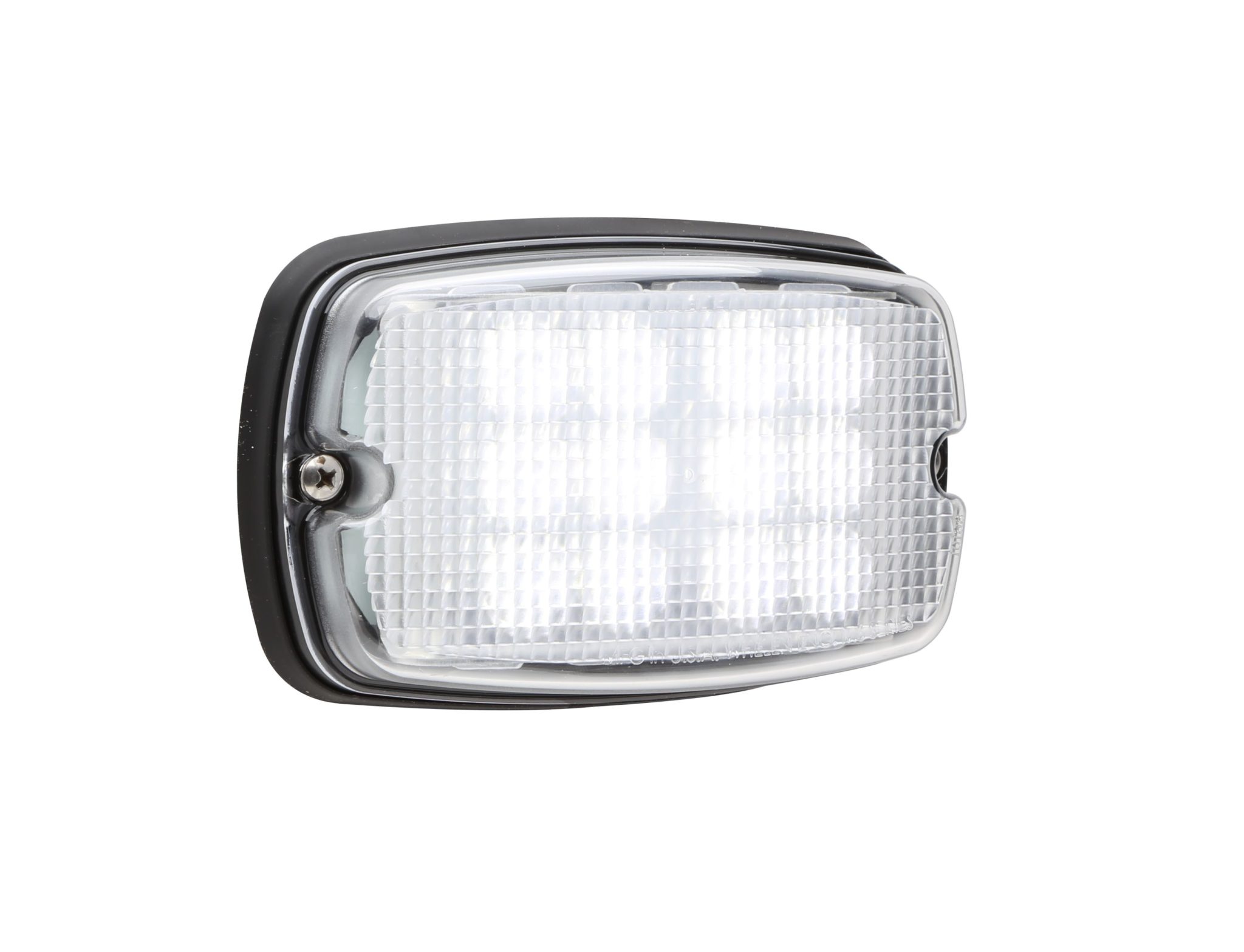

- Brake/tail/turn, turn, and back-up lights meet applicable SAE requirements

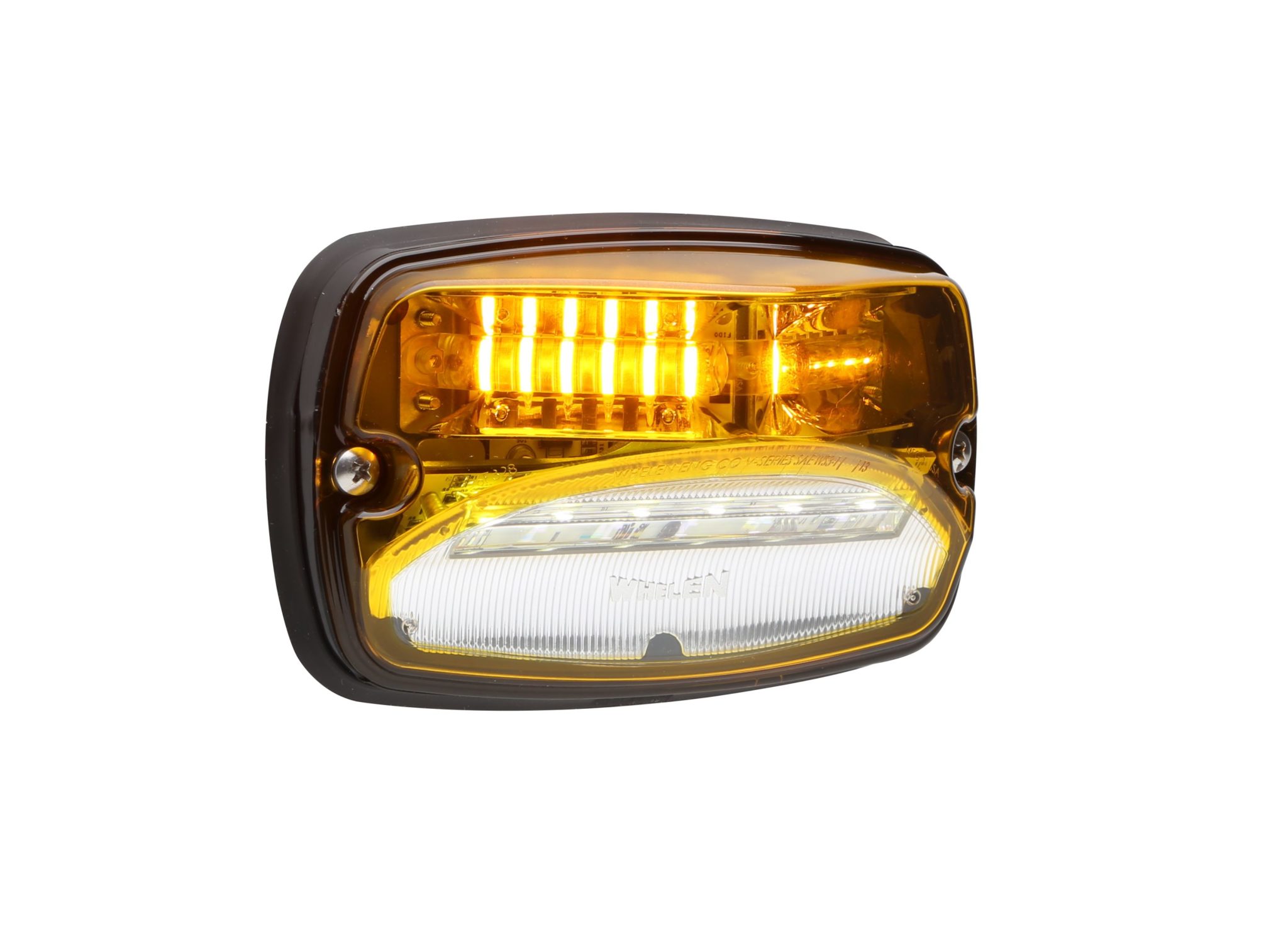

- DUO models include DVI® light patterns and our patented E Block® technology
- Hard-coated lenses

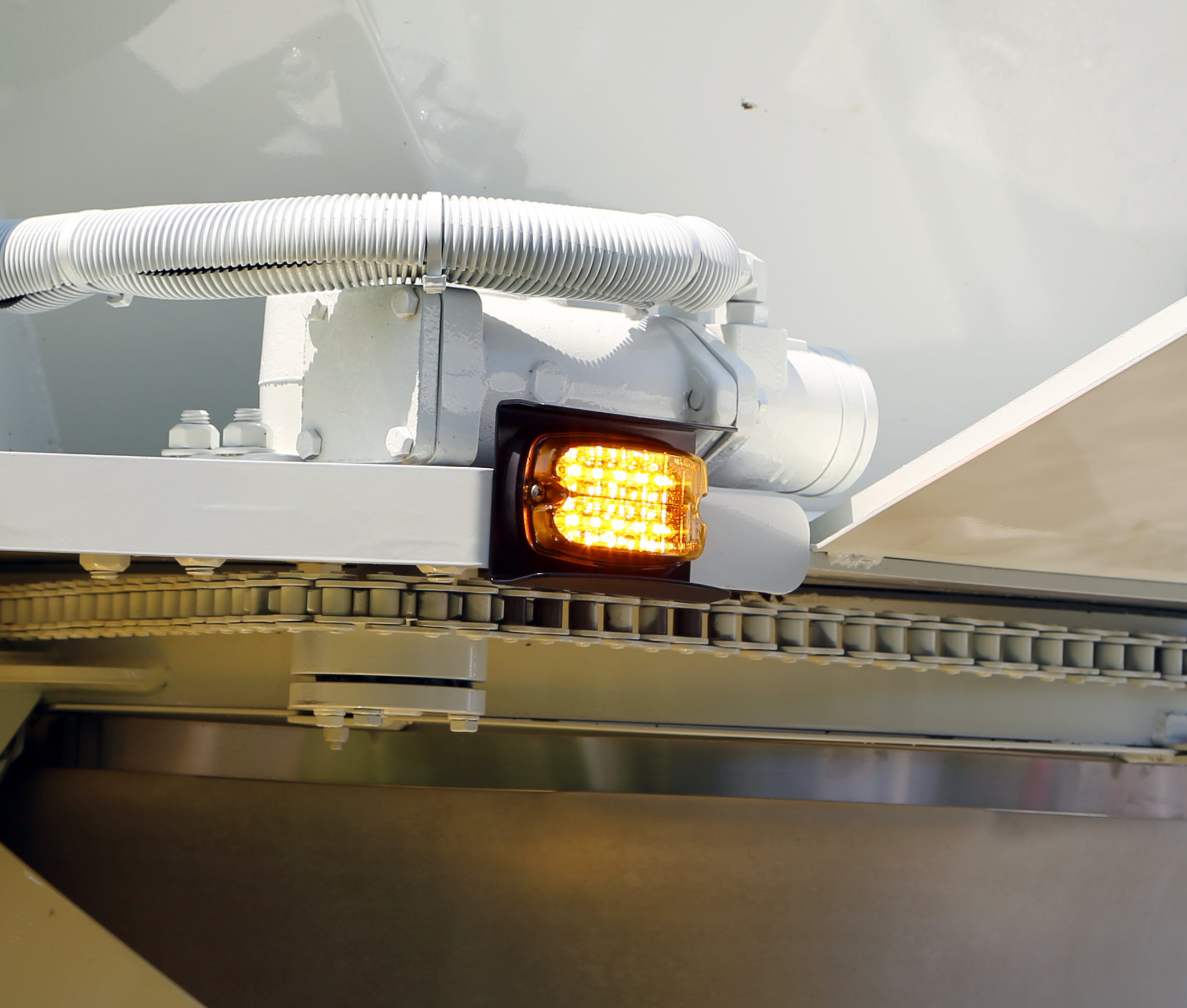

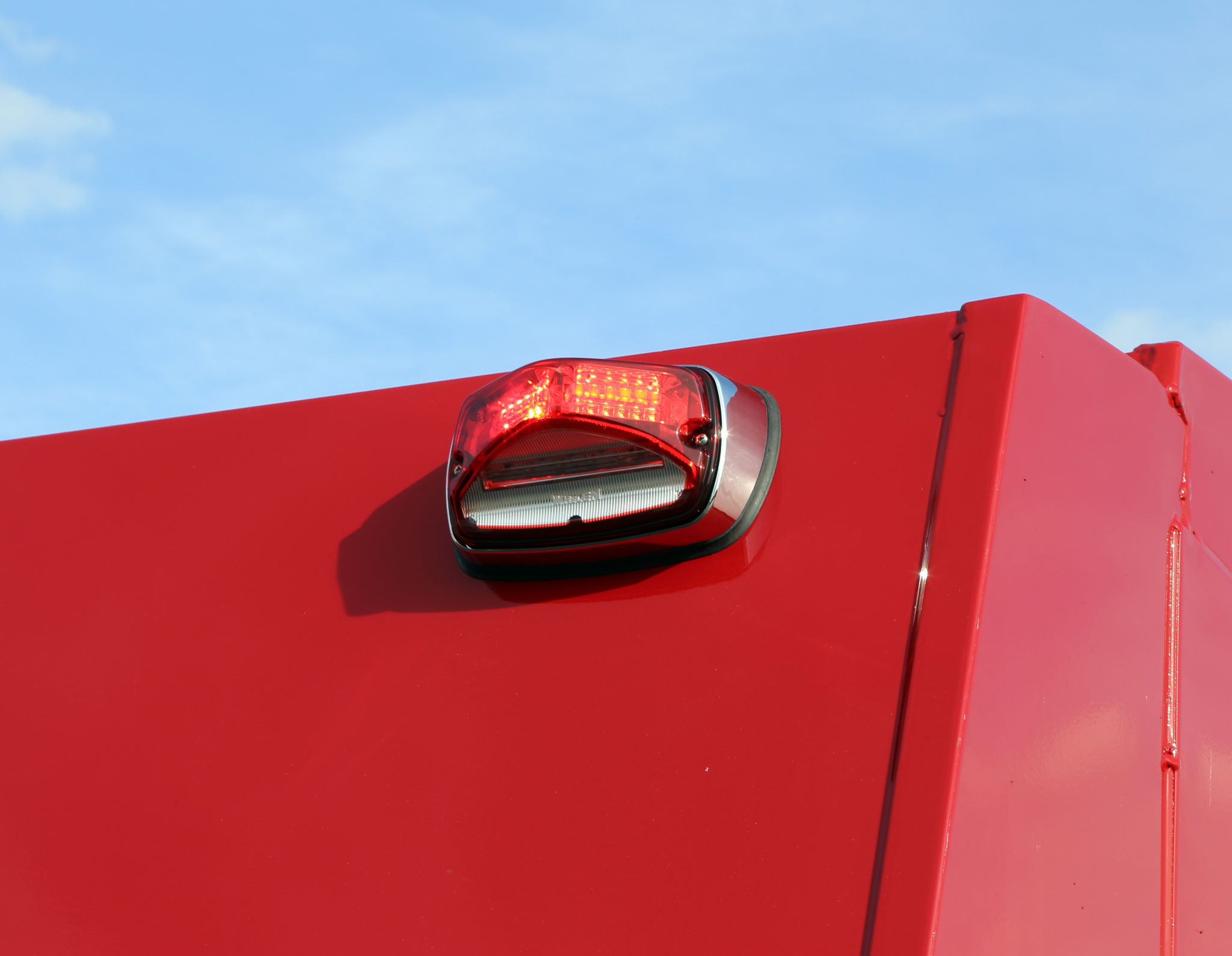

- Surface mounts via two screws for easy installation

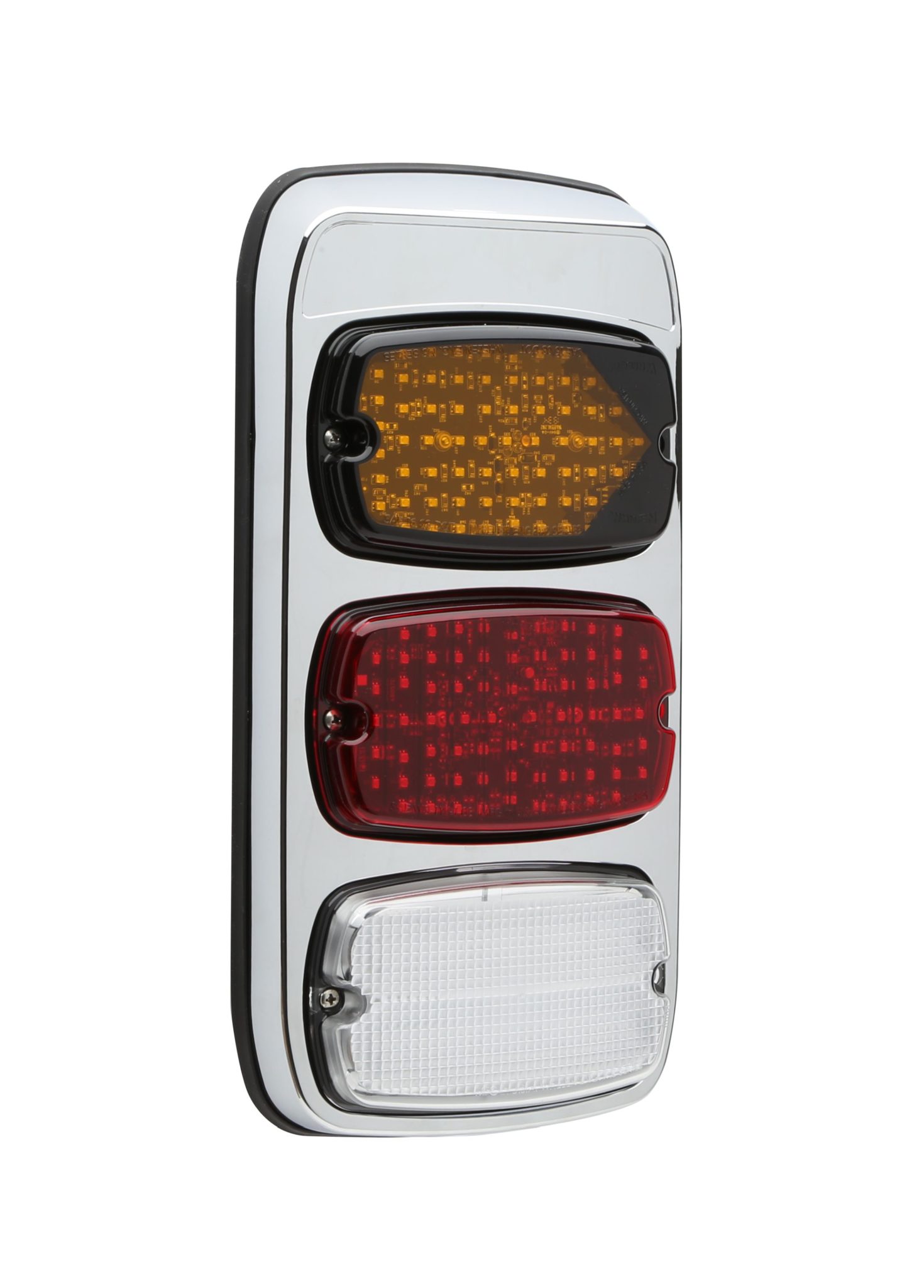

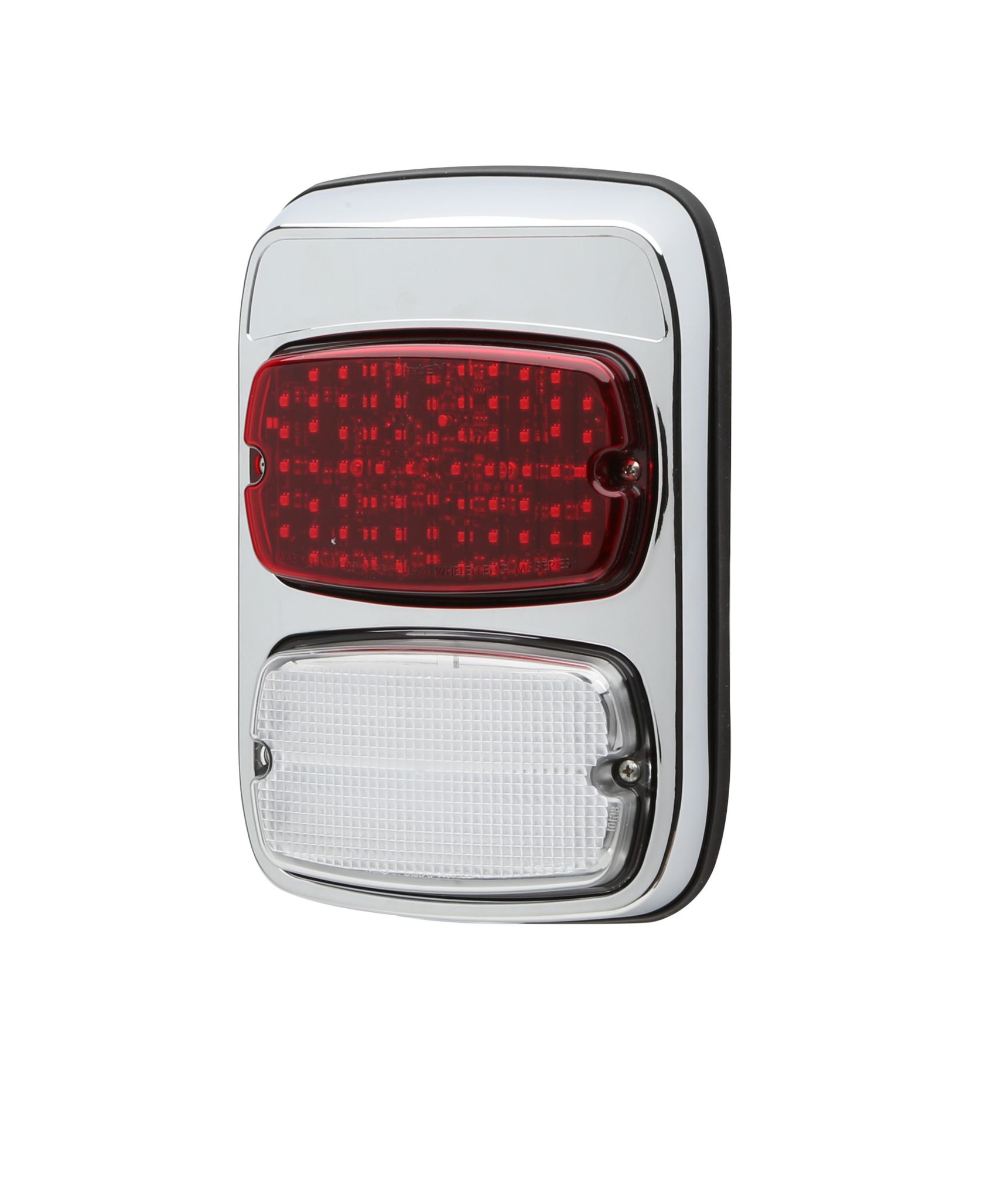

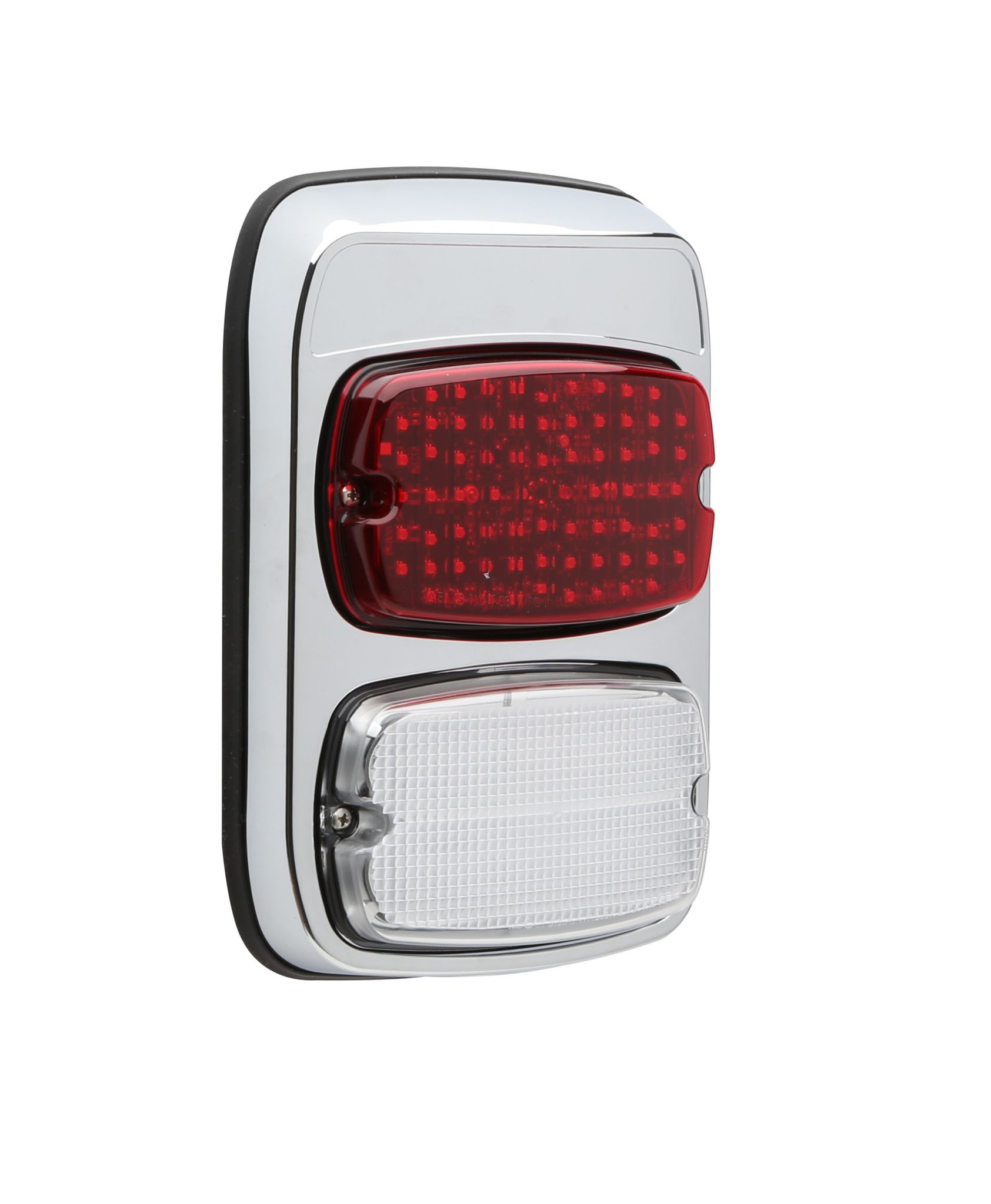

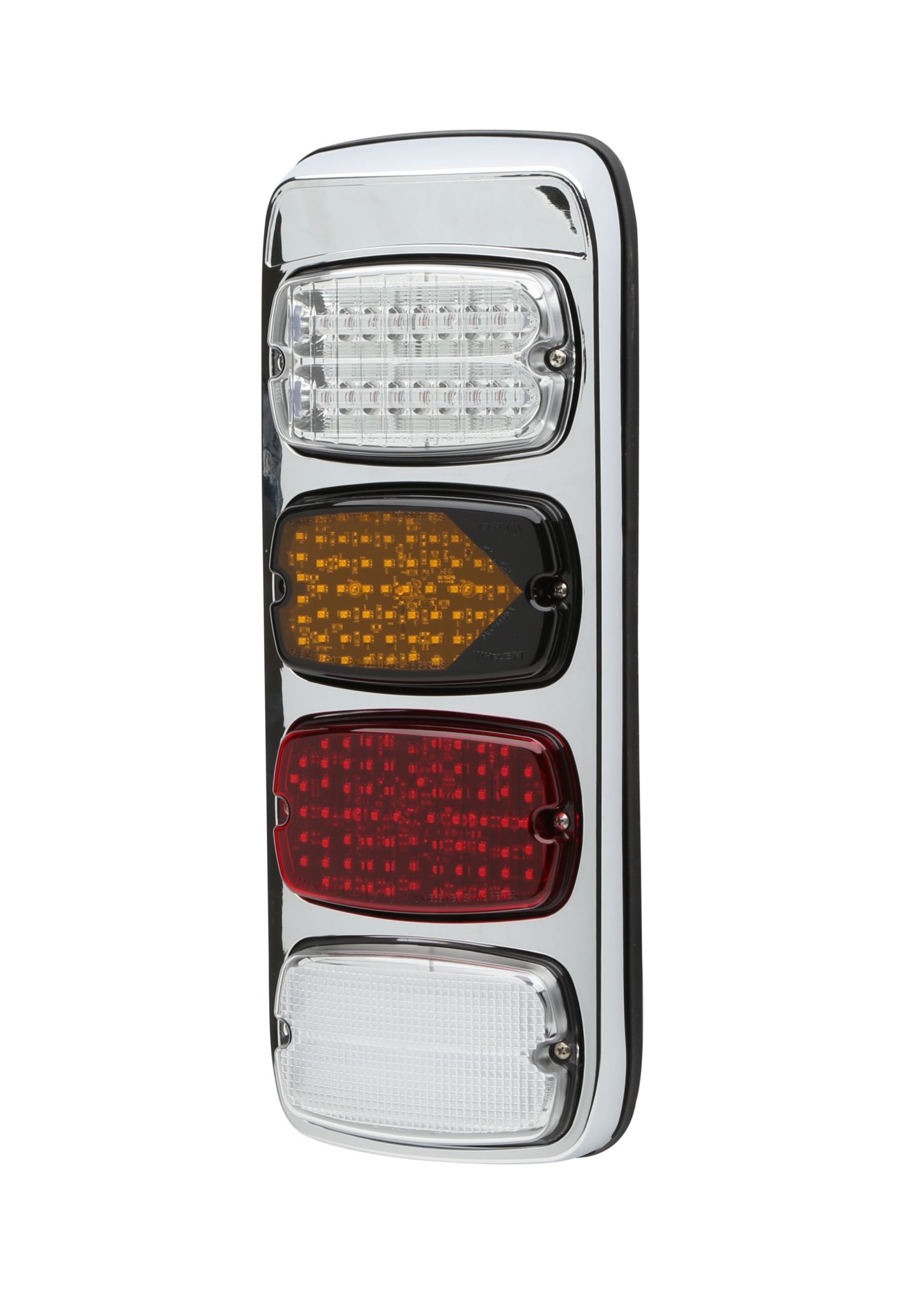

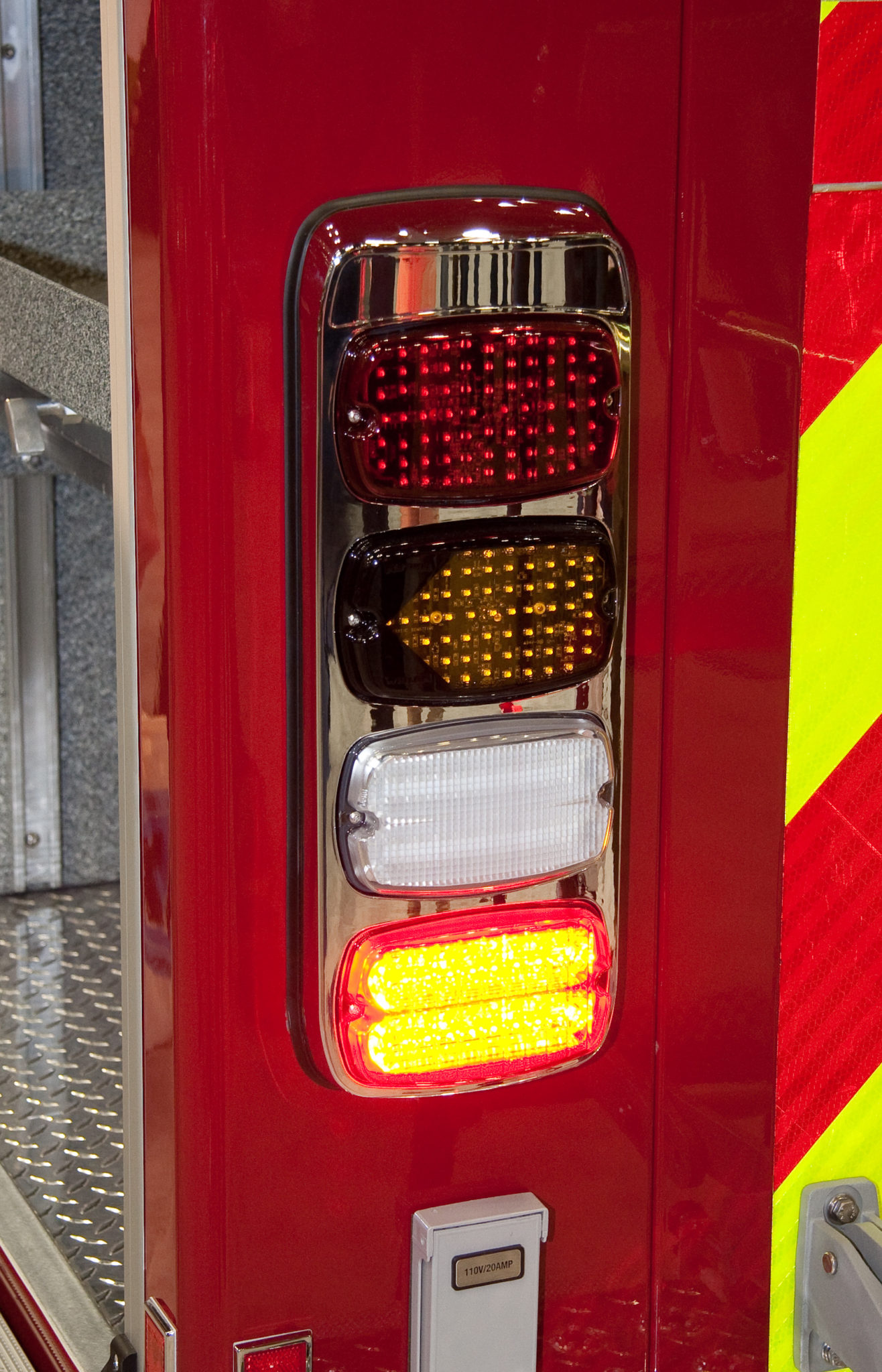

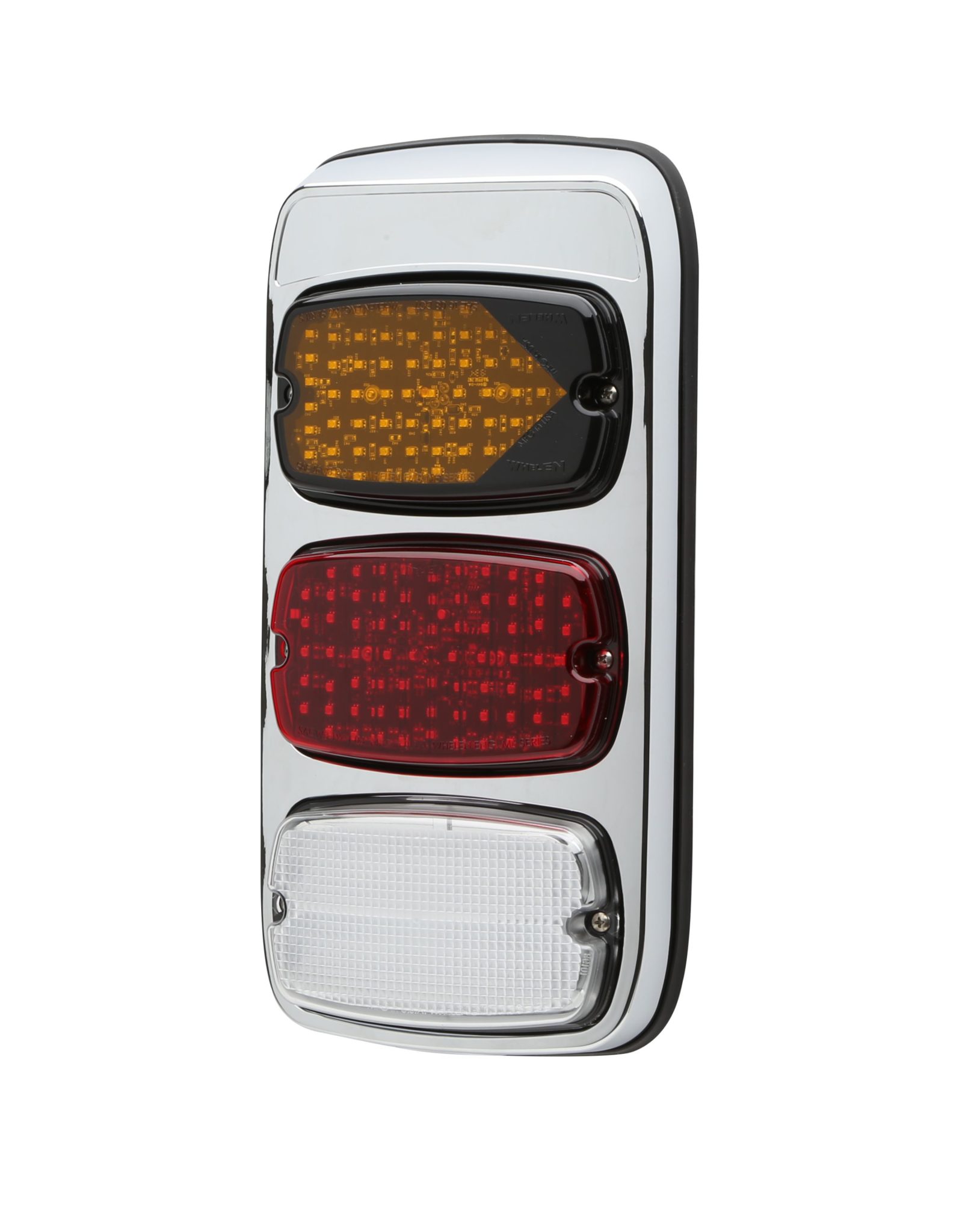

- A variety of mounting brackets and optional Chrome or Black flanges are available
- Can be mounted vertically or horizontally
- Front or rear lightbar pods house multiple M6 lightheads for the 2015-2017 Ford Transit Medium or High Roof
Dimensions
Specifications
| Amps | Simultaneous: 2.2 (peak), .9 (average)

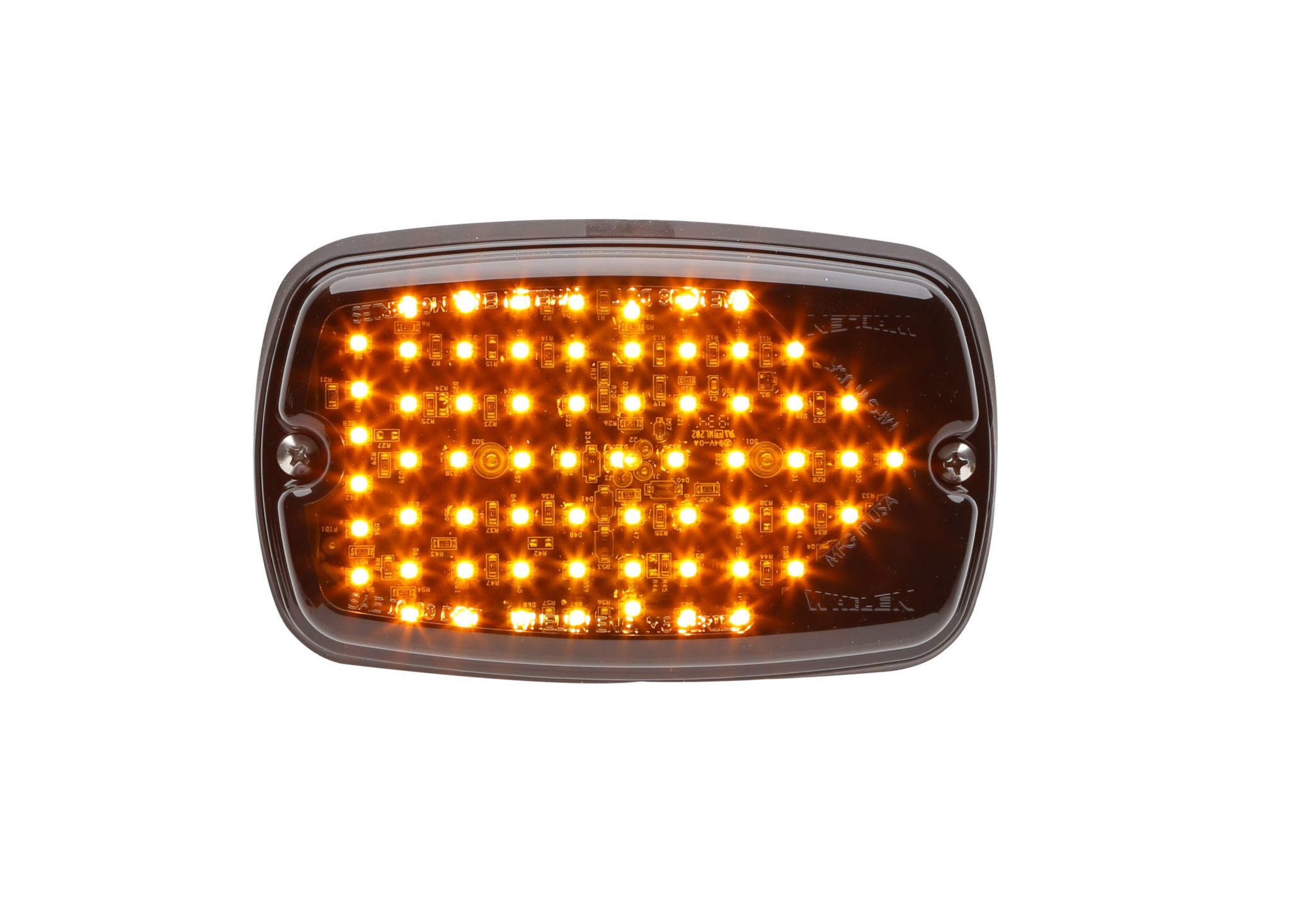

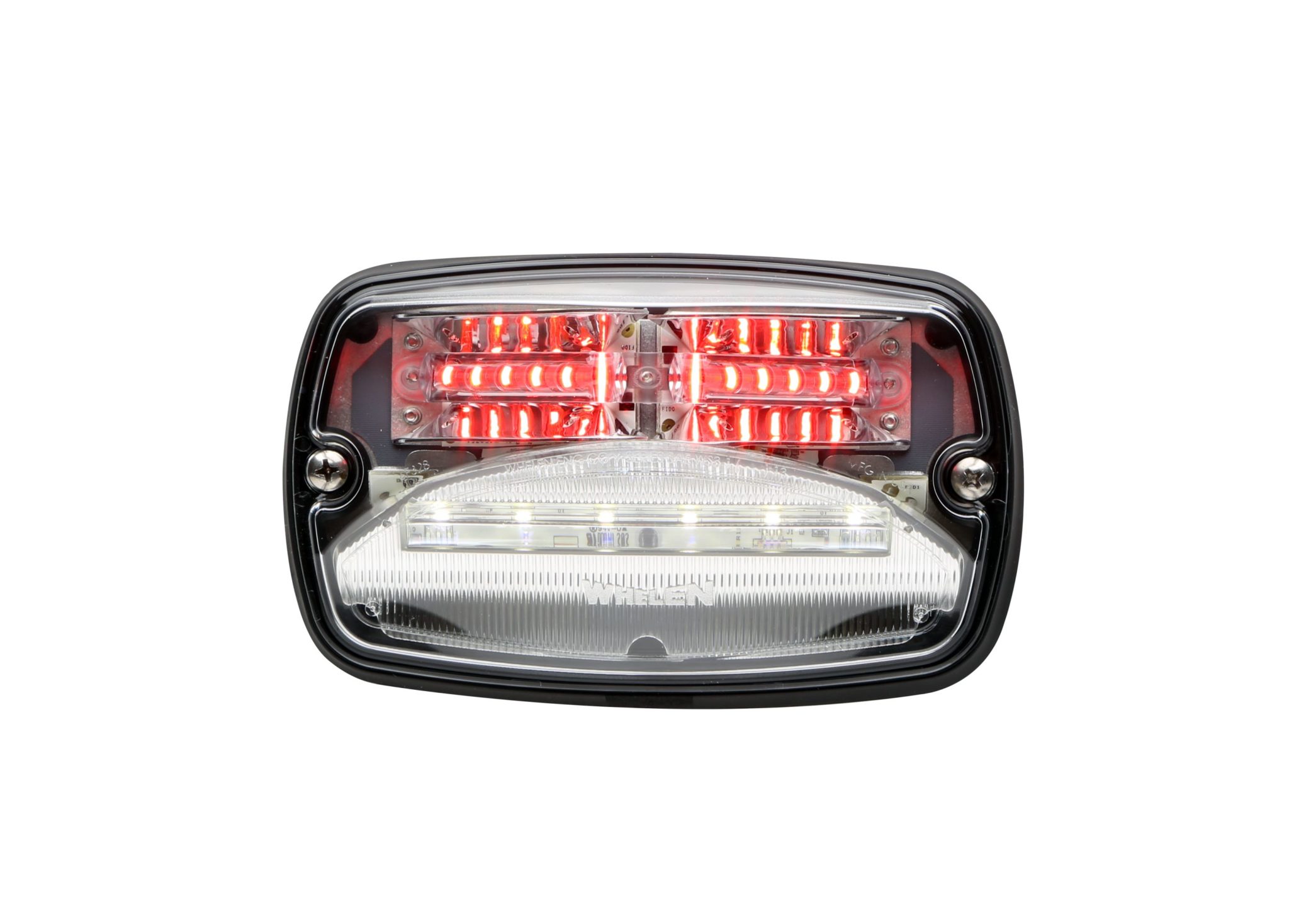

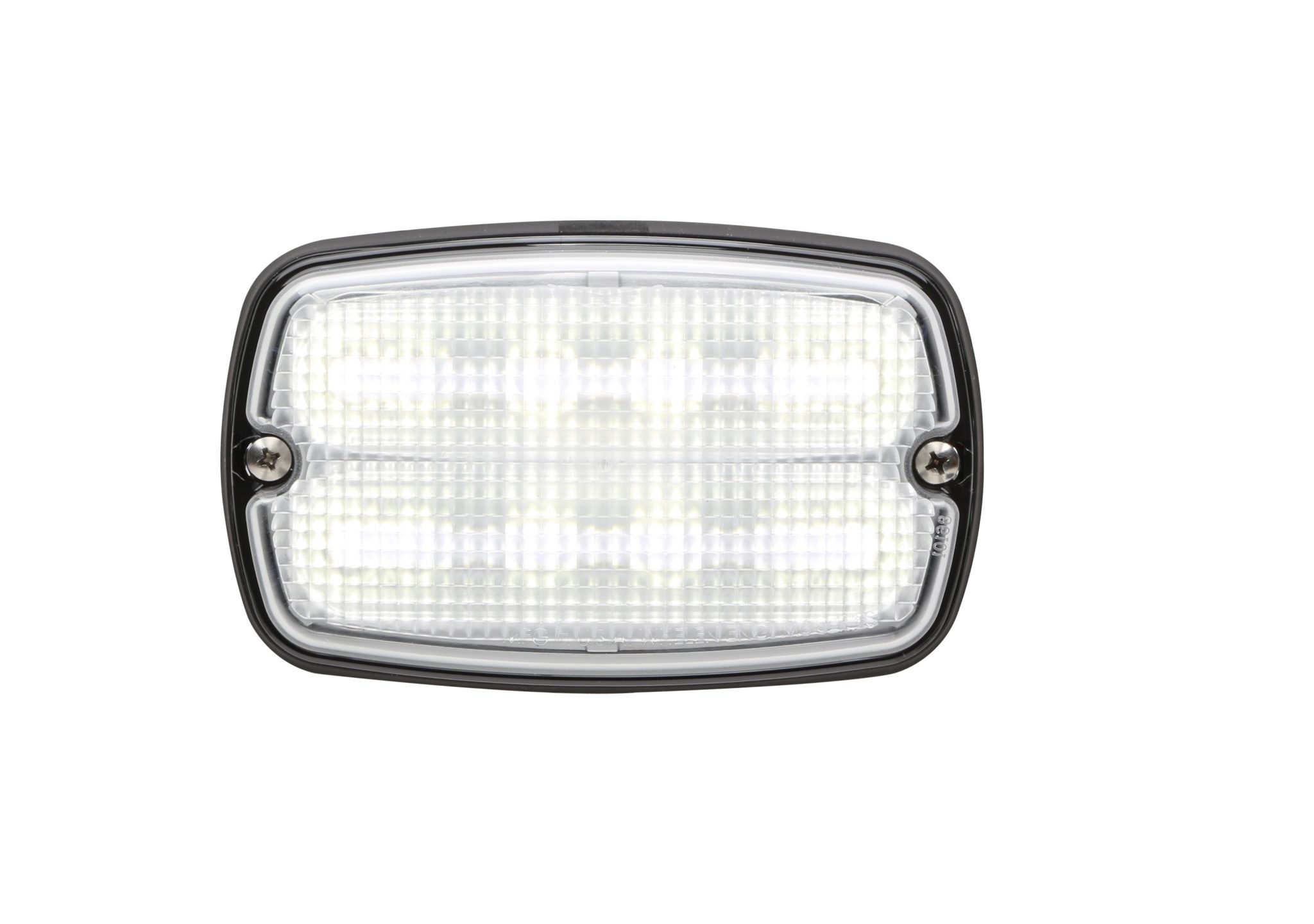

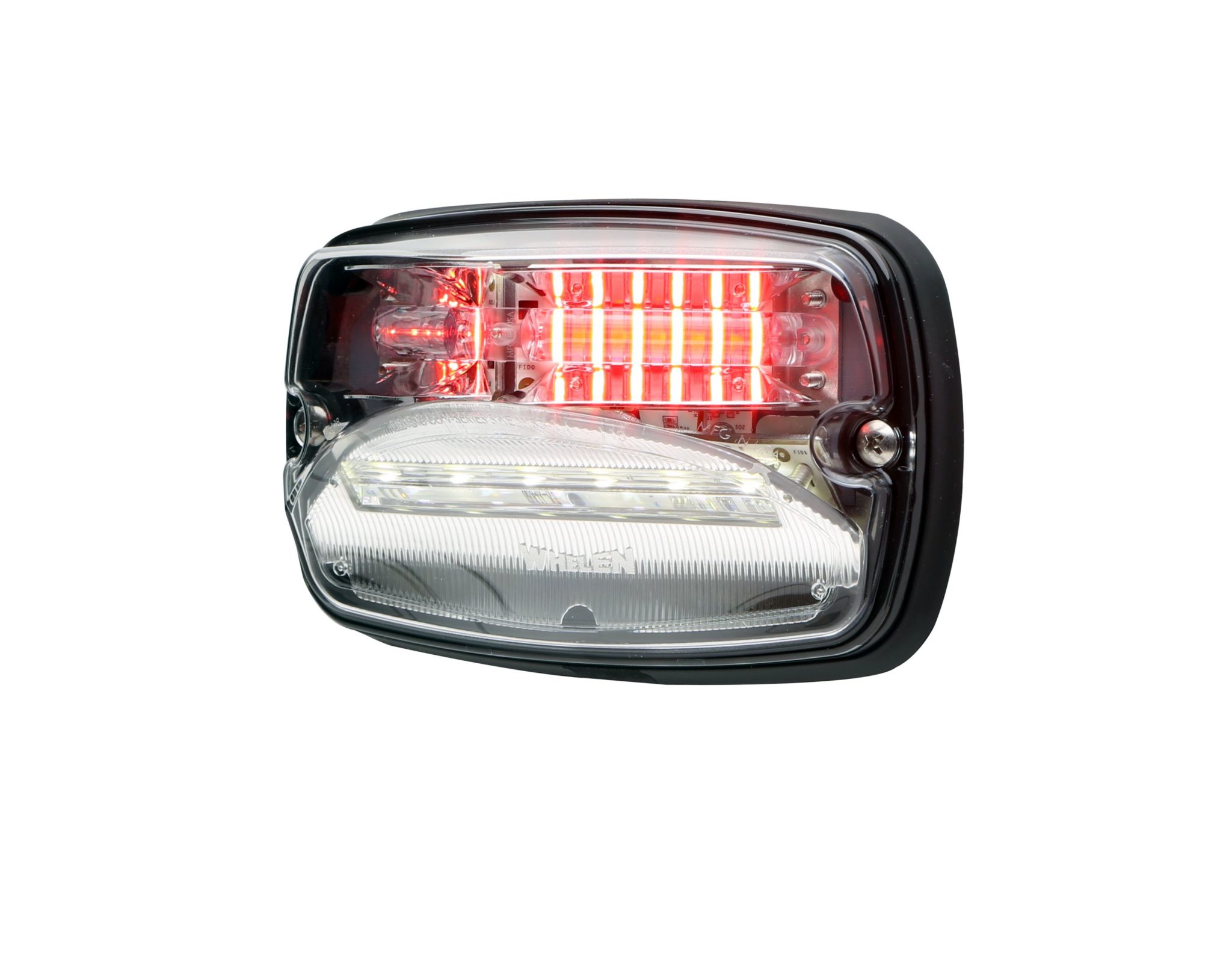

Alternating: 1.1 (peak), .45 (average) Utility Models B/T/T: .84 (average Brake/Turn), .06 (average Tail) Amber Turn Signal: .75 (average) Back-up Light: 1.6 (average) Gradient Scenelight: 2.0 (average) |

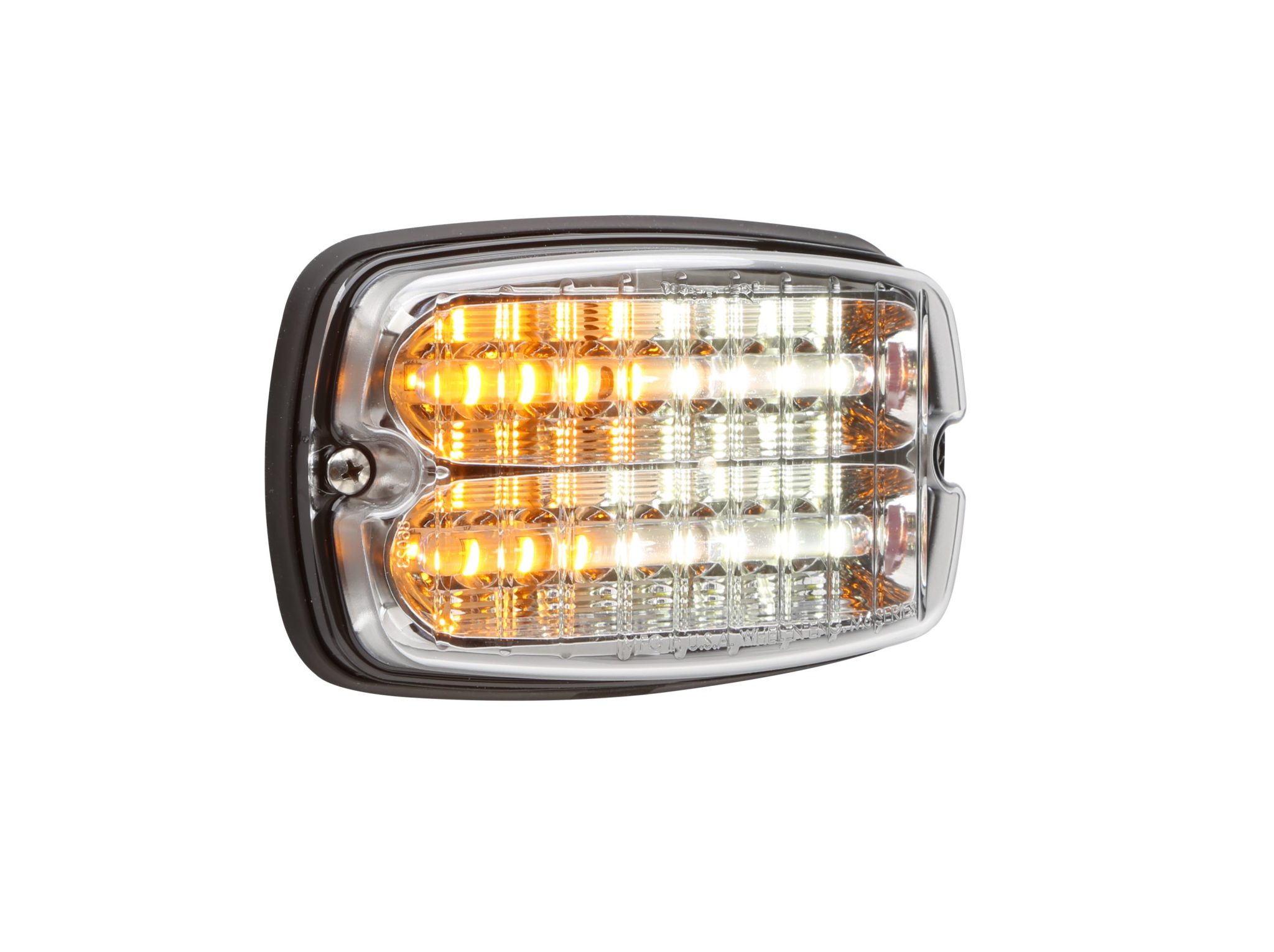

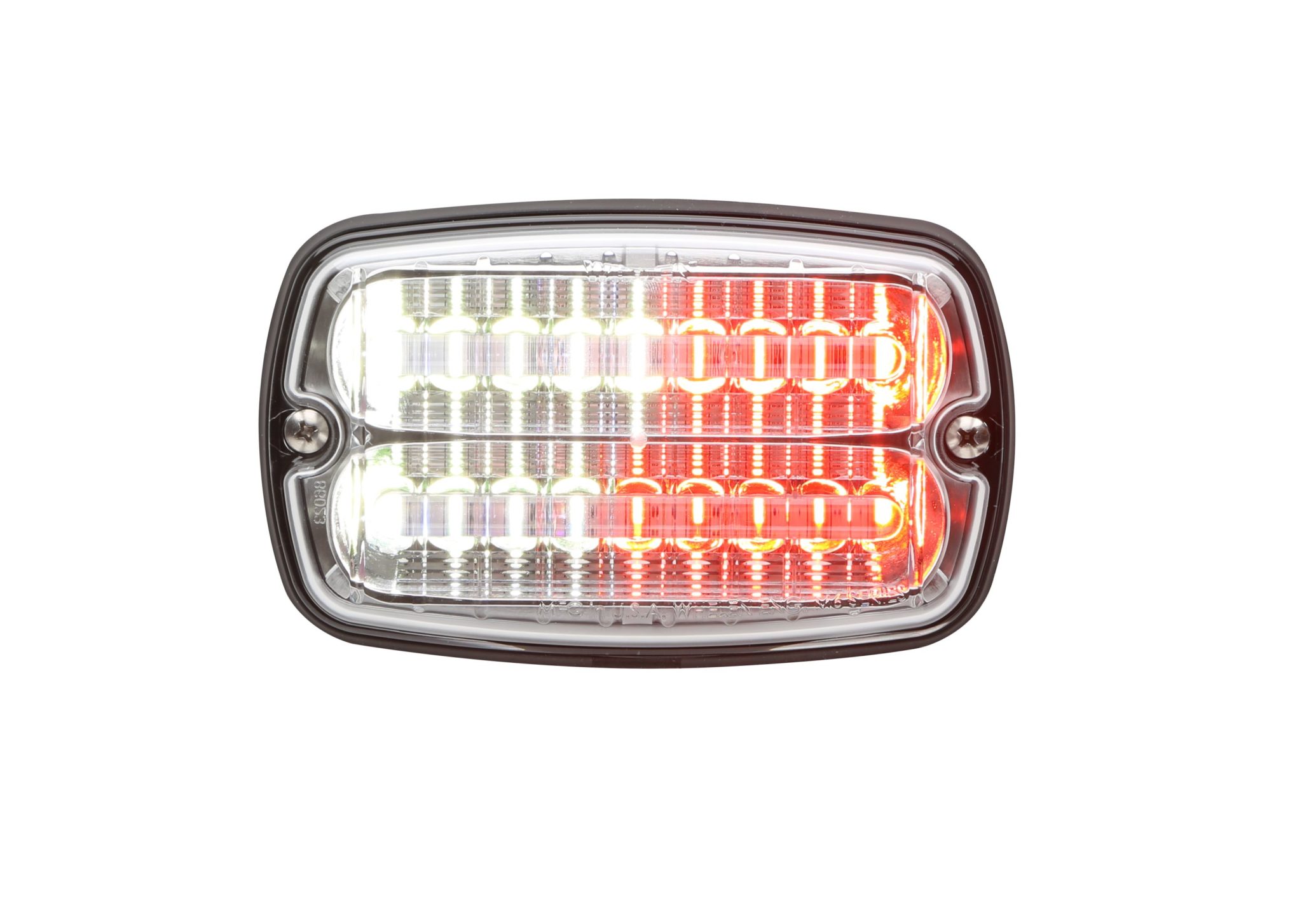

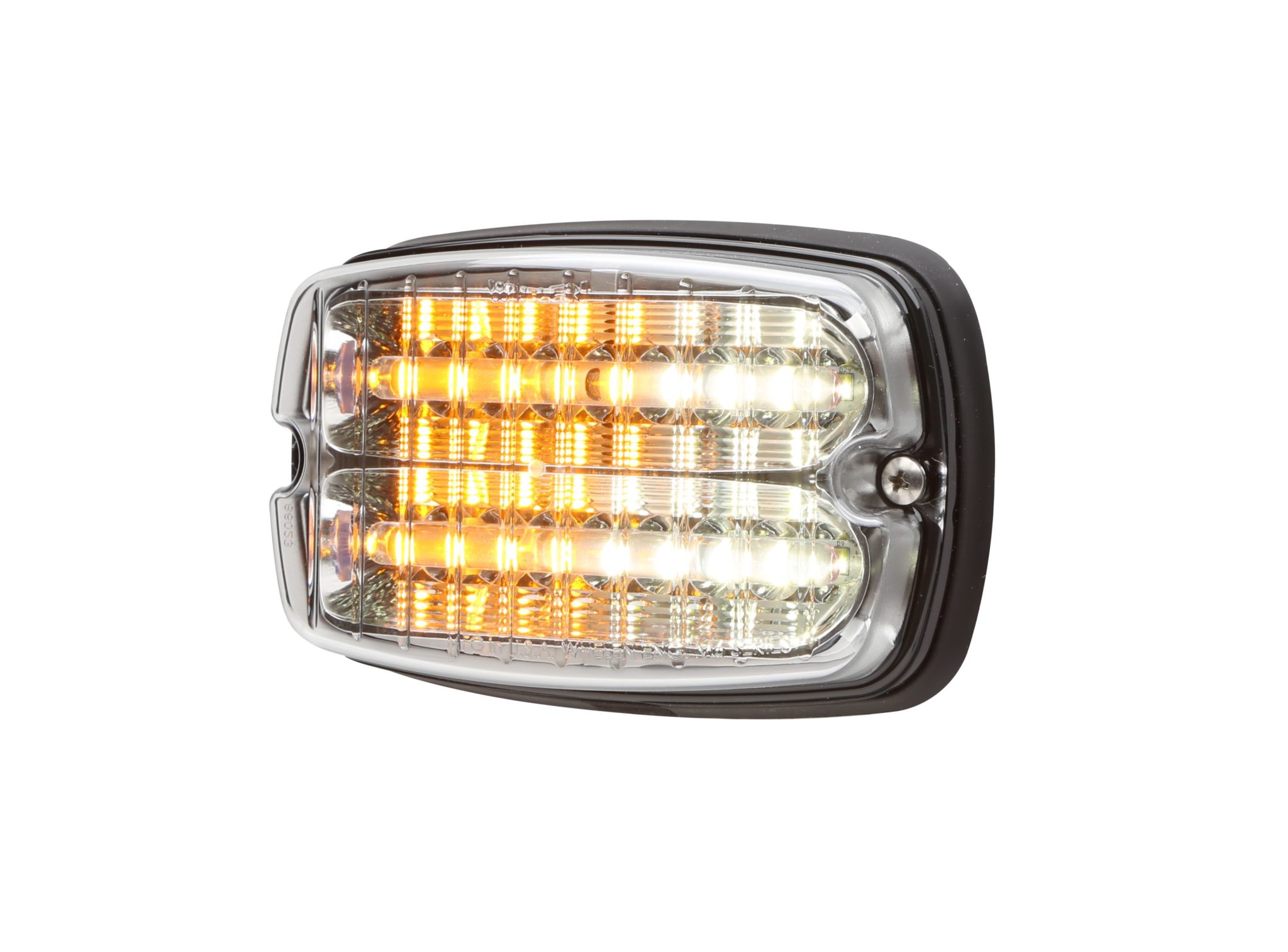

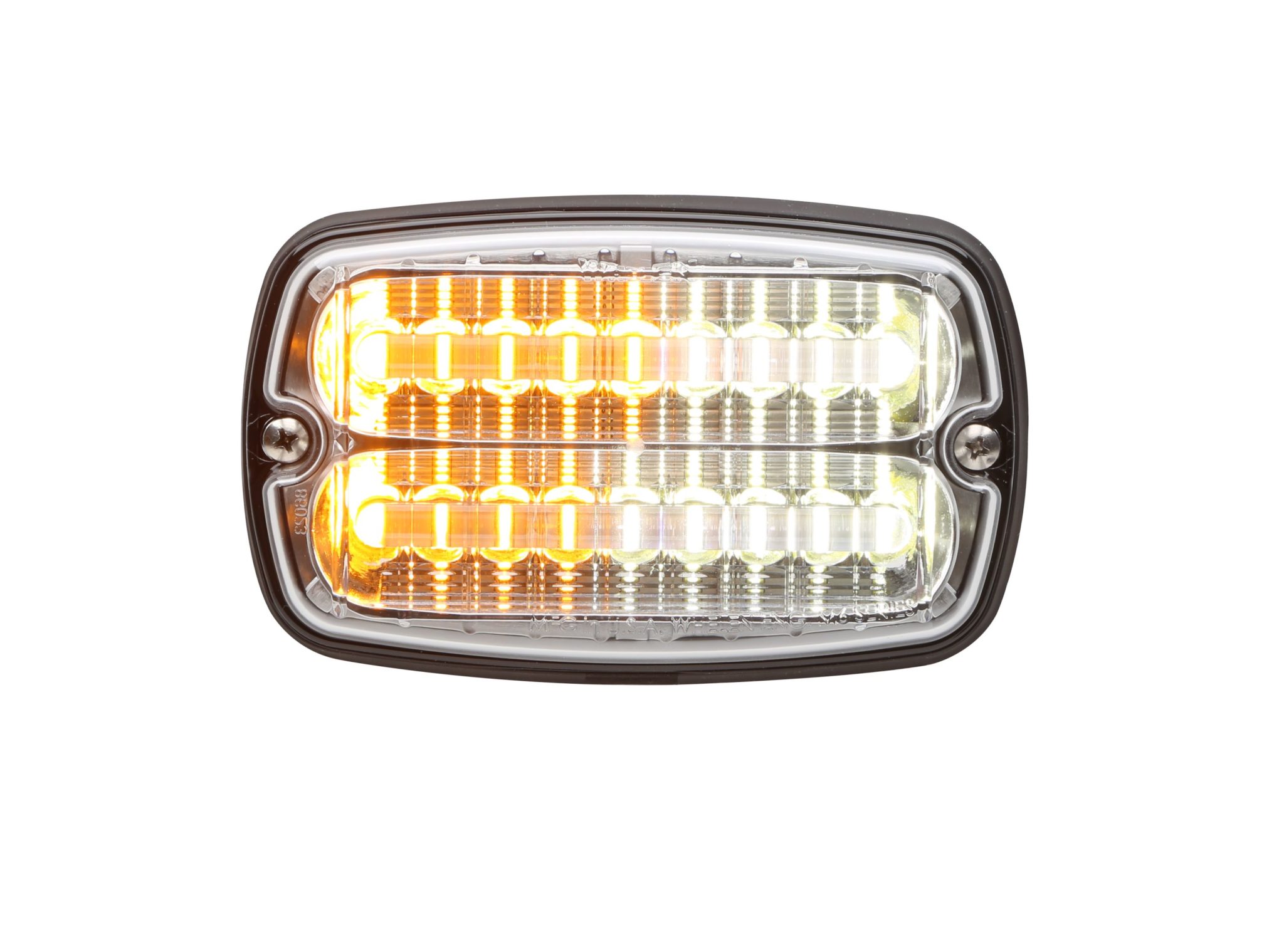

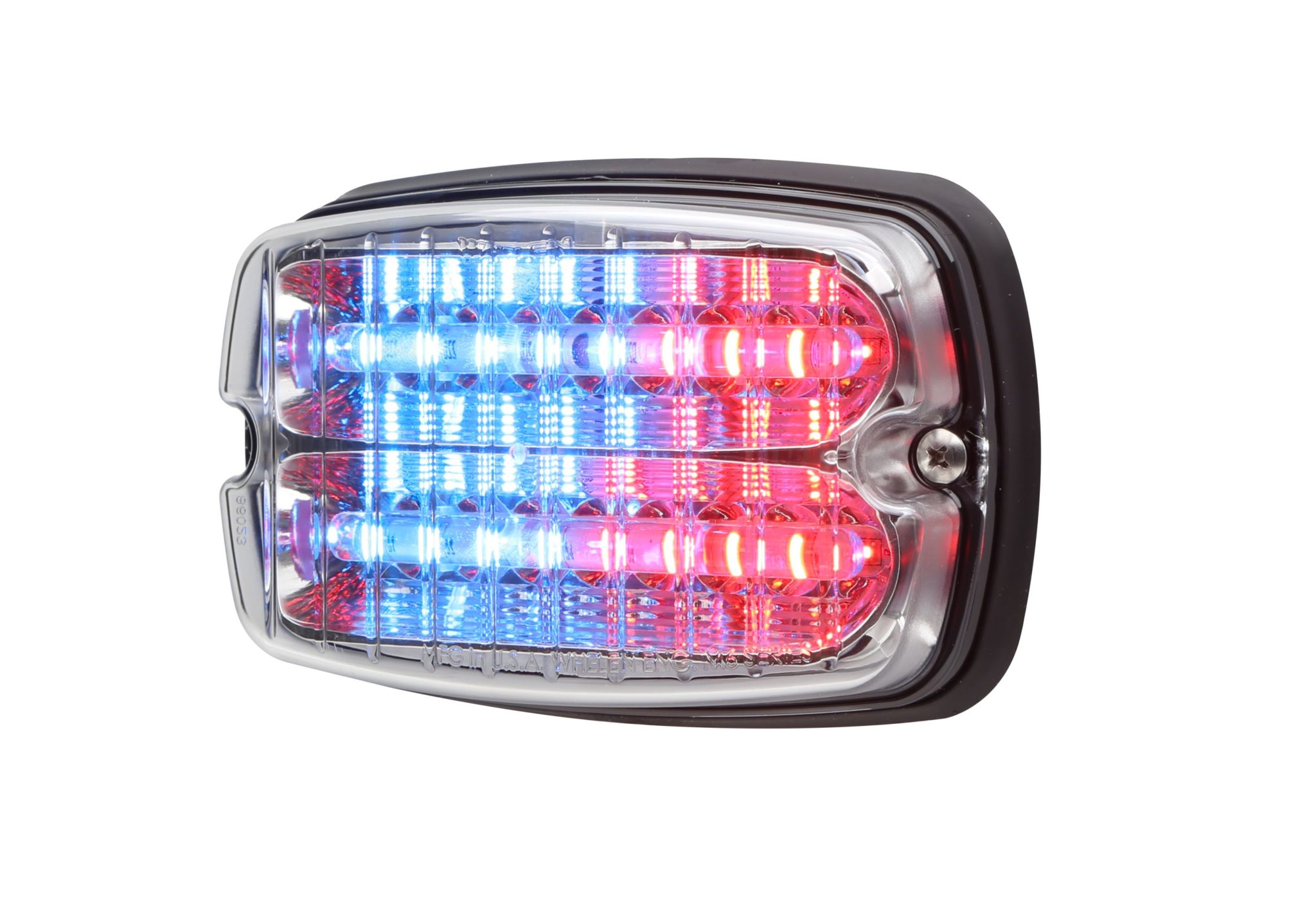

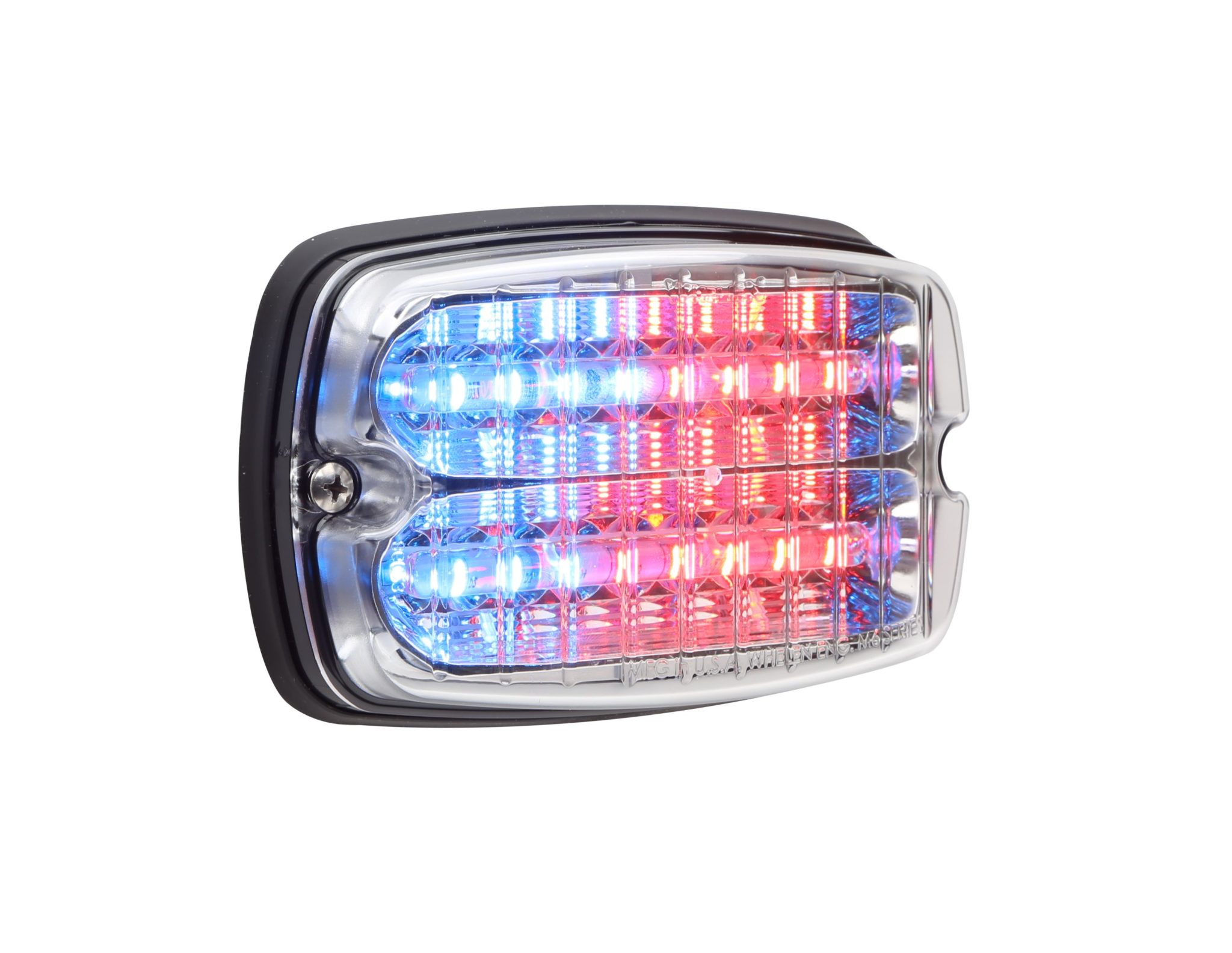

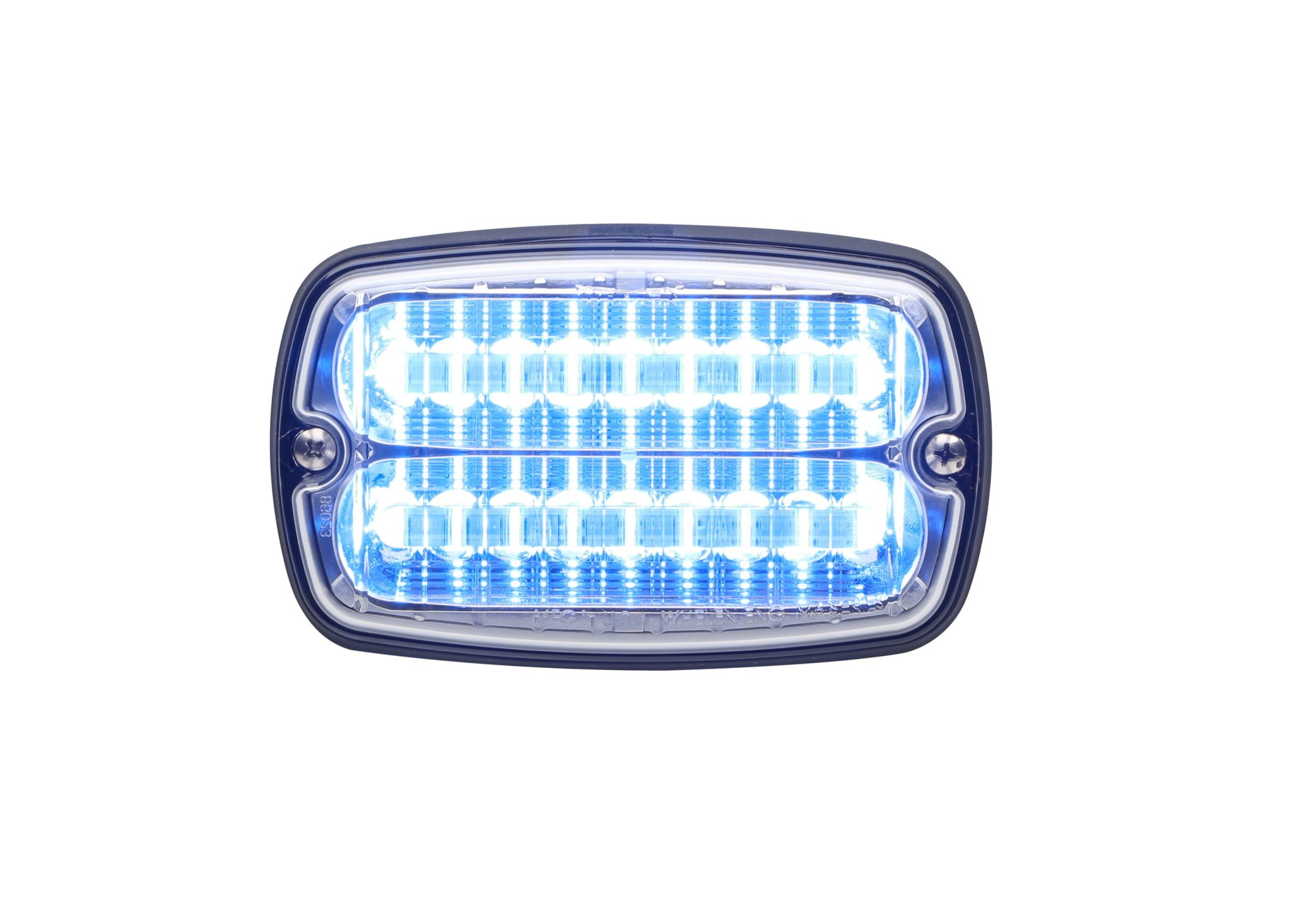

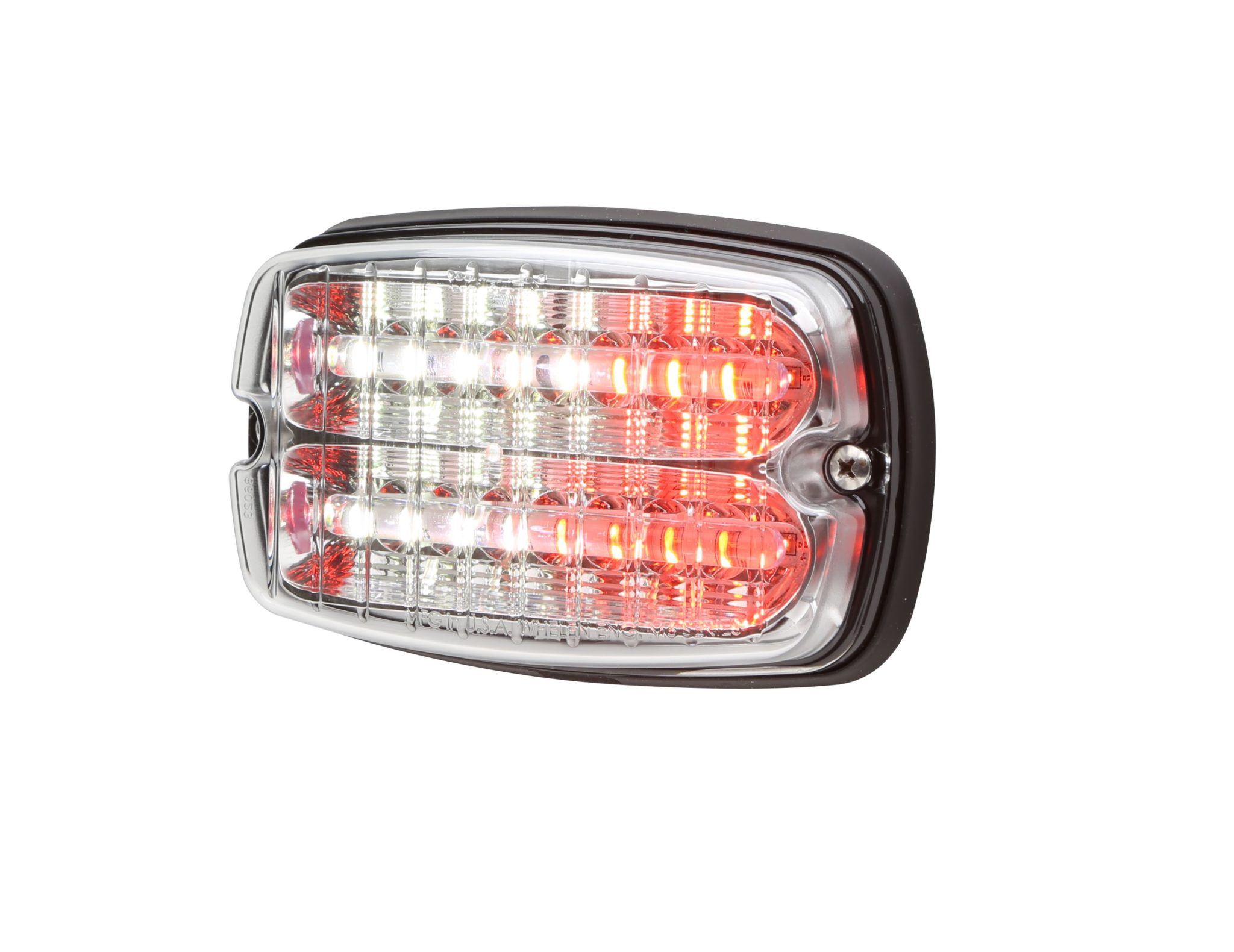

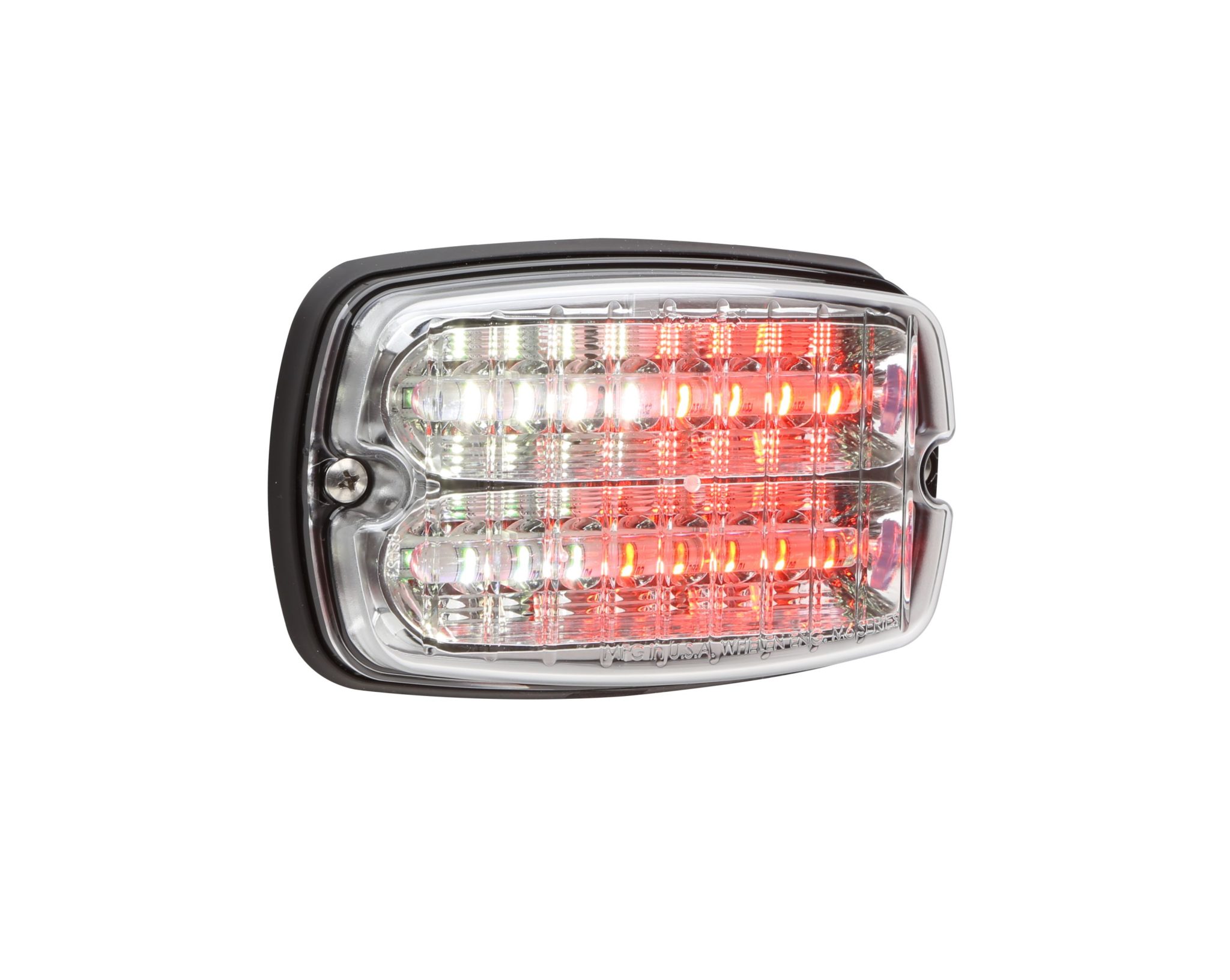

| Light Options | Single or Split color
Steady-burn Internal flasher+ |
| Lenses | Clear
Color |
| Flash Patterns* | Single color: 159 Scan-Lock® flash patterns
Double color: 64 Scan-Lock flash patterns |
| Certifications | SAE Class 1 (warning)
KKK-1822F NFPA 1901 NFPA 1917 SAE EC65 |
| Warranty | Five year warranty |
* Number of sequencing combinations vary by model
+ Sync or low power functions
