PSB01FCR

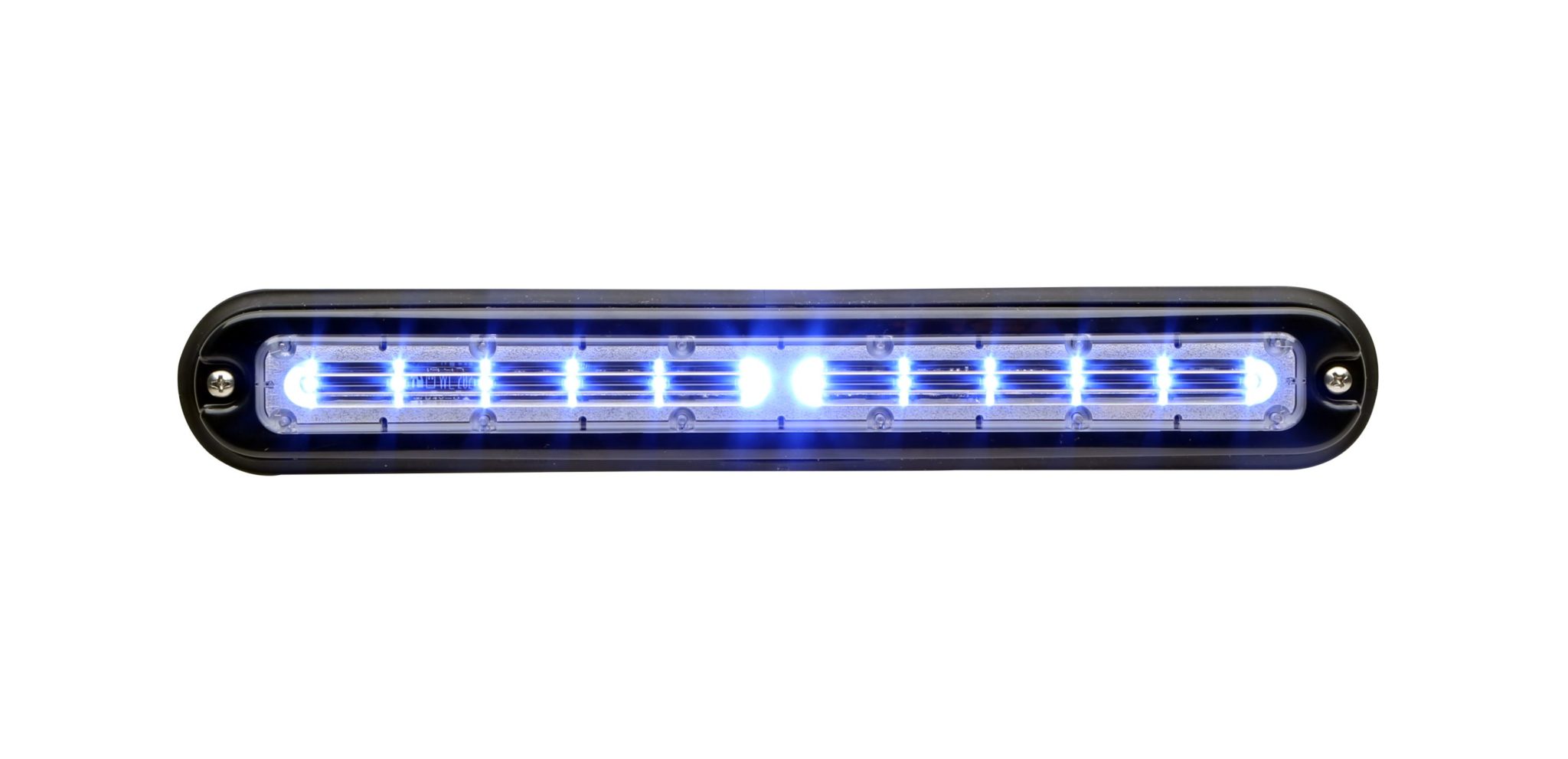

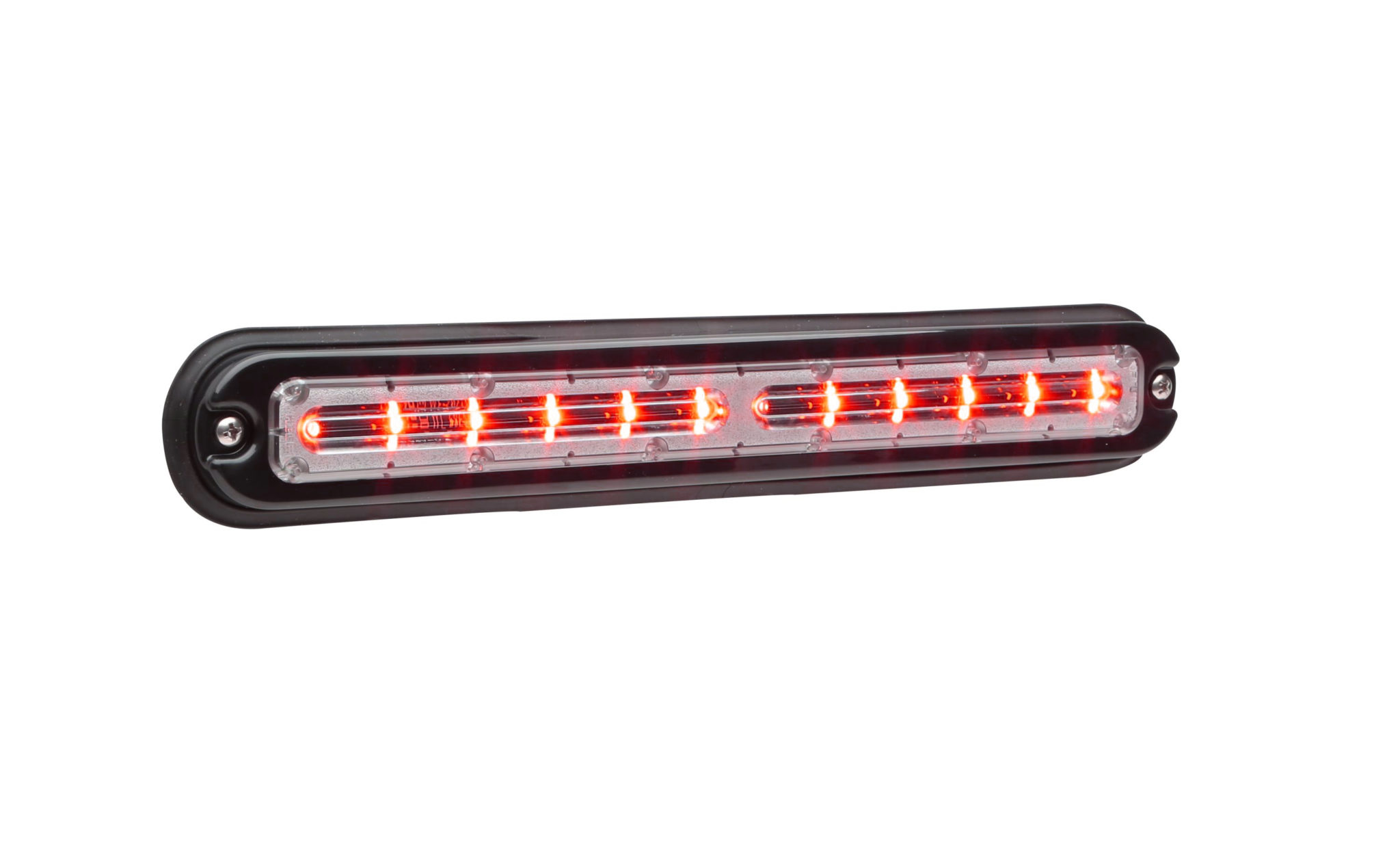

PSR01FCR

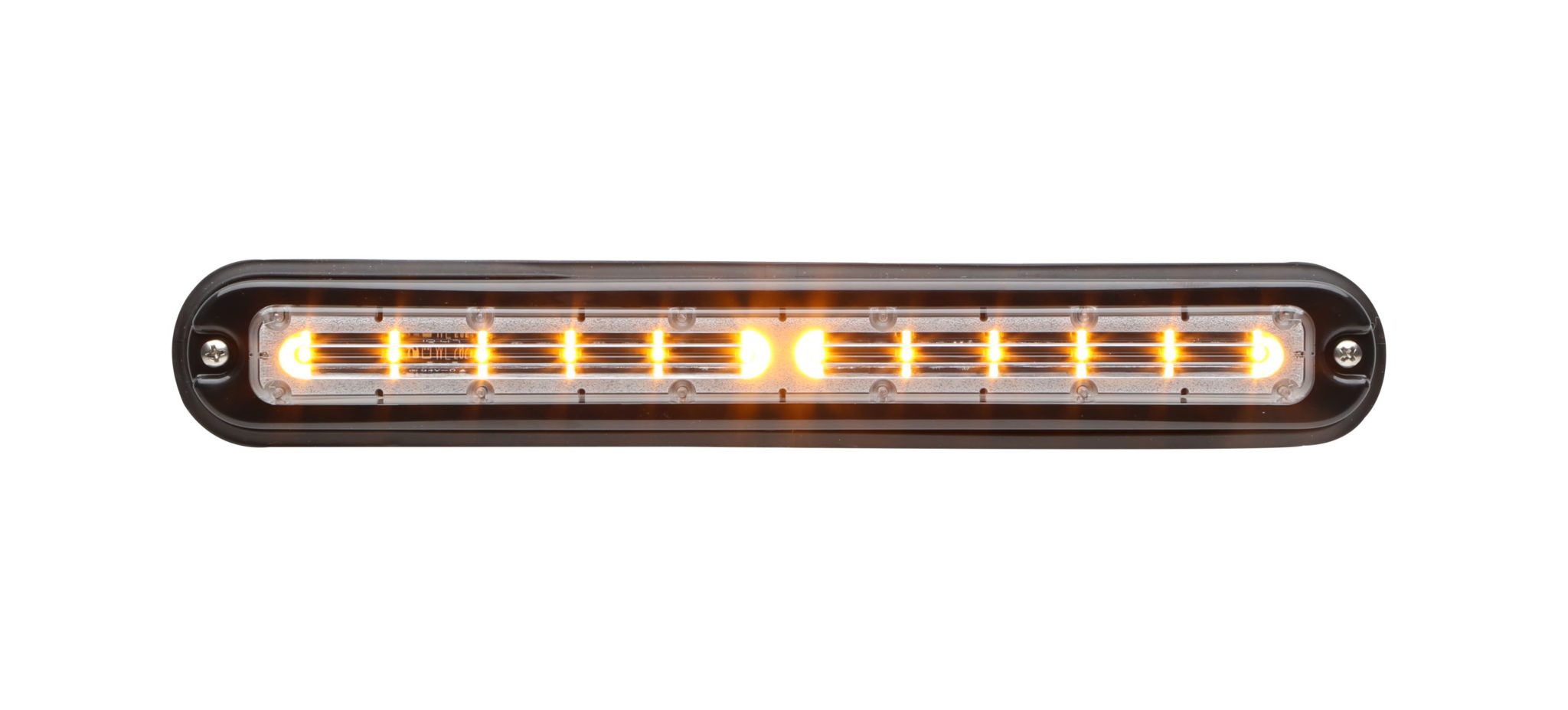

PSA01FCR

PSCOMPH

PSTANK with optional chrome flange

Strip-Lite Plus Series

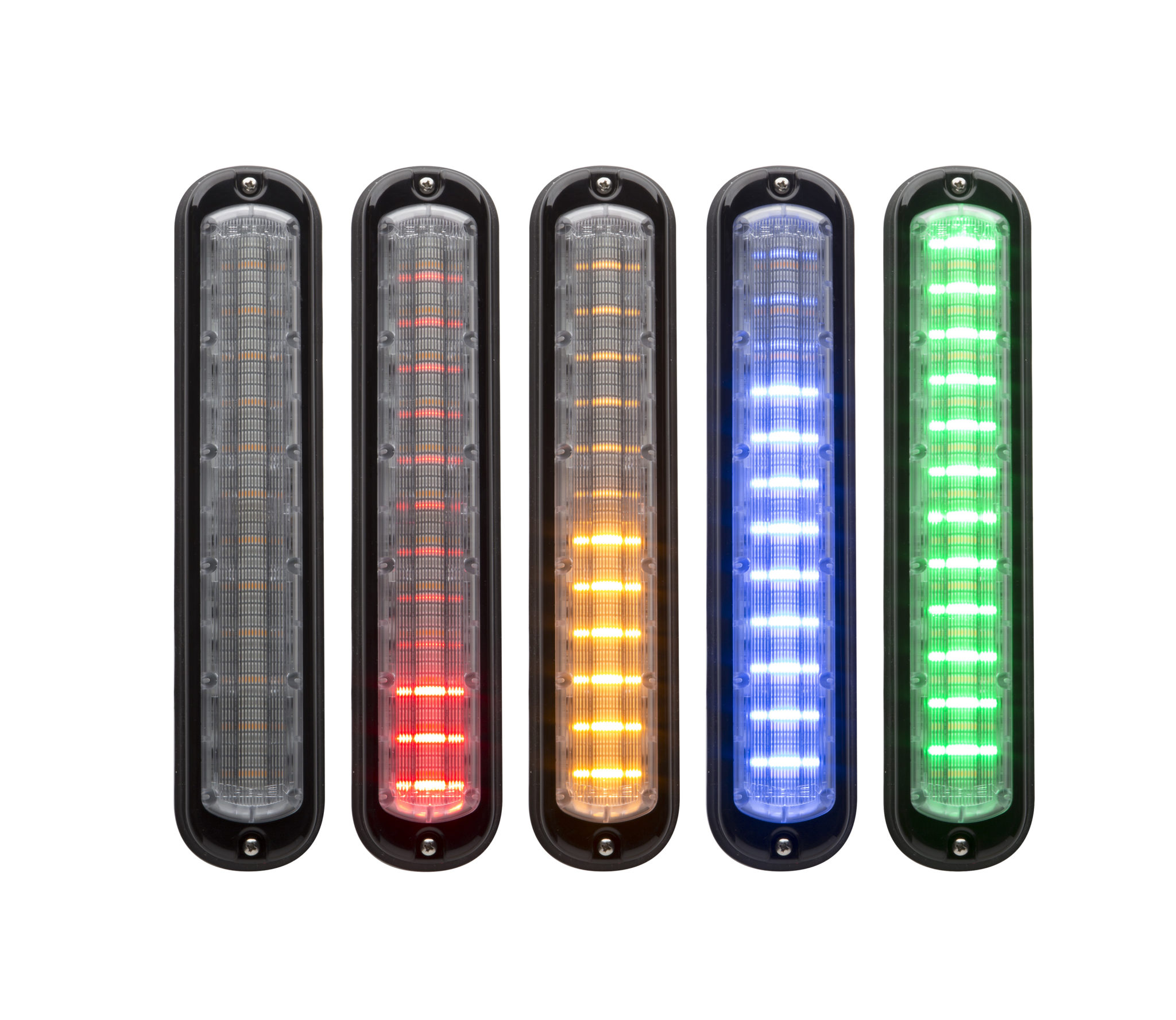

Engineered for mounting versatility and with patent-pending Water Block Technology, the sleek Strip-Lite® Plus Series is available in Compartment, Warning, Sequencing, or Tank Light models.

Category: Whelen

SKU: 2254

Base Price:

Total Price:

Part Number:

Availability:

Model

Optional Accessories

Files

No files for this product

Dimensions

Strip-Lite® Plus DIM

Dimensions: 0.82" (21mm) H, 1.68" (43mm) W, 11.11" (282mm) L

Weight: 0.30 lbs

Strip-Lite® Plus XL DIM

Dimensions: 0.85" (22mm) H, 2.34" (59mm) W, 11.14" (283mm) L

Weight: 0.575 lbs

Specifications

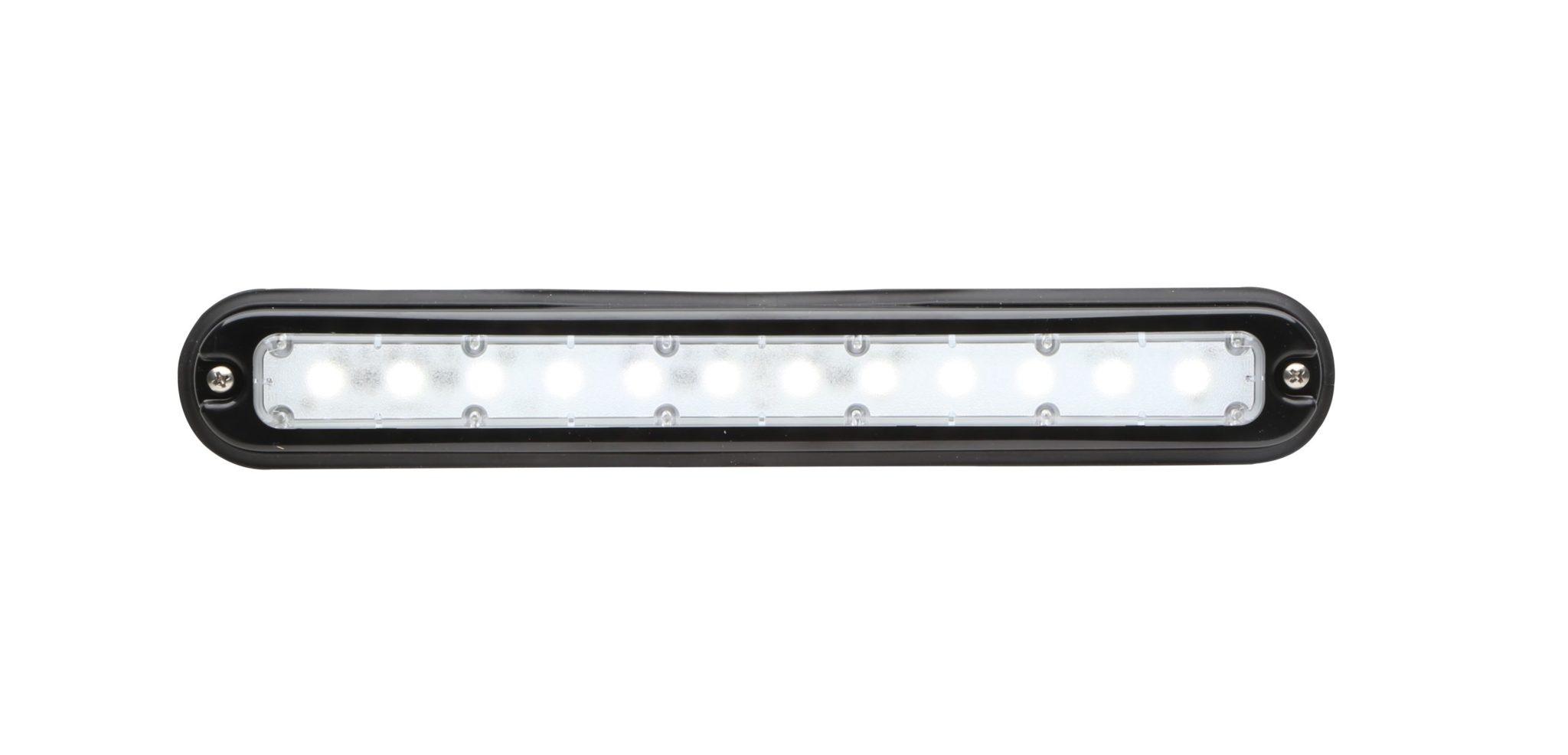

Compartment Light:

Voltage	12 or 24 VDC
Amps	High intensity models: 0.80 amps (average) at 12VDC "“ 1,000 lumens 0.40 amps (average at 24VDC "“ 1,000 lumens Low intensity models: 0.40 amps (average at 12VDC, 500 lumens
Flash Patterns	SOLO: 25 Scan-Lock® flash patterns DUO: 69 Scan-Lock flash patterns
Certifications	IP67
Warranty	Five year warranty

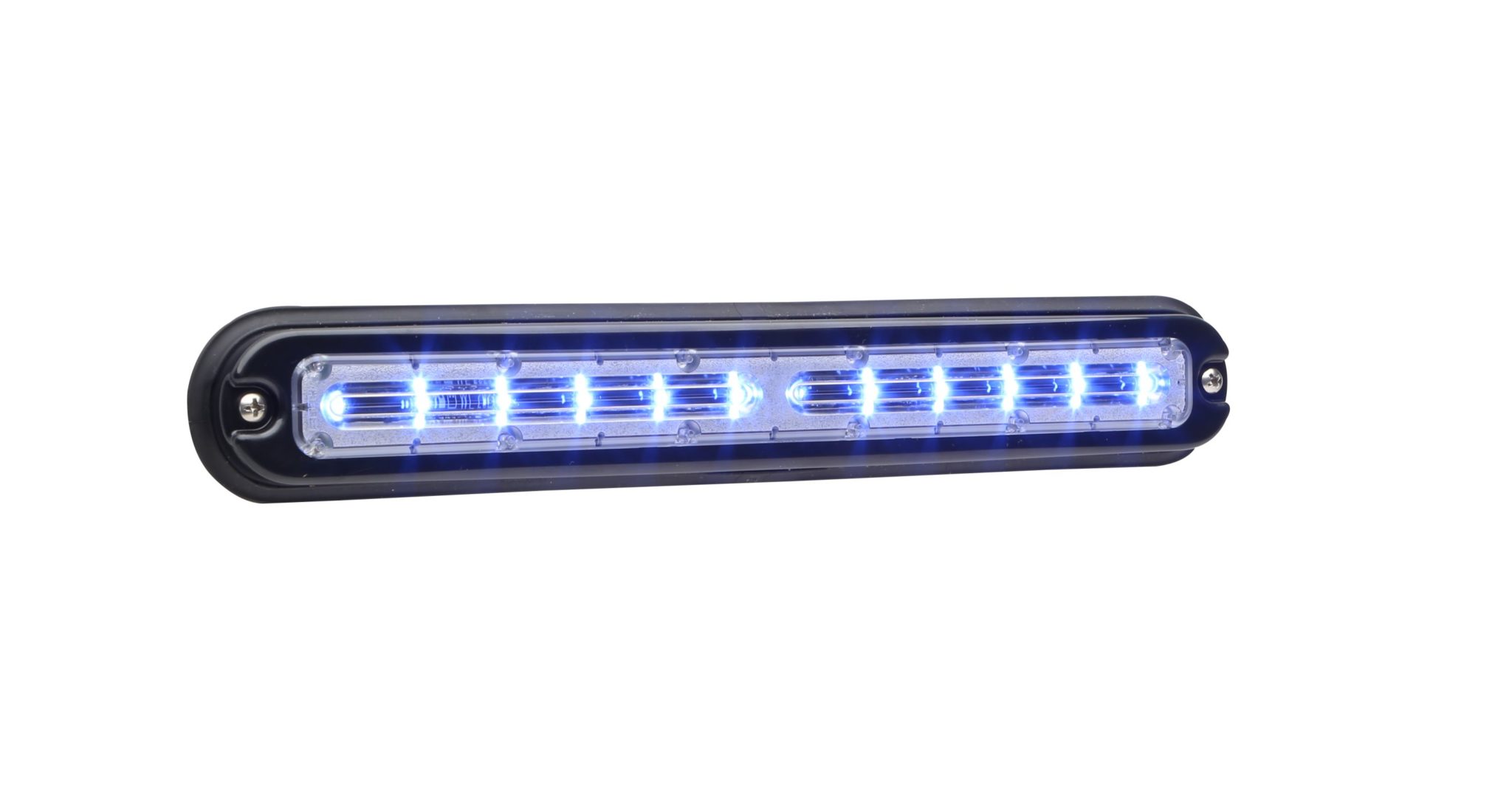

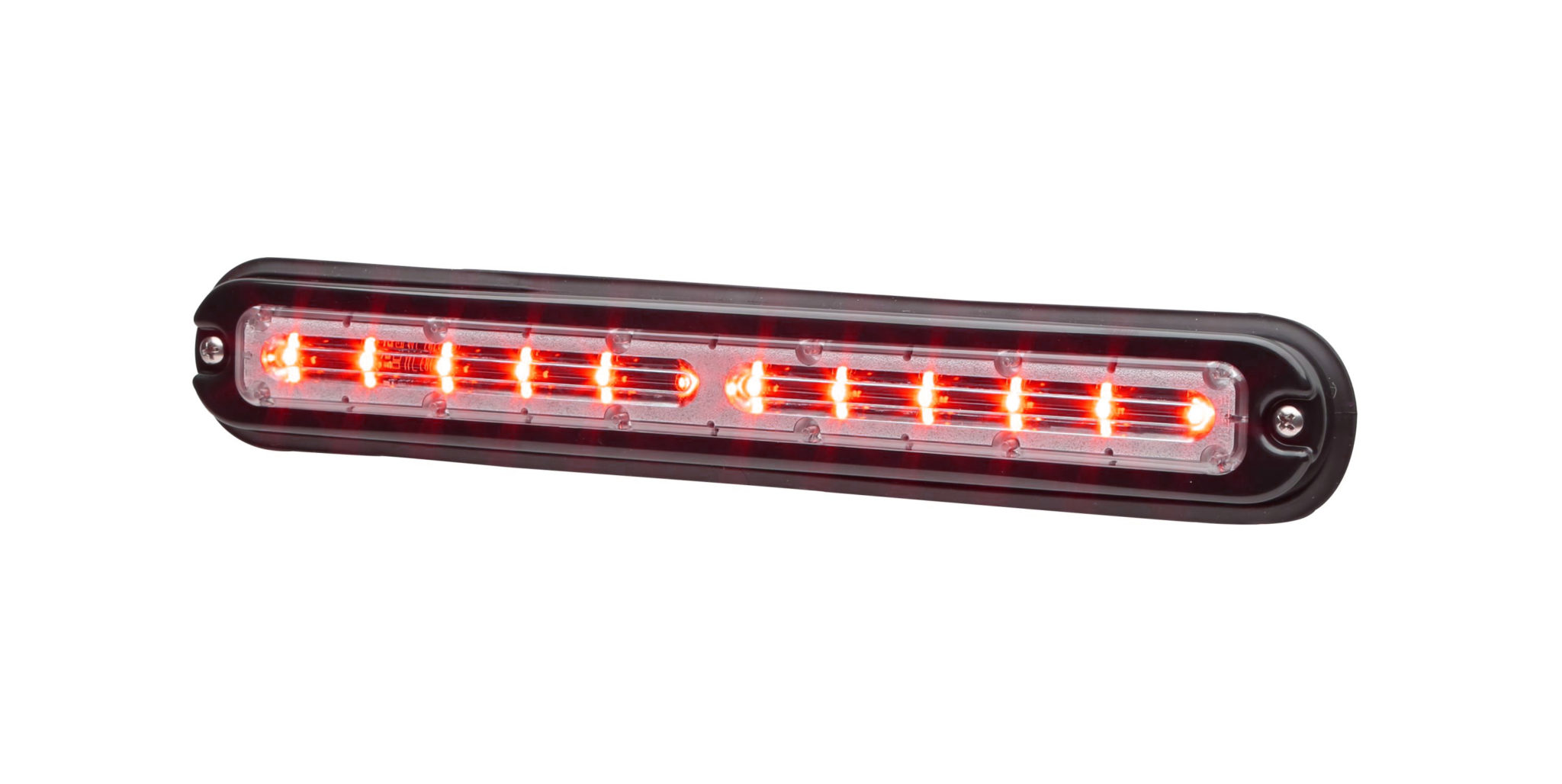

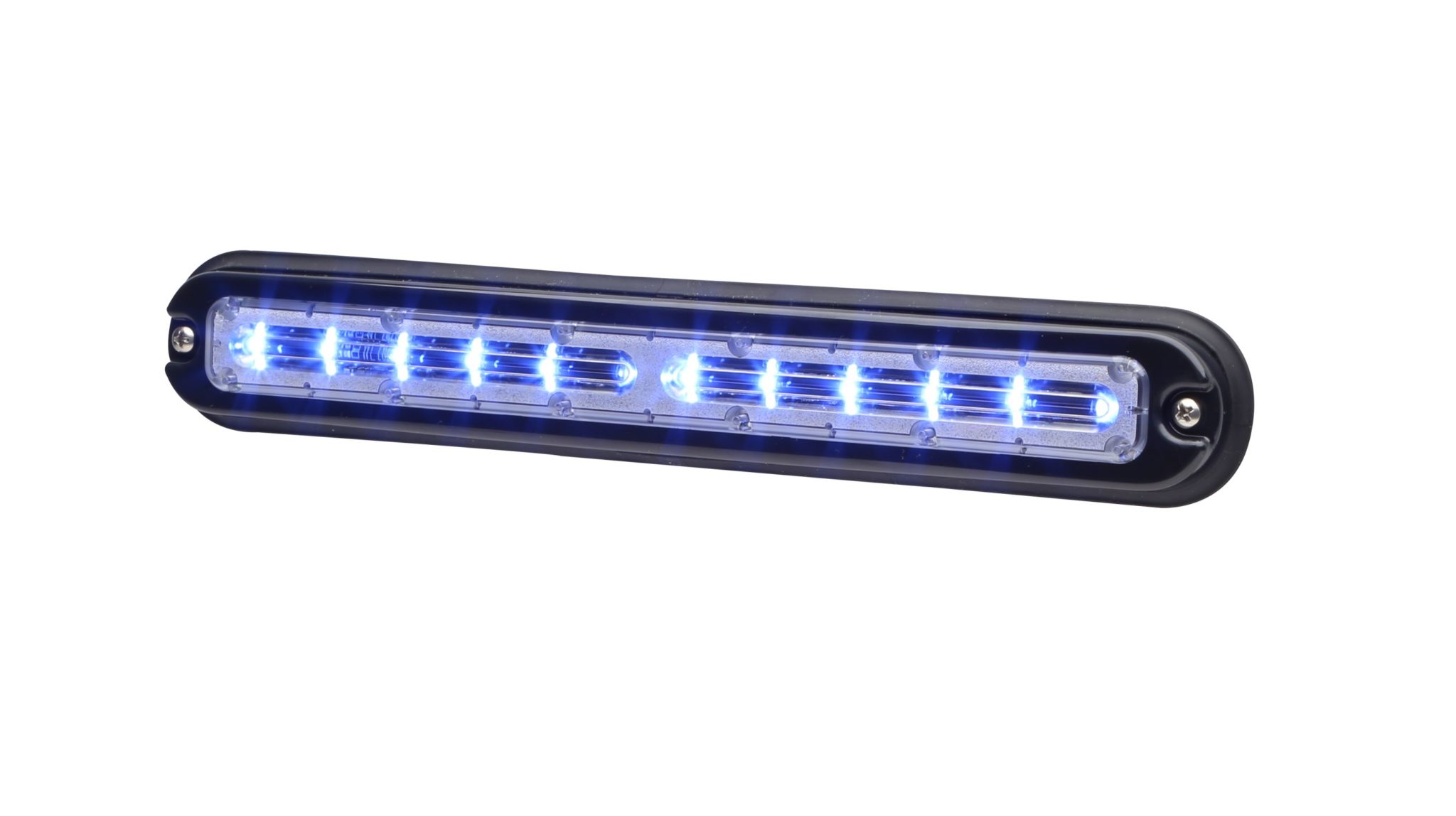

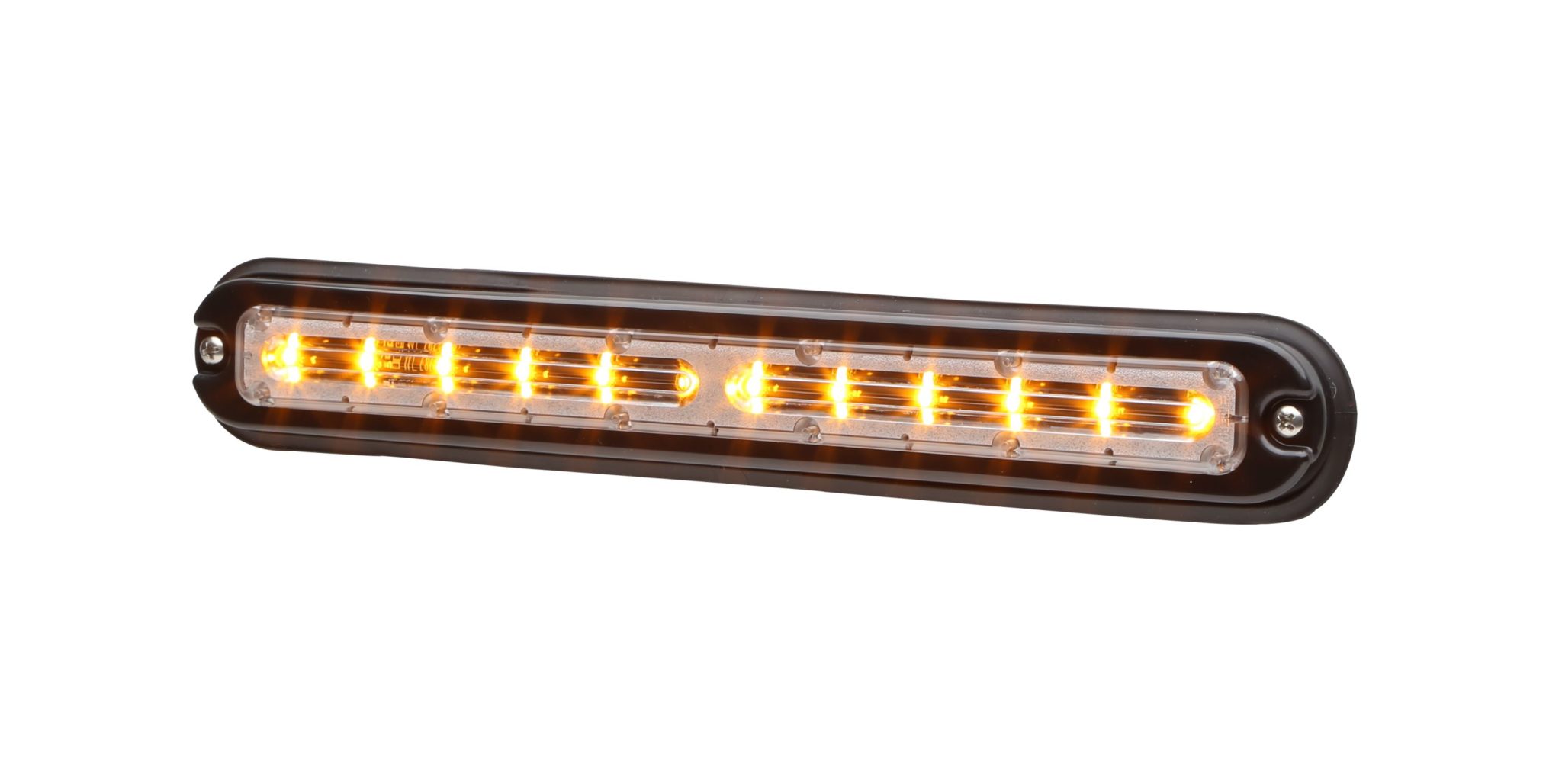

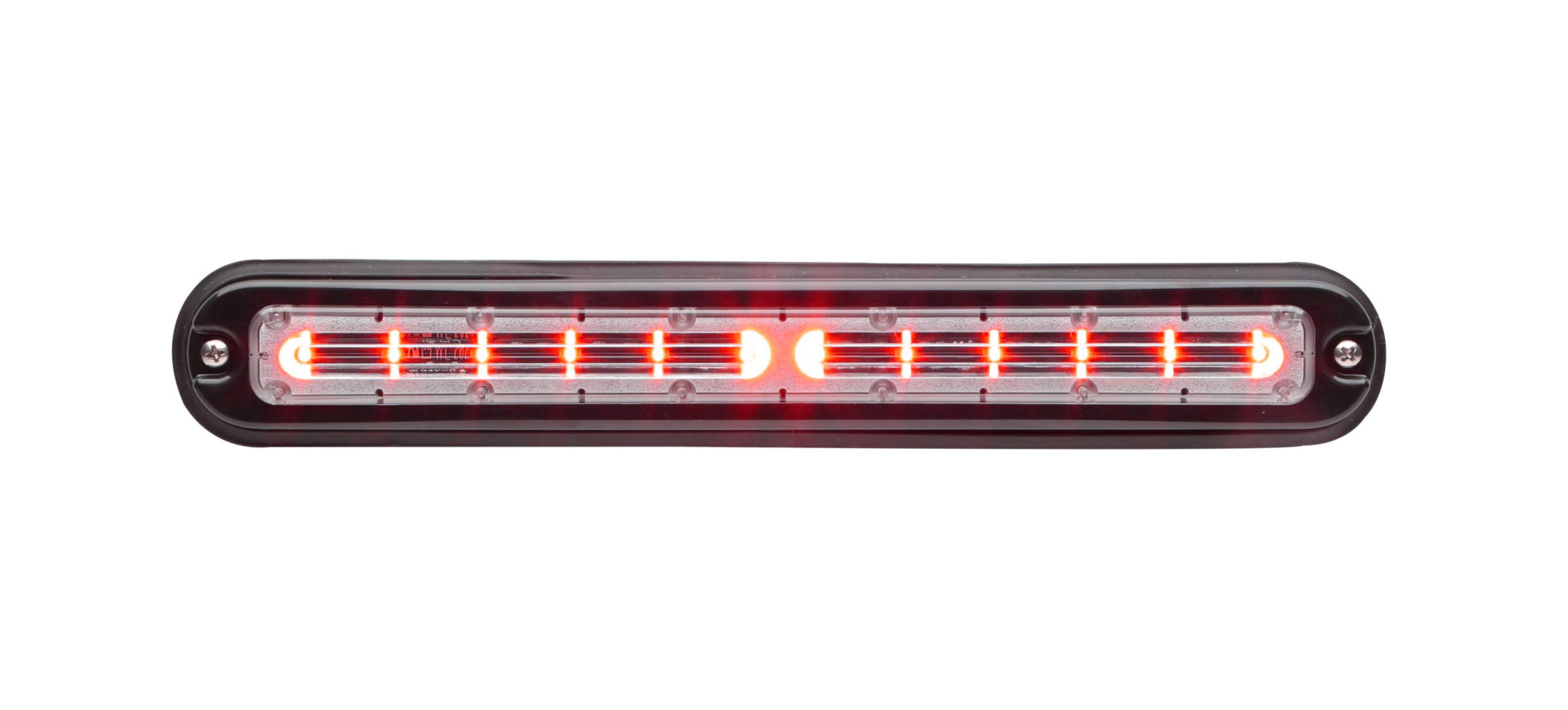

Warning Light:

Voltage	12 VDC
Amps	SOLO: 0.33 amps (average), 0.80 amps (peak) DUO: 0.33 amps/color (average, 0.80 amps/color (peak)
Flash Patterns	SOLO: 25 Scan-Lock® flash patterns, including steady-burn DUO: 69 Scan-Lock flash patterns, including steady-burn
Certifications	SAE Class 1 Certified IP67
Warranty	Five year warranty

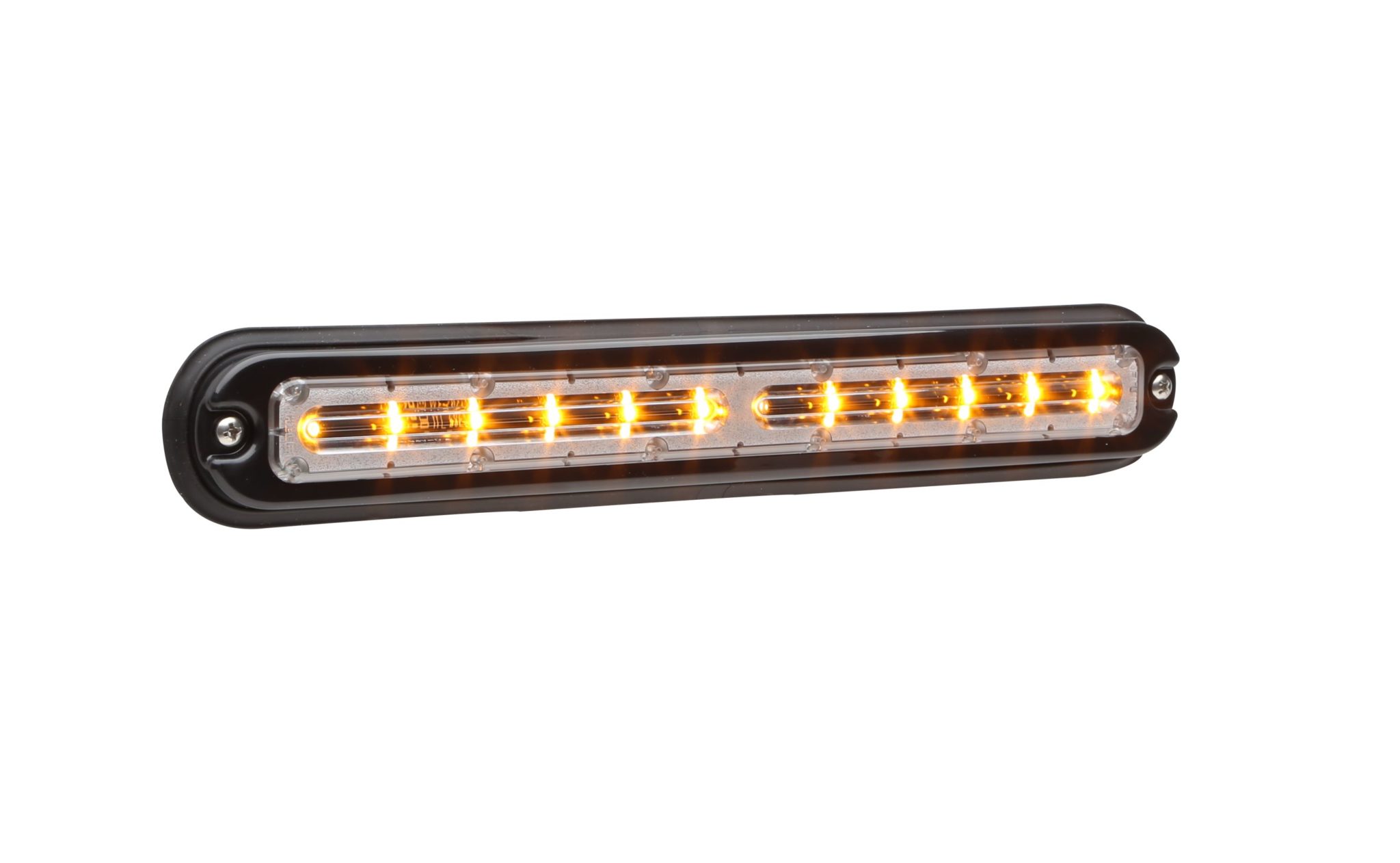

Sequencing Light:

*Voltage*	12 VDC
*Amps*	0.80 amps (average), 1.9 amps (peak)
*Flash Patterns*	6 Scan-Lock® sequencing patterns and 11 Scan-Lock flashing patterns
*Certifications*	IP67
*Warranty*	Five year warranty

Tank Light:

*Voltage*	12 VDC
*Amps*	0.80 amps (peak)
*Certifications*	IP67
*Warranty*	Five year warranty
