Federal Signal Micropulse Wide Angle

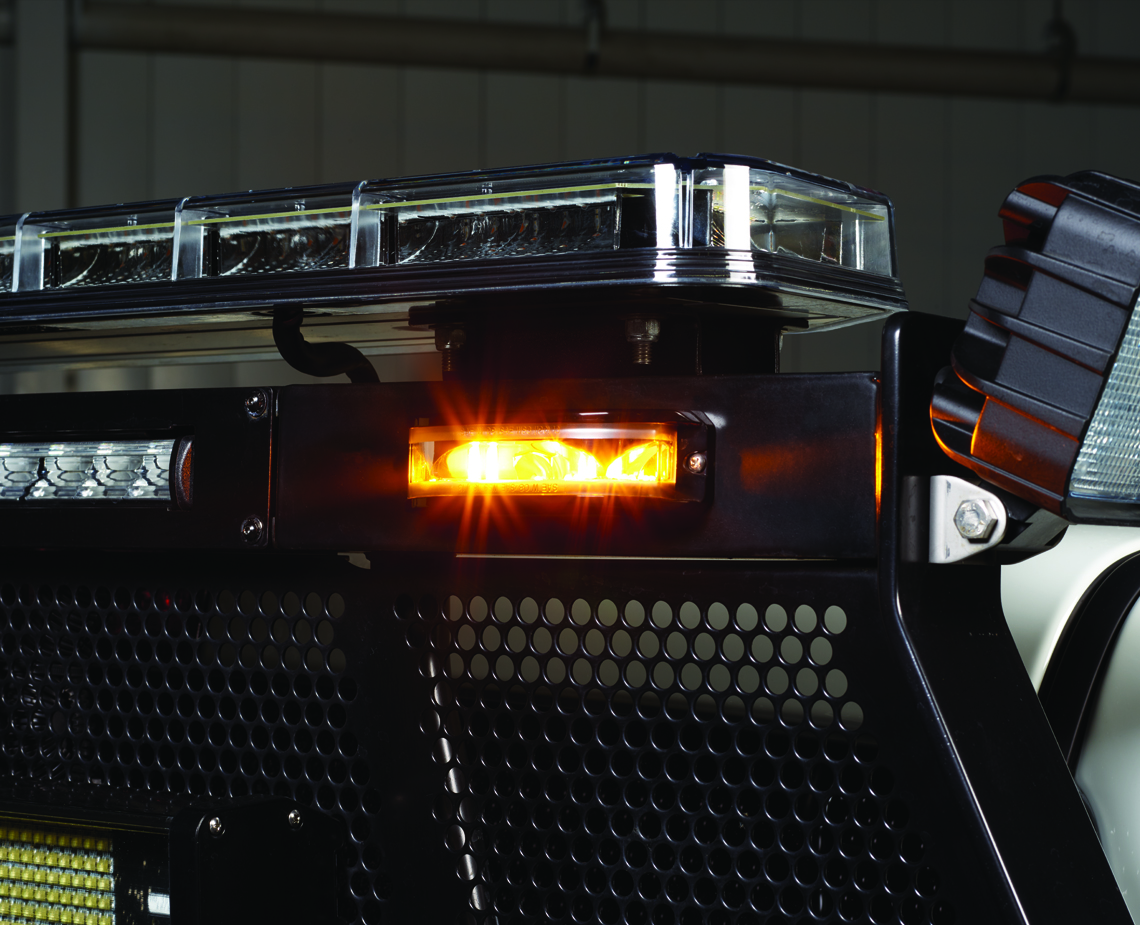

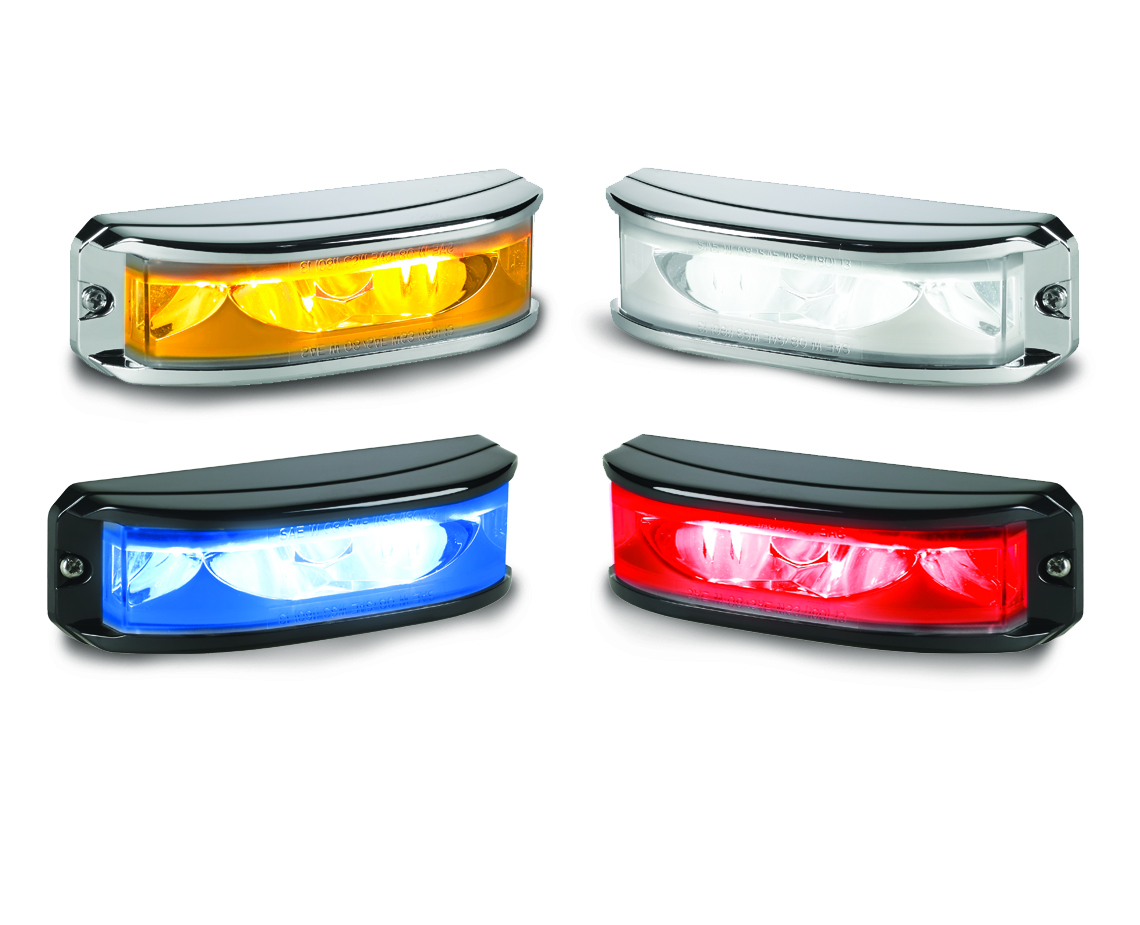

MicroPulse® Wide Angle"™s curve design and powerful LEDs provide an impressive 180-degree light spread. These perimeter lights are ideal for mounting on push bumpers, rub rails, side mirrors, and spoilers of first responder and work truck vehicles. MicroPulse Wide Angle models are available in Amber, Blue, Red, and White and in single-, split-, or dual-color combinations.
Category: Federal Signal
SKU: 20
Base Price:
Total Price:
Part Number:
Availability: Product must be ordered. Estimated lead time is expected to be 2-3 weeks.

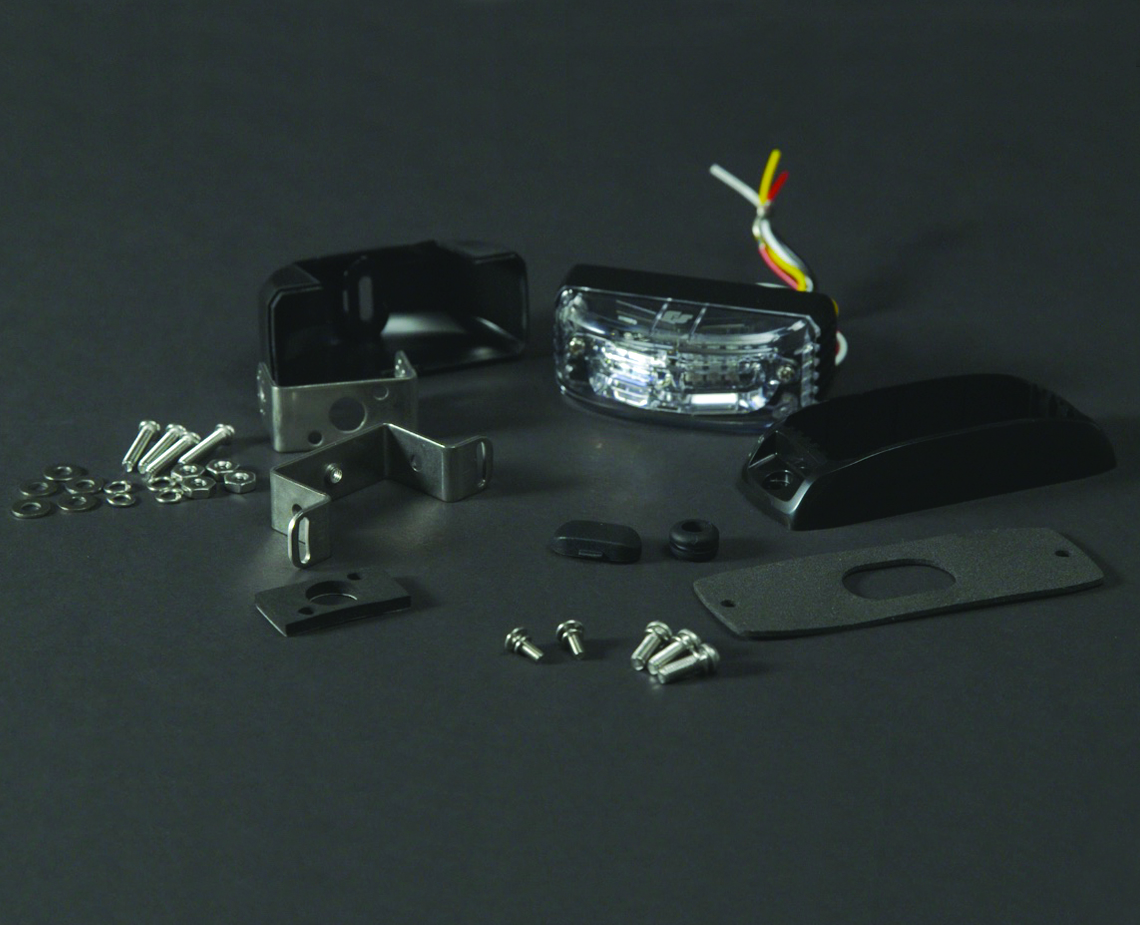

Notice:Looking for the Micropulse accessories or mounts? click here to be redirected to our Federal Signal Micropulse Accessories & Mounts page.
Features
Approvals:
- IP67 Certified
- CCR Title 14
MPSW9 Single-Color
- SAE J595 Class 1 (Amber, Blue, Red, and White)
- SAE J845 Class 1 (Amber, Blue, Red, and White)
- NFPA 1901 (Blue, Red, and White)
MPSW9 Dual-Color
- SAE J595 Class 2 (Amber, Blue, and White)
- SAE J595 Class 1 (Red)
- SAE J845 Class 1 (Amber, Blue, Red, and White)
- NFPA 1901 (Blue, Red, and White)
MPSW6
- SAE J595 Class 1 (Amber, Blue, Red, and White)
- SAE J845 Class 1 (Amber, Blue, Red, and White)
A Curved Shape and Powerful LEDs Provide an Impressive Off-Axis Light Spread
MicroPulse® Wide Angle"™s curve design and powerful LEDs provide an impressive 180-degree light spread. These perimeter lights are ideal for mounting on push bumpers, rub rails, side mirrors, and spoilers of first responder and work truck vehicles. MicroPulse Wide Angle models are available in Amber, Blue, Red, and White and in single-, split-, or dual-color combinations.
Highly Effective Warning Light
MicroPulse Wide Angle lights can be programmed to operate as a single unit or synchronize with multiple MicroPulse light heads. Built-in flash patterns enable multiple vehicle perimeter lights to be either synchronized in the same pattern or in opposite sequence.
MicroPulse Wide Angle Steady Burn models are intended to be flashed with the Pathfinder® Siren or other external flasher. The combination of the Steady Burn models and the Pathfinder Siren allows the Pathfinder to control lights around the vehicle by utilizing flash patterns in the siren, syncing and alternating light heads, and dimming light heads.
Built to Last

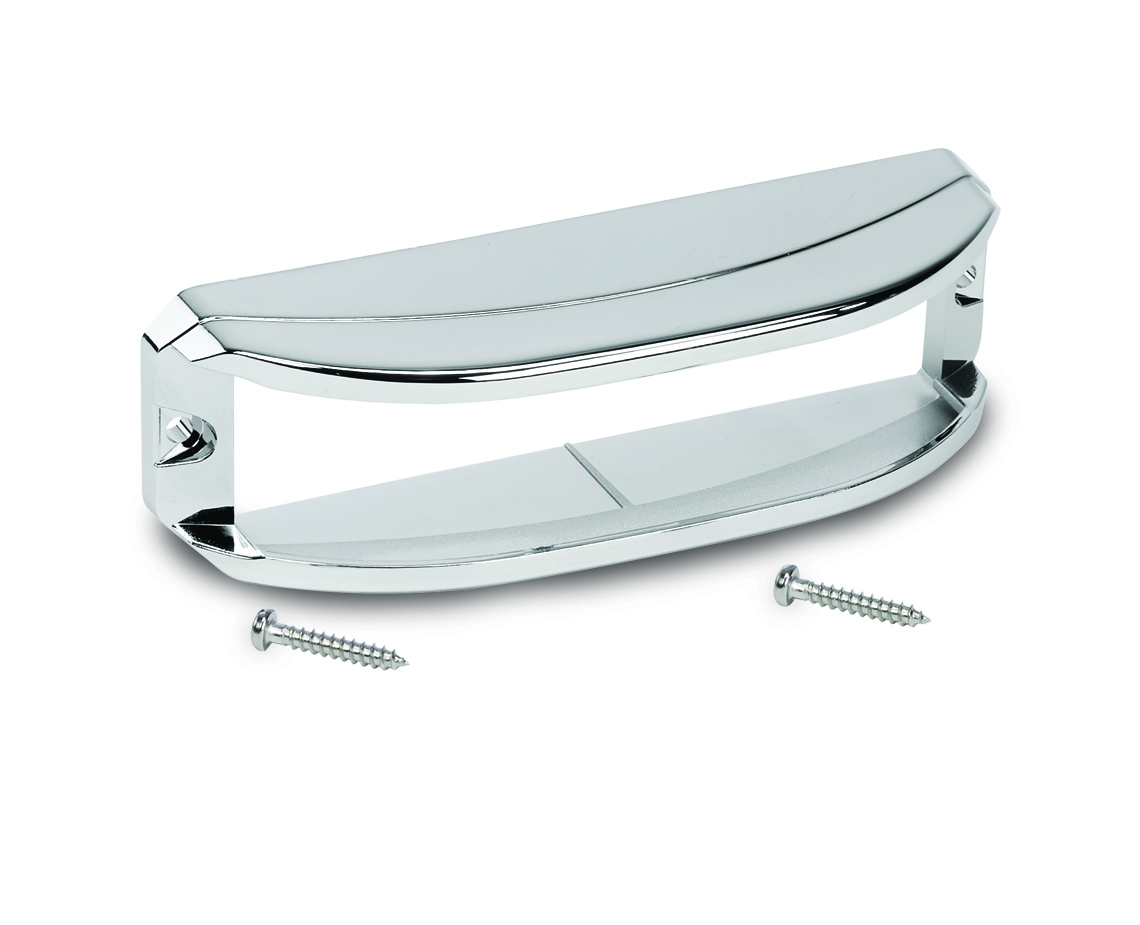

The MicroPulse Wide Angle Clear lens is made of UV-resistant polycarbonate to protect against harsh conditions. Models come standard with a Black bezel and are also available with an optional Chrome bezel.
FSJoin® Compatible
The MicroPulse Wide Angle Steady Burn models (MPSW9X) are compatible with Federal Signal"™s FSJoin programming feature.
Specifications
| MPSW9 (Single-Color) | MPSW9 (Dual-Color | MPSW6 (Sigle/Split) | |
| Voltage | 12/24 Vdc | 12 Vdc | 12 Vdc |
| Current Draw |
0.58 A @ 12 Vdc 0.28 A @ 24 Vdc |
0.6 A @ 12 Vdc | 0.8 A @12 Vdc |
| Operating temp |
-40˚ to 176˚ F (-40° to 80°C) |
-40˚ to 176˚ F (-40° to 80°C) |
-40˚ to 176˚ F (-40° to 80°C) |
| Physical Specs | ||||

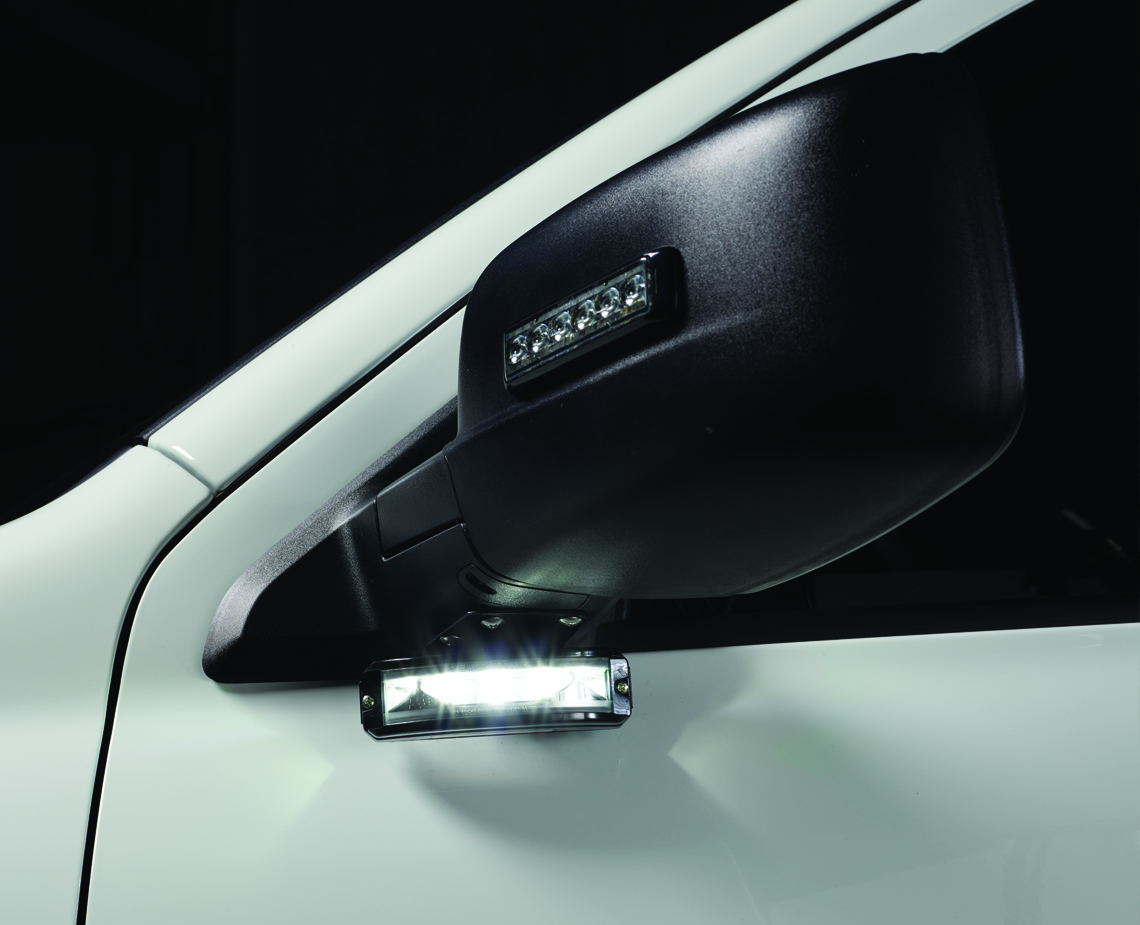

| Surface Mount | Surface Mount | Surface Mount | Under Side Mirror Mount | |
| Length | 5.0 in (12.8 cm) | 5.0 in (12.8 cm) | 3.8 in (9.7 cm) | 2.9 in (7.4 cm) |
| Width | 1.5 in (3.8 cm) | 1.48 in (3.8 cm) | 1.5 in (3.8 cm) | 2.6 in (6.6 cm) |
| Height | 1.5 in (3.8 cm) | 1.5 in (3.8 cm) | 1.4 in (3.6 cm) | 1.3 in (3.3 cm) |
| Ship Weight | ||||
| 0.5 lb (0.23 kg) | 0.42 lb (0.19 kg) | |||
