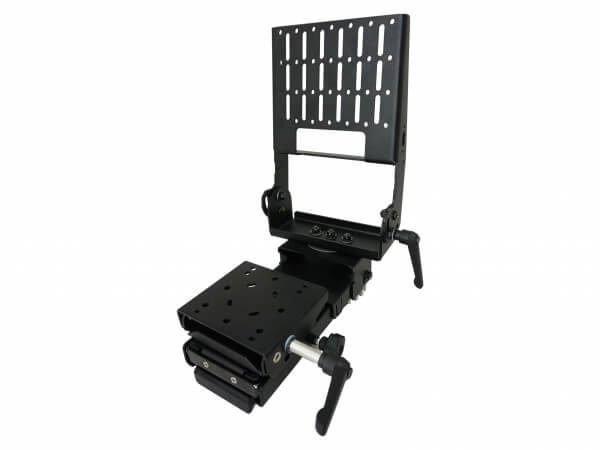

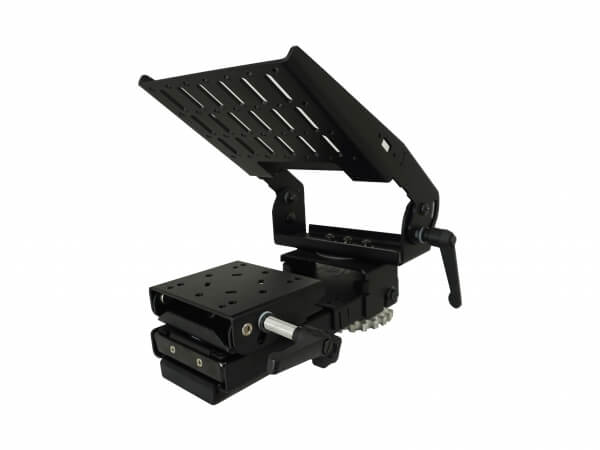

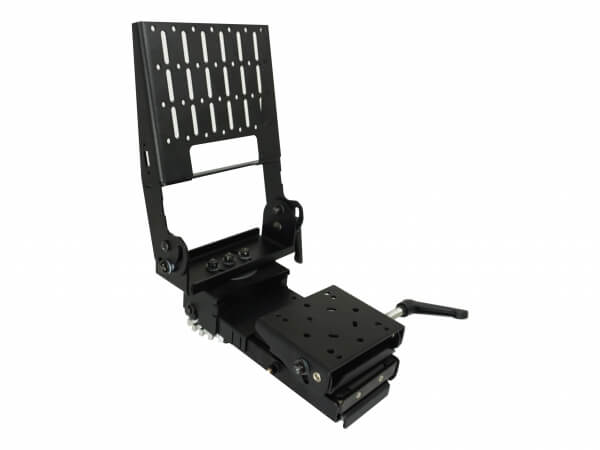

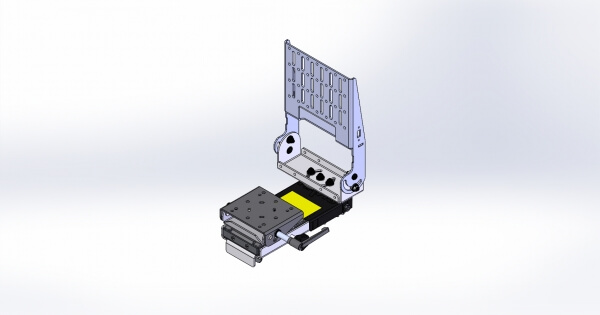

[C-MD-317] - Heavy-Duty Computer Monitor / Keyboard Mount and Motion Device
[Ptn: C-MD-317]
Visit the product manufacturers website: https://www.havis.com/product/C-MD-317/
Category: Havis
SKU: 1436
Base Price:
Total Price:
Part Number: C-MD-317
Availability: Product must be ordered. Estimated lead time is expected to be 2-3 weeks.
Files
No files for this product
- Pre-assembled package includes: C-MD-119 (C-MD-114 with C-MD-204 tilt swivel), C-ADP-110 (adapter) and C-UMM-103 (universal monitor mount)
- Slide out extension for keyboard of up to 3.3" (8.4 cm) if both monitor and keyboard extension is preferred see C-MD-318
- C-MD-204 includes VESA 75 and AMPS hole patterns
- C-KBM-1XX or C-KBM-2XX keyboard adapter's must be ordered separately if necessary
- Includes VESA 75 and AMPS (effective 5/31/14) hole pattern for many monitors or devices
- The C-MM-301 adaptors may still be required for some VESA 75 equipment depending on cable or mount hole locations
- C-MM-2XX / C-MM-3XX monitor adapters must be ordered separately if necessary
- Mounting pattern: 4 hole @ 2.125" square (1/4" Mounting hardware provided) to attach to a HDM pole or Havis consoles with forward mounting platform
- Mounts to C-HDM-200 Series poles
- Space saving solution allows additional equipment to be mounted in console
- Monitor has 90° side to side swivel for improved viewing angle
- Keyboard has 180° swivel for improved ergonomics
- Quick-release knobs for monitor and keyboard tilt control
- Front access control lever allowing for easy operation of entire arm rotation, and offering ergonomically supreme function
- Main swing arm with 180 deg horizontal rotation provides ergonomic positioning, securely locks rotation into place
